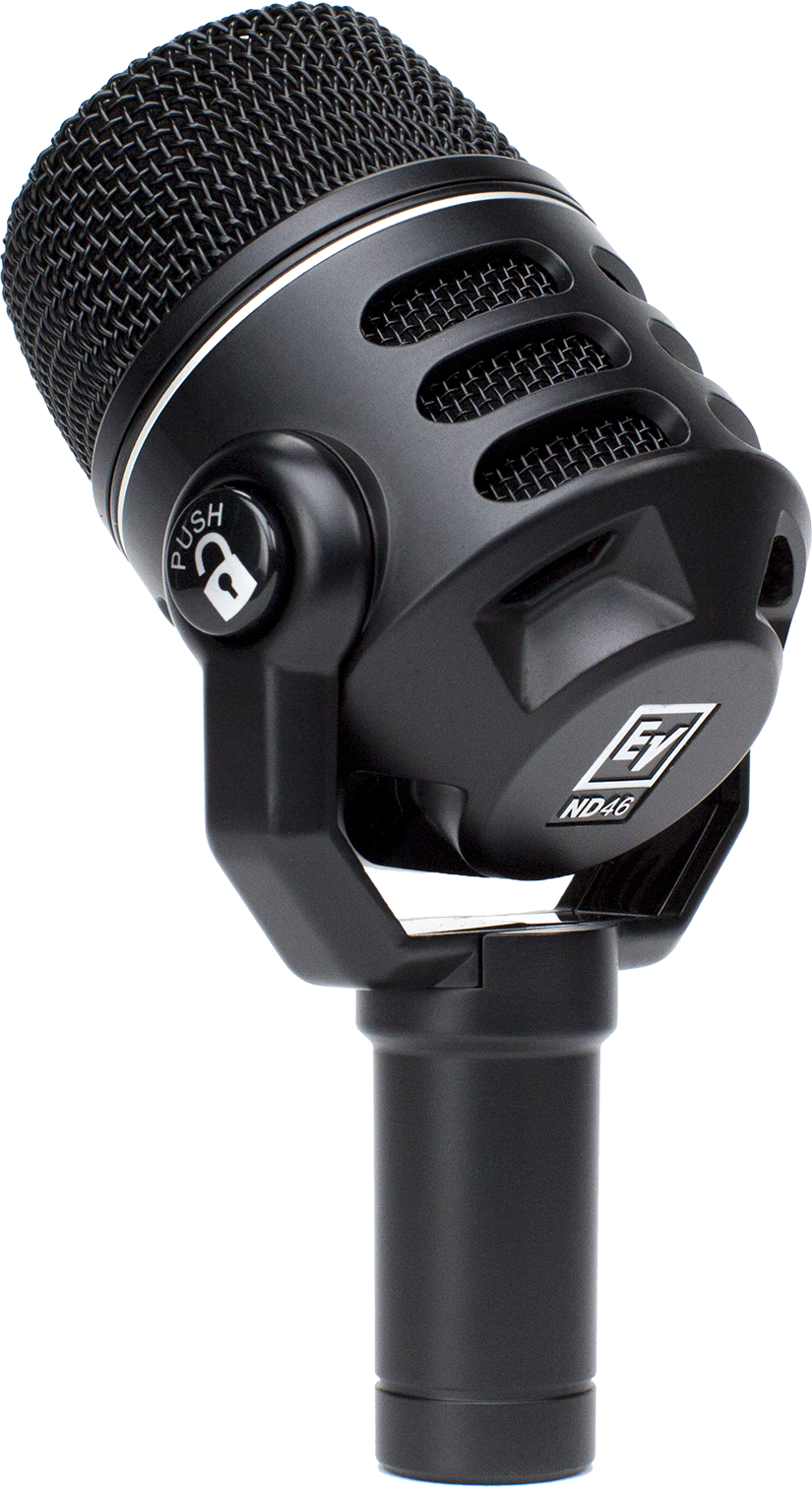

ND46是一款高品质且耐用的超心形大振膜动圈乐器话筒。ND46拾音器经过精确调试，提供鼓类或者各类通用乐器生动且平衡的声音，同时，出色的隔离周围乐器的声音。可锁定旋转话筒头让话筒的布置容易而且定位精确。
Specifications
| Connector Type | 3-pin XLR |
| Height | 144.1 |
| Weight Net | 0.309 |
| Shipping Weight | 0.584 |
| Family | ND Series |
| Finish | Black polyurethane paint |
Specifications | |
| Power Requirement | Passive |
| Audio Frequency Response | 70 – 18,000 |
| Maximum SPL | > 140 |
| Polar Pattern | Supercardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 56 |
| Element | Dynamic |
| Impedance, Low-Z balanced | 350 |
| Open Circuit Voltage | 2.4 |
| Case Material | Die cast zinc |
