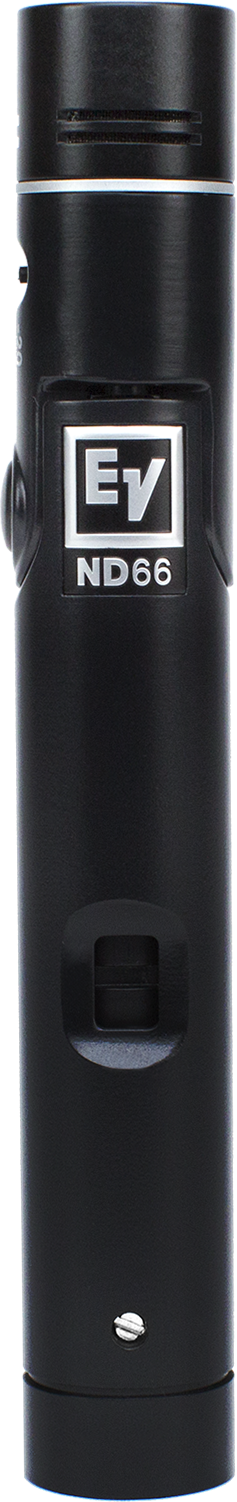

ND66
电容心形乐器话筒
- 高级小振膜电容元件
- 对需要很好的转换瞬态响应细节的声源，自偏置电容元件能提供生动保真的响应
- 纯净，清脆 、细节的电容音质
- 拾取锣鼓和弦乐器的所有细节
- 带锁定的旋转话筒头便于话筒摆放
- 满足多数话筒应用环境的理想选择，只需按下按钮、旋转话筒头到所需位置，松开按钮锁定
- 可选择的 -10dB和 -20dB衰减器
- 提供必要的增益衰减，避免话筒过载
- 可选择的75Hz 和150Hz 高通滤波器
- 可选的高通频率，有针对性的消除信号链路中的低频干扰
ND66是一款高品质且耐用的小振膜电容乐器话筒。其自偏置小振膜电容元件能栩栩如生地响应打击乐和弦乐乐器复杂的动态特性，提供纯净、清脆和细节的音质。利用ND66独有的带锁定旋转头设计，满足各种话筒应用环境，只需按下按钮、旋转话筒头到所需位置，松开按钮锁定。
Specifications
| Connector Type | 3-pin XLR |
| Height | 143 |
| Weight Net | 0.179 |
产品规格 |
|
| Shipping Weight | 0.465 |
| Family | ND Series |
| Case Material | Die cast zinc |
| Finish | Black polyurethane paint |
| Power Requirement | 48 VDC Phantom |
| Audio Frequency Response | 50 – 20,000 |
| Maximum SPL | 146 |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 21 |
| Element | Condenser |
| Impedance, Low-Z balanced | 200 |
| Open Circuit Voltage | 10 |
