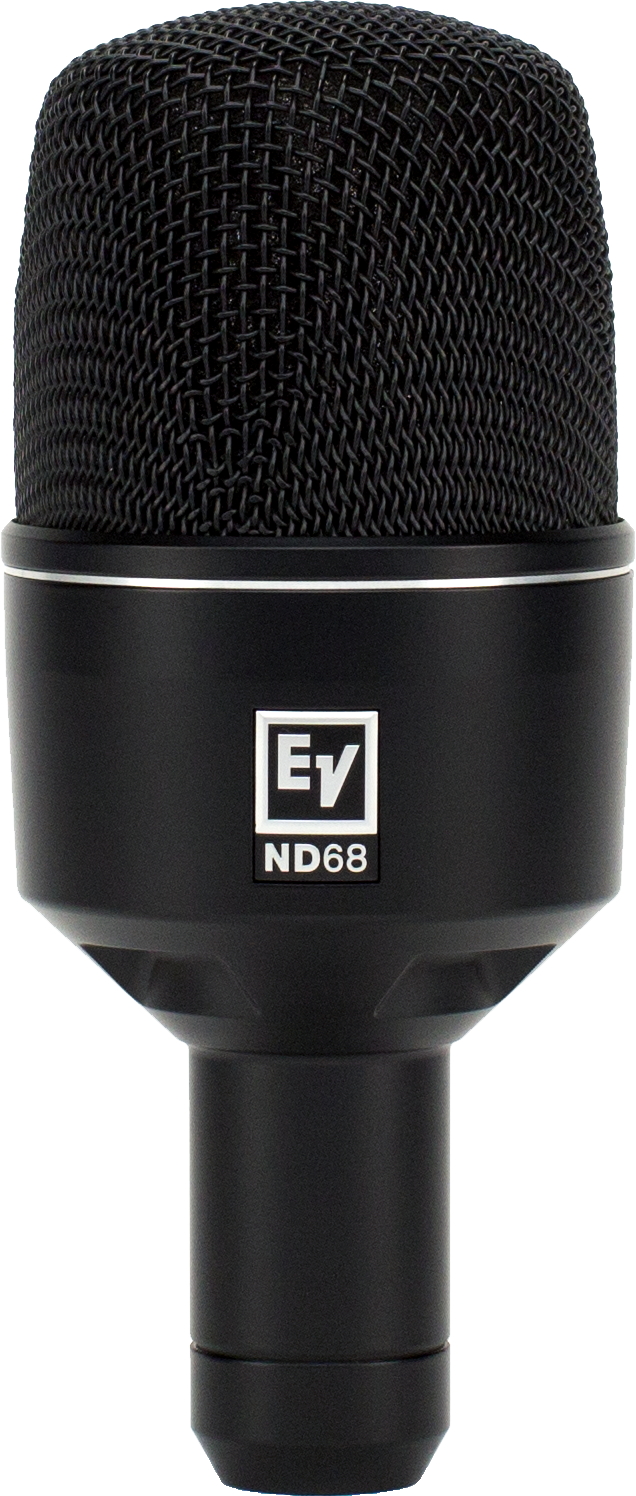

ND68是一款高品质且耐用的大振膜超心形动圈话筒,适用底鼓和低频乐器拾音。其超心形的指向特性提供与周围乐器出色的声学隔离,同时其音圈特性提供深度下潜的低频、松软的中频以及具有穿透力的高频。
Specifications
Connector Type | 3-pin XLR |
Height | 143 |
Weight Net | 0.374 |
Shipping Weight | 0.703 |
Family | ND Series |
Diameter (Max) | 60.8 |
Specifications |
Element | Dynamic |
Impedance, Low-Z balanced | 150 |
Open Circuit Voltage | 0.8 |
Case Material | Die cast zinc |
Finish | Black polyurethane paint |
Power Requirement | Passive |
Audio Frequency Response | 20 – 11,000 |
Maximum SPL | > 140 |
Polar Pattern | Supercardioid |
Wired/Wireless | Wired |
Mic Type | Instrument |
