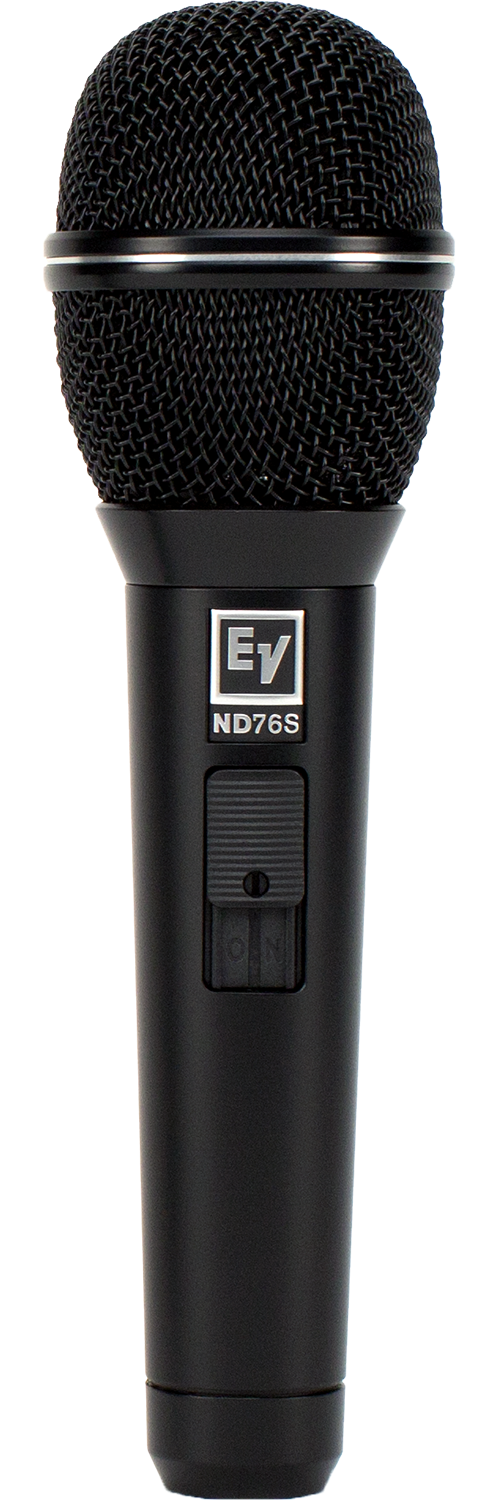

ND76S是一款高品质且耐用的大振膜心形动圈话筒，带一个开关键，用户可以根据实际使用的需要开关话筒。ND76S拾音器经过精确调音，提供清脆、清晰和平衡的人声，同时出色的隔离来自舞台的其他声音，满足需要出色人声包围感的应用。
Specifications
| Connector Type | 3-pin XLR |
| Height | 182.5 |
| Weight Net | 0.323 |
| Shipping Weight | 0.573 |
| Family | ND Series |
| Polar Pattern | Cardioid |
Specifications | |
| Wired/Wireless | Wired |
| Mic Type | Handheld |
| Diameter (Max) | 50.5 |
| Element | Dynamic |
| Impedance, Low-Z balanced | 350 |
| Open Circuit Voltage | 2.4 |
| Case Material | Die cast zinc |
| Finish | Black polyurethane paint |
| Power Requirement | Passive |
| Audio Frequency Response | 70 – 17,000 |
| Maximum SPL | > 140 |
Videos
下载
| Name | Language & Download |
|---|---|
| ND76S Engineering Data Sheet | en |
| Name | Language & Download |
|---|---|
| Audio 101 - Basic Audio Terminology | en |
| Audio 101 - Loudspeaker Basics | en |
| Audio 101 - Microphone Basics | en |
| Microphone Facts- Axial Response | en |
| PA Bible 03: Microphone Types | en |
| PA Bible 08: Microphone Techniques | en |
| PA Bible 15: Barrier Miking | en |
| The EV PA Bible | en |
| The PA Bible Chapter Zero | en |
