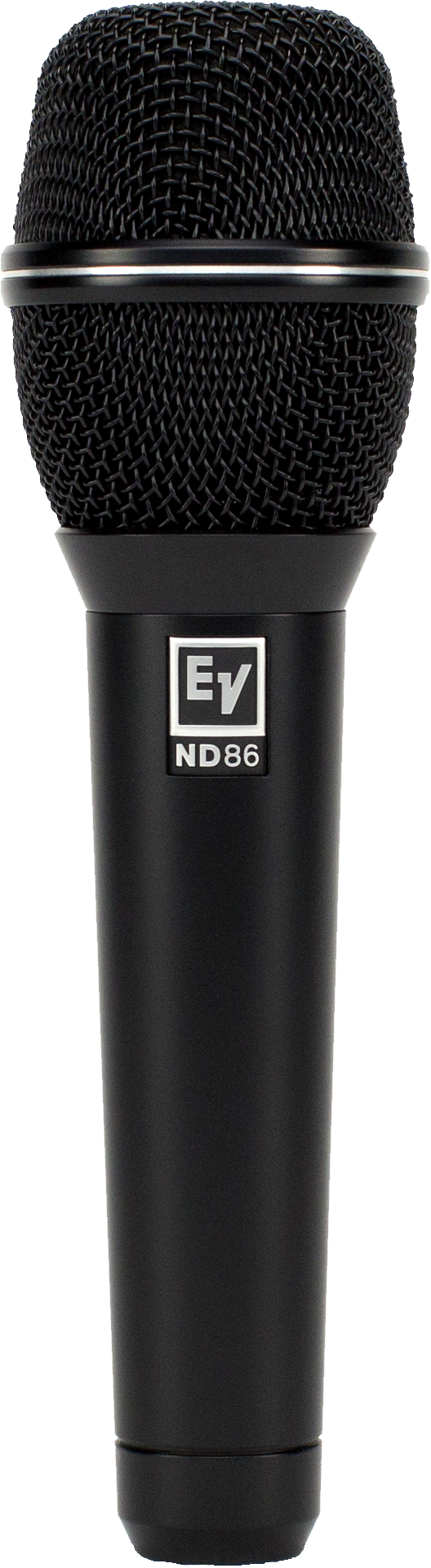

ND86

动圈超心形人声话筒

  • 出色的声学控制,即便是超大型的场馆应用
  • 通过高通滤波减少房间的低频特性,以及通过对关键高-中频段的提和切分离人声和舞台音染
  • 大振膜动圈话筒头
  • 实现饱满、细节的频率响应
  • 防震话筒头降低手持噪音
  • 防止低频噪声进入扩声系统
  • 哼声抑制线圈防止线路嗡嗡声
  • 无须担心在音箱和产生EMF的设备机柜旁使用
  • Memraflex 网罩防止碰撞
  • 耐用的紧密网罩可以承受非常粗鲁的使用

ND86是一款高品质且耐用的大振膜动圈超心形人声话筒。ND86拾音器经过精确调试,提供真实、平滑和细节的声音,同时出色的隔离来自舞台的其他声音,即便是在超大型的舞台也能实现出色的声音控制。

Specifications

Connector Type3-pin XLR
Height182.5
Weight Net0.326
Shipping Weight0.601
FamilyND Series
FinishBlack polyurethane paint

Power RequirementPassive
Audio Frequency Response70 – 17,000
Maximum SPL> 140
Polar PatternSupercardioid
Wired/WirelessWired
Mic TypeHandheld
Diameter (Max)50.5
ElementDynamic
Impedance, Low-Z balanced350
Open Circuit Voltage2.4
Case MaterialDie cast zinc
