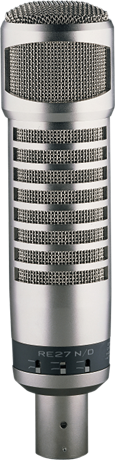

RE27N/D
广播播音话筒（采用variable-d设计）
- Variable-D设计，最小化近讲效应；钕磁体设计，将灵敏度有效提高6 dB；超平坦的频率响应；与录音棚电容话筒性能类似；三种滤波模式可调：-6 dB（250-100 Hz）、-12 dB（1000-100 Hz）和-3 dB（高频衰减）；一体式防风和爆破音过滤器
RE27N/D是高性能钕磁体广播级话筒。多功能使用的RE27N/D在人声和乐器拾音时具有出色的清晰度和厚度，这一特点使其深受全球各地录音室和现场音响师的欢迎。
Specifications
| Connector Type | 3-pin XLR |
| Height | 217 |
| Frequency Response (-3 dB) | 45 - 20,000 Hz |
产品规格 |
|
| Weight Net | 0.709 |
| Family | RE Series Live Performance |
| Element | Dynamic |
| Impedance, Low-Z balanced | 150 |
| Open Circuit Voltage | 2.5 |
| Case Material | Steel |
| Finish | Satin Nickel |
| Power Requirement | Passive |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Vocal/Instrument |
| Diameter (Max) | 54 |
