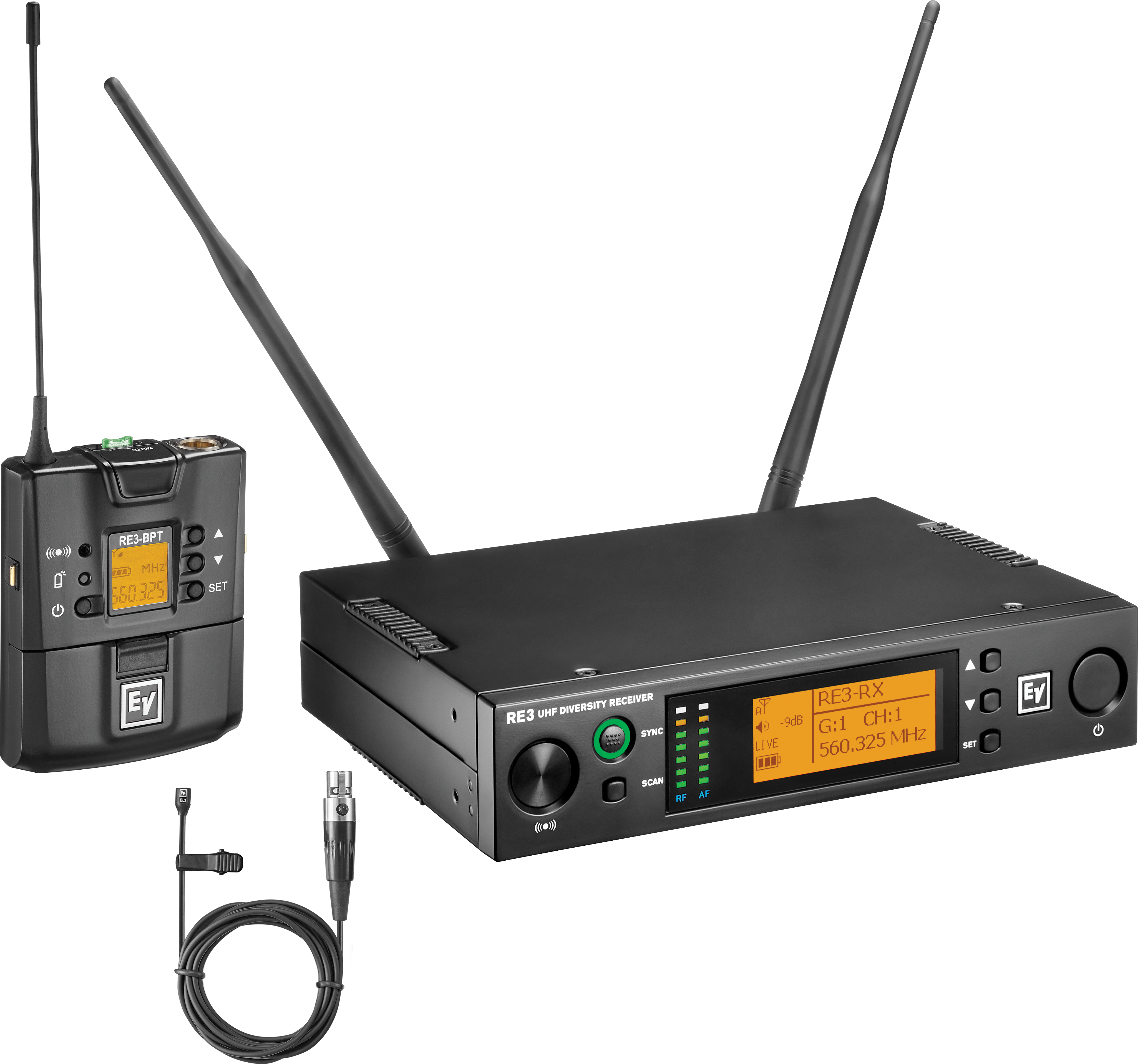

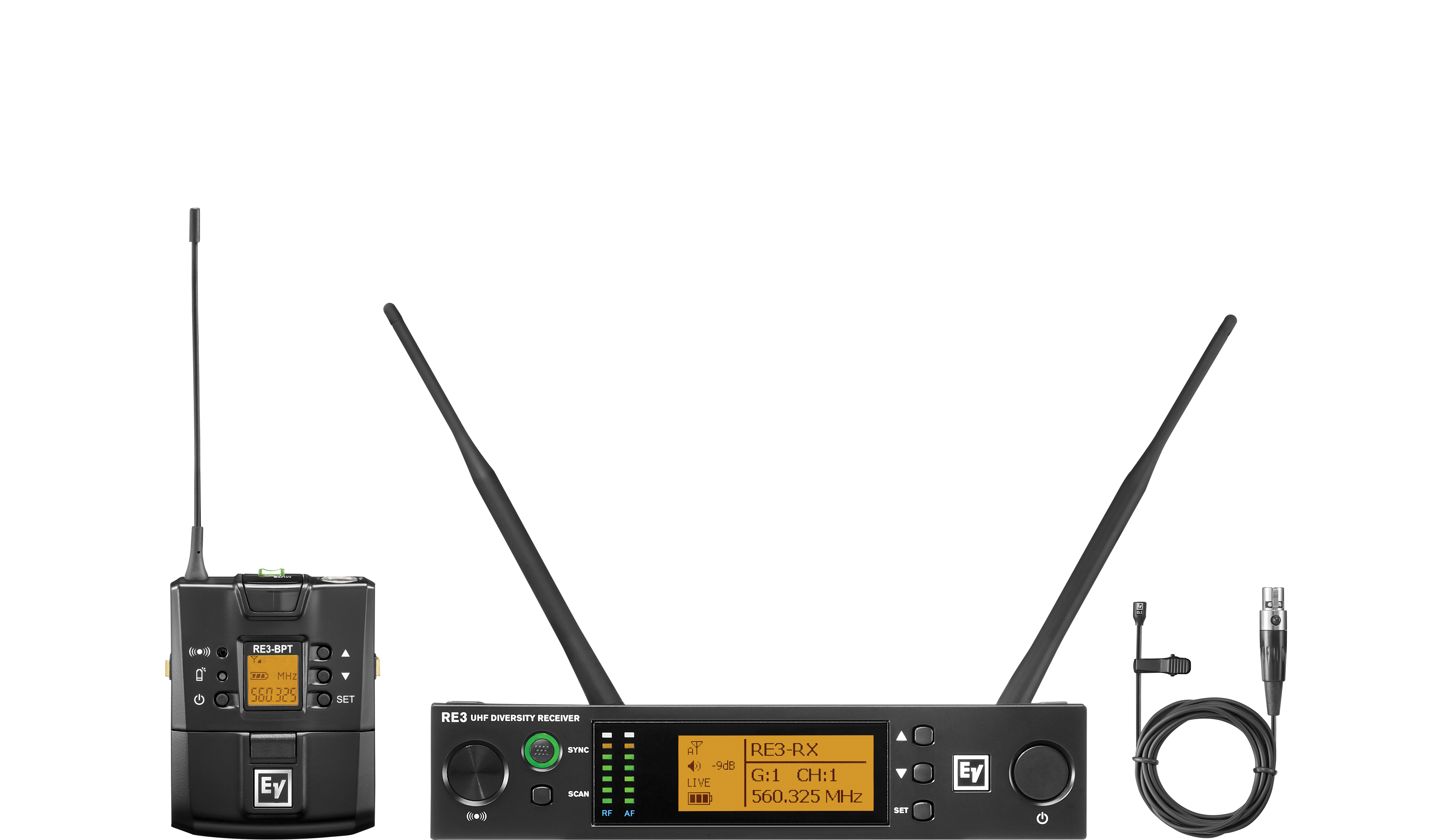

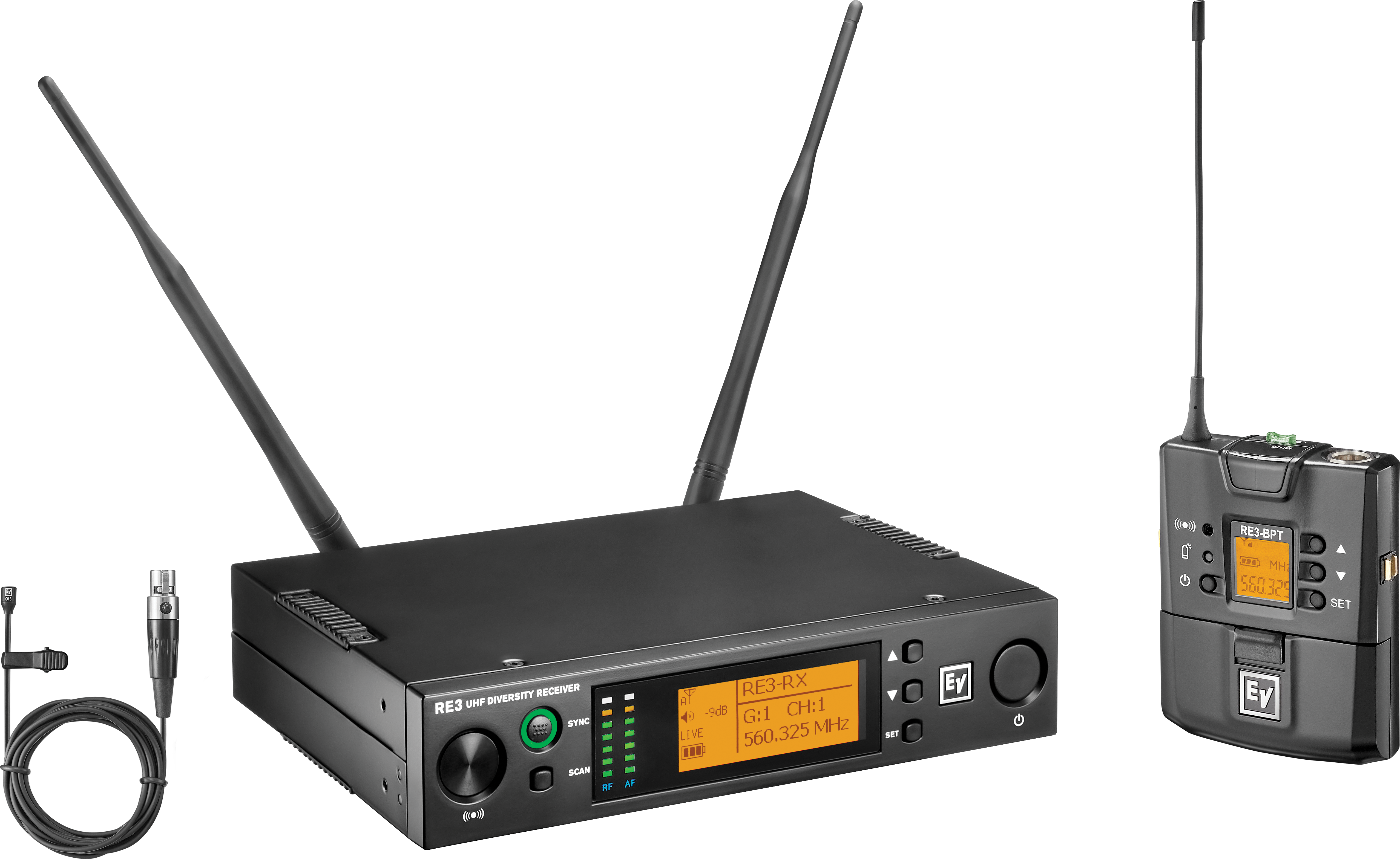

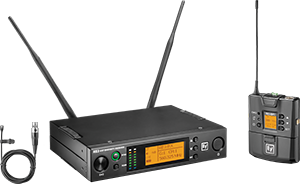

RE3-BPOL

UHF wireless set featuring OL3 omnidirectional lavalier microphone

Bodypack UHF wireless set featuring OL3 omnidirectional lavalier microphone for voice performance and presentations. The OL3 delivers an open and natural sound even when the user is turning their head side-to-side, and its low-profile design eliminates unsightly presence other larger sized lavaliers present.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

Components of the set:

OL3 Omnidirectional Lavalier Microphone

Small and unobtrusive low-profile design
Omni-directional polar pattern delivers an open and natural sound
No proximity effect
Wide dynamic range and frequency response
Clothing clip holds microphone securely and attaches easily to garments
Learn more

RE3-BPT Bodypack Transmitter

Robust metal body
Sync function for easy frequency setup
Selectable low and high output power (band specific)
Up to 36 MHz tuning bandwidth (band specific)
Unique magnetic latch and lock for easy access to batteries
Learn more

RE3-RX Diversity Receiver

Diversity reception minimizes dropouts
Frequency scanning for selecting open frequencies
Sync function links transmitter to receiver for easy setup
Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
Easy-to-read LCD display
Learn more

Other Components

Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity

BAND DETAILS
Band name	5L	5H	6M	8M	T
Bandwidth limits (MHz)	488 – 524	560 – 596	653 – 663	823 – 832 863 – 865	803 - 806
Tuning bandwidth	36 MHz	36 MHz	10 MHz	11 MHz	3 MHz
Selectable frequencies	1440	1440	400	440	120
Transmit output power (mW)	10 and 50	10 and 50	10 and 20	10	10 and 50
Coverage	Global	Global	Global	Select Europe	Thailand only
