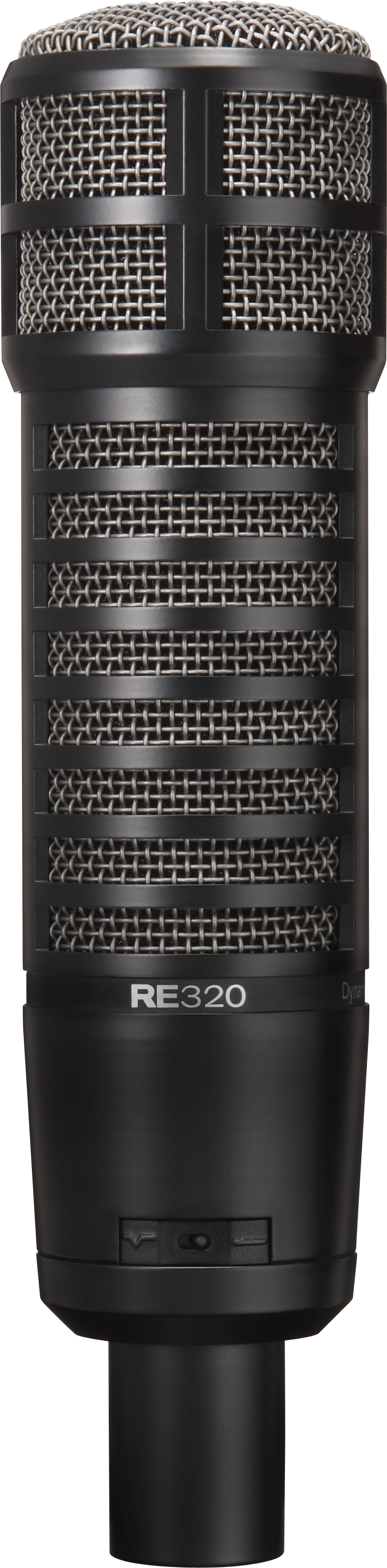

RE320是专业级动圈话筒，专为要求噪声极低且语音电平和瞬态响应高的录音和扩音应用而设计。RE320是拾取人声和各种电声乐器的理想产品，它在细节表现能力、动态范围和重现自然声音方面无可比拟。RE320独有的“双个性”开关可在一个话筒中体现出两种不同的话筒风格。一个开关位置用于针对人声、电声乐器拾取生动而又不失自然的声音，而另一个开关位置则用于针对“即时踩踏”的地鼓而特设。
Specifications
| Connector Type | 3-pin XLR |
| Height | 216.7 |
| Weight Net | .681 |
| Frequency Response (-3 dB) | 30 - 18,000 Hz (kickcurve), 45 - 18,000 Hz (generic curve) |
| Family | RE Series Broadcast |
| Polar Pattern | Cardioid |
Specifications | |
| Wired/Wireless | Wired |
| Mic Type | Instrument/Vocal |
| Diameter (Max) | 49.2 |
| Element | Dynamic N/Dym Magnet Structure |
| Impedance, Low-Z balanced | 150 |
| Open Circuit Voltage | 2.5 |
| Case Material | Metal |
| Finish | Semi gloss black |
| Power Requirement | None |
