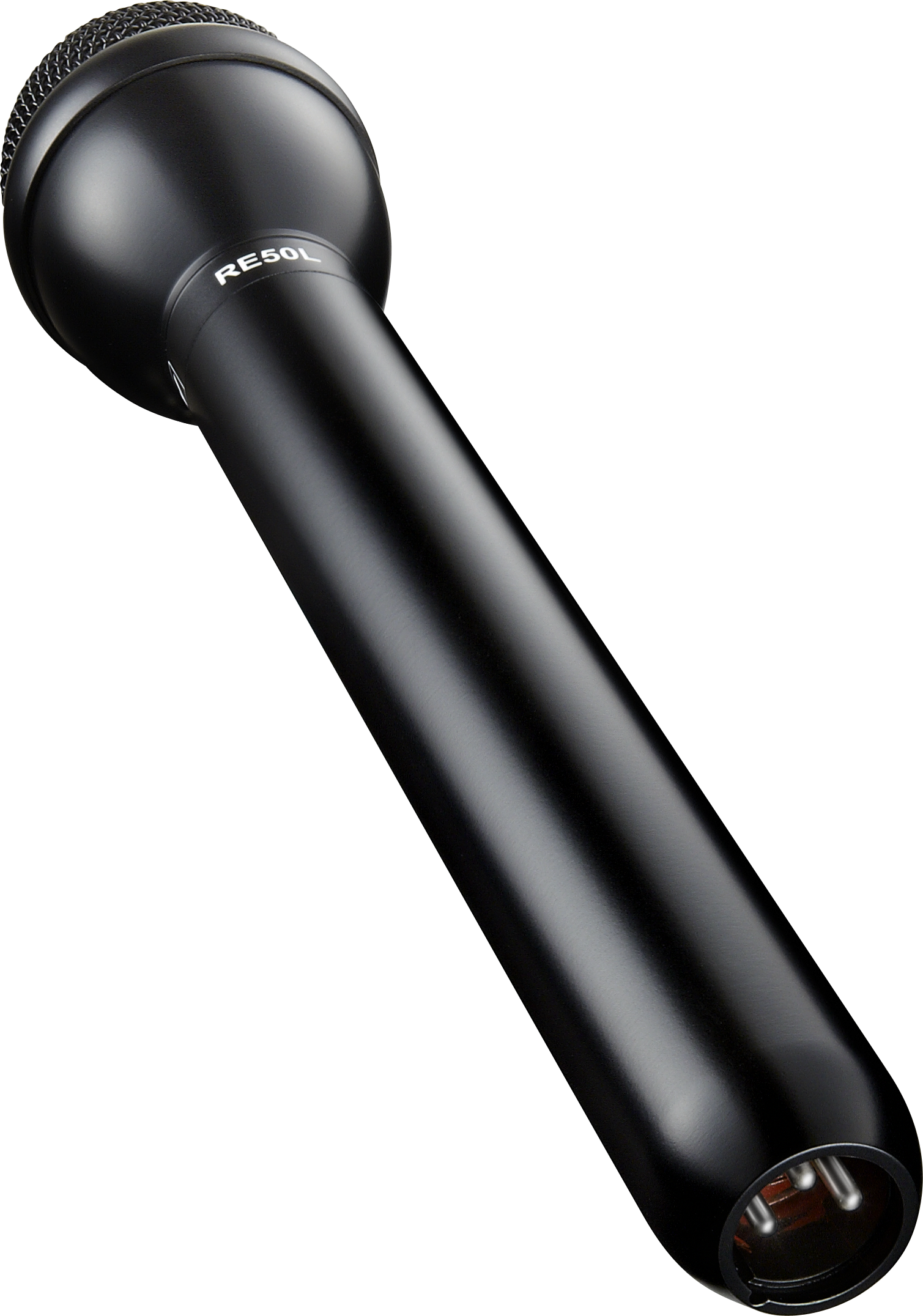

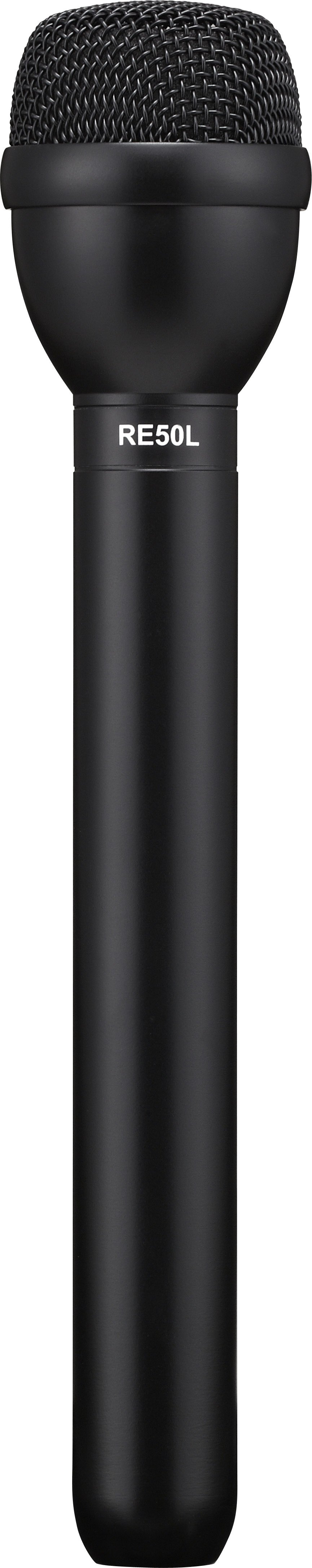

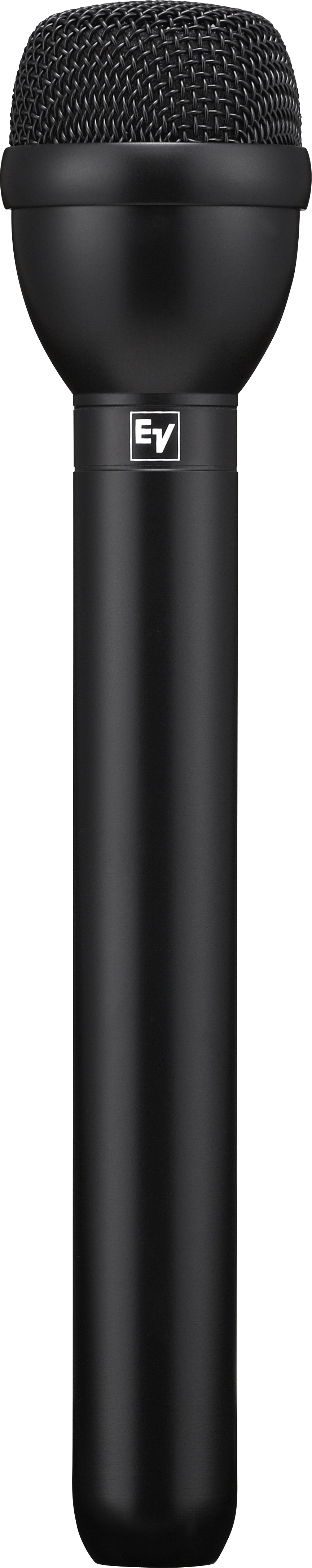

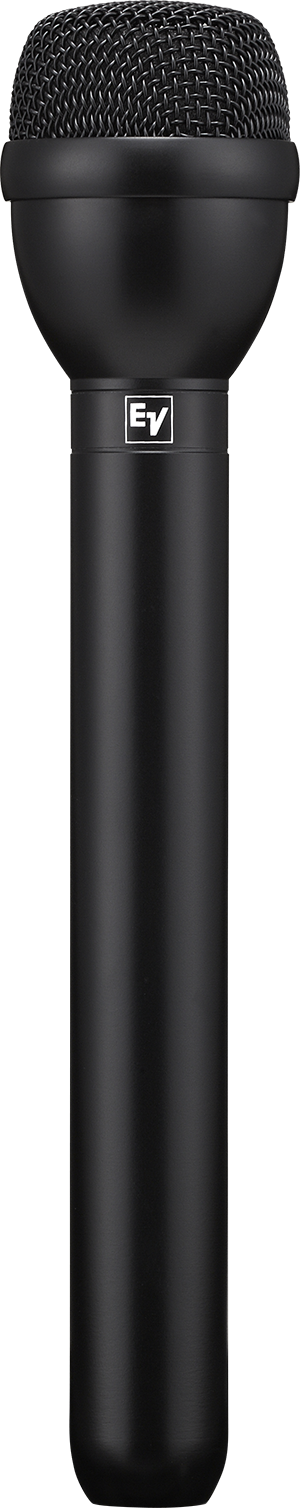

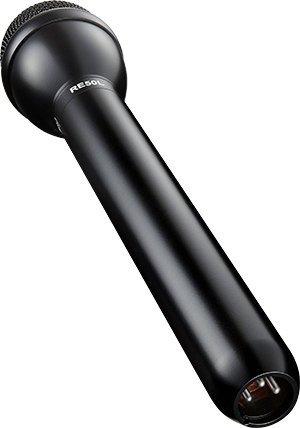

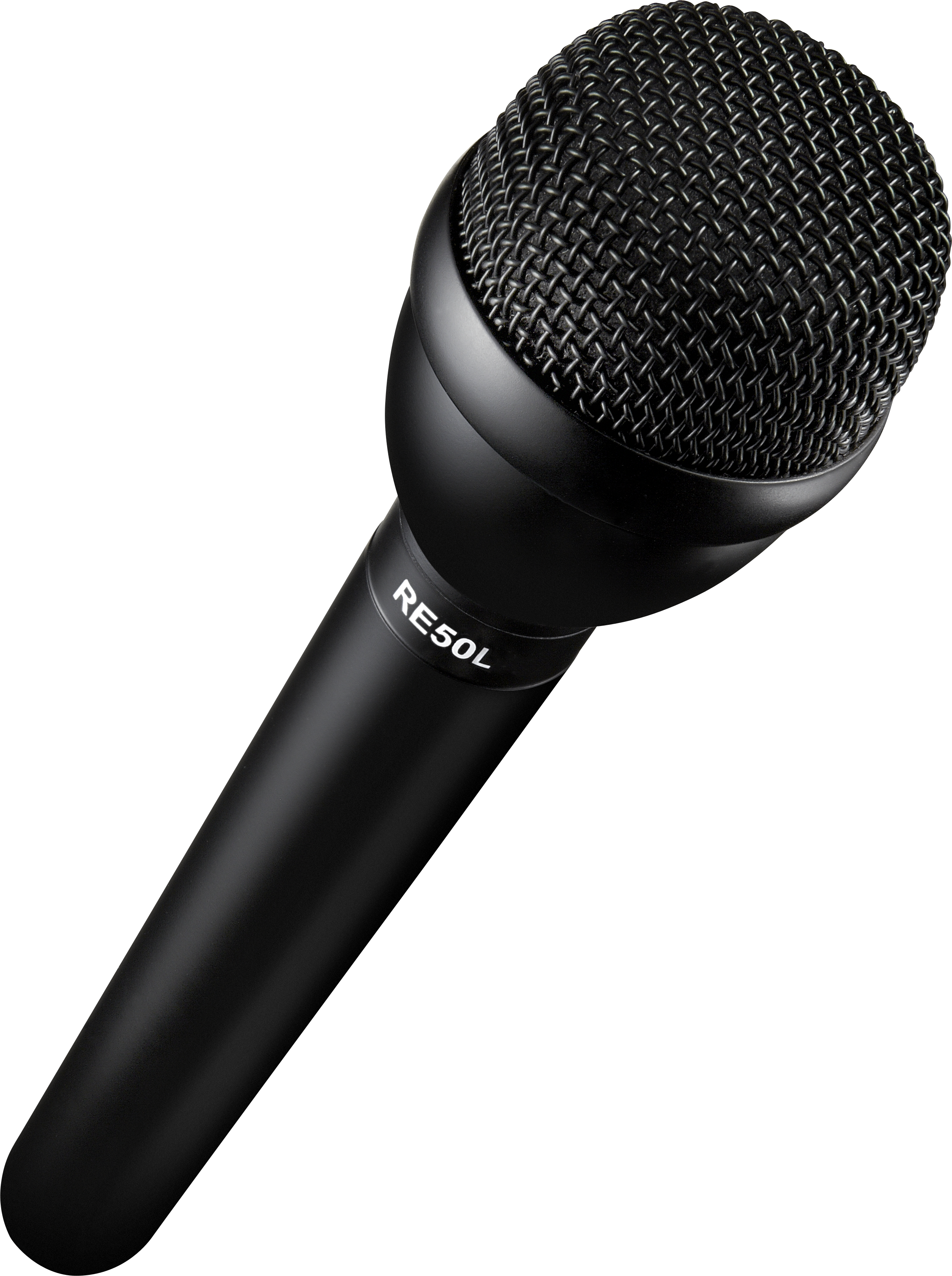

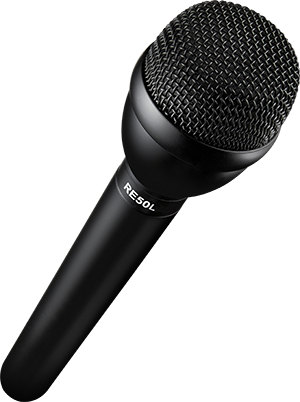

RE50L

长柄手持采访话筒

  • 总长9.5英寸
  • 全指向性
  • 动圈话筒
  • 通过Dyna-Damp“mic in-a-mic”防震系统，降低操作噪音
  • 通过其四级弹出式过滤器防止风噪声和p-pops
  • 耐高温，极端温度和腐蚀性盐雾

RE50L将非常流行且耐用的手持采访话筒RE50B 的手柄升级到9.5英寸，在继承RE50B声学性能的同时，还增加了长柄话筒的使用便捷性，让记者的手不出现在镜头中

Specifications

Connector Type3-pin XLR
Height242
Weight Net0.306
Frequency Response (-3 dB)80 - 13,000 Hz
FamilyRE Series Broadcast
Polar PatternOmni

Mic TypeHandheld
Diameter (Max)49
ElementDynamic
Impedance, Low-Z balanced150
Open Circuit Voltage1.8 mV/Pascal
Case MaterialAluminum
FinishSemi-Gloss Black
Power RequirementPassive
