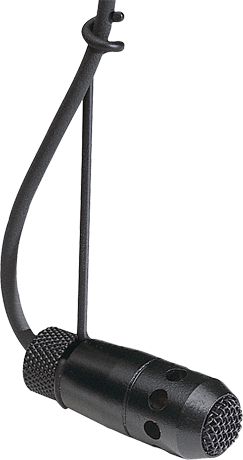

RE90H
心形悬吊式话筒
- 悬吊安装话筒；内置前置放大器；极为均匀的指向性；集成25’屏蔽低噪电缆
紧凑型悬吊式电容话筒。合唱、乐器和人声组合以及剧院现场演出的理想之选。心形指向性可控，适用于远距离拾音，没有反馈。25’编织屏蔽电缆，内置前置放大器。有白色型号（RE90HW）可供选择。
Specifications
| Connector Type | 3-pin XLR |
| Height | 37 |
| Frequency Response (-3 dB) | 75 - 15,000 Hz |
产品规格 |
|
| Weight Net | 0.157 |
| Family | RE Series Installation |
| Element | Condenser (back-electret) |
| Impedance, Low-Z balanced | 200 |
| Open Circuit Voltage | 27 |
| Case Material | Steel |
| Finish | Non-reflective black or white |
| Power Requirement | 9 - 52 VDC |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Hanging |
| Diameter (Max) | 13 |
