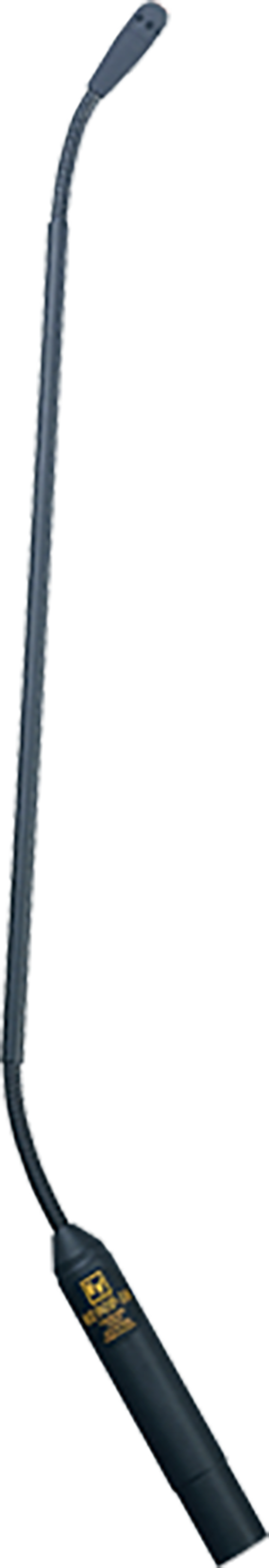

RE90P
心形指向鹅颈话筒
- 双鹅颈式讲台话筒；均匀的频率响应和指向性；可塑性超薄挠性鹅颈
RE90P双鹅颈式讲台话筒，音质出色，性能卓越，是性价比超高的一款产品。此类鹅颈式话筒具备EV高性能话筒RE90振膜腔和内置前置放大器的特点，能满足专业音响承包商对音质和可靠性的全部要求。有12”和18”两种型号。
Specifications
| Connector Type | 3-pin XLR |
| Height | 281 |
| Frequency Response (-3 dB) | 70 - 15,000 Hz |
产品规格 |
|
| Weight Net | 0.244 |
| Family | RE Series Installation |
| Diameter (Max) | 6.4 |
| Element | Condenser (back-electret) |
| Impedance, Low-Z balanced | 200 |
| Open Circuit Voltage | 4.5 |
| Case Material | Steel |
| Finish | Non-reflective black |
| Power Requirement | 9 - 52 VDC |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Gooseneck |
