RE920
号乐和乐器话筒
- 单指向性号乐/鼓乐话筒；后驻极体电容话筒；通过TA4F连接头可接线；平滑的音频响应，高声压级处理能力；可定制乐器夹，以安装固定在各种乐器上；对于XLR接线情况，可与TXA前置放大器组合使用

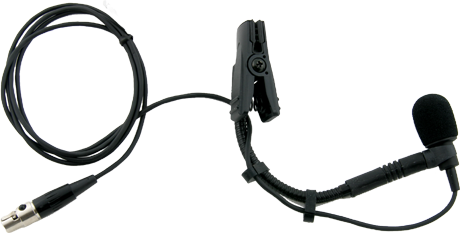

RE920Tx是心形电容话筒，通过专门设计的乐器安装夹组件以无线方式拾取乐器声。虽然其接线端子是用于EV和Telex腰包发射器的TA4F连接头，但也可以通过接线来额外增加TXA XLR式前置放大器。
Specifications
| Connector Type | TA4F |
| Maximum SPL (1% THD) | 148 |
| Height | 158 |
产品规格 |
|
| Weight Net | 0.54 |
| Frequency Response (-3 dB) | 80 - 18,000 Hz |
| Family | RE Series Live Performance |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 24 |
| Element | Condenser (back-electret) |
| Impedance, Low-Z balanced | 1000 |
| Open Circuit Voltage | 1.3 |
| Case Material | Metal |
| Finish | Non-reflecting Black |
| Power Requirement | 5 VDC (via optional bodypack) |
