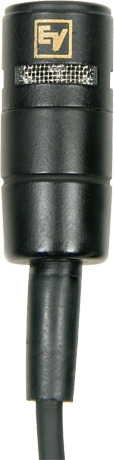

RE92L

心形领夹式话筒

  • 宽广平滑的频率响应；心形指向性；超低噪声电容振膜腔；4"电缆，接线端内置前置放大器，分频斜率为12 dB/倍频程，开关式高通滤波器和XLR输出

RE92L是专业级微型心形驻极体电容领夹式话筒。它音质出色，外形小巧，是教堂、广播、演讲或剧场拾音的完美选择。接线端子为三针XLR。

Specifications

Connector Type3-pin XLR
Maximum SPL (1% THD)135
Height10.5
Weight Net0.160
Frequency Response (-3 dB)40 - 20,000 Hz
FamilyRE Series Installation

Speech
Polar PatternCardioid
Wired/WirelessWired
Mic TypeLavalier
Diameter (Max)24
ElementCondenser (back-electret)
Impedance, Low-Z balanced250
Open Circuit Voltage5.6
Case MaterialMetal
FinishNon-reflective black
Power Requirement24 - 52 V Phantom
Current Consumption6 mA
Specialsexternal preamp
