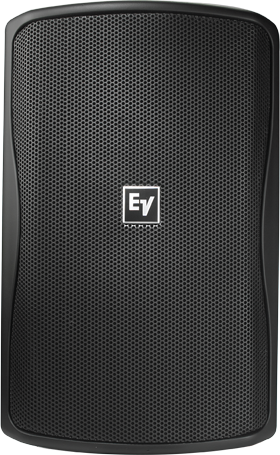

ZX1i

8"两分频组合室内/外用系统

  • EV8L全天候型低频驱动单元;DH2005真正的压缩驱动器;两种覆盖范围:100 x 100和90 x 50;适用于室内外全天候使用;使用“Clickn’ Mount”Quick SAM吊装件,安装范围更大,带4针Phoenix型连接头;专用变压器型号,满足多种安装需求选择

ZX1i的音频性能和多功能性一如既往,实为一款安装便捷,包装坚固的专业扩声新标准扬声器。

Specifications

Frequency Range (-10 dB)48 - 20000
WeatherizedYes
FlyingYes
Minimum Impedance6
HF TransducerDH2005 1-in Exit True Compression Driver
Speaker TypeFull-Range, Mid-High, Two-Way

Woofer Size8
Powered or PassivePassive
Frequency Response (-3 dB)¹60 - 20000
Max. SPL/1m (calc)²123 (90x50), 121 (100x100)
Coverage (Nominal -6 dB) H90/100
Coverage (Nominal -6 dB) V50/100
LF TransducerEV8L 8-inch Weatherized Cone
Power Rating800
System Power Handling (Continuous/Program/Peak)200/400/800
Rotatable HornYes
Crossover Frequency1700
Enclosure MaterialHigh Impact Polystyrene Composite
GrillePolyester Powder Coated, 18GA Galvanized Steel
Sensitivity 1 W/1 m94 (90x50), 92 (100x100)
Available ColorBlack or white
Height451
Width282
Recommended High-Pass Frequency40
Internal CrossoverYes
Depth263
Weight Net8.4
FamilyZxZxA
Nominal Impedance8
Input Connections4-pin Phoenix
