Specifications
| Frequency Range (-10 dB) | 35 - 500 |
| Weatherized | No |
| Speaker Type | Subwoofer |
| Frequency Response (-3 dB)¹ | 40 - 400 |
| LF Nominal Impedance | 4 |
| Max. SPL/1m (calc)² | 141 |
Specifications | |
| Coverage (Nominal -6 dB) H | 360 |
| Coverage (Nominal -6 dB) V | 8 |

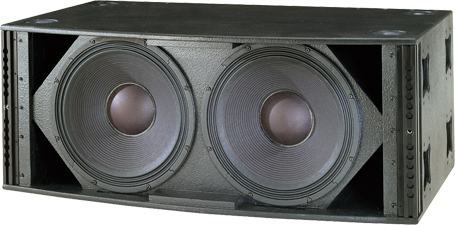

| LF Transducer | 2 x 18-in EVX-180B |
| System Power Handling (Continuous/Program/Peak) | 1200 |
| LF Power Handling | 1200 W continuous, 4800 W peak |
| Enclosure Material | Plywood, textured epoxy paint |
| Grille | Powder-coated steel |
| Sensitivity 1 W/1 m | 104 |
| Available Color | Black |
| Height | 494.3 |
| Width | 1244.6 |
| Recommended High-Pass Frequency | 33 |
| Depth | 740.4 |
| Weight Net | 92 |
| Chassis Size | 457.2 |
| Input Connections | 2 Neutrik® NL8 |
| Peak SPL @ 10m | 132 |
| Environmental Specs | IEC 529 IP24, MIL STD 810 |
| Passive Power Handling | 4800 |
