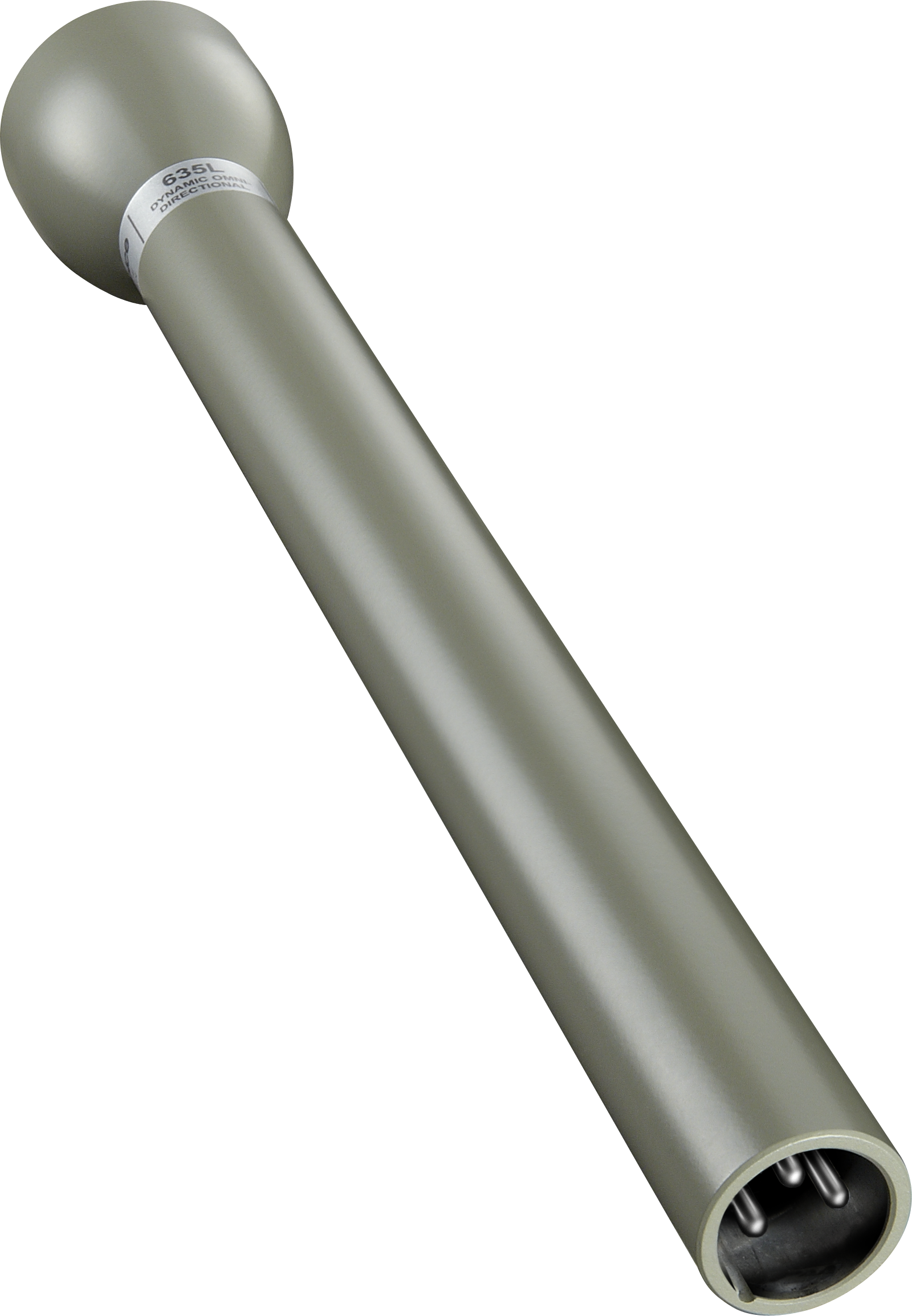

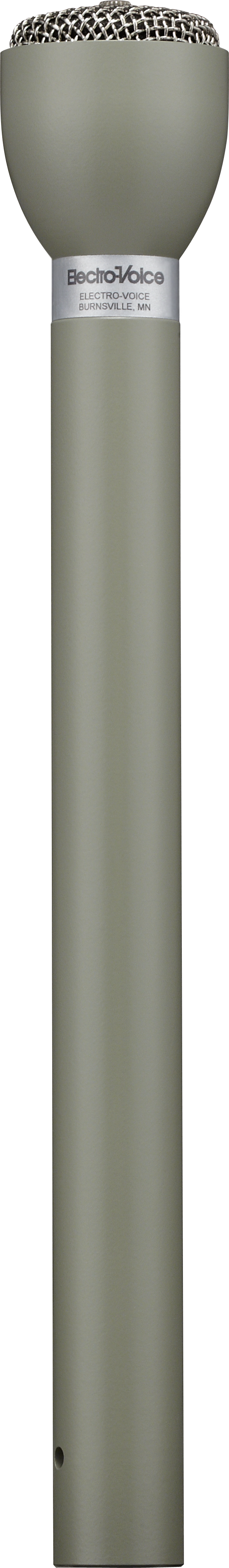

635L

Classic handheld interview microphone with long handle

  • 9.5" total length
  • Omnidirectional polar pattern
  • Dynamic element
  • Incredibly robust and durable
  • Linear frequency response
  • Completely pop-free
  • Four-stage pop and dust filter
  • Effective internal shock absorber

The world-reknown performance of legendary 635A is available in the long-handle 635L. Measuring 9.5", this extended handle length version delivers all of the sonic performance of the 635A, adding the virtues of a longer body length for ease-of-use, helping keep the reporter's hand out of the shot.

Specifications

Weight Net 11.43oz (324g)
Height 9.57" (243mm)
Connector Type 3-pin XLR

Frequency Response (-3 dB) 80 - 13,000 Hz
Open Circuit Voltage 1.4 mV/PascalmV/Pascal
Case Material Zinc
Finish Fawn Beige
Power Requirement Passive
Family Field Production
Polar Pattern Omni
Wired/Wireless Wired
Mic Type Handheld
Diameter (Max) 1.42" (36mm)
Element Dynamic
Impedance, Low-Z balanced 150Ω
