ELX portable loudspeakers
Serious sound, simple setup
- 1000 W and 700 W Class-D high-efficiency amplifiers run cool without fans.
- Intuitive, user-friendly controls. Mic and line inputs with combo XLR/1/4” and RCA inputs for versatile mix capabilities. XLR outputs for chaining multiple ELX full-range or subwoofers. Selectable 100 Hz high-pass filter for use with an external subwoofer.
- Electro-Voice-engineered woofers and 1.5” titanium compression drivers provide exceptional audio quality and reliability.
- Lightweight materials, balanced design, and ergonomic handles for convenient transport, set-up, and load-out.
- Stylish-yet-rugged 15-mm plywood construction with textured finish says “serious gear” on any stage.

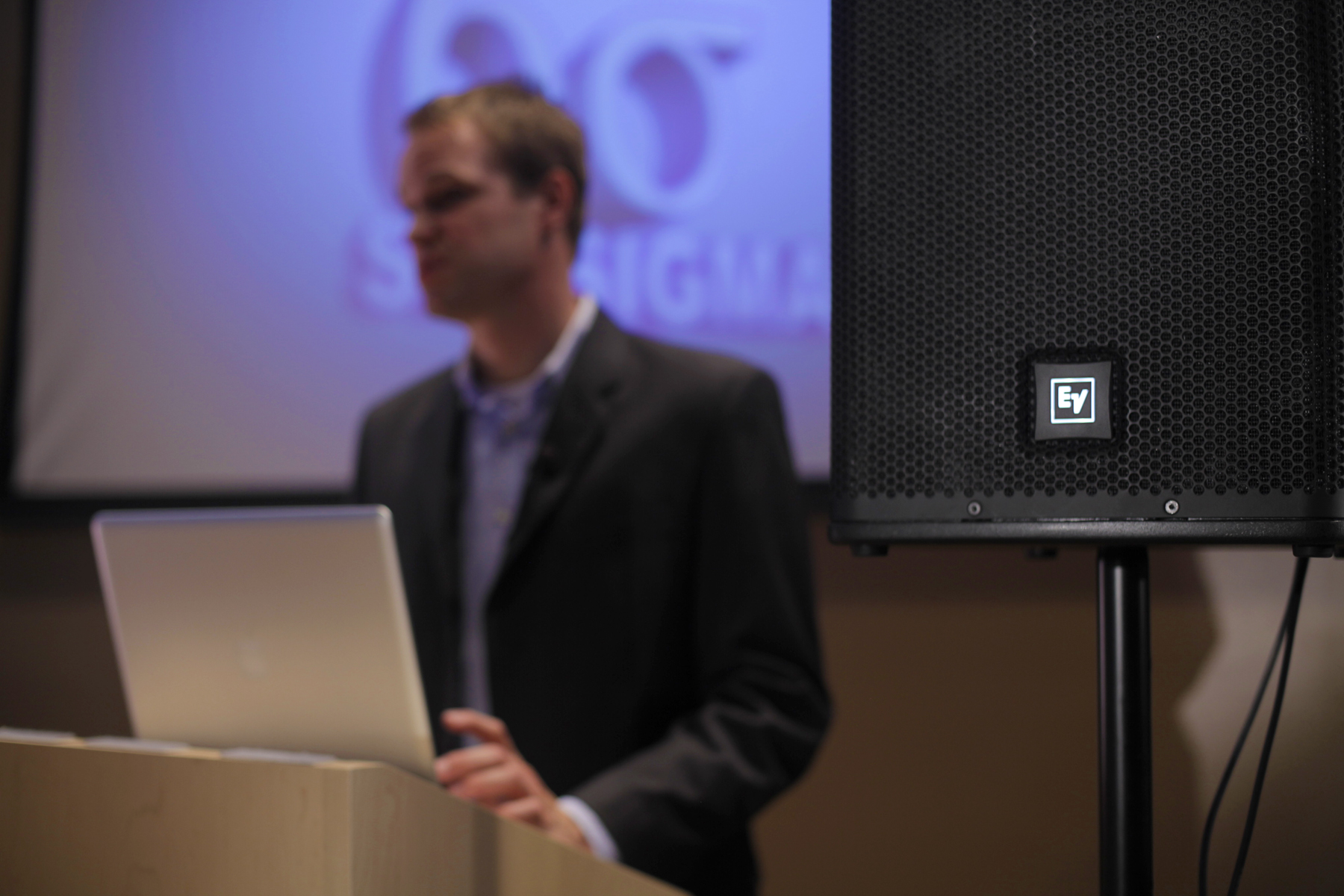

- Designed to pole-mount or stack with ELX subwoofers.
- Built-in 60-degree monitor angle for 12” & 15” two-way systems.
ELX loudspeakers offer top-quality components in remarkably affordable configurations that put the EV-quality experience within reach for artists, engineers, and live-sound businesses. Designed for a wide range of portable sound applications, with straightforward controls for excellent results with ease.
Models
 |
 |
 |
 | |
ELX112 |
ELX115 |
ELX118 |
ELX215 | |
| Frequency Range (-10 dB) | 55 - 20000kHz | 50 - 20000kHz | 35 - 200kHz | 38 - 20000kHz |
| Minimum Impedance | 7.0Ω | 7.4Ω | 6.7Ω | 3.7Ω |
| Nominal Impedance (Passive) | 8Ω | 8Ω | 8Ω | 4Ω |
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver | N/A | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Speaker Type | Full-Range, two-way, wedges | Full-Range, mid-high, two-way | Subwoofer | Full-Range, mid-high, two-way |
| Woofer Size | 12inch | 15inch | 18inch | 15inch |
| Powered or Passive | Passive | Passive | Passive | Passive |
| Frequency Response (-3 dB)¹ | 82 - 18000Hz | 75 - 18000Hz | 50 - 100Hz | 62 - 18000Hz |
| Max. SPL/1m (calc)² | 132dB () | 134dB () | 134dB | 137dB |
| Coverage (Nominal -6 dB) H | 90° | 90° | 90° | |
| Coverage (Nominal -6 dB) V | 50° | 50° | 50° | |
| LF Transducer | (1) EVS-12K, 305mm (12") Woofer | (1) EVS-15K, 381mm (15") Woofer | (1) EVS-18K, 457mm (18") Woofer | (2) EVS-15K, 381mm (15") Woofers |
| System Power Handling (Continuous/Program/Peak) | 250//1000Watts | 400//1600Watts | 400//1600Watts | 600//2400Watts |
| Power Rating | 1600W | |||
| Crossover Frequency | 21000Hz | 17000Hz | N/AHz | 1.7 kHz |
| Connector Type | Parallel Neutrik® NL4 | Parallel Neutrik® NL4 | Parallel Neutrik® NL4 | Parallel Neutrik® NL4 |
| Enclosure Material | 9-ply plywood | 9-ply plywood | 9-ply, 15 mm, plywood | 9-ply plywood |
| Grille | 18GA Steel with Black Powdercoat | 18GA Steel with Black Powdercoat | 18GA Steel with Black Powdercoat | 18GA Steel with Black Powdercoat |
| Available Color | Black | Black | Black | Black |
| Height | 23.9" (607mm) | 27.87" (708mm) | 26.02" (661mm) | 45.43" (1154mm) |
| Width | 14.25" (362mm) | 17.01" (432mm) | 19.96" (507mm) | 17.01" (432mm) |
| Recommended High-Pass Frequency | 45Hz | 40Hz | 30Hz | 35Hz |
| Depth | 13.39" (340mm) | 15.04" (382mm) | 22.6" (574mm) | 19.72" (501mm) |
| Internal Crossover | Yes | Yes | Yes | Yes |
| Weight Net | 35.27lbs (16kg) | 48.28lbs (21.9kg) | 67.46lbs (30.6kg) | 89.73lbs (40.7kg) |
| Shipping Weight | 78.04lbs (35.4kg) | 114.64lbs (52.0kg) | ||
| Family | ELX | ELX | ELX | ELX |
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Coverage (Nominal -6 dB) | Omnidirectional | Omnidirectional | ||
| Axial Sensitivity (SPL, 1 W @ 1 m) | 94dB | 95dB | 96dB | 96dB |
| Learn More | Learn More | Learn More | Learn More |
