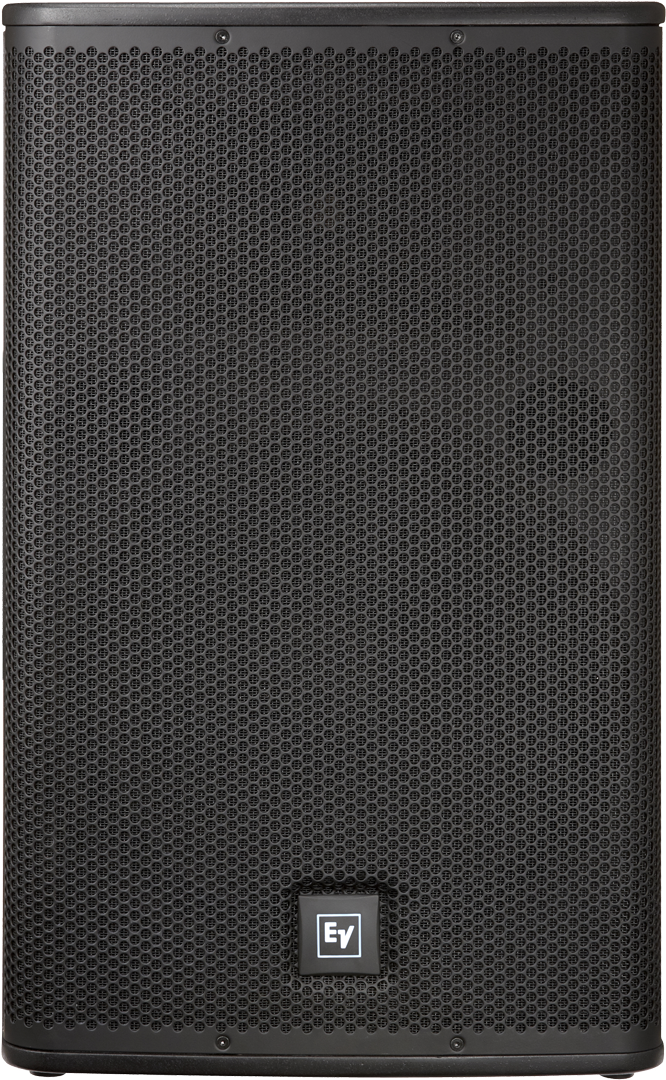

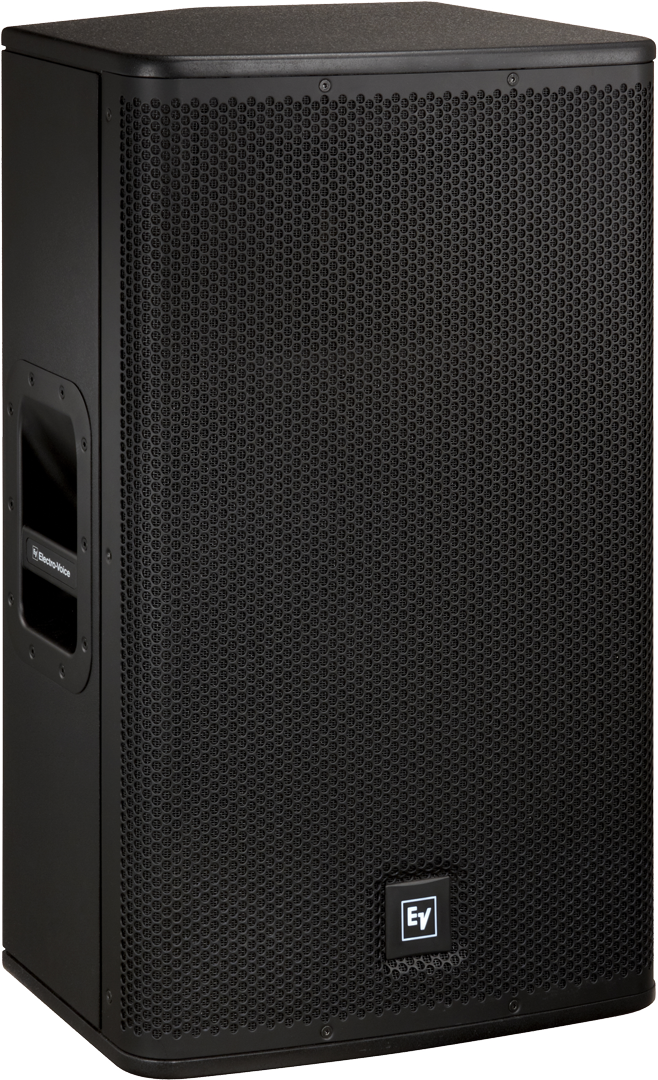

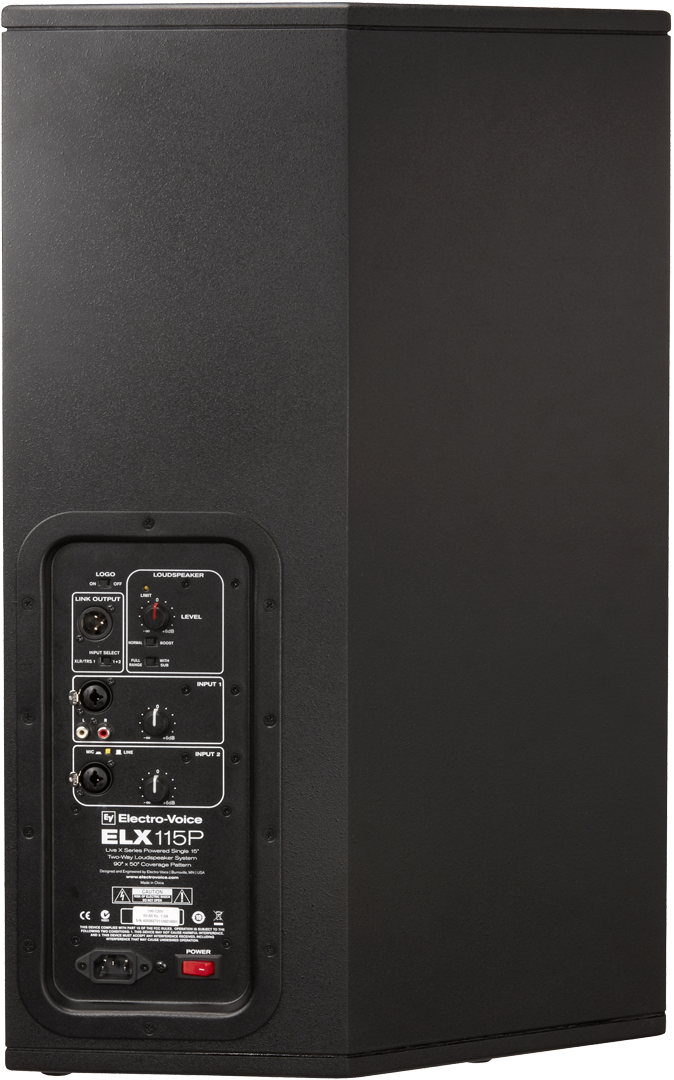

ELX115P - 15" powered loudspeaker by Electro-Voice

ELX115P

15" powered loudspeaker

  • ELX115 performance with self-amplification
  • 44 Hz – 20 kHz frequency range
  • Lightweight, cool-running 1000 W Class D amp
  • Biamped with 24 dB/octave crossover
  • Transducer protection
  • Bypassable high-pass for external subwoofer

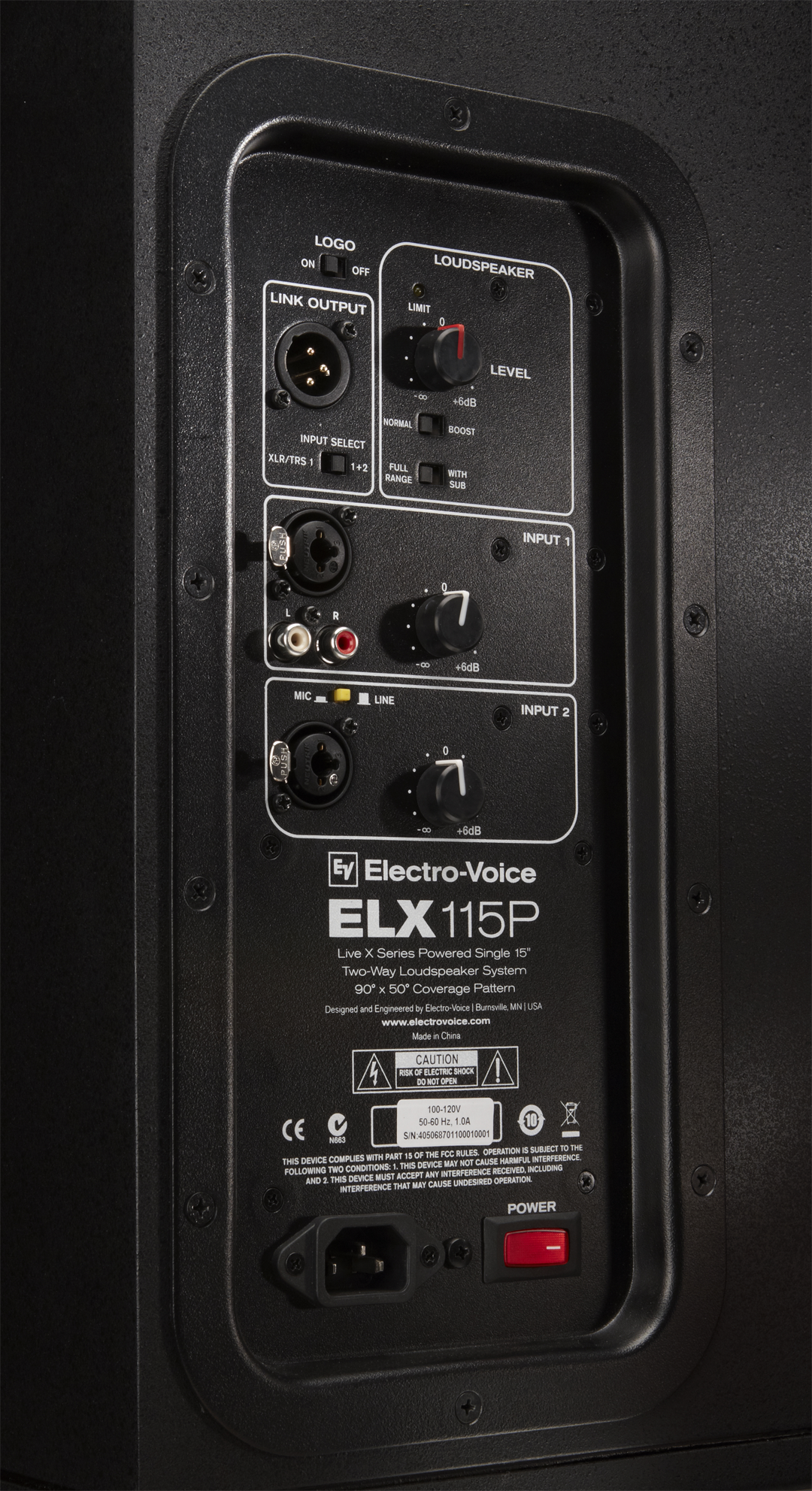

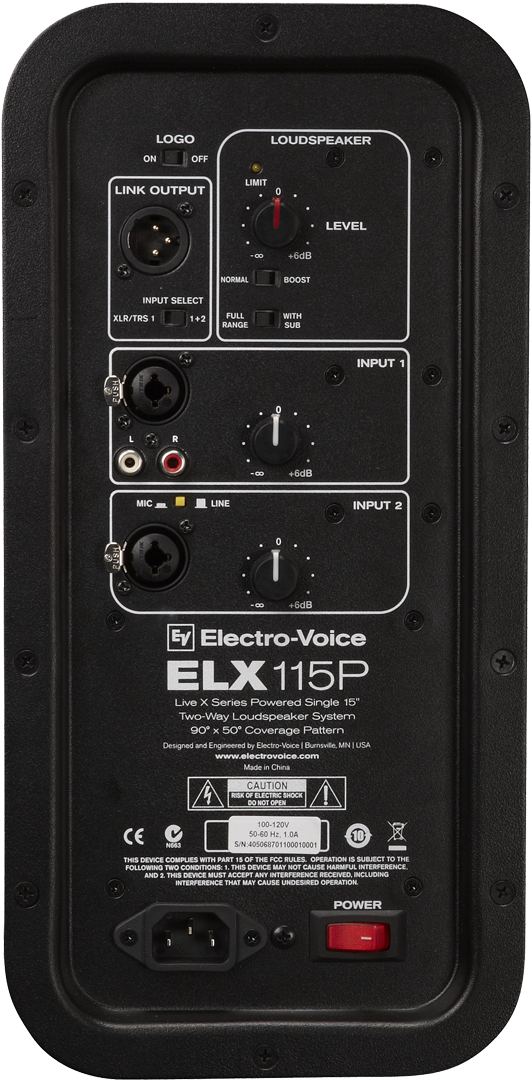

  • XLR, TRS, and RCA input connections
  • Versatile gain, mixing, and processing controls
  • Pre- or post-mix parallel outputs

A powerful step up from the ELX112P, the 15” woofer and 1000 W amplifier in the ELX115P deliver extended lower frequencies and room-filling volume.

Specifications

Freq. Response (-3 dB)56 Hz - 18 kHz1
Freq. Range (-10 dB)44 Hz - 20 kHz1
Max. Measured SPL3134 dB

Coverage (Horiz. x Vert.)90° x 50°
Power Rating1000W
LF Transducer(1) EVS-15K, 381mm (15") Woofer
HF TransducerDH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Crossover Frequency1.7 kHz
Connectors(2) XLR/TRS Combo Jacks
(1) Stereo RCA, (1) XLR Link Output
Enclosure Material9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Grille18GA Steel with Black Powdercoat
Dimensions (H x W x D)708mm x 432mm x 382mm (27.89" x 17.02" x 15.05")
Net Weight22.5 kg (49.5 lbs)
Shipping Weight27.2 kg (59.8 lbs)
AccessoriesTSS-1, Aluminum Tripod Stand
TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case
ASP-1, Steel Subwoofer Stand
1 Full Space Measurement, EQ ( ) Mode, Full-Range Mode.
2 Half Space Measurement, EQ ( ) Mode
3 Max SPL is measured at 1m using broadband pink noise at maximum amplifier output
