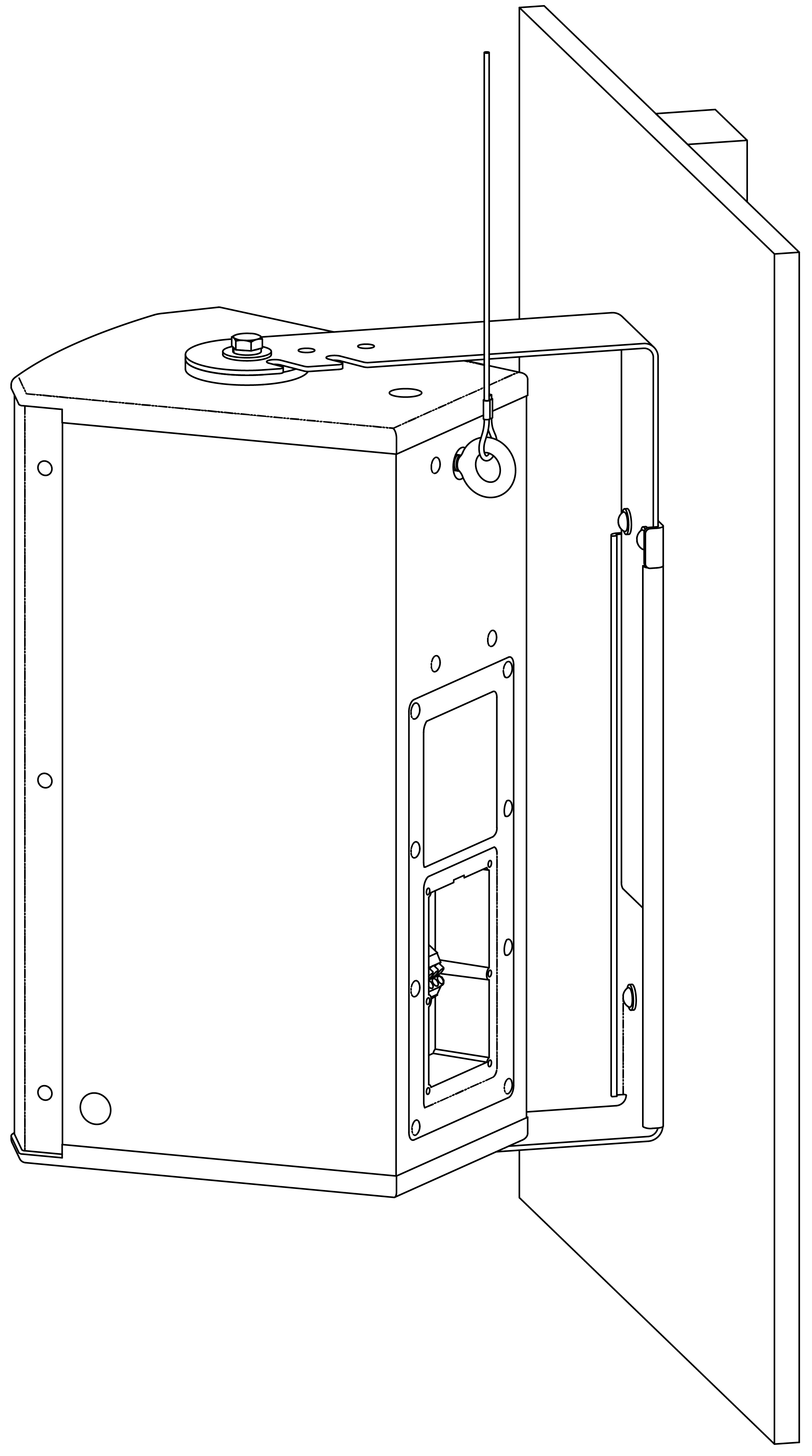

EVC-UB1

U-bracket 8"

  • Two-piece U-bracket
  • Horizontal, vertical, or ceiling mount
  • Adjustment range up to 60°
  • Fits the EVC-1082 8" speaker models

Specifications

Color Black or white
Bracket width (wall attachment) 86 mm (3.38 in)
Min length 381 mm (15 in)

Max length 609 mm (24 in)
Arm length 283 mm (11.1 in)
Net weight 2.6 kg (5.8 lb)
Shipping weight 3.3 kg (7 lb)
Tilt (from 0° axis) Up to 60°

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Evc-Wb, Evc-Ub1, Evc-Ub2, Evc-Ub3, Adaptive Technologies Group, 2018_12_31 Country of Origin Certificate 272KB Dec 18, 2019
Name Language Size Date
EVC-UB1 U-Bracket 8 Engineering Data Sheet EN 226KB Jan 16, 2018
Name Language Size Date
EVC Compact Front Loaded Loudspeakers Installation Manual EN 5.22MB Feb 1, 2018

EVC-UB1 U-Bracket 8
