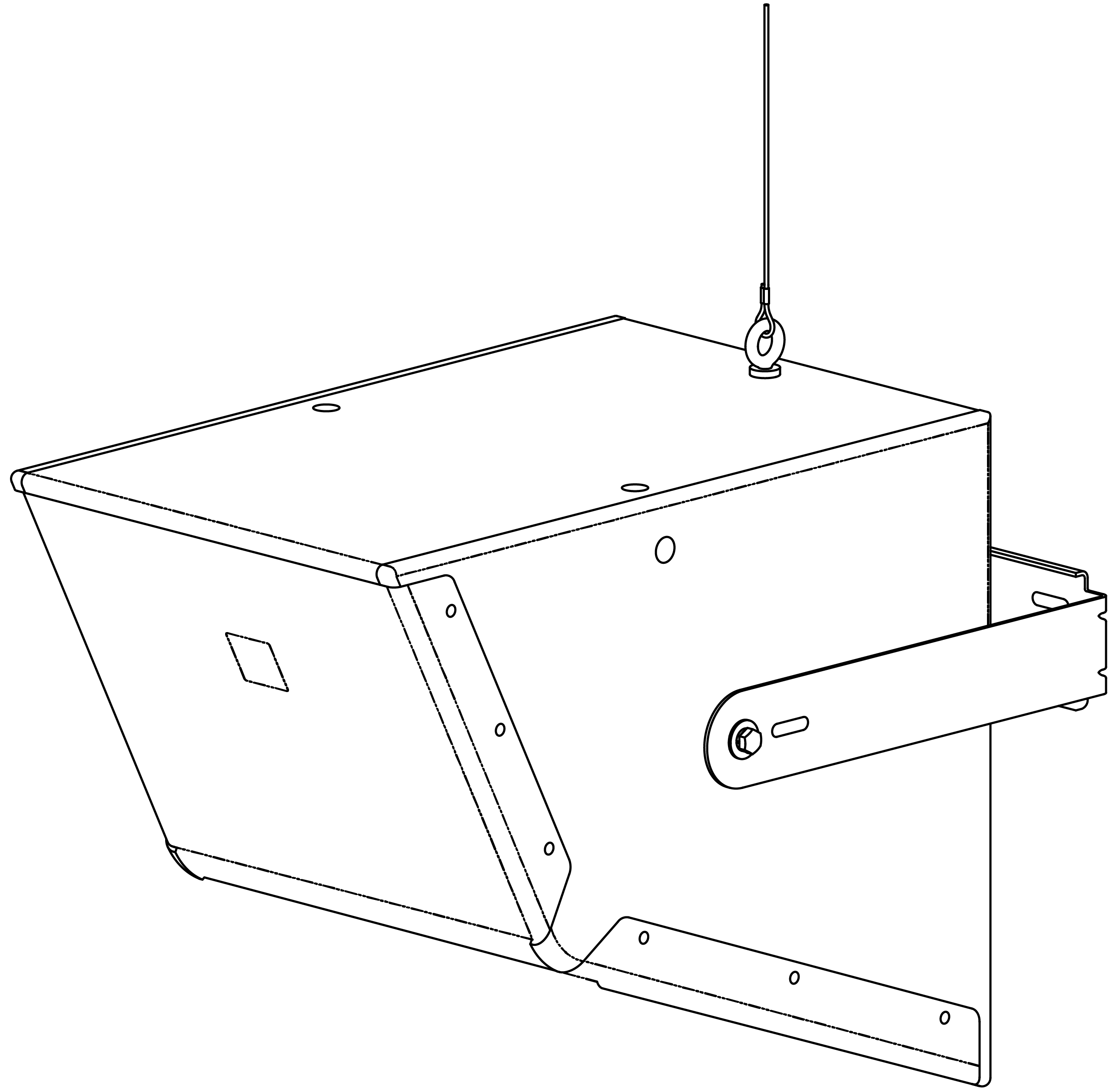

U-bracket for evc-1122-vi

Summary & Images Specs Downloads & Support
  • One-piece U-bracket
  • Horizontal, vertical, or ceiling mount
  • Adjustment range up to 60°
  • Fits the EVC Variable Intensity loudspeaker models


Color Black or white
Bracket width (wall attachment) 97 mm (3.8 in)
Min length 584 mm (23 in)

Max length 914 mm (36 in)
Arm length 299 mm (11.8 in)
Net weight 4.8 kg (10.7 lb)
Shipping weight 5.5 kg (12 lb)
Tilt (from 0° axis) Up to 60°
