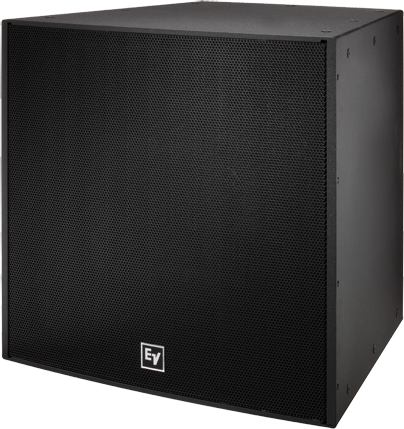

EVH-1152D/64

Premium 2‑way coaxial horn‑loaded full‑range loudspeaker

  • Ideal for reverberant spaces
  • Pattern control maintained down to 500 Hz
  • 15-inch SMX2151 woofer
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available coverage patterns from 40º x 30º to 90º x 90º
  • 106 dB sensitivity, 139 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal enclosure in three finishes: EVCoat, FG or PI
  • M10 threaded suspension points (28)

The EVH family of models employs an unmatched combination of superior acoustic design and rigging, allowing vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series. Twenty-eight suspension points for use with rated eyebolts or EV-I cluster hardware provide low-cost, simple rigging solutions.

Specifications

Frequency Range (-10 dB) 50 Hz - 20 kkHz
Weight Net 145.73lbs (66.1kg)
Depth 26.78" (680.1mm)

Width 30.26" (768.6mm)
Height 30.26" (768.6mm)
Suspension (28) M10 threaded suspension points
Grille 16 GA powder-coated galvanneal with rotatable logo
Enclosure Material 13-ply weather-resistant birch with EVCoat
Minimum Impedance 6.0Ω
Nominal Impedance (Passive)
Crossover Frequency 1300Hz
HF Transducer DH7N, 3" (76 mm) diaphragm compression driver
LF Transducer SMX2151, 15" (381 mm) driver
System Power Handling (Continuous/Program/Peak) 500/1000/2000 Watts
Coverage (Nominal -6 dB) V 40°
Coverage (Nominal -6 dB) H 60°
Max. SPL/1m (calc) 138dB
Sensitivity 1 W/1 m 105dB
Recommended High-Pass Frequency 60Hz
Frequency Response (-3 dB) 60 Hz - 17 kHz
Input Connections Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
