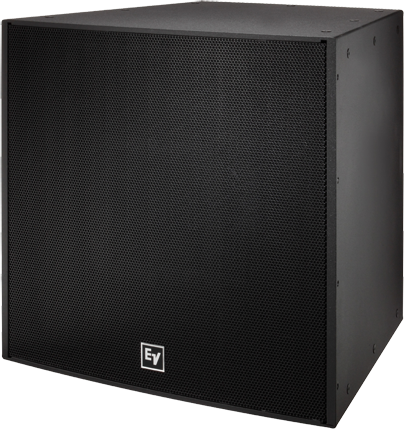

EVH-1152D/99

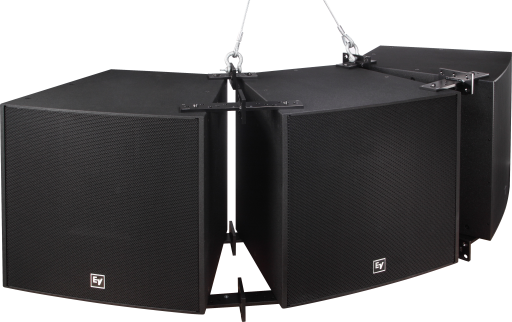

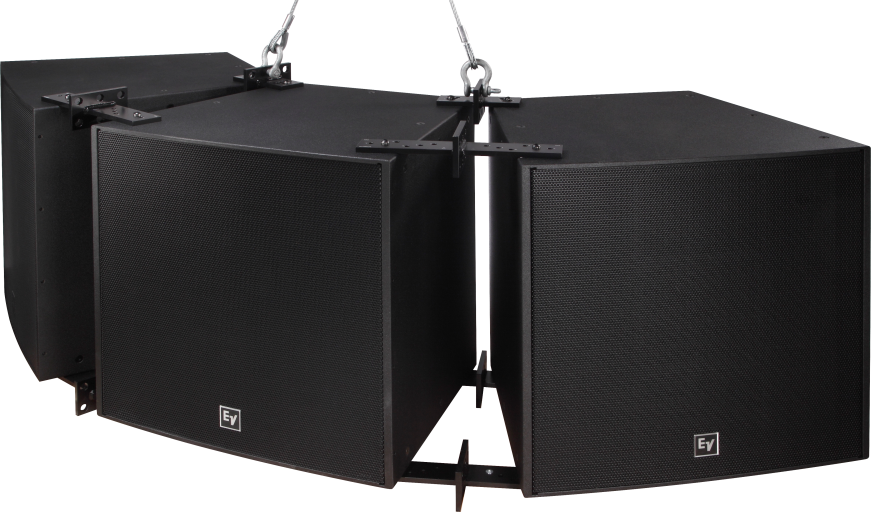

Premium Arrayable point-source coaxial horn loaded loudspeaker

Summary & Images Specs Where to buy Downloads & Support
  • Ideal for reverberant spaces
  • Pattern control maintained down to 500 Hz
  • 15-inch SMX2151 woofer
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available coverage patterns from 40º x 30º to 90º x 90º
  • 106 dB sensitivity, 139 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal enclosure in three finishes: EVCoat, FG or PI

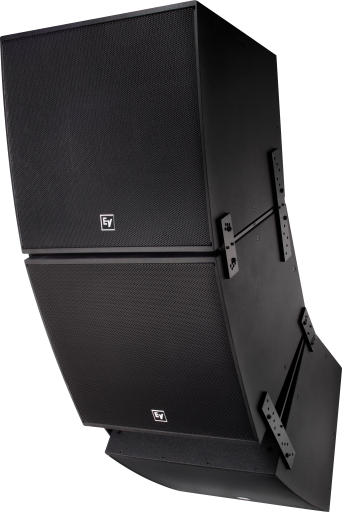

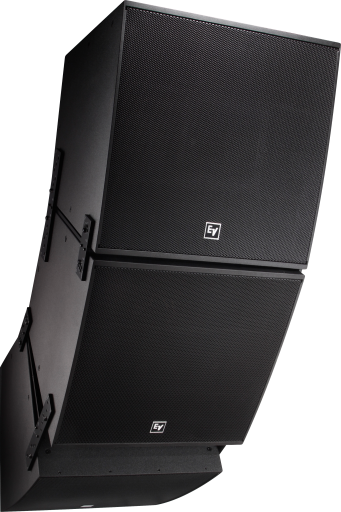

  • M10 threaded suspension points (28)

EVH-1152D/99 features a 90° x 90° rotatable waveguide, design for near field wide throw raw spread coverage pattern.

Specifications

Frequency Range (-10 dB) 50 Hz - 20 kkHz
Suspension (28) M10 threaded suspension points
Minimum Impedance 6.0Ω

Nominal Impedance (Passive)
HF Transducer DH7N, 3" (76 mm) diaphragm compression driver
Frequency Response (-3 dB)¹ 60 Hz - 17 kHz
Max. SPL/1m (calc)² 137dB
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 90°
LF Transducer SMX2151, 15" (381 mm) driver
System Power Handling (Continuous/Program/Peak) 500/1000/2000Watts
Crossover Frequency 1300Hz
Enclosure Material 13-ply weather-resistant birch with EVCoat
Grille 16 GA powder-coated galvanneal with rotatable logo
Sensitivity 1 W/1 m 104dB
Height 30.26" (768.6mm)
Width 30.26" (768.6mm)
Recommended High-Pass Frequency 60Hz
Depth 26.78" (680.1mm)
Weight Net 145.73lbs (66.1kg)
Shipping Weight 160.72lbs (72.9kg)
Input Connections Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals

Videos

Recommended Amplifiersffs

For optimal sound system performance, Electro-Voice recommends the following amplifiers for EVH-1152D/99.
