EVID Compact Sound
Compact full-range loudspeaker system
- Subwoofer:
- High-performance EV-engineered 8” transducer with high-efficiency multi-mode audio crossover network.
- Compact, high-density wood enclosure with port for extended bass response, secure snapon speaker grille, and quick-mount slide-on bracket system.
- Easy-access signal connections with Phoenix-style connectors for quick wiring, user-friendly mode selector for stereo or mono operation, and easy-tap selector dial (supports 4/8 ohm inputs or up to 100 W / 70/100 V audio connections).
- Satellite Speakers:
- 2” wide-range mid/high-frequency driver designed for broad, even coverage.
- Multi-angle compact mounting bracket system allows for a variety of speaker angles.
- Rigid high-impact ABS enclosure for durability.
The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen.
In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware provided), and is compatible with a variety of existing EV amplifier products, making it a great choice for contractors and end-users alike. Available in black or white finish.
Specifications
| Frequency Range (-10 dB) | EVID 2.1: 180 Hz - 20 kHz; EVID 40S: 180 Hz - 20 kkHz |
| Power Rating | 200W |
| Connector Type | Phoenix (2-pin) |
Specifications |
|
| Enclosure Material | EVID 2.1: ABS (fire rated); EVID 40S: Wood (MDF); |
| Available Color | Black or white |
| Sensitivity 1 W/1 m | EVID 2.1: 84 dB; EVID 40S: 88dB |
| Height | EVID 2.1: 115mm; EVID 40S: 400mm |
| Width | EVID 2.1: 85mm; EVID 40S: 400mm |
| Depth | EVID 2.1: 95mm; EVID 40S: 230mm |
| Weight Net | EVID 2.1: 0.5kg; EVID 40S: 12.05kg |
| Shipping Weight | 1 sub and 4 satellites: 18.26kg |
| Impedance | EVID 2.1: 16Ω; EVID 40S: Dual 8Ω / mono 4Ω |
| Power Handling (Continuous / Peak) | EVID 2.1: 30 W; EVID 40S: 200W |
| Maximum SPL | EVID 2.1: 100 dB; EVID 40S: 114dB |
| Coverage, Voice | EVID 2.1: 150° x 150°; EVID 40S: Omnidirectional |
| Coverage, Music | EVID 2.1: 100° x 100°; EVID 40S: Omnidirectional |
| Transducer size | EVID 2.1: 50 mm (1.97 in); EVID 40S: 200 |
| Bracket Adjustment Range | EVID 2.1: 160° x 60° ; EVID 40S: Fixed |
| Included Accessories | Wall bracket; hex wrench |
| Passive Power Handling | 200W peak |
| Transformer Taps (Transformer Version Only) | EVID 2.1: NA; EVID 40S: 100 W, 50 W, 25 |
Similar Products
Videos
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for EVID Compact Sound.
Dynacord C‑SeriesLearn More |
Electro-Voice CPS SeriesLearn More |
Electro-Voice PA SeriesLearn More |
|
|---|---|---|---|
| Two-Channel | ✔ | ||
| Multi-Channel | ✔ | ✔ | |
| DSP | ✔ | ||
| Direct Drive | ✔ | ✔ | |
| OMNEO (Dante, OCA) | |||
| Installation | ✔ | ✔ | ✔ |
| Live Sound |
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| EVID Family Brochure | EN | 1.75MB | Jul 6, 2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Etl, Ul 2043, Evid-40C, Evid-C2.1, Lc6-Sw100-L, Lc6-S-L, Authorization To Mark (Atm), Intertek Report No. 102194033Sat-003 Certificate | 44KB | Dec 18, 2019 |
| EVID Compact Sound Declaration of Conformity | 443KB | Mar 14, 2018 |
| Evid Loudspeaker Family, EC Declaration of Conformity | 485KB | Dec 19, 2020 |
| EVID PC-Compact Sound System Declaration of Conformity | 634KB | Mar 14, 2018 |
| Name | Size | Date | |
|---|---|---|---|
| All Electrovoice EASE | ZIP | 598.1MB | Mar 24, 2021 |
| EVID Compact | ZIP | 114KB | Jun 13, 2018 |
| EVID GLL V1.0 | ZIP | 209KB | Jun 13, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| EVID C44 Engineering Data Sheet | EN | 512KB | Sep 22, 2015 |
| EVID P21 Engineering Data Sheet | EN | 248KB | Sep 22, 2015 |
| EVID S44 Engineering Data Sheet | EN | 799KB | Jan 25, 2016 |
| EVID S44 Datenblatt | DE | 800KB | Jan 25, 2016 |
| EVID S44 Datenblatt | DE | 807KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | CS | 800KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | FI | 797KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | HU | 799KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | ID | 798KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | IT | 799KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | KO | 914KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | NL | 799KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | PL | 800KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | PT | 802KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | RU | 809KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | TH | 829KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | TR | 800KB | Jan 25, 2016 |
| EVID S44 Engineering Data Sheet | VI | 837KB | Jan 25, 2016 |
| EVID S44 Fiche Technique | FR | 800KB | Jan 25, 2016 |
| EVID S44 Hoja de Datos de Ingeniería | ES | 798KB | Jan 25, 2016 |
| EVID S44 数据表 | ZH | 1.01MB | Jan 25, 2016 |
| Name | Language | Size | Date |
|---|---|---|---|
| EVID Compact Sound Speaker System Installation Manual | EN | 6.18MB | Apr 25, 2016 |
| EVID Compact Sound Lautsprechersystem Benutzerhandbuch | DE | 6.24MB | Apr 25, 2016 |
| EVID Compact Sound 说明书 | ZH | 6.59MB | Apr 25, 2016 |
| Sistema compacto de altavoces de sonido Manual | ES | 6.24MB | Apr 25, 2016 |
| Sistema di altoparlanti compatto EVID Installation Note | IT | 6.24MB | Apr 25, 2016 |
| Système de haut-parleurs EVID Compact Sound Guide | FR | 6.24MB | Apr 25, 2016 |
| Компактная музыкальная акустическая система EVID Installation Manual | RU | 6.27MB | Apr 25, 2016 |
| Name | Size | Date |
|---|---|---|
| AOTHWG Houston 7 | 631KB | Apr 12, 2017 |
| Lafeyette EVID 02 | 220KB | Apr 11, 2016 |

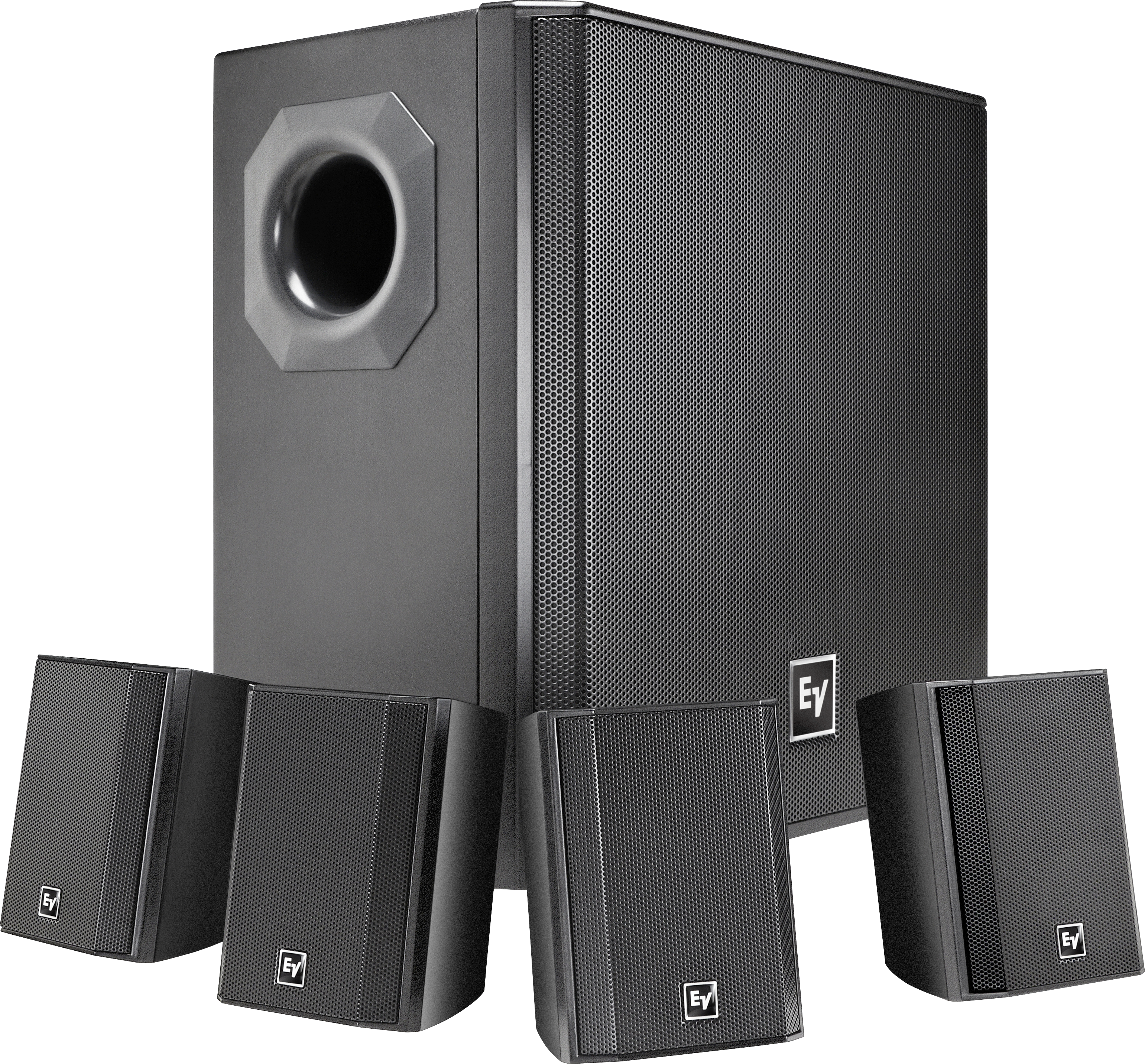

EV EVID Compact Sound EVFamily2 HERO

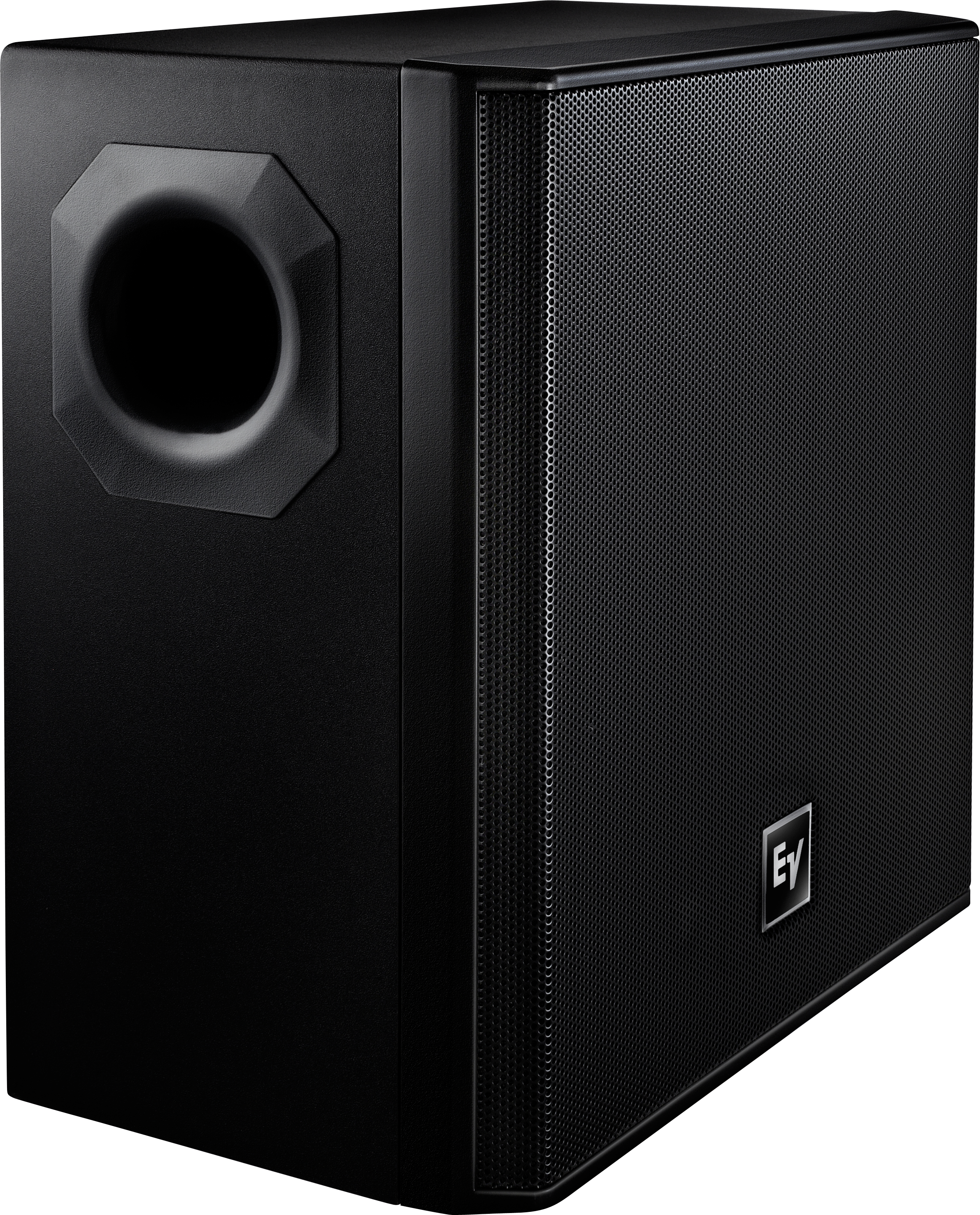

EV EVID Compact Sound EVSUB HERO

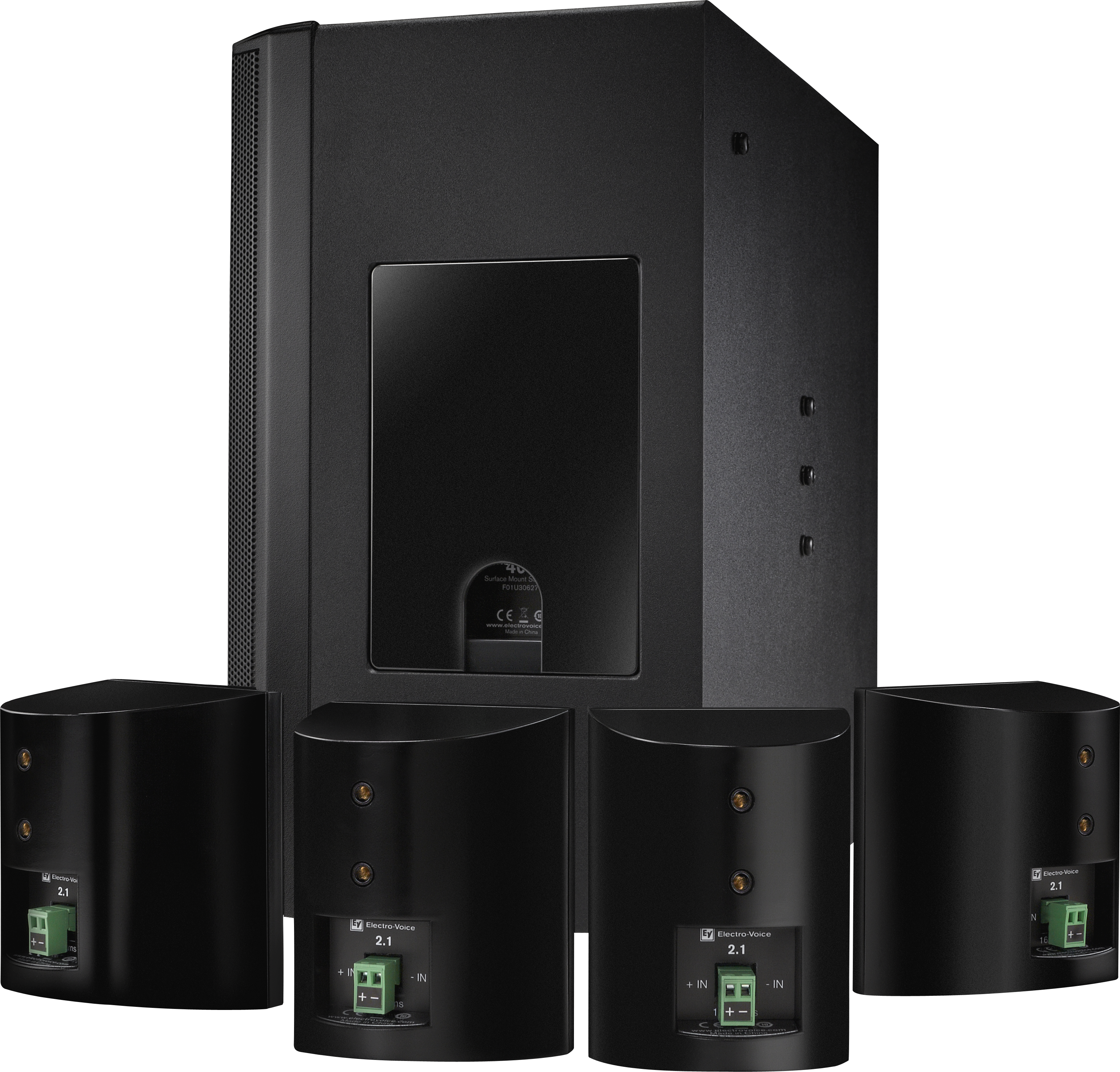

EV EVID Compact Sound EVFamily rear covered

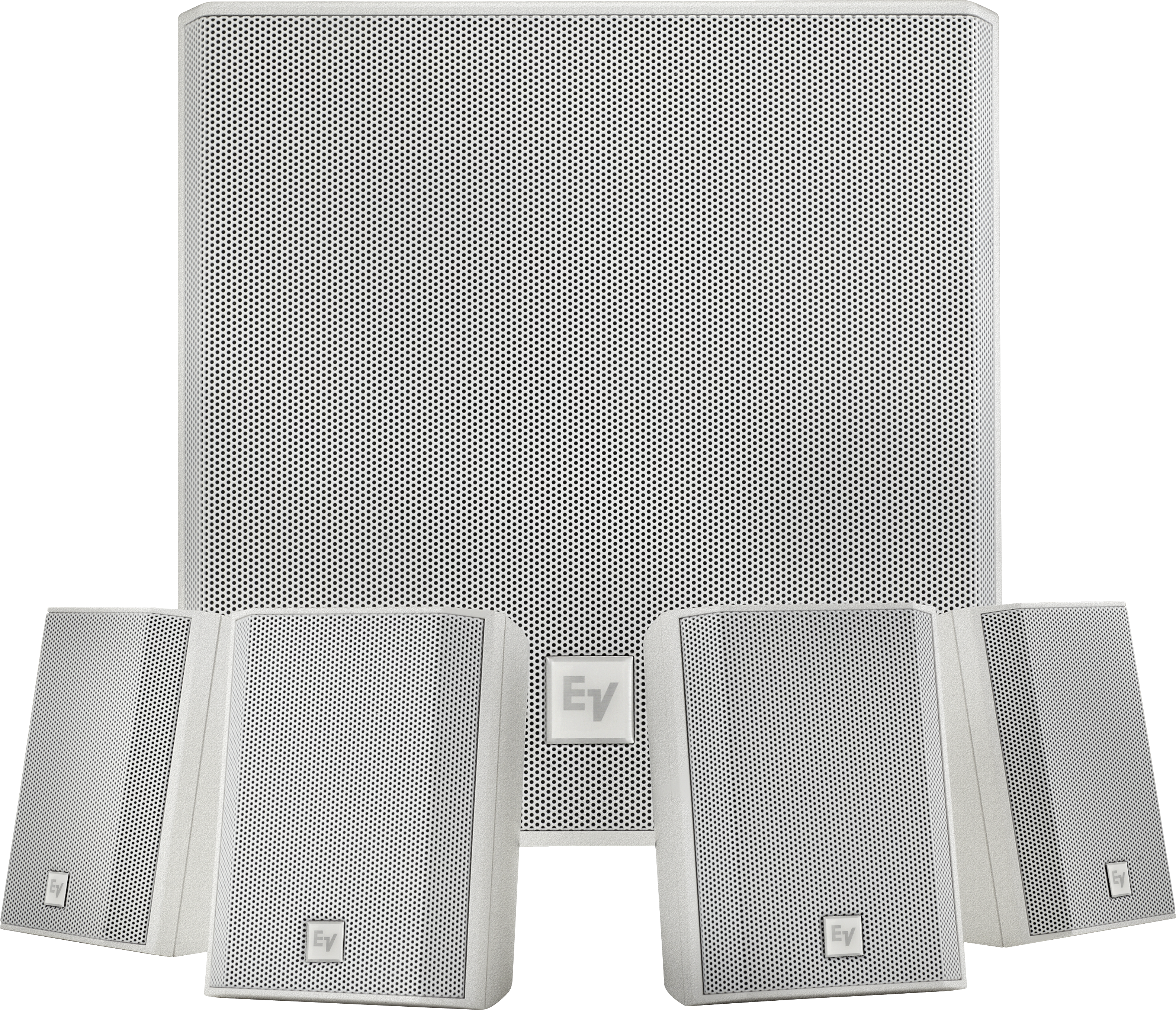

EV EVID Compact Sound EVFamily Wh Hero

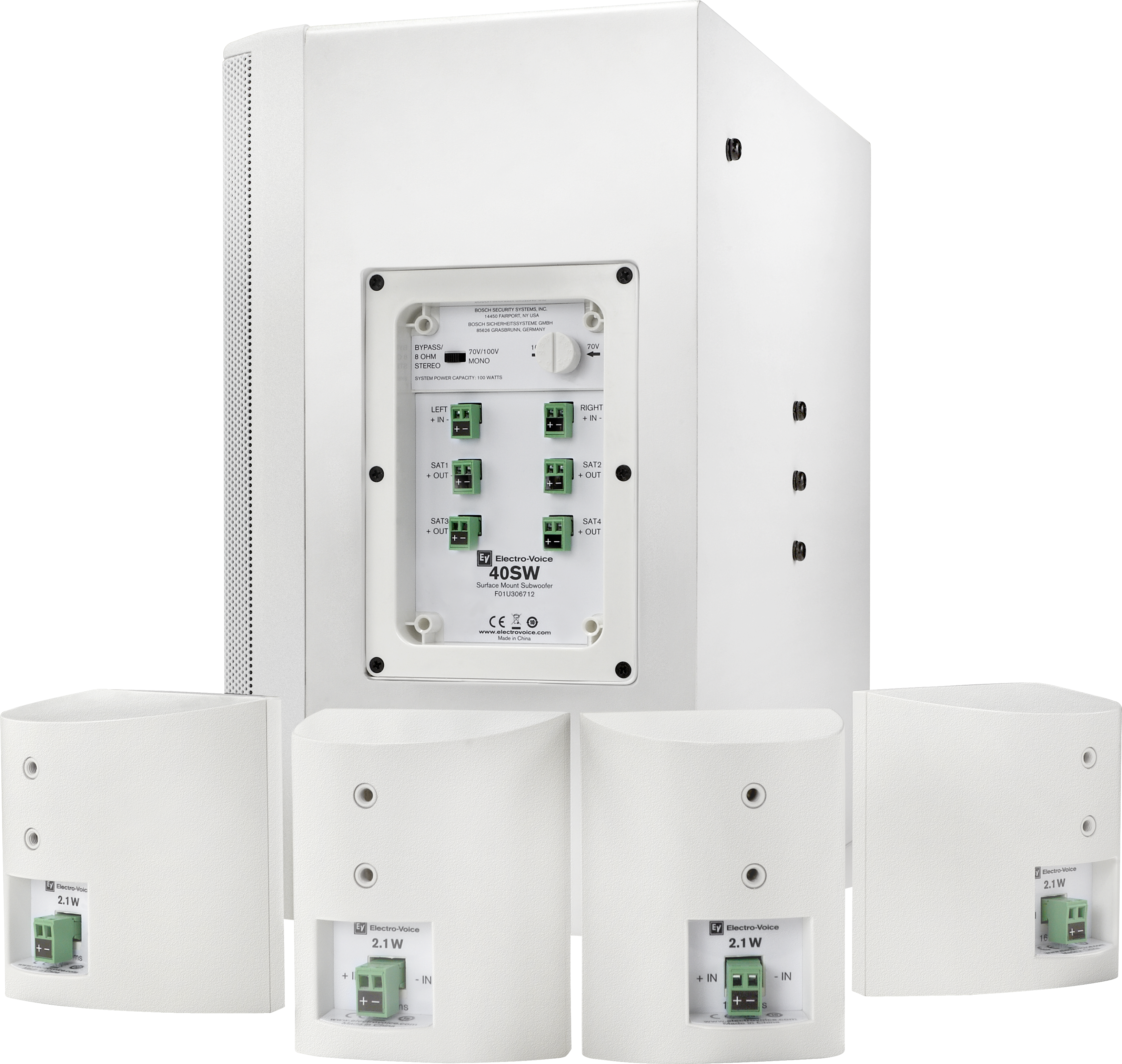

EV EVID Compact Sound EVFamily Wh rear

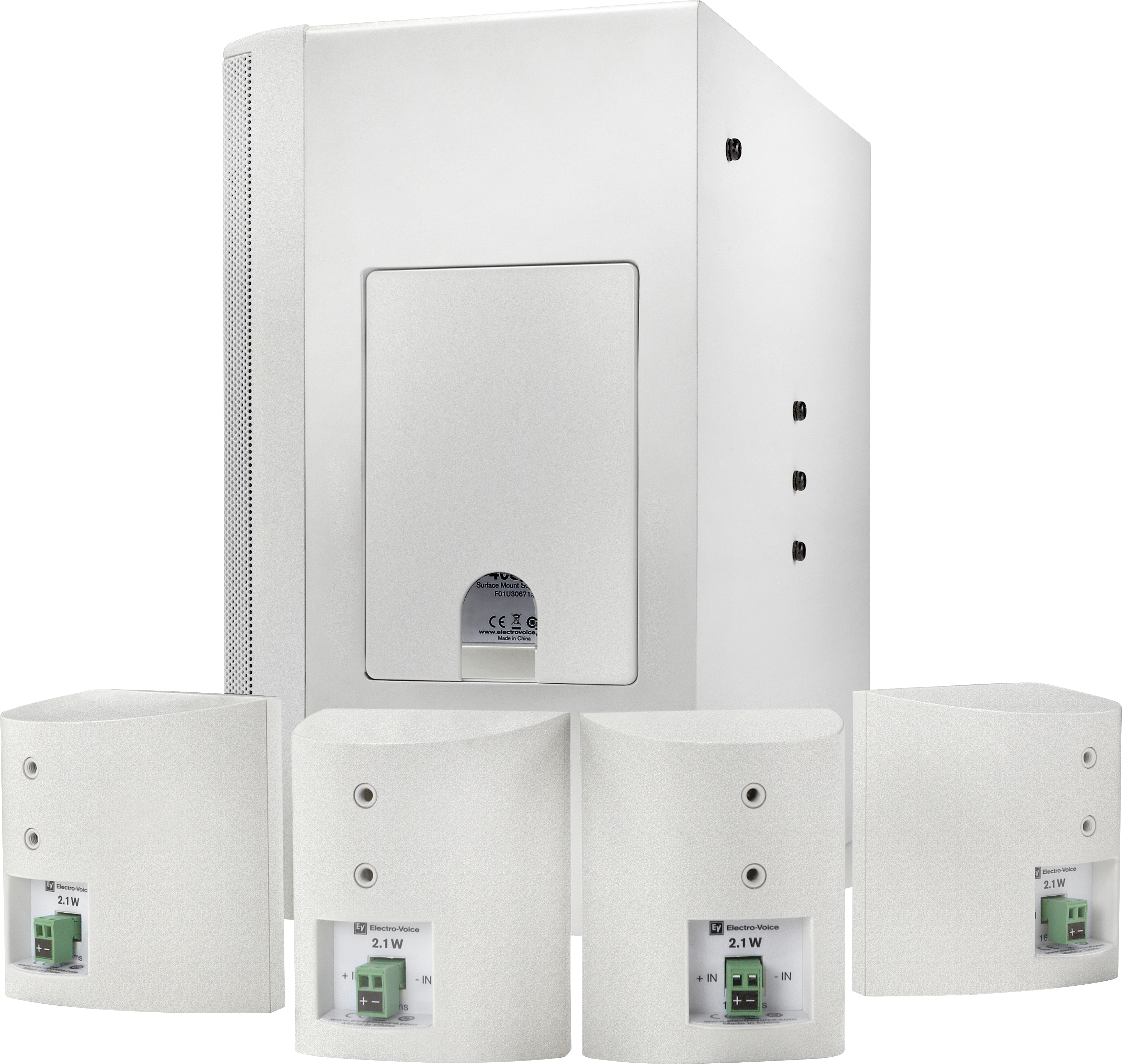

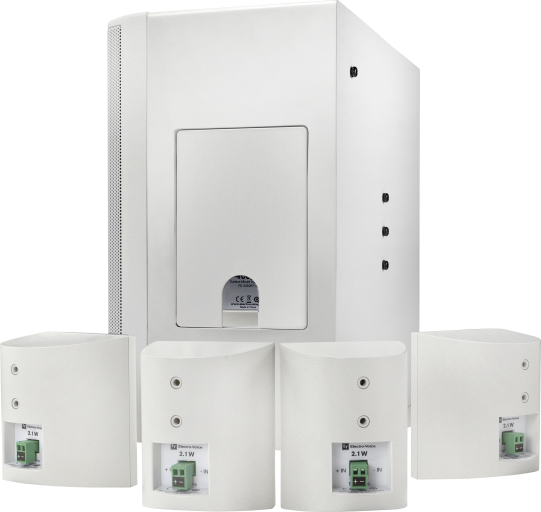

EV EVID Compact Sound EVFamily Wh rear covered

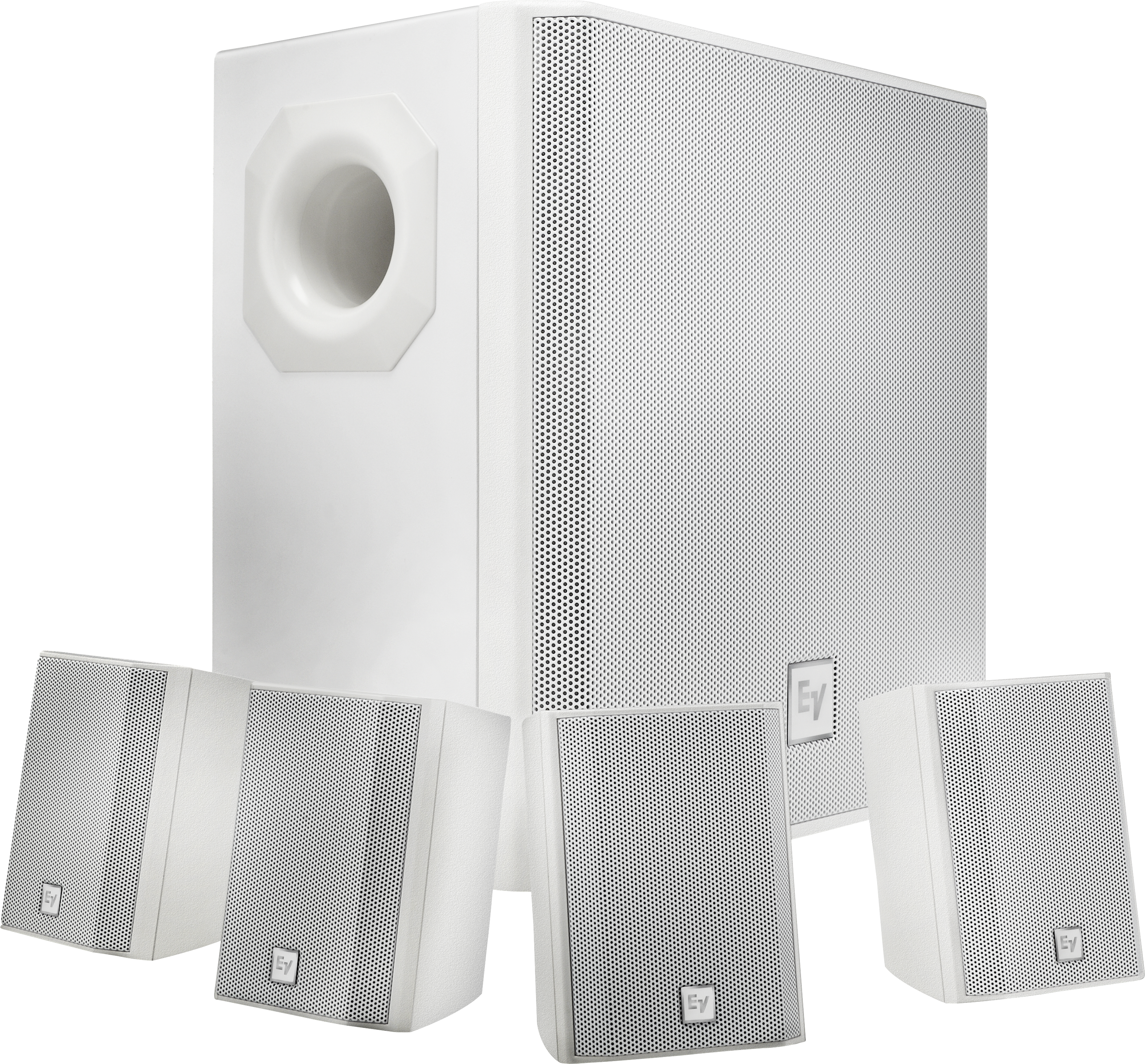

EV EVID Compact Sound EVFamily2 Wh HERO

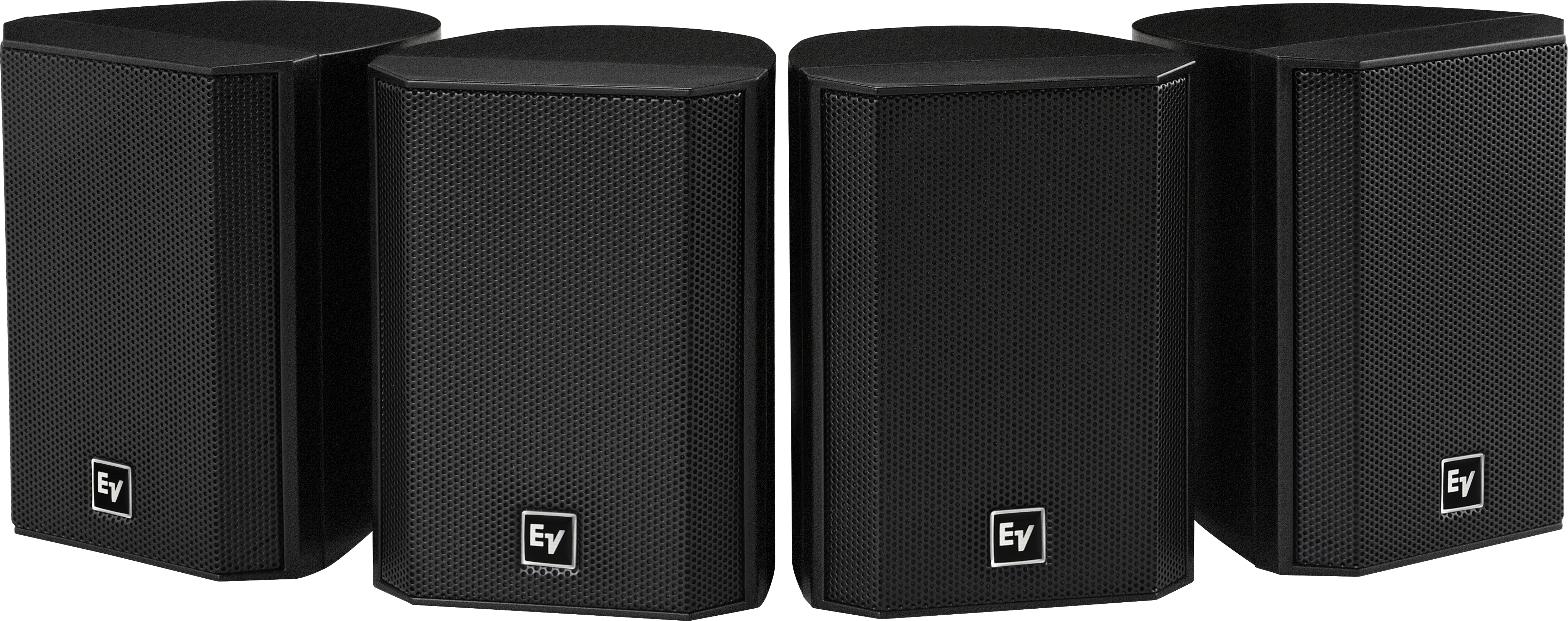

EV EVID Compact Sound EVSatelliteGroup

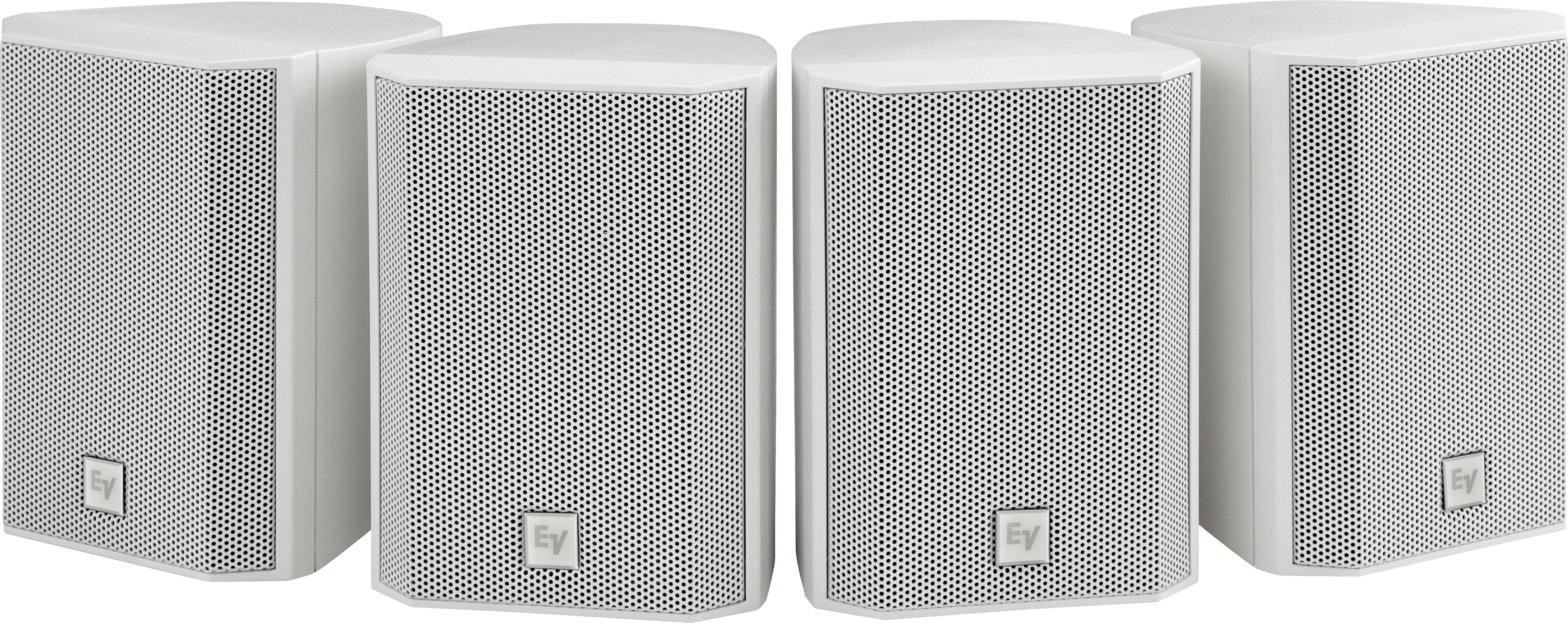

EV EVID Compact Sound EVSatelliteGroup Wh

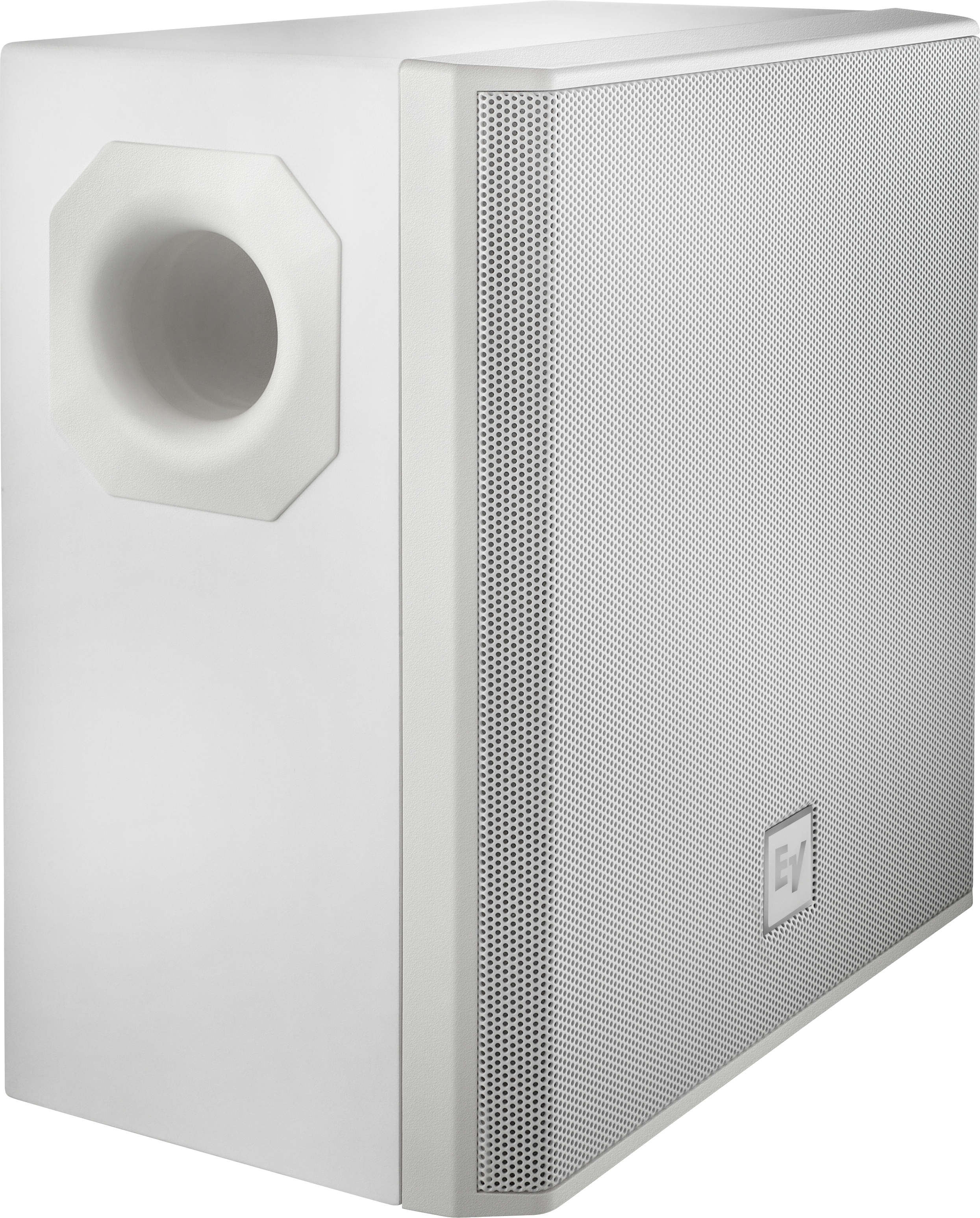

EV EVID Compact Sound EVSUB Wh HERO

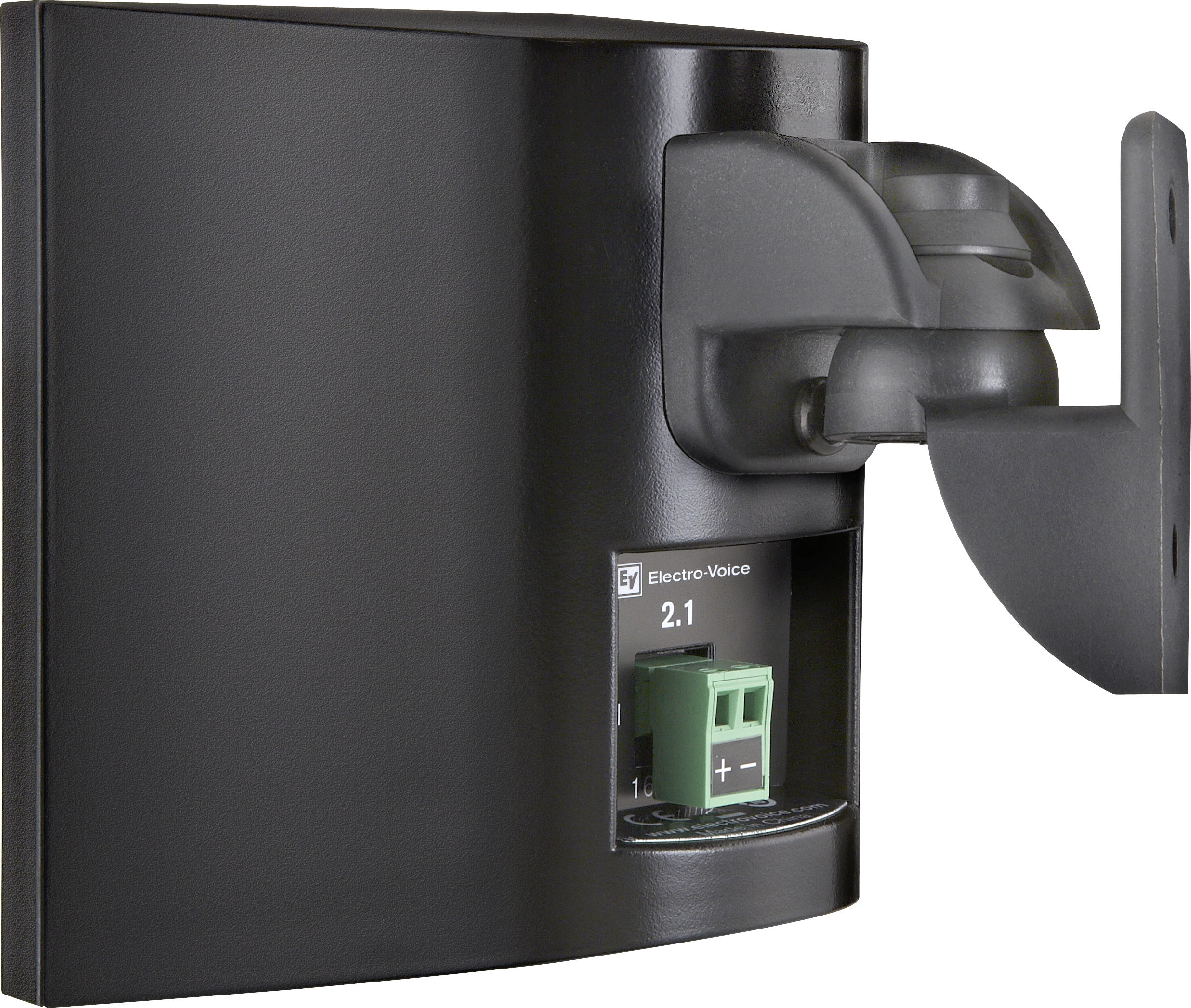

EV EVID Compact Sound Satellite Bracket
EV EVID Compact Sound Satellite Input

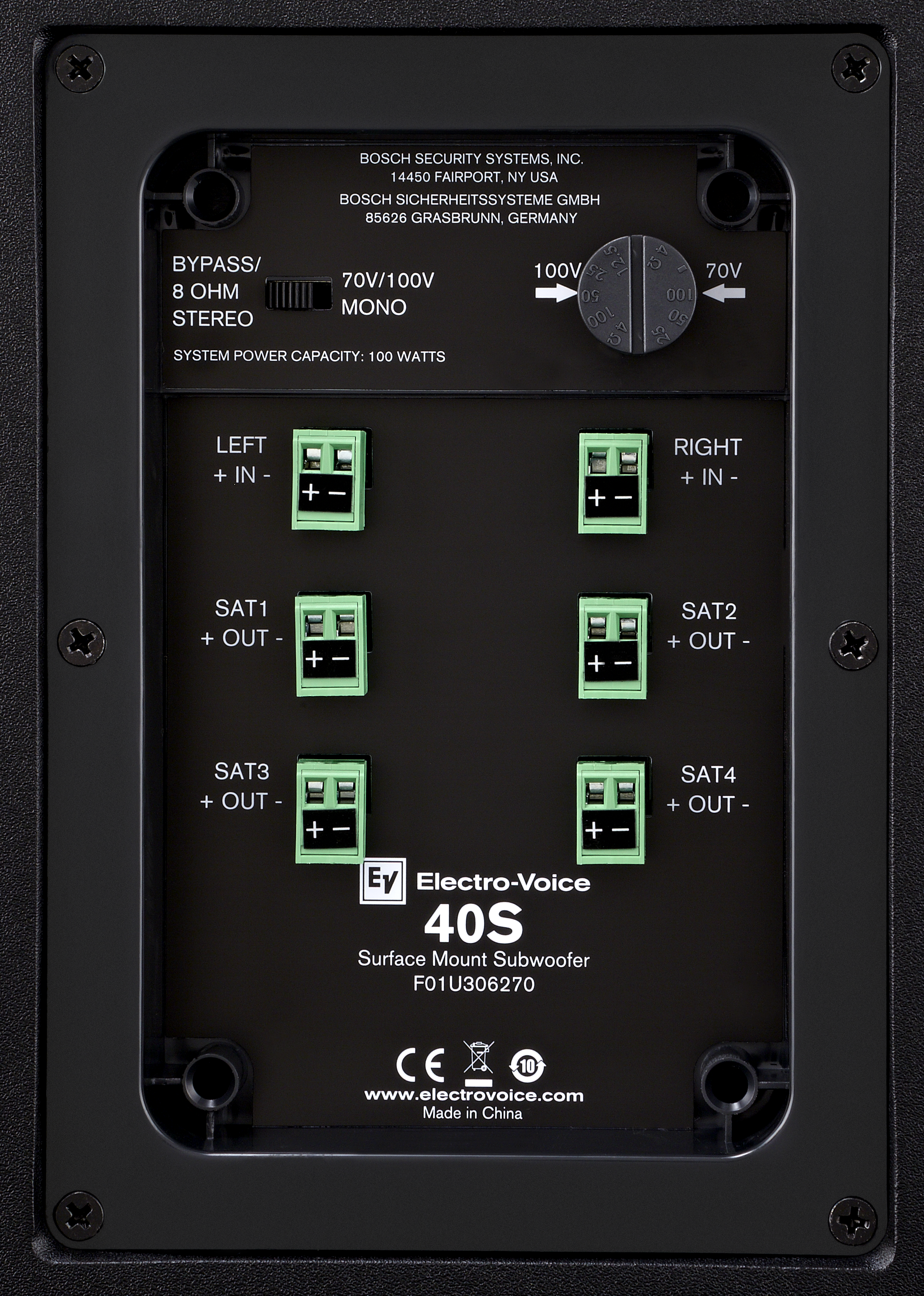

EV EVID Compact Sound SUB Input

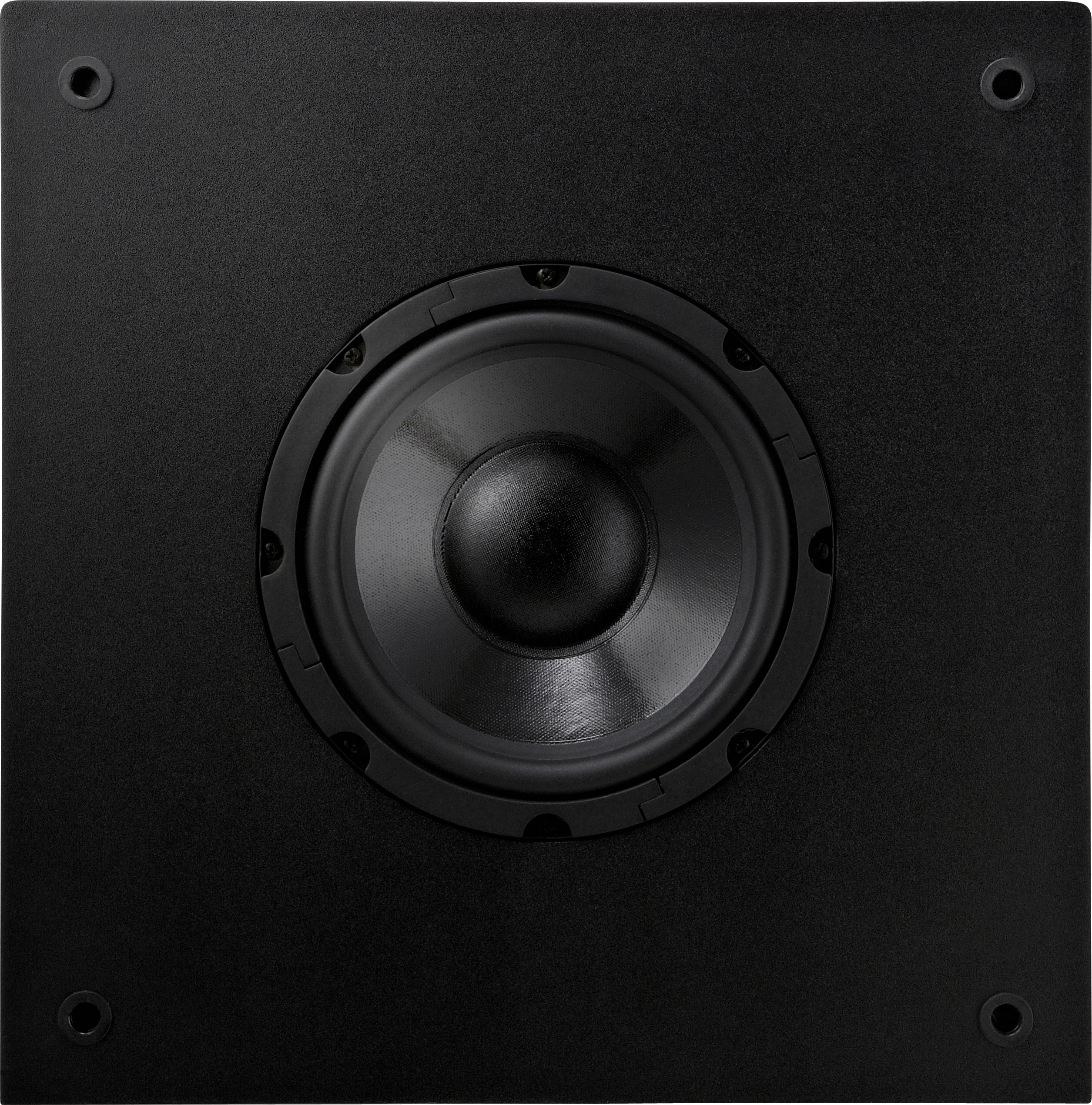

EV EVID Compact Sound SUB Speaker

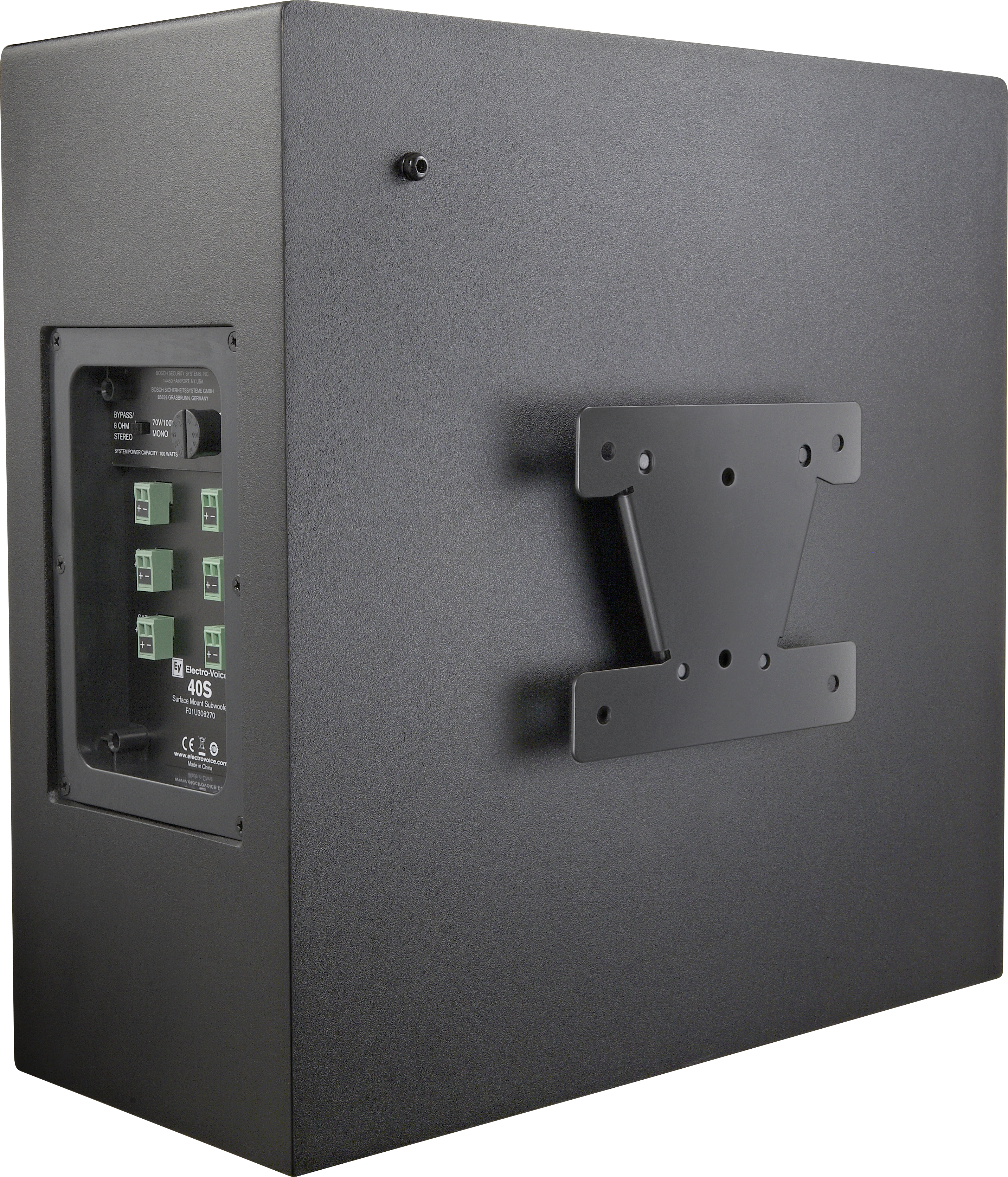

EV EVID Compact Sound SUB WallBracket
