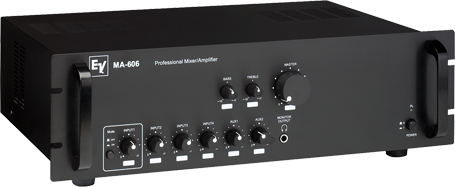

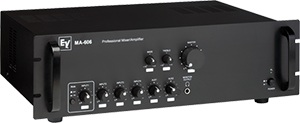

MA-606

EV professional mixer/amplifier

Summary & Images Specs Downloads & Support

The MA-606 professional rack-mount mixer/amplifier is designed for small-to-medium BGM/paging and public address system installations where reliable value is key. This new unit is an exceptional value, loaded with features, and is easy to install in a variety of system designs. The MA-606 provides a powerful 60 watts of output power into 70/100-volt or eight-ohm loads. The unit has a number of features that enable it to be customized to a wide range of background music and paging applications. Key Features: Four balanced microphone or line-level inputs - all available with 24-volt phantom power; 60 watts of output power for low impedance, 25-volt, 70-volt, or 100-volt speaker lines; two auxiliary stereo summing inputs with four-level sensitivity adjustment; balanced, line-level output to add additional power amplifiers; 24-volt powered operation available for emergency power requirements. Adjustable-level, telephone paging input; Independently adjustable low power monitor output.

Specifications

Height 5.22" (132.5mm)
Width 19.02" (483mm)
Depth 12.6" (320mm)

Weight Net 18.74lbs (8.5kg)
Signal-to-Noise Ratio (A-weighted) 90dB
Input Impedance (Balanced) 47kΩ
Input Sensitivity .75 mV
Continuous Rated Power (1 kHz, THD 1%) 4Ω 60Watts
Electronics Type Amplifier
Total Harmonic Distortion 0.5%
Intermodulation Distortion (SMPTE) 0.5%
