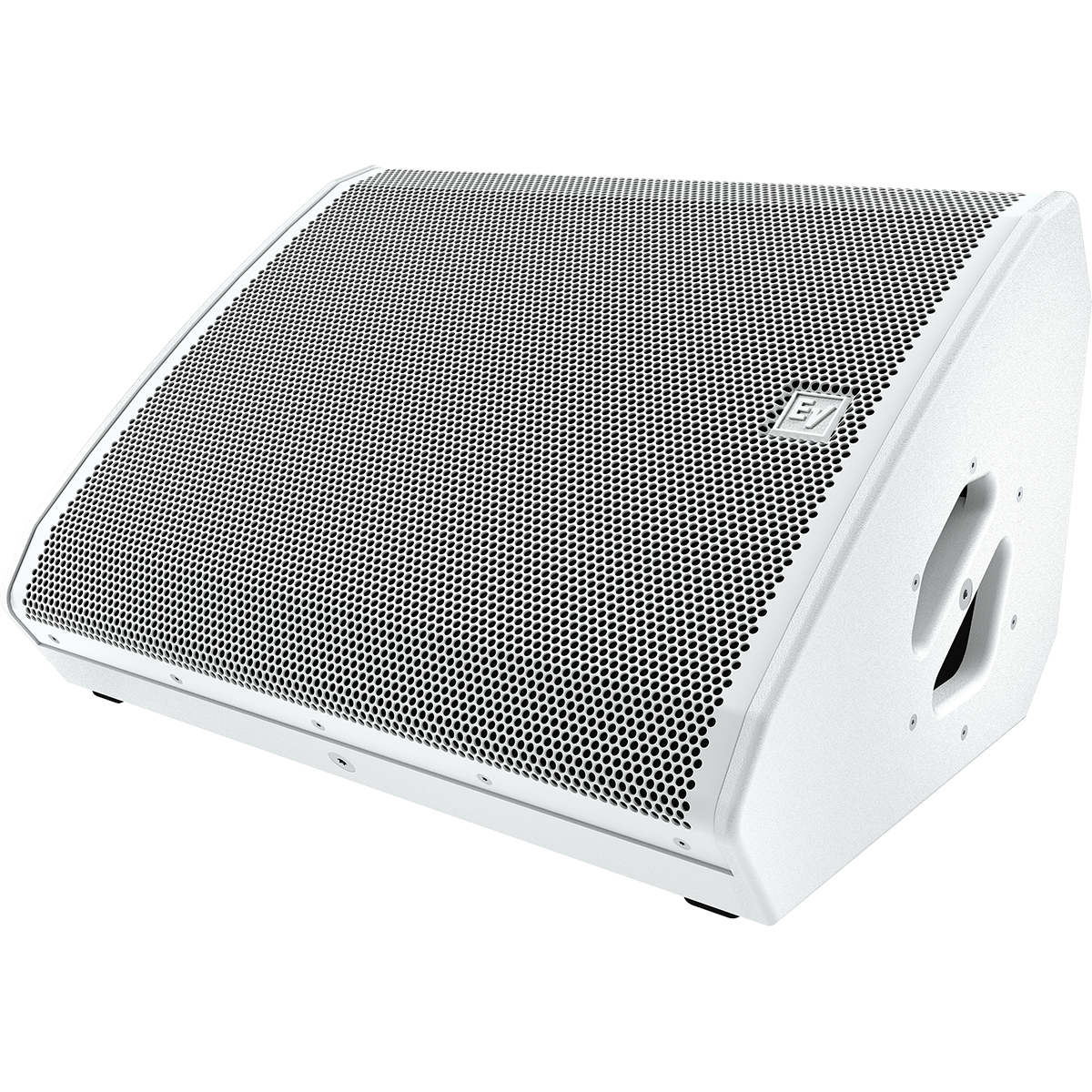

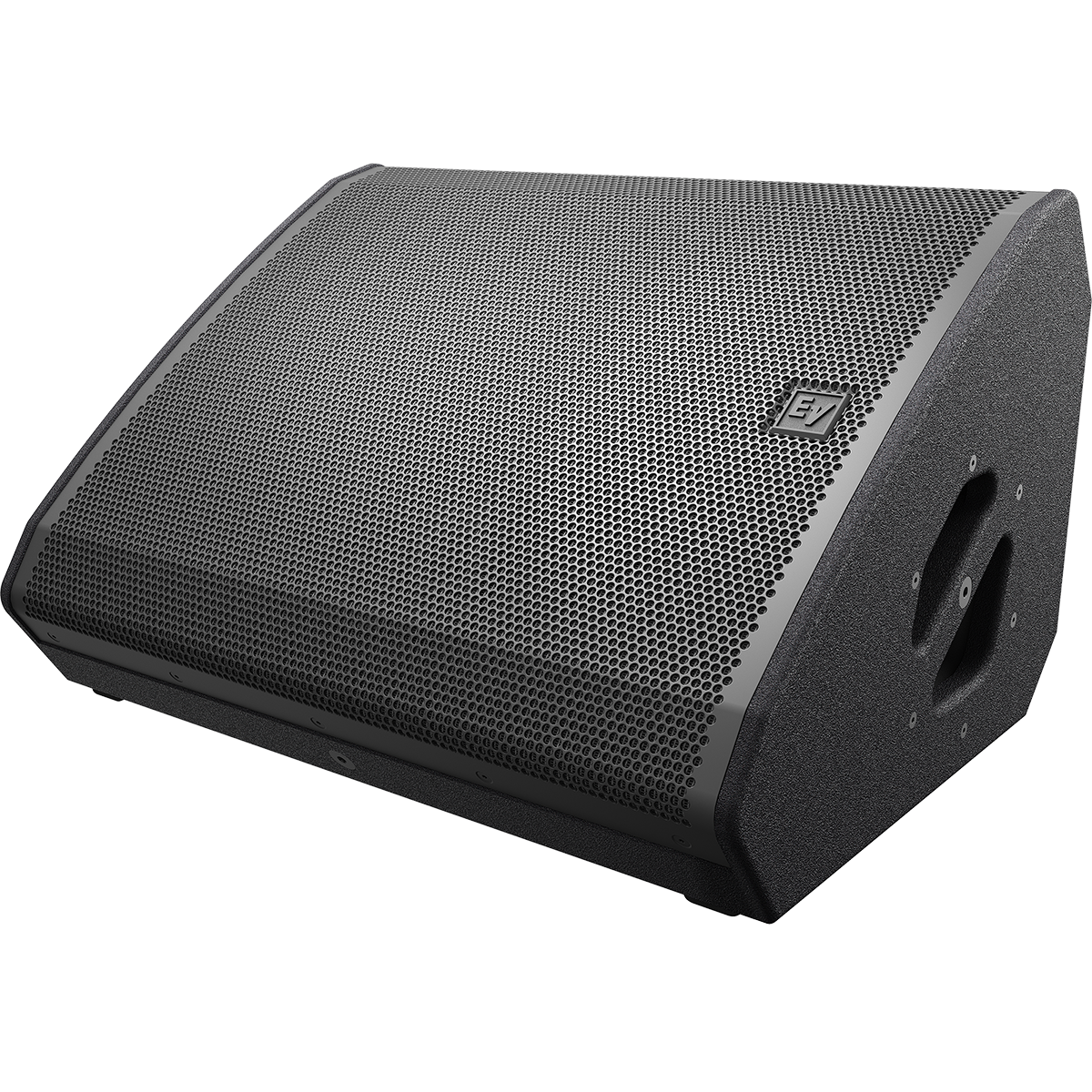

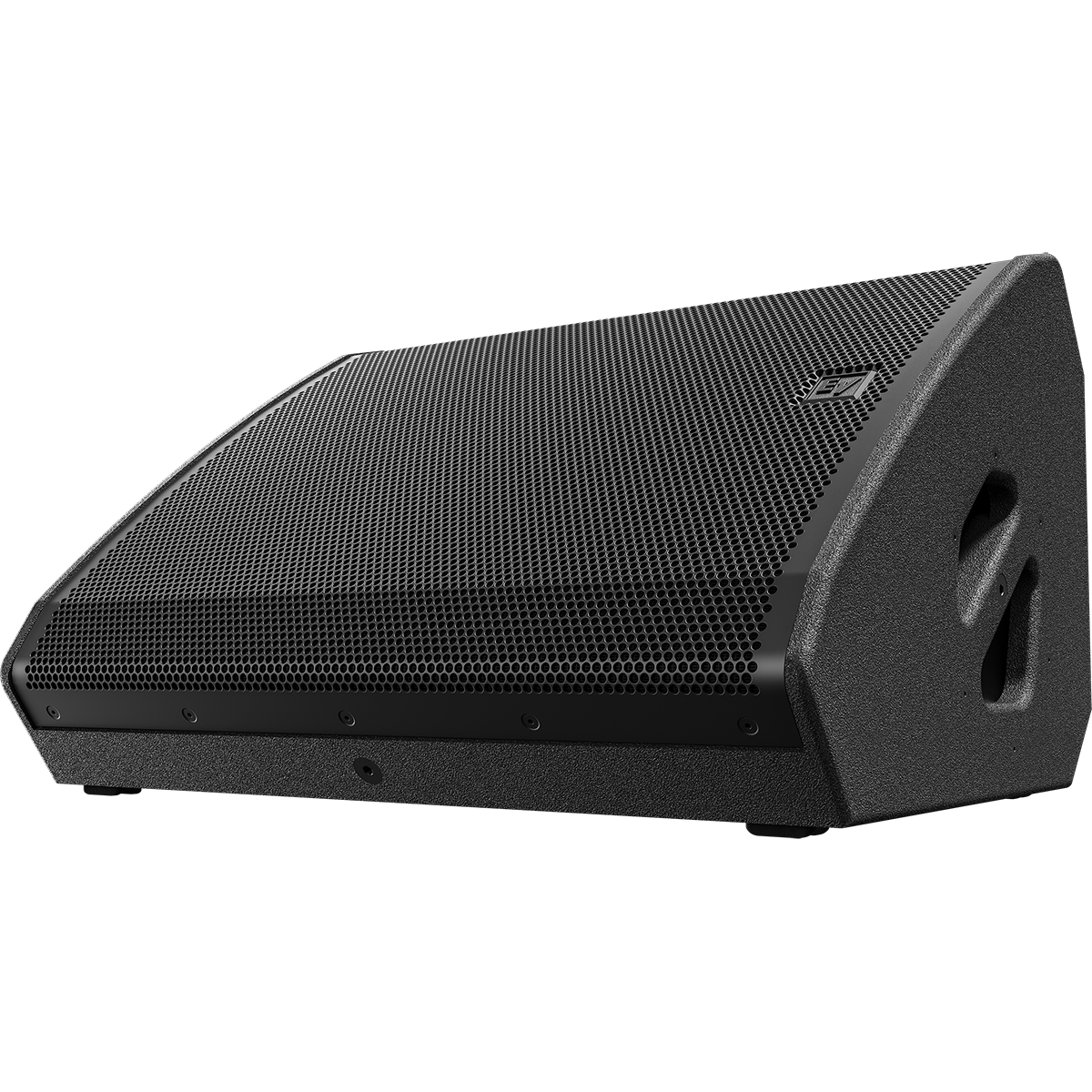

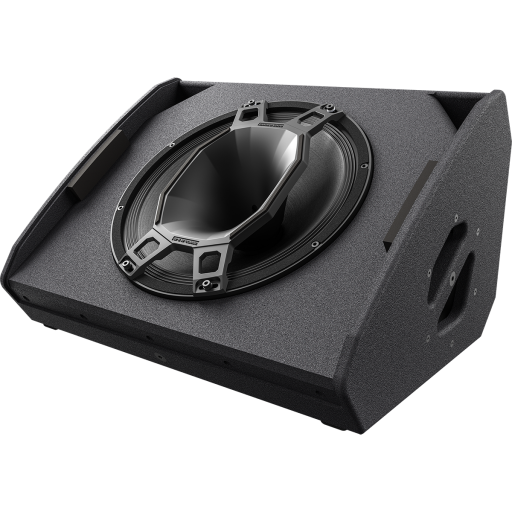

MFX-15MC

15" multi-use coax monitor

  • Multi-functional, coaxial, short-throw point source for stage monitoring, FOH, front fill, and side fill
  • Rugged tour-grade durability in a lightweight, ergonomic design
  • Low profile maximizes audience sight lines
  • Switched passive or biamp operation with factory presets for any application
  • Range of mounting accessories for live sound and fixed installation

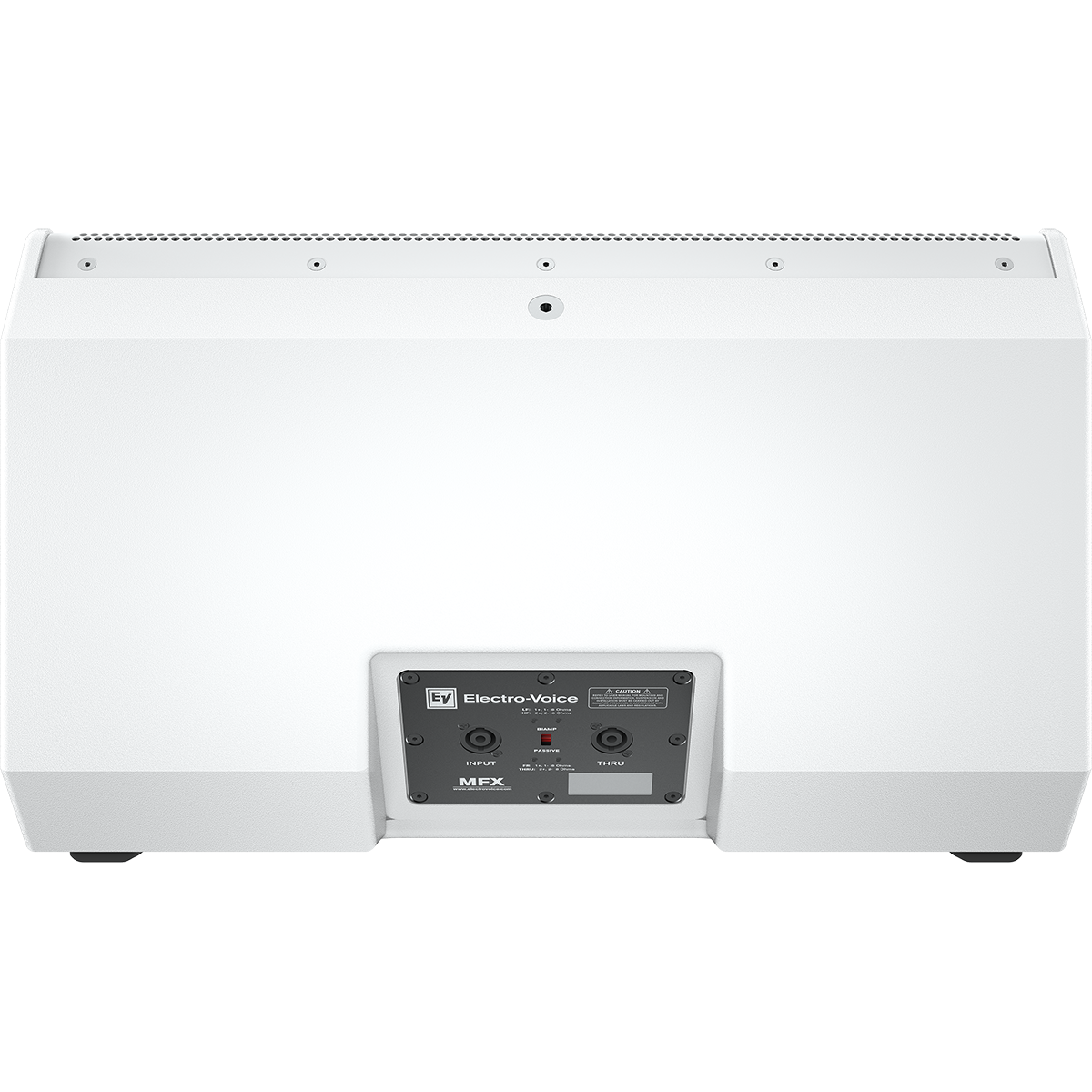

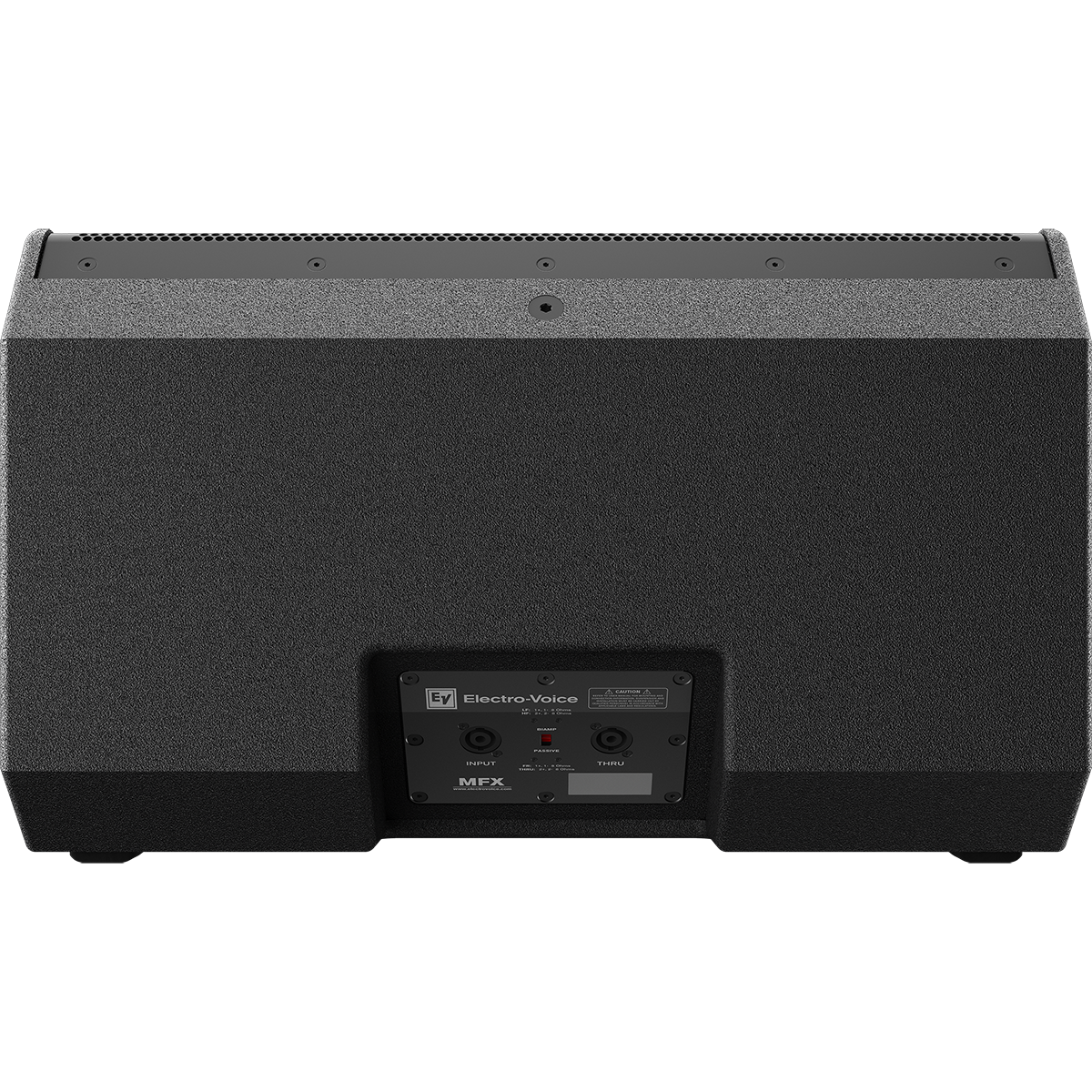

MFX Multi-Functional Monitors deliver a new level of reference performance from compact, two-way, coaxial designs. In addition to their primary use as live sound stage monitors, they can also serve as shortthrow, full range sound reinforcement speakers (with or without subwoofer) and are appropriate for a wide range of permanent installations. The internal details of the cabinet were selected in order to maximize internal volume while maintaining a low stage profile to preserve sight lines. The input panel is recessed into the rear of the speaker, protecting connectors within the cabinet envelope. The panel includes NL4 input and loop-through connections, along with a passive/biamp switch.

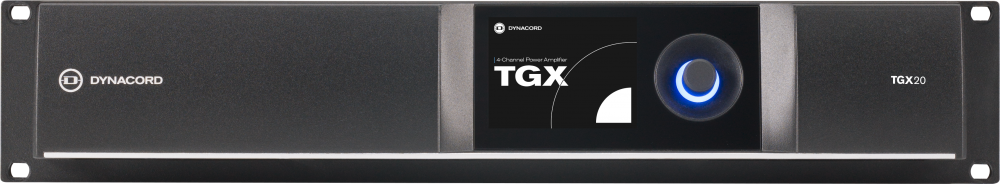

MFX Multi-Function Monitors are an attractive investment for live sound companies because they can be deployed in multiple system roles, keeping more of the rental inventory working rather than sitting in the warehouse until an appropriate job is booked. EV has created a library of DSP settings to optimize the speakers for specific uses. The recommended MFX monitor amplifier match is the Dynacord TGX or IPX amplifier series. The loudspeaker settings run in Dynacord’s SONICUE control software, which loads them into the amplifier DSP section.

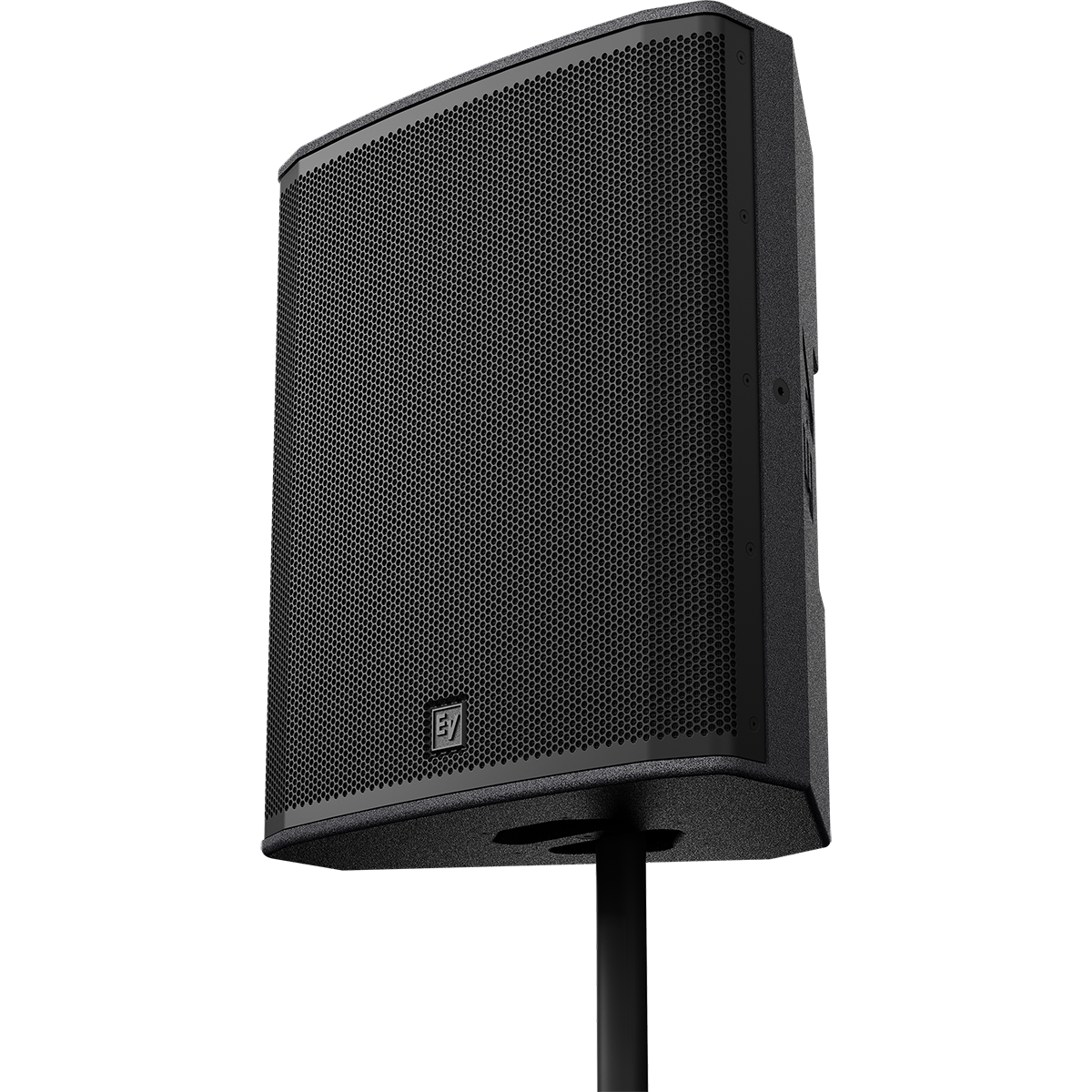

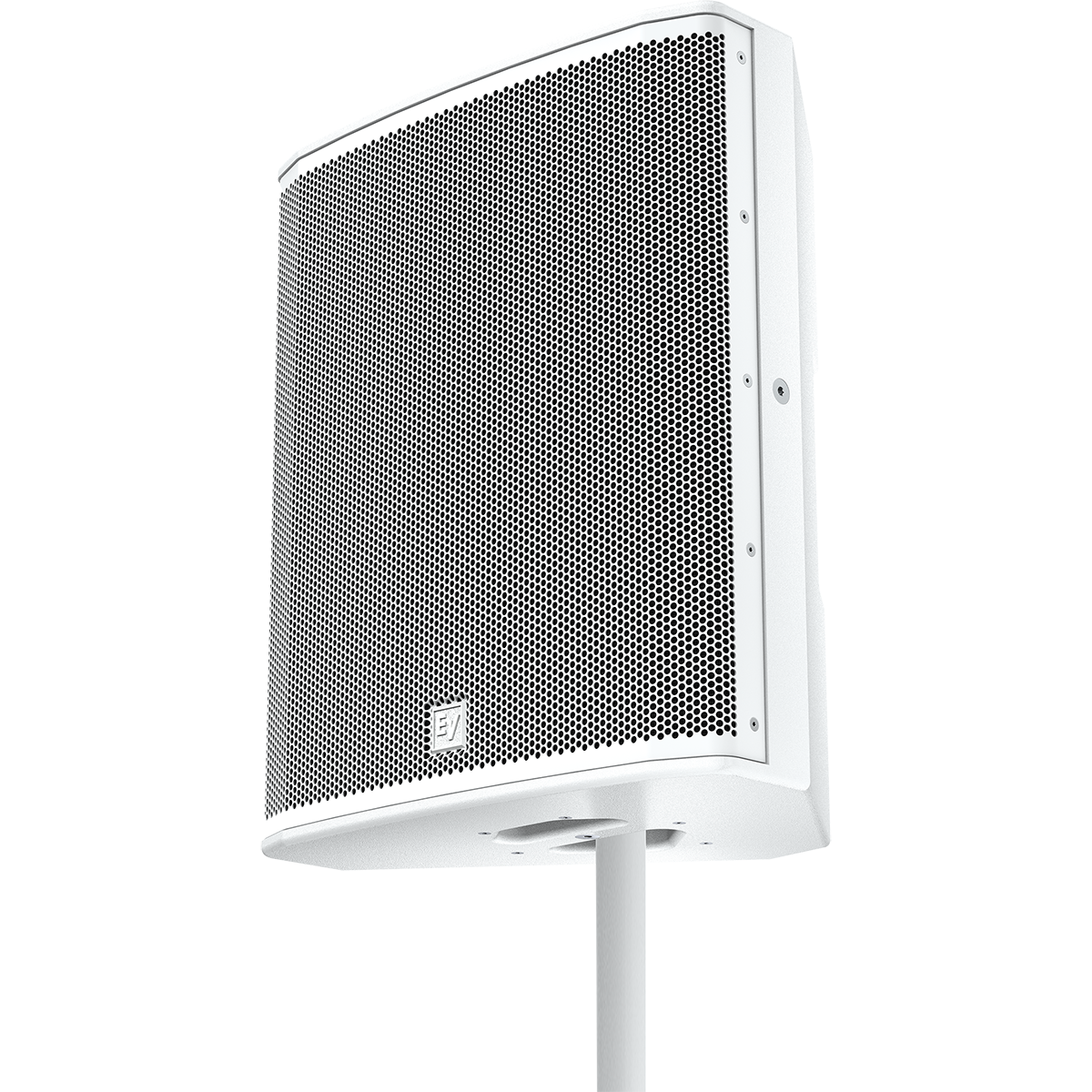

The constant directivity waveguide has a narrow pattern when the speaker is used horizontally as monitor, and a wide pattern when the cabinet is oriented vertically for use as a short-throw loudspeaker. The relatively large physical size of the waveguide controls coverage more uniformly and to a lower frequency than competitive models. The dimensions and location of the waveguide interact with the woofer to effectively create a bipole output, enhancing coverage control through the midrange frequencies. This configuration contributes to excellent gain-before-feedback performance. The waveguide also functions as a structural support (standoff) for the grille, even when a lead singer’s boot rests directly on the speaker.

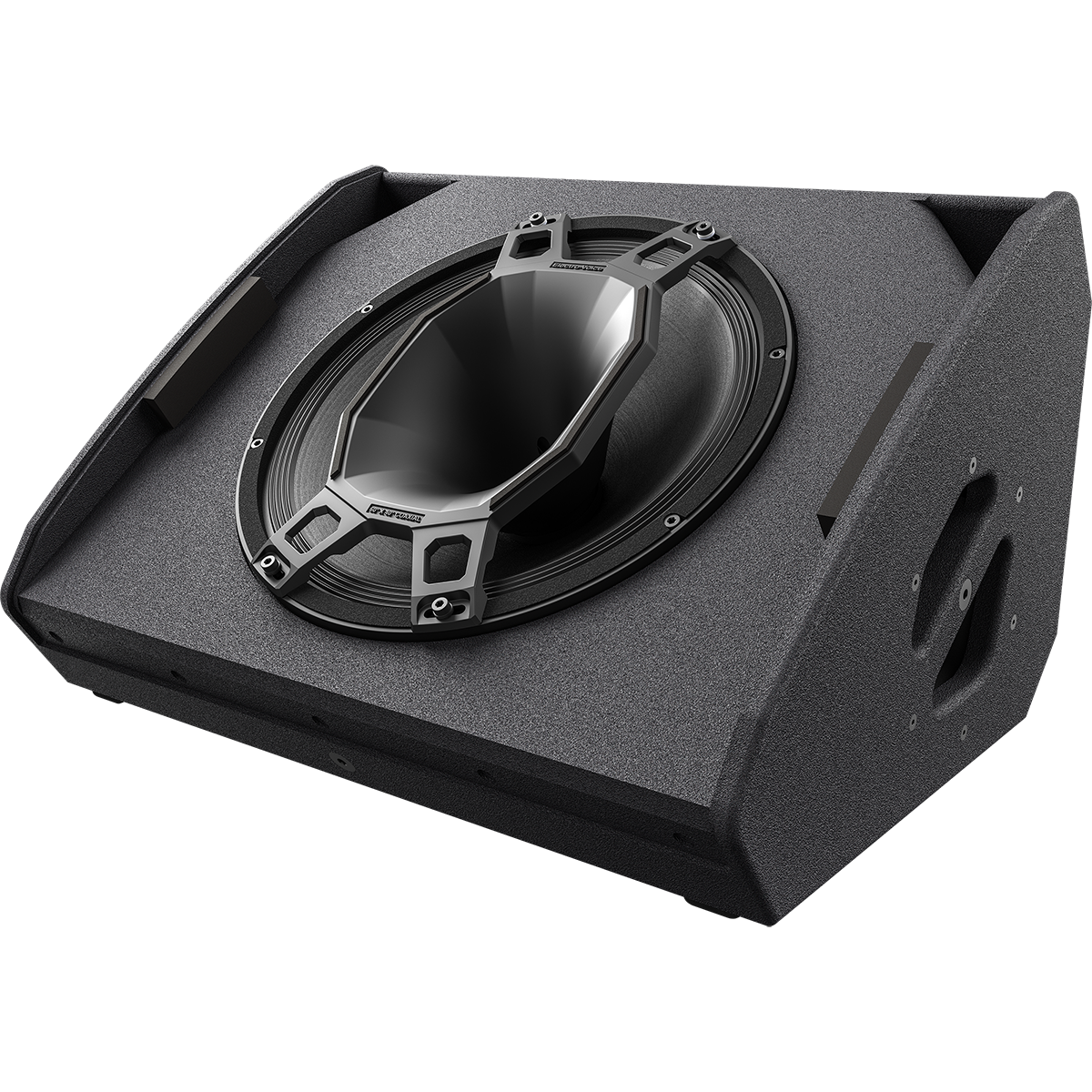

The coaxial driver and horn assembly can be uninstalled and re-installed with a 90° rotation, which also rotates the coverage pattern; this is only recommended for install applications. Both models feature an integrated pole cup (neatly located in the side handle recesses) and four M10 suspension points to attach custom U brackets for wall-mount or flown use. Truss clamps, stand mount adapters, and a rigging bar are available for live or permanent installations.

Specifications

Frequency response (-3 dB)152 Hz - 18 kHz
Frequency range (-10 dB)145 Hz - 19 kHz
Rotatable coverage60° x 40° FOH, 40° x 60° Monitor

Rec. high-pass frequencyUse factory preset
Axial sensitivity197 dB (1 W/1 m)
Max. SPL2136 dB
Power handling3500 W (Continuous), 3500 W (Peak)
Nominal impedance passive8 Ω
Nominal impedance biamp LF8 Ω
Nominal impedance biamp HF8 Ω
TransducerCXCA3128-1CA
ConnectorsNeutrik NL4 input with NL4 pass through
Enclosure12-18-mm Baltic birch plywood with EVCoat
LogoRotatable
Monitor angles35° and 55°
Grille1.5-mm zinc plated steel with corrosion resistant coating
HandlesTwo with integrated cup for standard 35-mm pole
SuspensionFour M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories
ColorBlack (RAL 9005) or white (RAL 9003)
Dimensions (H x W x D)600 mm x 500 mm x 339 mm (23.6 in x 19.7 in x 13.4 in)
Net weight23 kg (51 lb)
Shipping weight25.2 kg (55.6 lb)
1 Half-space with monitor preset
2 Measured one meter on-axis, free field with 12dB crest factor pink noise
3 Continuous power EIA-426A, peak power 500-hour EV music abuse test

Recommended Amplifiers

Related Products Learn More Related Products Learn More
Two-Channel
Multi-Channel
DSP
Direct Drive
OMNEO (Dante, OCA)
Installation
Live Sound

Downloads

Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
MFX Bracket Family Declaration of Conformity (Multi-Lingual) 588KB Feb 11, 2020
MFX Multi-Function Monitors EC-Declaration of Conformity (Multi-Lingual) 432KB Sep 16, 2019
Name Size Date
MFX-15MC 2D CAD.DWG DWG 880KB Dec 2, 2019
MFX-15MC 3D CAD.DWG DWG 162KB Dec 2, 2019
MFX-15MC 3D CAD.STEP ZIP 76KB Dec 4, 2019
Name Size Date
EV MFX V1 ZIP 46.57MB Apr 10, 2020
MFX GLLs v1.0.zip ZIP 46.57MB Dec 2, 2019
Name Language Size Date
MFX-15MC Engineering Data Sheet EN 2.79MB Sep 16, 2019
Name Language Size Date
MFX Multi‑Function Monitors Installation manual EN 2.64MB Jun 14, 2019
Name Size Date
MFX Monitors Presets v1.1 ZIP 431KB Sep 19, 2019
