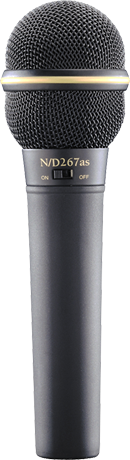

N/D267a

Versatile dynamic vocal microphone

  • VOB technology
  • Cardioid polar pattern
  • Tight-mesh Memraflex grille
  • Dynamic, high-sensitivity neodymium element
  • Warm Grip handle for more comfortable feel and low handling noise

The N/D267a incorporates EV’s unique VOB (Vocally-Optimized Bass) technology to provide critical damping of the low-frequency resonant peak, reducing resonant distortion at low frequencies. The result is a microphone with increased finesse and vocal clarity, ensuring a clear, consistent sound that punches through the mix. Available with on/off switch (N/D267as)

Specifications

Weight Net 8.4oz (238g)
Height 7.13" (181mm)
Connector Type 3-pin XLR

Element Dynamic
Impedance, Low-Z balanced 300Ω
Open Circuit Voltage 2.9mV/Pascal
Case Material Metal
Finish Non-reflecting Black
Power Requirement Passive
Audio Frequency Response 45 - 15,000 Hz
Polar Pattern Cardioid
Wired/Wireless Wired
Mic Type Handheld
Diameter (Max) 2.05" (52mm)

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Name Language Size Date
N/D267a/as Engineering Data Sheet EN 108KB Feb 16, 2012
