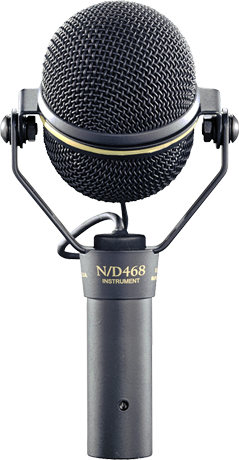

N/D468
Dynamic supercardioid instrument microphone
- Designed specifically for instruments
- Supercardioid pattern
- Dynamic, high-sensitivity neodymium element
- Unique pivoting head for perfect placement on drums, horns, acoustic and electric guitar
- Accurate response, even at high sound pressure levels (SPL)
- Rugged steel construction
Designed specifically for horns, drums, and acoustical and electric guitars, the N/D468’s large-diameter voice coil (up to 50% larger than other mics) provides a sound that’s natural yet powerful and articulate. A unique pivoting-head design ensures perfect mic placement, while the supercardioid pattern provides superior off-axis rejection and acoustic isolation in any application.
Specifications
| Connector Type | 3-pin XLR |
| Height | 4.53" (115mm) |
| Weight Net | 6.7oz (190g) |
Specifications |
|
| Polar Pattern | Supercardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 2.05" (52mm) |
| Element | Dynamic |
| Impedance, Low-Z balanced | 150Ω |
| Open Circuit Voltage | 3.1mV/Pascal |
| Case Material | Metal |
| Finish | Non-reflecting Black |
| Power Requirement | Passive |
| Audio Frequency Response | 20 - 22,000 Hz |
Downloads
Technical Documentations
Engineering Data Sheet
| Name | Language & Download |
|---|---|
| N/D468 Engineering Data Sheet | EN |
Manual
| Name | Language & Download |
|---|---|
| N/D468 User Manual | EN |
Service Policies
| Name | Language & Download |
|---|---|
| Warranty conditions for Electro-Voice products in North America | EN |
White Paper
| Name | Language & Download |
|---|---|
| Audio 101 - Basic Audio Terminology | EN |
| Audio 101 - Loudspeaker Basics | EN |
| Audio 101 - Microphone Basics | EN |
| Microphone Facts- The New Model 666R Joins the 666 Family | EN |
| PA Bible 03: Microphone Types | EN |
| PA Bible 08: Microphone Techniques | EN |
| PA Bible 15: Barrier Miking | EN |
| The EV PA Bible | EN |
| The PA Bible Chapter Zero | EN |
