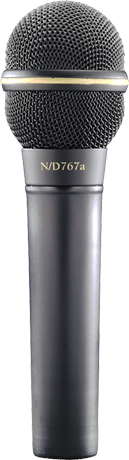

N/D767a
Premium dynamic vocal microphone
- Top-class vocal microphone
- Multi-stage shock mount
- Dynamic, high-sensitivity neodymium element
- Tight-mesh Memraflex™ grille
- Condenser-like performance
- VOB™ technology
- Supercardioid polar pattern
The N/D767a is the singer and engineer’s first choice for outstanding vocal clarity in live performance. With low handling noise, VOB™ technology, and excellent clarity through all frequencies, the N/D767a is the top-choice dynamic mic in its class.
Specifications
| Weight Net | 9.17oz (260g) |
| Height | 7.13" (181mm) |
| Connector Type | 3-pin XLR |
Specifications |
|
| Open Circuit Voltage | 3.1mV/Pascal |
| Case Material | Metal |
| Finish | Non-reflecting Black |
| Power Requirement | Passive |
| Audio Frequency Response | 35 - 22,000 Hz |
| Polar Pattern | Supercardioid |
| Wired/Wireless | Wired |
| Mic Type | Handheld |
| Diameter (Max) | 2.05" (52mm) |
| Element | Dynamic |
| Impedance, Low-Z balanced | 300Ω |
Complementary
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Language | Size | Date |
|---|---|---|---|
| N/D767a Engineering Data Sheet | EN | 95KB | Dec 26, 2007 |
| Name | Language | Size | Date |
|---|---|---|---|
| N/D767a User Manual | EN | 202KB | Dec 26, 2007 |
