RE-1 Handheld

Csh‑1000 re‑1 handheld transmitter

The CSH-1000 is a rugged handheld with interchangeable microphone elements and a soft warm-grip molded onto a high-impact, polycarbonate shell. The CSH-1000 has selectable output power, smart battery, and can be purchased with N/D767a, N/D967, RE410, or RE510 high-performance microphones.

Specifications

Controls Power On/Off, Audio Gain Adjustment with 26 dB range
Transmit Power Switch, Menu, Set, Up, Down Buttons
Displays Red LED Low Battery Indicator, LCD displays one of the
following: Channel/Group, Frequency, or Battery Level
Battery Life 8 hours with 9V alkaline typical

Antenna Internal 1/2 wave
Microphone Elements EV N/D 767a Dynamic or RE-510 Condenser
RF Output:
Normal:
High:
5 mW typical
50 mW typical
Size 10.5 in. (26.8 cm) long

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Name Language Size Date
RE-1 Engineering Data Sheet EN 163KB Dec 26, 2007
Name Language Size Date
RE-1 Operating Instructions EN 388KB Dec 26, 2007
Name Size Date
pfunk5 550 94KB Nov 2, 2015

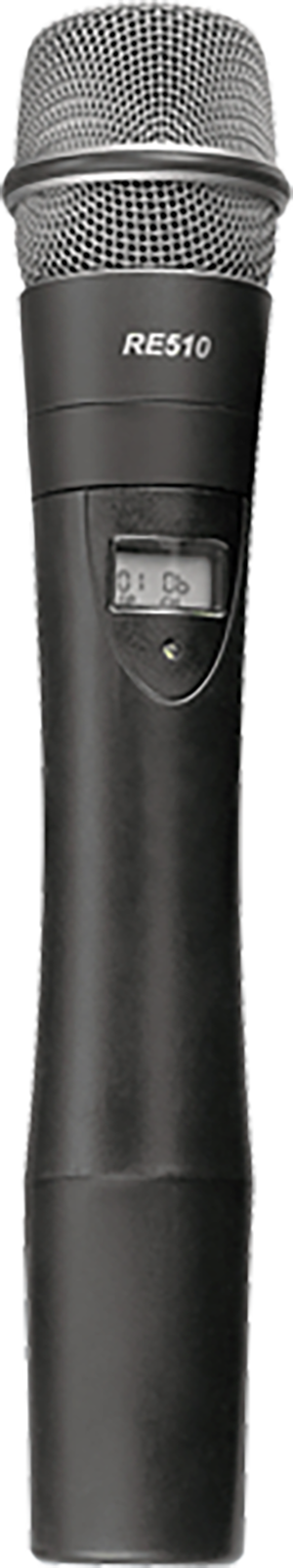

RE1 wRE510 trans-trans

Name Language Size Date
Service Policies for the Americas EN 274KB Mar 26, 2019
EMEA BT Service Policies EN 492KB Mar 26, 2019
General Terms & Conditions of Deliver for Export Business EN 57KB Nov 26, 2014
Service Policies for Asia/Pacific Rim EN 2.62MB Sep 4, 2018
Service Policies for China EN 229KB Apr 25, 2013
Allgemeine Lieferbedingungen DE 184KB Nov 30, 2016
Name Language Size Date
Audio 101 - Basic Audio Terminology EN 2.74MB Dec 13, 2012
Audio 101 - Loudspeaker Basics EN 3.02MB Dec 13, 2012
The EV PA Bible EN 1.14MB Dec 26, 2007
The PA Bible Chapter Zero EN 1.14MB Jun 11, 2018
