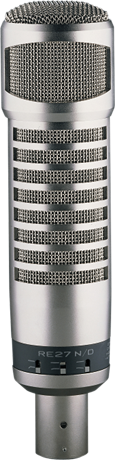

RE27N/D
Broadcast announcer microphone w/ variable‑d & n/dym cap
- Variable-D™ for minimal proximity effect
- Neodymium element design brings 6 dB more sensitivity
- Ultra-flat frequency response
- Studio condenser-like performance
- Three selectable filters: -6 dB from 250-100 Hz, -12 dB from 1000-100 Hz and -3 dB high frequency roll-off
- Integral wind and blast filters
The RE27N/D is a high-performance, neodymium-equipped industry-standard broadcast microphone. Superb resolution and depth for voice and instruments have also made the versatile RE27N/D a favorite of recording studios and live sound engineers around the world.
Specifications
| Weight Net | 25.01oz (709g) |
| Height | 8.54" (217mm) |
| Connector Type | 3-pin XLR |
Specifications |
|
| Frequency Response (-3 dB) | 45 - 20,000 Hz |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Vocal/Instrument |
| Diameter (Max) | 2.13" (54mm) |
| Element | Dynamic |
| Impedance, Low-Z balanced | 150Ω |
| Open Circuit Voltage | 2.5mV/Pascal |
| Case Material | Steel |
| Finish | Satin Nickel |
| Power Requirement | Passive |
| Family | RE Series Live Performance |
