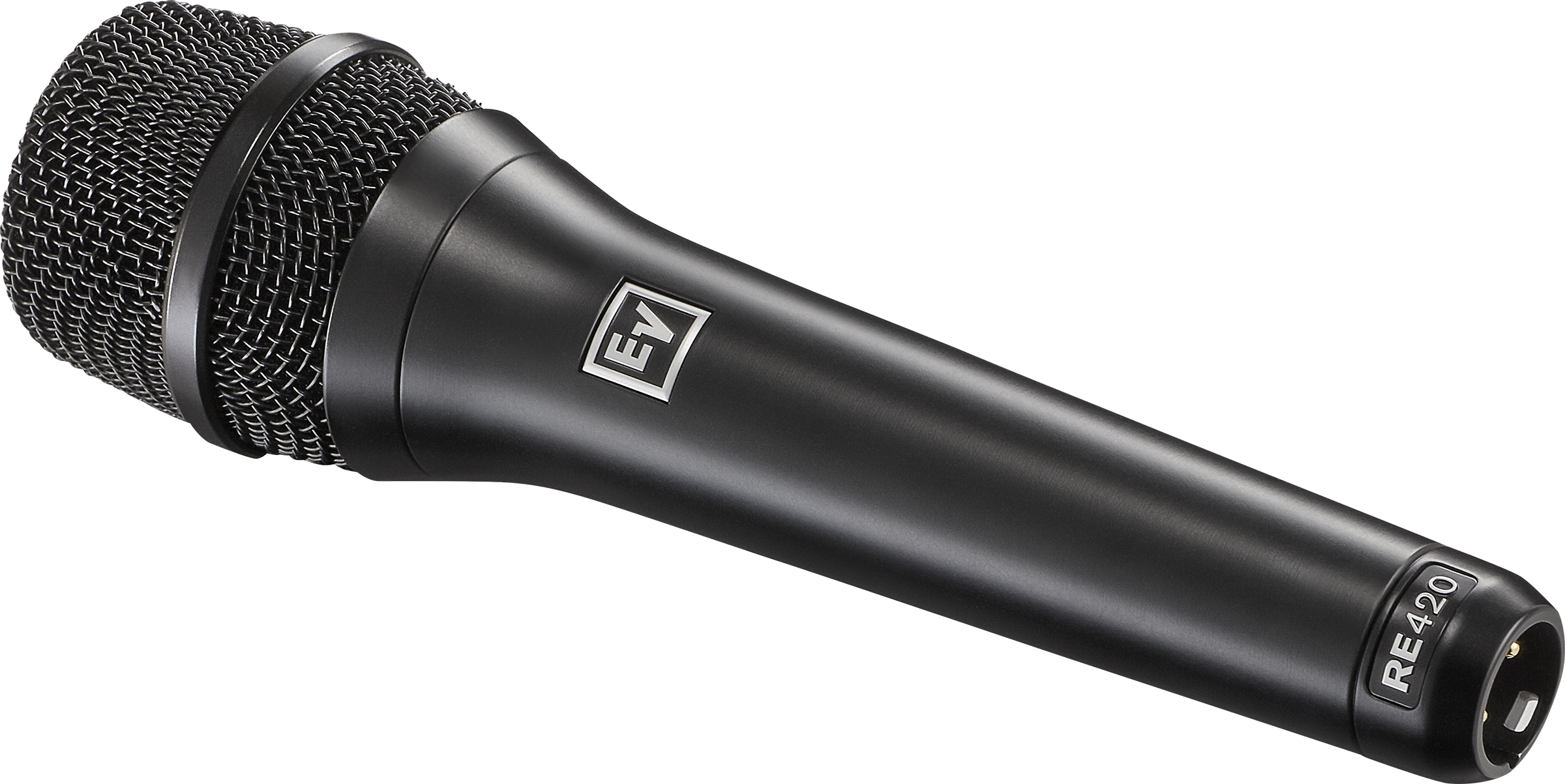

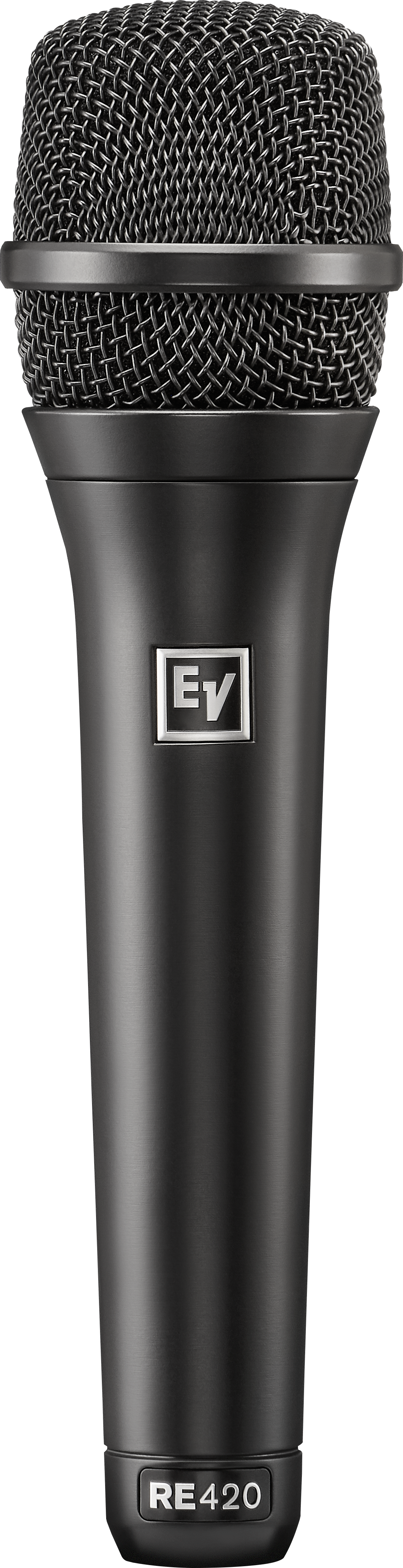

RE420
Condenser cardioid vocal microphone
- Premium condenser element delivers a highlydetailed, rich, and full bodied sound
- Cardioid polar pattern provides excellent acoustic isolation with a comfortable working range
- Multi-stage pop filter minimizes breath blasts and plosives
- Selectable high-pass filter reduces undesirable low frequency content when engaged
- Vibration-absorbing internal shock mount minimizes handling noise
The RE420 is a premium-grade, high-performance, condenser cardioid vocal microphone. Designed to reveal the exceptional detail and vivid clarity synonymous with condenser elements, it skillfully delivers the lyrical finesse required for expressive vocal performances.
The sonic signature is rich, detailed and full-bodied, with a warm and clear low end, natural and present midrange, and an open, crisp and detailed high end. The cardioid pattern provides excellent acoustic isolation. Maximum feedback rejection occurs when a stage monitor is positioned 180° off-axis to the element. This pattern also allows for a comfortable working range around the microphone making expressive microphone techniques easy.

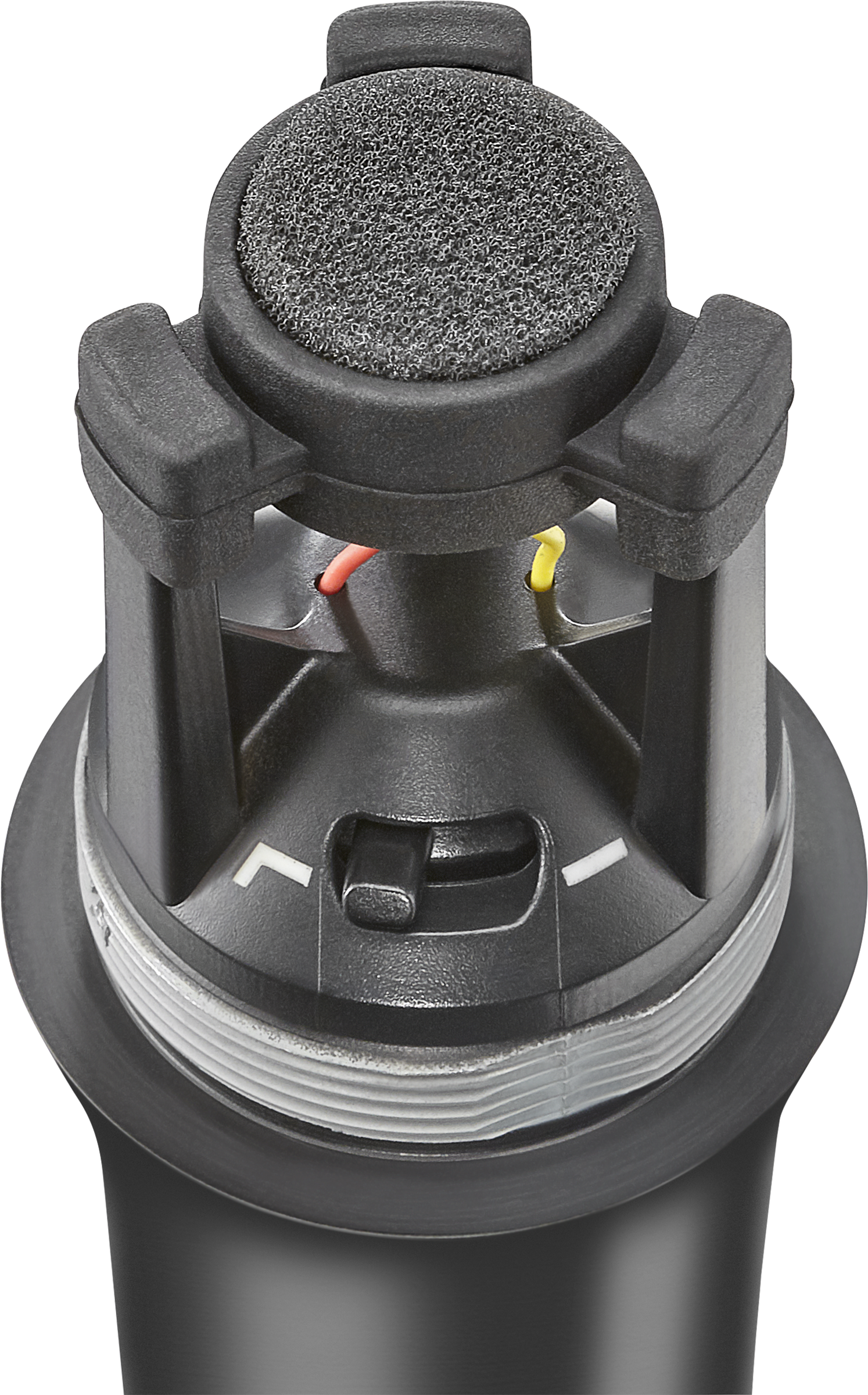

The multi-stage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts. The high-pass filter has two positions (see drawing). The flat position delivers the full frequency band pass of the capsule. The high-pass position attenuates frequencies below 150 Hz.
The internal shock mount isolates the microphone element from vibration and guards against handling noise.
Specifications
| Element type | Self-biased condenser | |||
| Frequency response | 50 Hz-20 kHz | |||
| Polar pattern | Cardioid | |||
Specifications |
||||
| Sensitivity, open circuitvoltage, 1 kHz | 5.6 mV/Pascal (-45 dBV/Pa) |
| Clipping (max SPL) | 149 dB SPL (1% THD) |
| Self noise | 22 dB SPL "A" weighed (0 dB=20 μPa) |
| Dynamic range | 127 dB |
| Signal-to-Noise ratio | 72 dB |
| Output impedance | 200 ohms |
| Power requirements | 48 VDC phantom power |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 |
| Electrical contact | 3-pin, XLR-type |
| Finish | Black polyurethane paint |
| Materials | Zinc die cast, steel wire cloth grille |
| Dimensions, length diameter shank |
7.6 in. (192 mm) 1.95 in. (49.5 mm) 0.96 in. (24.3 mm) |
| Net weight | 11.5 oz (326 g) |
| Shipping weight | 1 lb 4.9 oz (593 g) |
Complementary
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Microphone Catalog 2020 | EN | 10.97MB | Jul 3, 2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| RE Series Music Performance Wired Mics EC Declaration of Conformity | 523KB | Mar 29, 2019 |
| EU–MEGFELELŐSÉGI NYILATKOZAT (REG000486001) | 523KB | Mar 29, 2019 |
| DECLARAÇÃO UE DE CONFORMIDADE (REG000486001) | 523KB | Mar 29, 2019 |
| DECLARACIÓN DE CONFORMIDAD (REG000486001) | 523KB | Mar 29, 2019 |
| DECLARAȚIA UE DE CONFORMITATE (REG000486001) | 523KB | Mar 29, 2019 |
| DÉCLARATION UE DE CONFORMITÉ (REG000486001) | 523KB | Mar 29, 2019 |
| DEKLARACJA ZGODNOŚCI UE (REG000486001) | 523KB | Mar 29, 2019 |
| DICHIARAZIONE DI CONFORMITÀ UE (REG000486001) | 523KB | Mar 29, 2019 |
| DIKJARAZZJONI TA’ KONFORMITÀ TAL-UE (REG000486001) | 523KB | Mar 29, 2019 |
| ELi VASTAVUSDEKLARATSIOON (REG000486001) | 523KB | Mar 29, 2019 |
| ES ATBILSTĪBAS DEKLARĀCIJA (REG000486001) | 523KB | Mar 29, 2019 |
| ES ATITIKTIES DEKLARACIJA (REG000486001) | 523KB | Mar 29, 2019 |
| EU IZJAVA O SUKLADNOSTI (REG000486001) | 523KB | Mar 29, 2019 |
| EU PROHLÁŠENÍ O SHODĚ (REG000486001) | 523KB | Mar 29, 2019 |
| EÚ VYHLÁSENIE O ZHODE (REG000486001) | 523KB | Mar 29, 2019 |
| EU-CONFORMITEITSVERKLARING (REG000486001) | 523KB | Mar 29, 2019 |
| EU-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE (REG000486001) | 523KB | Mar 29, 2019 |
| EU-KONFORMITÄTSERKLÄRUNG (REG000486001) | 523KB | Mar 29, 2019 |
| EU-OVERENSSTEMMELSESERKLÆRING (REG000486001) | 523KB | Mar 29, 2019 |
| EU-VAATIMUSTENMUKAISUUSVAKUUTUS (REG000486001) | 523KB | Mar 29, 2019 |
| IZJAVA EU O SKLADNOSTI (REG000486001) | 523KB | Mar 29, 2019 |
| ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ ΕΕ (REG000486001) | 523KB | Mar 29, 2019 |
| ЕС ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ (REG000486001) | 523KB | Mar 29, 2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| RE420 Engineering Data Sheet | EN | 2.43MB | Jun 19, 2018 |
| RE420 Engineering Data Sheet | DE | 1.86MB | Dec 17, 2018 |
| RE420 Engineering Data Sheet | ES | 1.91MB | Dec 17, 2018 |
| RE420 Engineering Data Sheet | FR | 1.86MB | Dec 17, 2018 |
| RE420 Engineering Data Sheet | KO | 1.95MB | Dec 17, 2018 |
| RE420 Engineering Data Sheet | TH | 1.9MB | Dec 17, 2018 |
| RE420 Engineering Data Sheet | ZH | 1.89MB | Dec 17, 2018 |
| RE420 Engineering Data Sheet | JA | 1.88MB | Jan 14, 2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| RE420 AND RE520 Flyer | EN | 621KB | Jan 8, 2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| Electro-Voice RE420 & RE520 Road Test | EN | 164KB | Nov 19, 2019 |
EV RE ND Microphones RE420Wired fr FINAL-2400px
EV RE ND Microphones RE420-Wired cv1-2400px

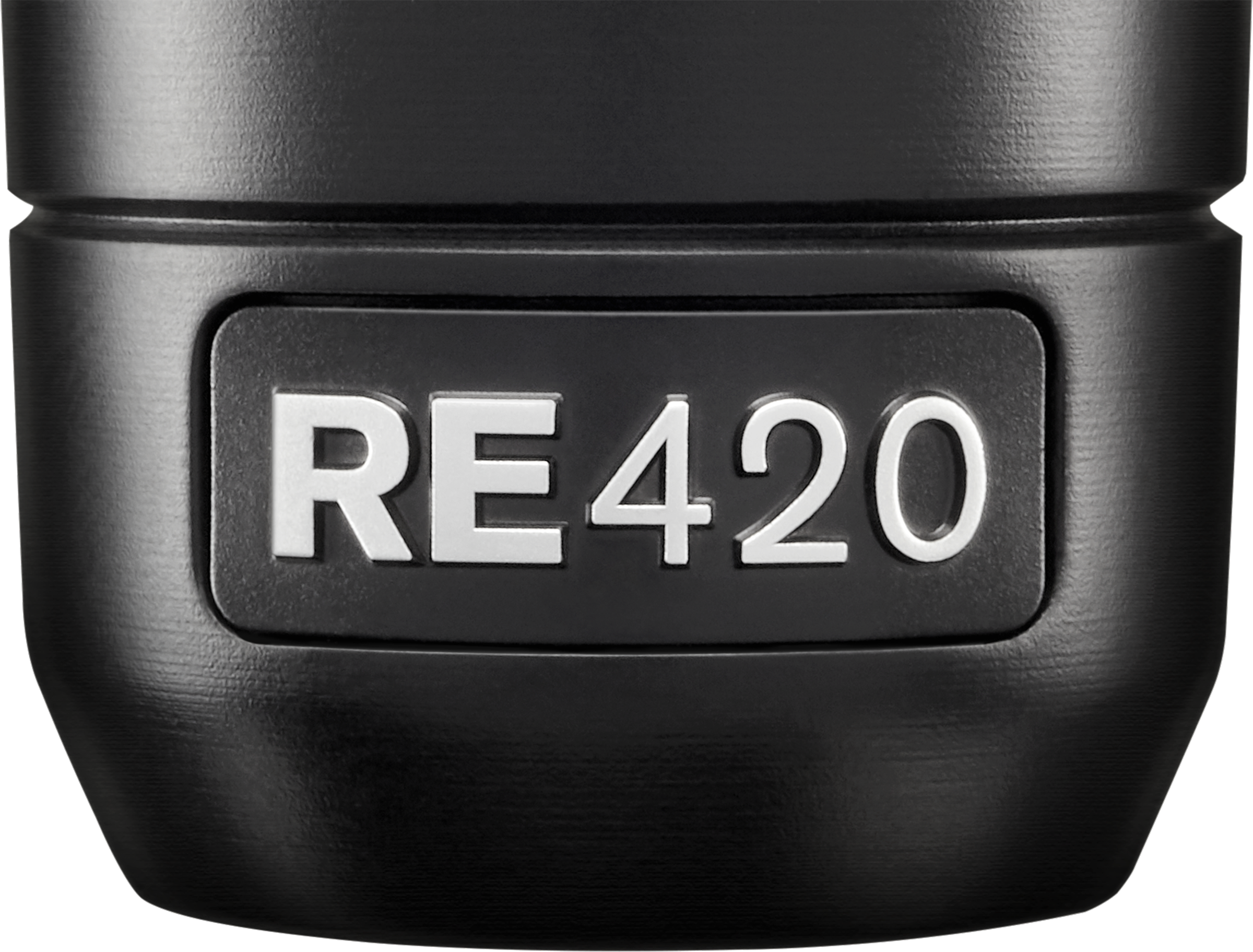

EV RE ND Microphones RE420 Badge-2400px
