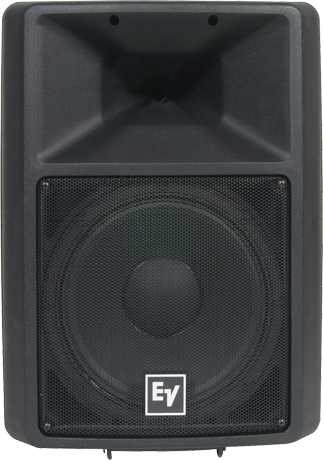

Sx100+

12" passive loudspeaker

  • Compact, portable sound reinforcement
  • Ideal for live sound, speech, DJ, AV, institutional use
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65º x 65º Constant-directivity Varipath™ horn
  • High efficiency, 127 db maximum SPL
  • Power handling: 200 W continuous, 800 W peak
  • Ring-Mode Decoupling (RMD™) for increased intelligibility
  • Trapezoidal black or white copolymer enclosure
  • Integral monitor stand, pole mount, rigging points

Specifications

Freq. Response (-10 dB) 60 Hz - 25 kHz
Sensitivity 98 dB
Max SPL 127 dB

Impedance 8 ohms Nominal, 5.6 ohms Min.
Horizontal Coverage 65°
Vertical Coverage 65°
Power Handling 200W Continuous, 800W Peak
LF Transducer "12" (300mm)"
HF Transducer "1" (25mm) exit DH3 Comp. Driver"
Connectors Neutrik Speakon ®
Enclosure Material Copolymer
Grille Powder Coated Steel
Dim (H x W x D) 23.1" x 16.9" x 12.3" (586 x 429 x 312mm)
Net Weight 32 lbs (14.5 kg)
Shipping Weight 35 lbs (15.9 kg)

Downloads

Name Language Size Date
Portable Speaker Family Brochure EN 3.8MB Jun 20, 2019
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Name Size Date
Sx Series EASE Data ZIP 235KB Jun 13, 2018
Name Language Size Date
Sx100+ Engineering Data Sheet EN 130KB Mar 21, 2012
Name Language Size Date
SX, Sb-Series Rigging Manual EN 271KB Mar 22, 2012
System 2000 Accessories EN 194KB Mar 22, 2012

Sx100 Sx300-trans
