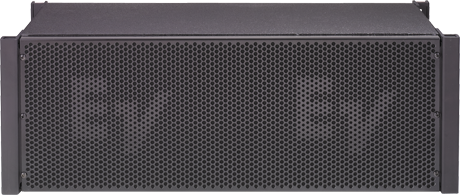

XLD291
90° horizontal, 3‑way compact line array element
- Full-bandwidth, three-way element (60 Hz - 20 kHz)
- CCT (Coverage Control Technology)
- Versatile subwoofer integration
- Bi-amp or tri-amp Operation
- Neodymium transducers

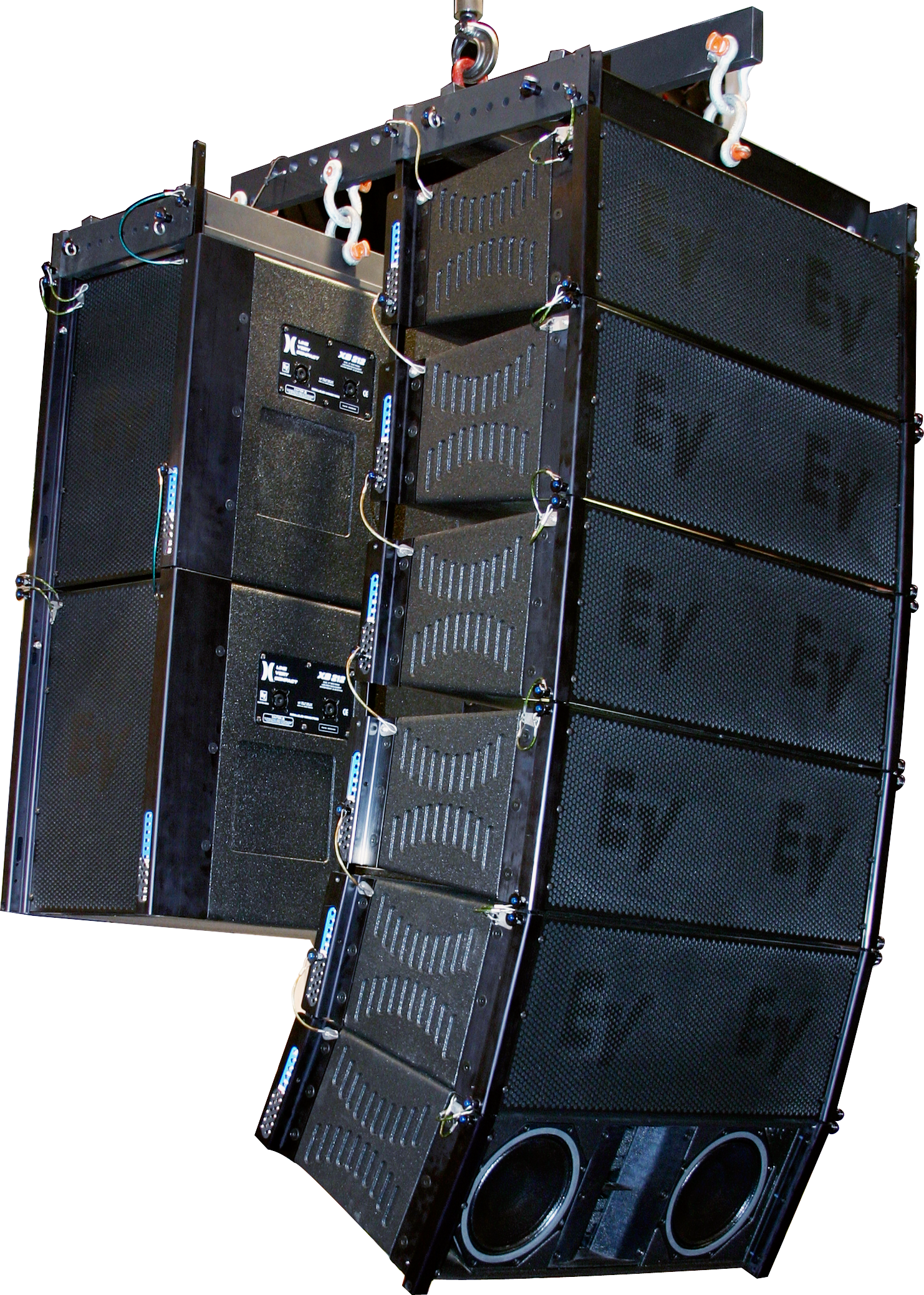

- Simple, quick, integrated rigging
- Supported by LAPS II aiming and flying software
Specifications
| Frequency Response (-3 dB) | 75 Hz-18 kHz¹ |
| Frequency Range (-10 db) | 60 Hz-20 kHz¹ |
| Max Calculated SPL | 138 dB Cont., 144 dB Peak² |
Specifications | |
| Horizontal Coverage | 90° |
| Vertical Coverage | Array Dependant, Software Definable |
| Rigging | Fully Captive Aluminum, 1° increments, 16 elements with 8 to 1 Safety Factor |
| LF1 Power Handling | 200 W Cont., 800 W Peak |
| LF2 Power Handling | 200 W Cont., 800 W Peak |
| HF Power Handling | 80 W Cont., 320 W Peak |
| Biamp LF1/HF Power Handling | 200 W Cont., 800 W Peak LF2 - 200 W Cont., 800 W Peak |
| Bandpass Frequency | 50 - 250 Hz³ |
| LF1 to HF Crossover Frequency | 1760 Hz³ |
| LF 1 Passband | 1 x 8"" DVN2080, 16 ohms |
| LF2 Passband | 1 x 8 inch DVN2080, 16 ohms |
| HF Passband | 2 x ND2S-8, 16 ohms |
| Biamp LF1/HF Passband | 16 ohms |
| Connectors | Gland nut with 30ft cable |
| Enclosure | 13-ply birch plywood with fiberglass and EVCoat |
| Grille | Stainless steel with powder coat paint and hydrophobic cloth |
| Environmental Specifications | IEC 60529, IP55 |
| Dimensions (H x W x D) | 9.90 in x 28.58 in x 14.52 in (251 mm x 726 mm x 369 mm) |
| Net Weight | 48 lb (21.8 kg) |
| Shipping Weight | 51 lb (23.1 kg) |
