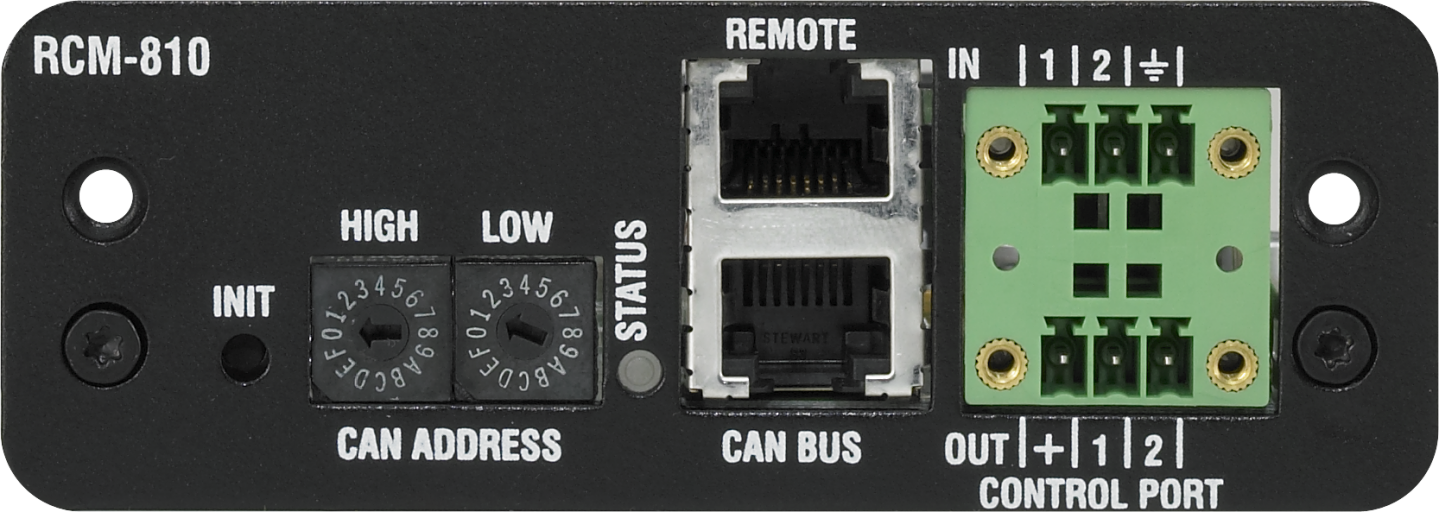

RCM-810
IRIS‑Net remote control module for CPS series amplifiers
- Enable powerful control and supervision capabilities
- Integrate up to 100 devices in each remote control network, 250 with multiple networks
- Support for 2-, 4-, and 8-channel CPS models
- Freely programmable control inputs and outputs
- Load-monitoring for each channel
- Variable Load Drive for independent channel impedance on 4- and 8-channel amps (2-10 Ω in 0.1 Ω steps)
Specifications
| Internal Processing | None |
| Network Interface | CAN Bus |
| CAN Bus Interface | 10 - 500 kbaud, 2x RJ-45 (IRIS-Net Control) |
Specifications |
|
| GPIO Control Ports | 2 x 3-pole Euro block 2 Control Inputs 2 Control Outputs 2 Reference Outputs (+5 V, 200 mA / GND) |
| Audio Network | No |
| Variable Load Drive (VLD) | Yes |
| FIR-Drive | No |
| Network Control (IRIS-Net) | Yes |
