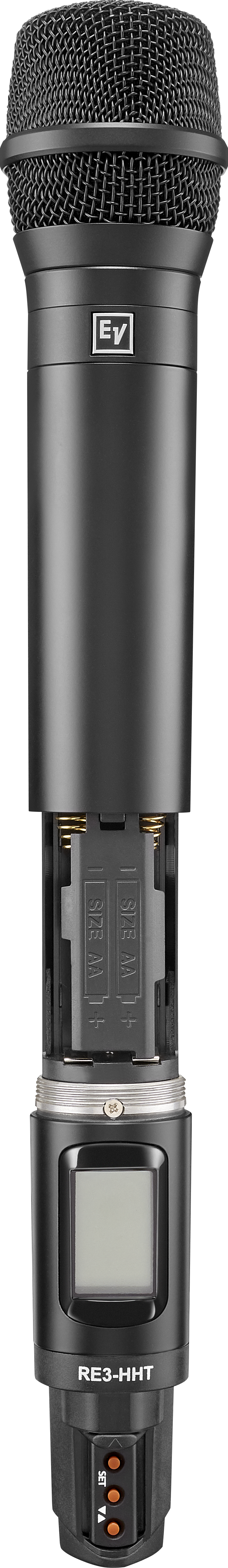

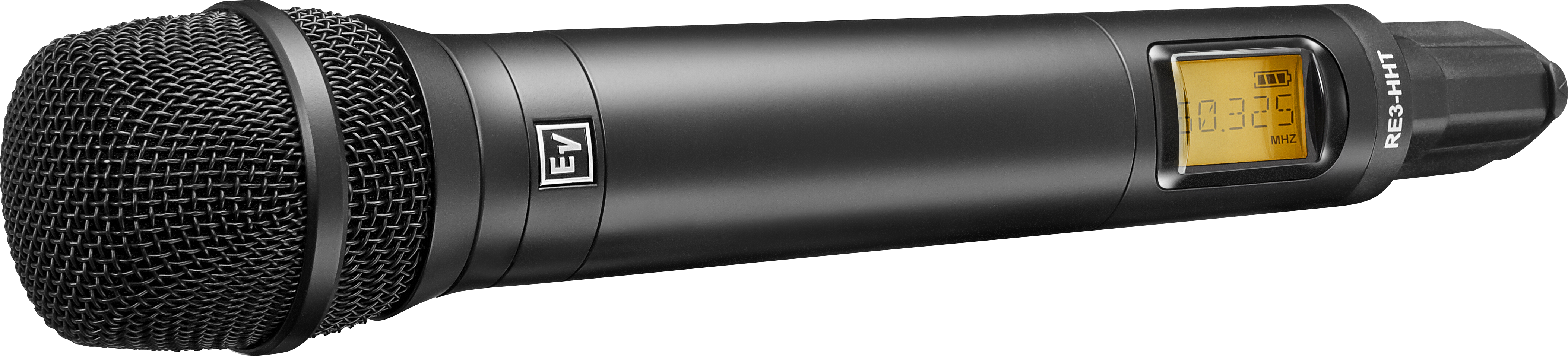

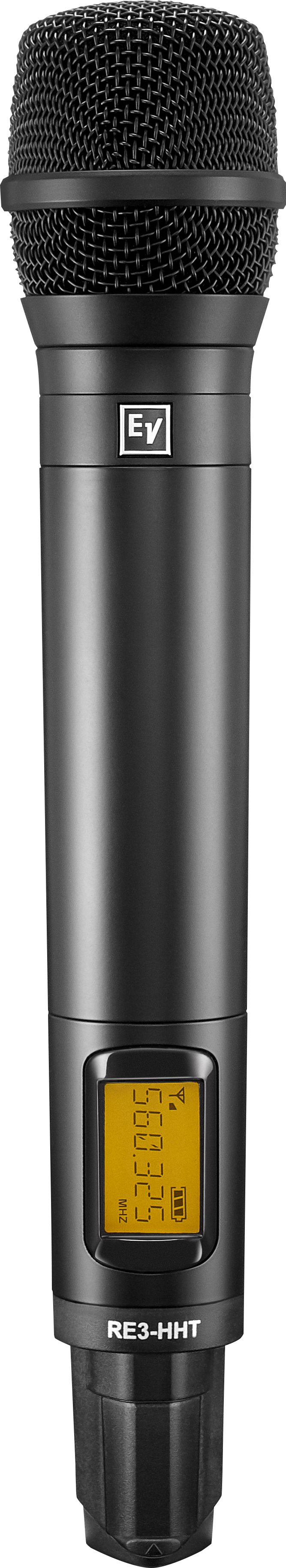

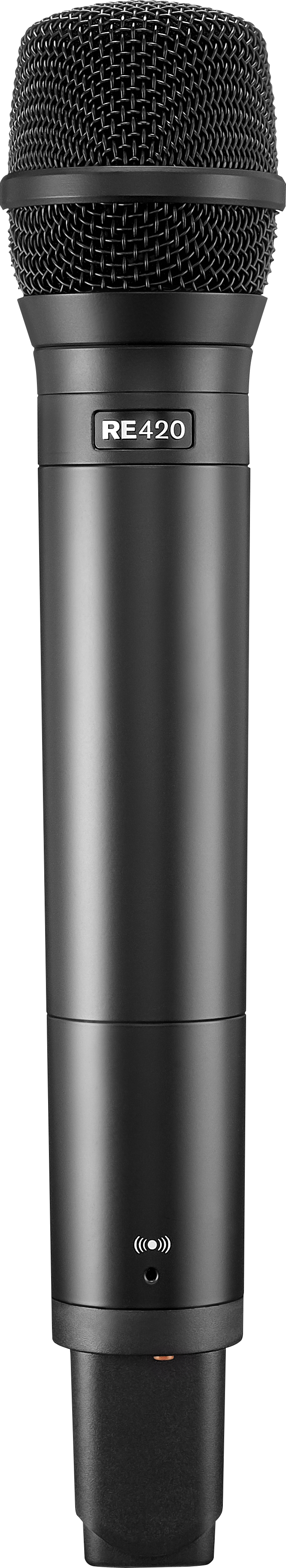

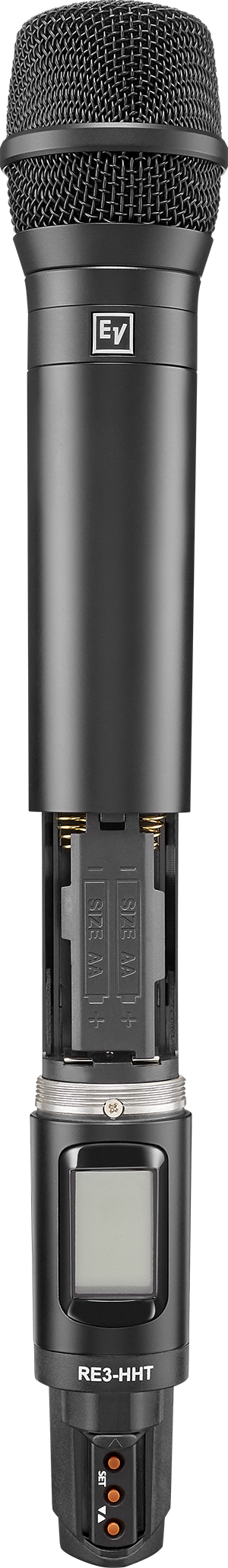

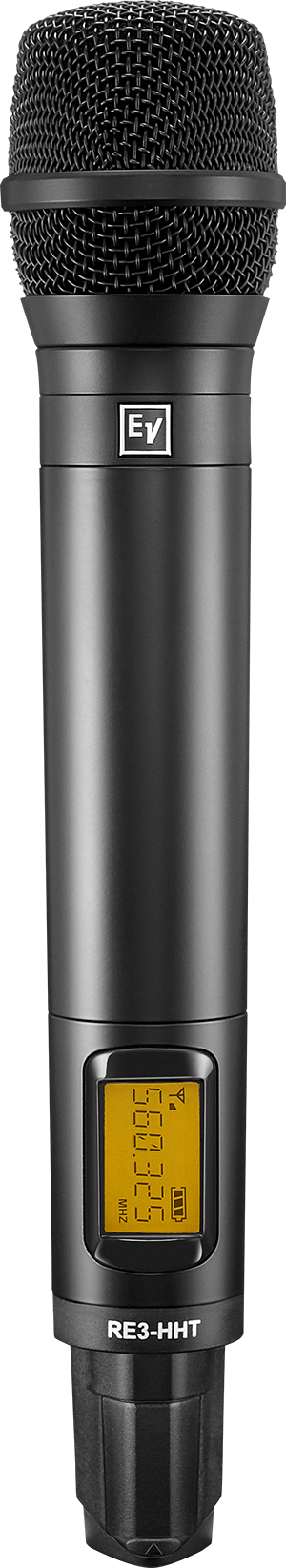

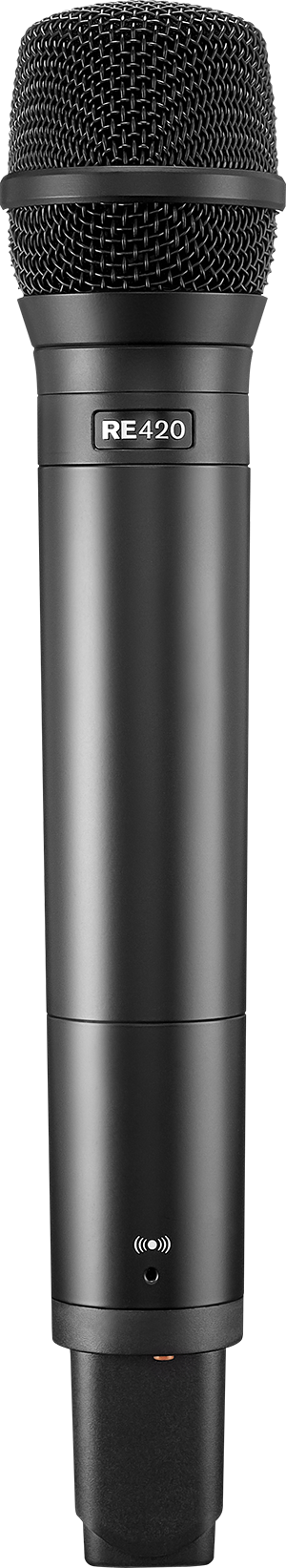

Handheld UHF wireless transmitter featuring RE420 condenser cardioid microphone head for vocal performance and presentations. The RE420’s sound is rich, detailed and full-bodied, with a warm and clear low-end, natural and open midrange, and a clear, crisp, and detailed high end.
The transmitter pairs perfectly with the RE3-RX diversity receiver. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
BAND DETAILS | |||||
Band name | 5L | 5H | 6M | 8M | T |
Bandwidth limits (MHz) | 488 – 524 | 560 – 596 | 653 – 663 | 823 – 832 863 – 865 | 803 - 806 |
Tuning bandwidth | 36 MHz | 36 MHz | 10 MHz | 11 MHz | 3 MHz |
Selectable frequencies | 1440 | 1440 | 400 | 440 | 120 |
Transmit output power (mW) | 10 and 50 | 10 and 50 | 10 and 20 | 10 | 10 and 50 |
Coverage | Global | Global | Global | Select Europe | Thailand only |
