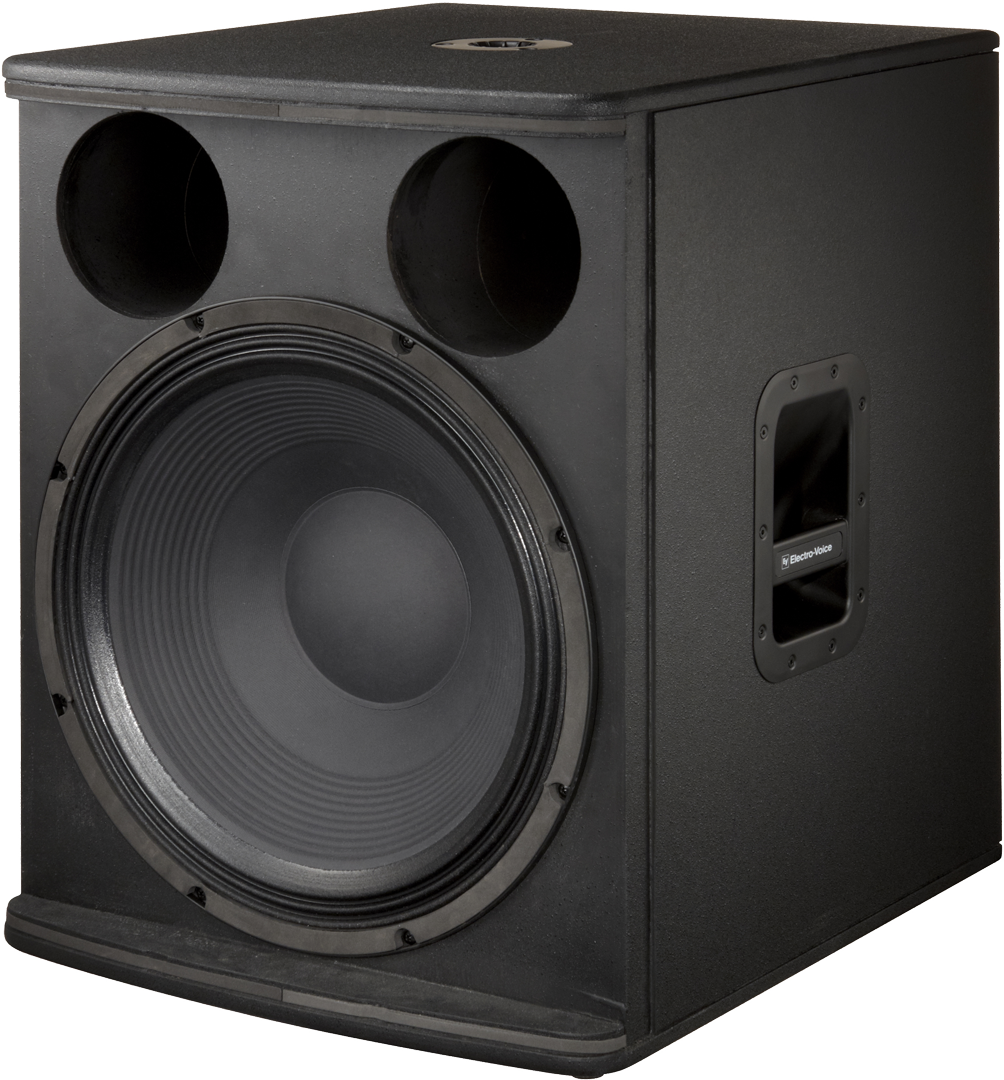

ELX118

Subwoofer passivo de 18 polegadas

Summary & Images Specs Where to buy Downloads & Support
  • O woofer de 18 polegadas proporciona uma saída de baixas frequências ampliadaGama de frequências 32 Hz – 200 kHz Sensibilidade SPL 96 dB; SPL máx. 134 dBProcessamento de potência contínuo de 400 W e pico de 1600 WCaixa de madeira robusta — permite configurações de montagem em poste ou empilhada

Optimizado para o desempenho com o ELX112 e o ELX115, o ELX118 acrescenta um tom profundo e completo de baixa frequência, que se pode ouvir e sentir.

Specifications

Frequency Range (-10 dB) 35 - 200kHz
Minimum Impedance 6.7Ω
Nominal Impedance (Passive)

HF Transducer N/A
Speaker Type Subwoofer
Woofer Size 18inch
Powered or Passive Passive
Frequency Response (-3 dB)¹ 50 - 100Hz
Max. SPL/1m (calc)² 134dB
LF Transducer (1) EVS-18K, 457mm (18") Woofer
Power Rating 1600W
System Power Handling (Continuous/Program/Peak) 400//1600Watts
Crossover Frequency N/AHz
Connector Type Parallel Neutrik® NL4
Enclosure Material 9-ply, 15 mm, plywood
Grille 18GA Steel with Black Powdercoat
Available Color Black
Height 26.02" (661mm)
Width 19.96" (507mm)
Recommended High-Pass Frequency 30Hz
Depth 22.6" (574mm)
Internal Crossover Yes
Weight Net 67.46lbs (30.6kg)
Shipping Weight 78.04lbs (35.4kg)
Family ELX
Coverage (Nominal -6 dB) Omnidirectional
Case Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Axial Sensitivity (SPL, 1 W @ 1 m) 96dB
