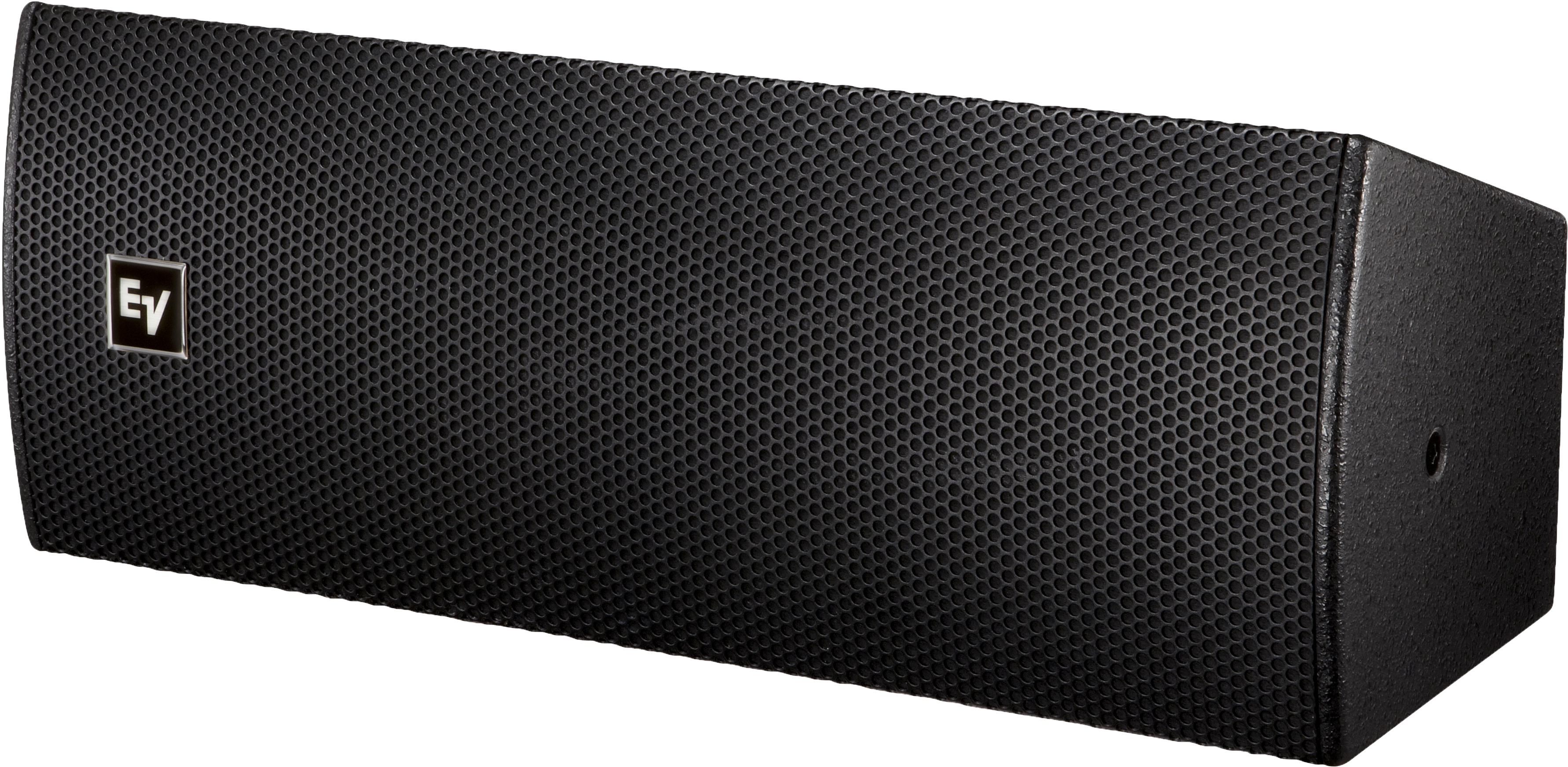

EVU-2062/95
Ultracompact 2‑way w/dual 6.5" woofers
- Sonically matched to all EV-Innovation lines
- Sophisticated 18-dB-octave passive crossover/EQ networks
- Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
- Optional Neutrik Speakon(R) connector panel
- One 1.3-inch (33 mm) diaphragm compression driver
- U-bracket included
- Optional 70 V and 100 V operation
- OmniMount(R)-compatible rear mounting points
- Available in black or white (interior use)
- Ultracompact 8 x 21 inch enclosure
- 90º x 50º rotatable waveguide
- Ultra-high power handling for size: 300 W continuous
- 125 dB Max SPL
- Asymmetrical trapezoidal enclosure design
- Compatible with OmniMount
Specifications
| Frequency Range (-10 dB) | 70 - 20000kHz (Half Space) |
| Suspension | Six M8 threaded points |
| Weatherized | No |
Specifications |
|
| Minimum Impedance | 6Ω |
| HF Transducer | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)¹ | 100 - 16000Hz (Half Space) |
| Max. SPL/1m (calc)² | 125dB |
| Coverage (Nominal -6 dB) H | 90° |
| LF Transducer | Two 6.5-inch (165 mm) ICT-6.5-8 woofers |
| Coverage (Nominal -6 dB) V | 50° |
| Power Rating | 1200W |
| System Power Handling (Continuous/Program/Peak) | 300//1200Watts (EIA RS-426A (eight hours)) |
| Connector Type | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) |
| Enclosure Material | 9-ply hardwood plywood |
| Grille | 18-gauge steel with cloth behind |
| Available Color | Black or white |
| Height | 8.23" (209mm) |
| Width | 20.98" (533mm) |
| Recommended High-Pass Frequency | 90Hz |
| Depth | 8.15" (207mm) |
| Weight Net | 24.91lbs (11.3kg) |
| Shipping Weight | 31.31lbs (14.2kg) |
| Nominal Impedance | 8Ω |
| Finish | Textured paint |
| Waveguide | 6 in. x 6 in., rotatable |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 94dB ((1W/1M)) |
| Passive Power Handling | 1400W peak |
Videos
EV Innovation
EV Innovation – Installed Performance Loudspeaker Portfolio Webinar
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for EVU-2062/95.
Dynacord C‑SeriesLearn More |
Dynacord IPX SeriesLearn More |
Electro-Voice CPS SeriesLearn More |
|
|---|---|---|---|
| Two-Channel | ✔ | ||
| Multi-Channel | ✔ | ✔ | |
| DSP | ✔ | ✔ | |
| Direct Drive | ✔ | ✔ | ✔ |
| OMNEO (Dante, OCA) | ✔ | ||
| Installation | ✔ | ✔ | ✔ |
| Live Sound |
