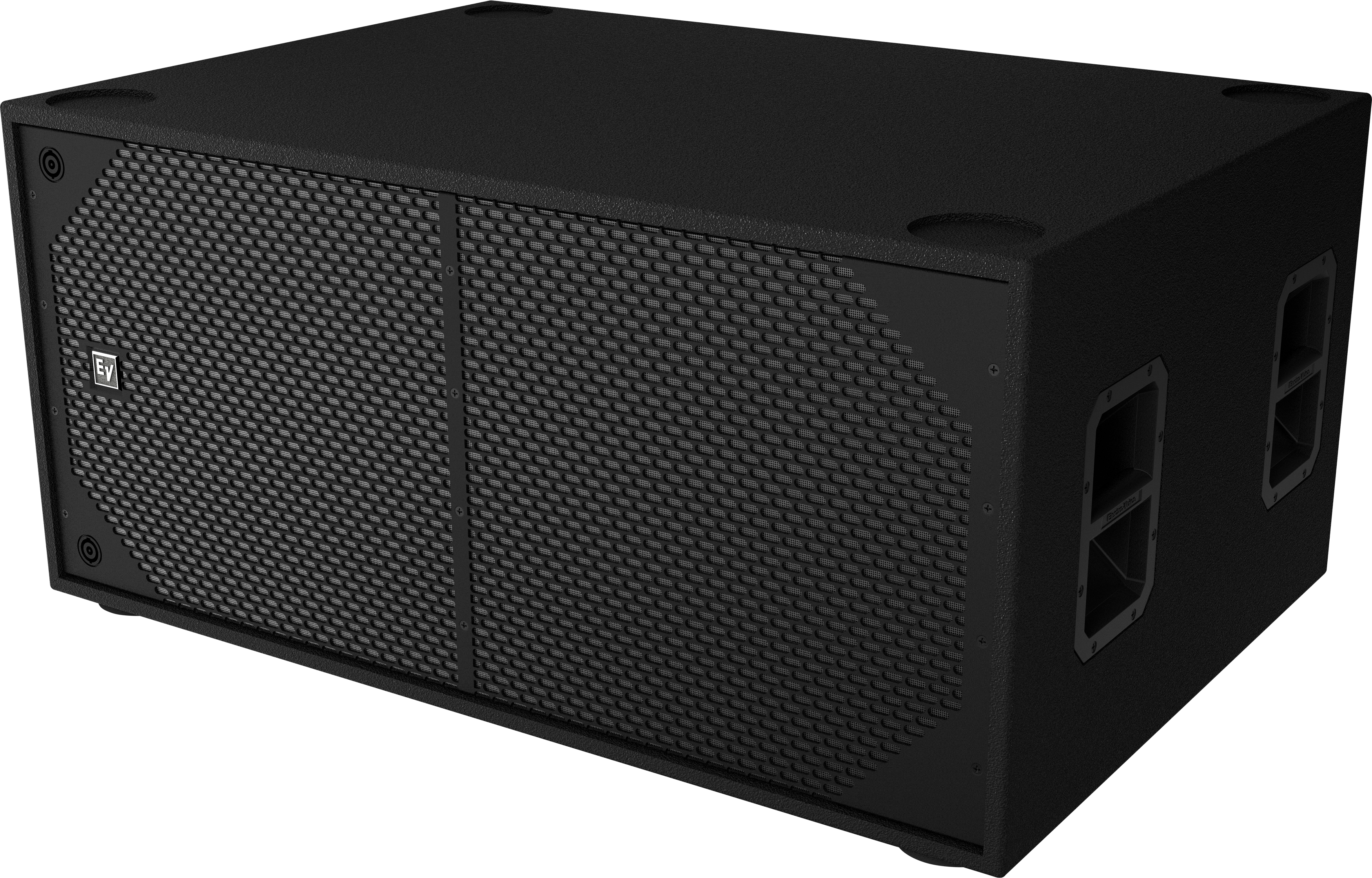

X12-128
Dual 18" subwoofer system
- High-output, high-impact dual 18" subwoofer system
- Super-high-output DVF4180 woofers for low distortion at extremely high SPLs

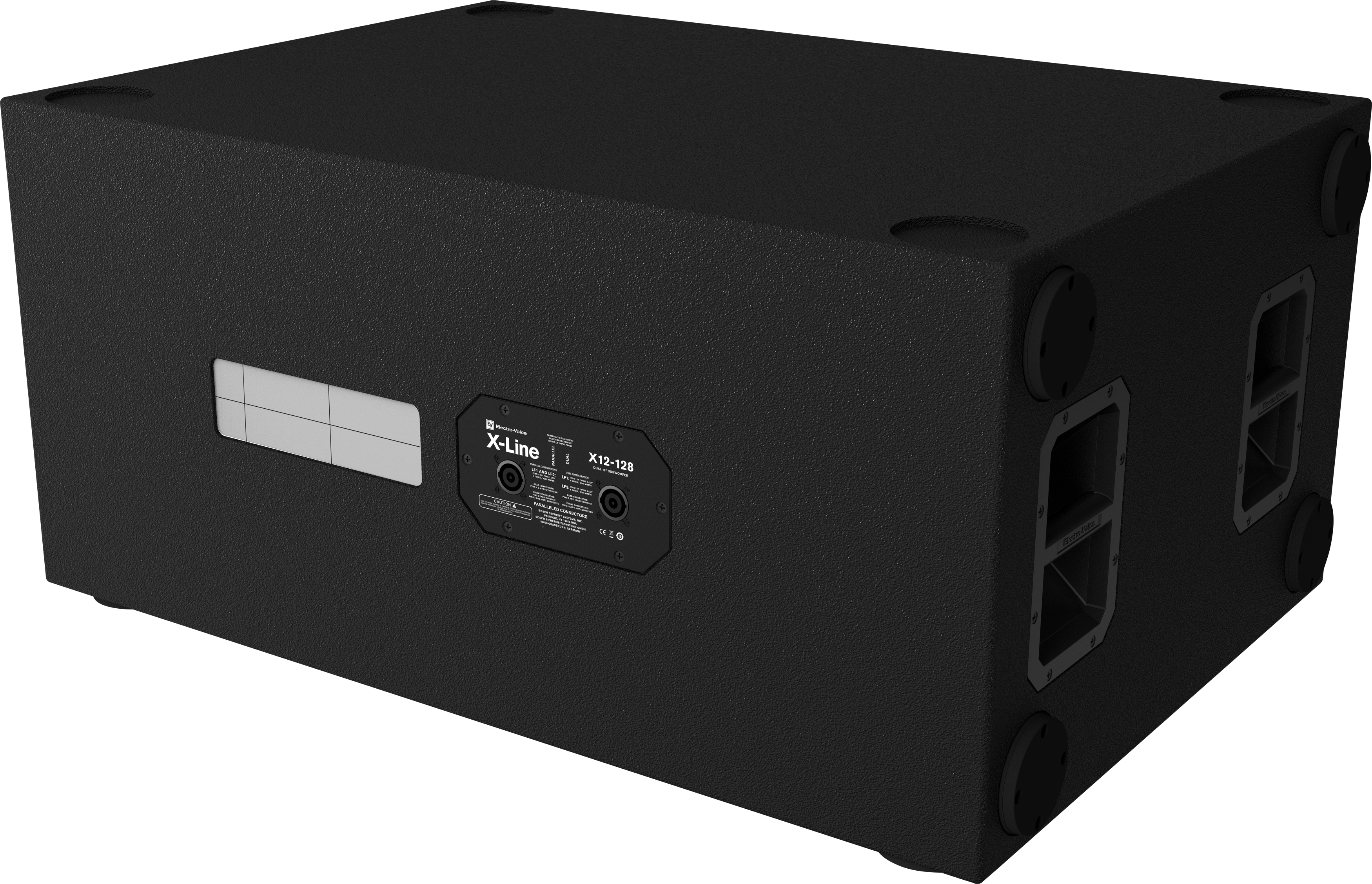

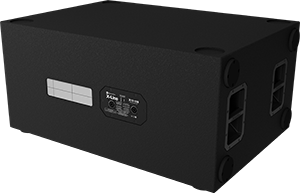

- Dual front and rear signal connection points for flexibility in system configurations, including cardioid setup for increased focus of low-frequency output
- Compact cabinets with low-profile footprint, suitable for under-stage applications
- 105 dB sensitivity (1 W/1 m half space)
- Power handling: 4000 W continuous, 16,000 W peak
- 141/147 dB maximum SPL (continuous/peak)
The X-Line Advance X12-128 subwoofer produces the greatest low-frequency impact and performance EV has ever developed. It is truly a state-of-the-art compact cabinet that delivers more LF output in a smaller footprint than other subwoofers available today.
In addition to its extremely high output capability, the X12-128 is designed to acoustically match seamlessly with any X-Line Advance top cabinet. It offers superior configuration flexibility for easier system design and setup, making it the standout subwoofer choice for any larger-format live or installed audio application.
Specifications
| Speaker Type | Subwoofer |
| Frequency Response (-3 dB)¹ | 33 - 200Hz |
| Coverage (Nominal -6 dB) H | 360° |
Specifications |
|
| LF Transducer | 2 x 18-Inch DVF4180 |
| Enclosure Material | EVCoat-coated birch plywood |
| Sensitivity 1 W/1 m | 105dB |
| Height | 43.36" (1101.34mm) |
| Width | 30" (762.00mm) |
| Depth | 20.36" (517.14mm) |
| Weight Net | 195lbs (88.45kg) |
| Passive Power Handling | 16000W peak |
Videos
X-Line Advance line-array loudspeaker system from Electro-Voice
Walking on Cars concert in Dublin boasts large Electro-Voice X-Line Advance system
X-Line Advance overview – Powa Productions, Australia
X-Line Advance Compact Vertical Line-Array Loudspeaker Systems
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for X12-128.
Dynacord TGX SeriesLearn More |
Dynacord IPX SeriesLearn More |
|
|---|---|---|
| Two-Channel | ||
| Multi-Channel | ✔ | ✔ |
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ✔ | ✔ |
| Installation | ✔ | ✔ |
| Live Sound |
Where to Buy
Install Sound Partners
Electro-Voice together with our certified partners, are ready to help support you through planning, purchase, and setup. Services available through our network of highly-qualified associates and partners may include:
- System Design
- Installation
- Programming & Commissioning
