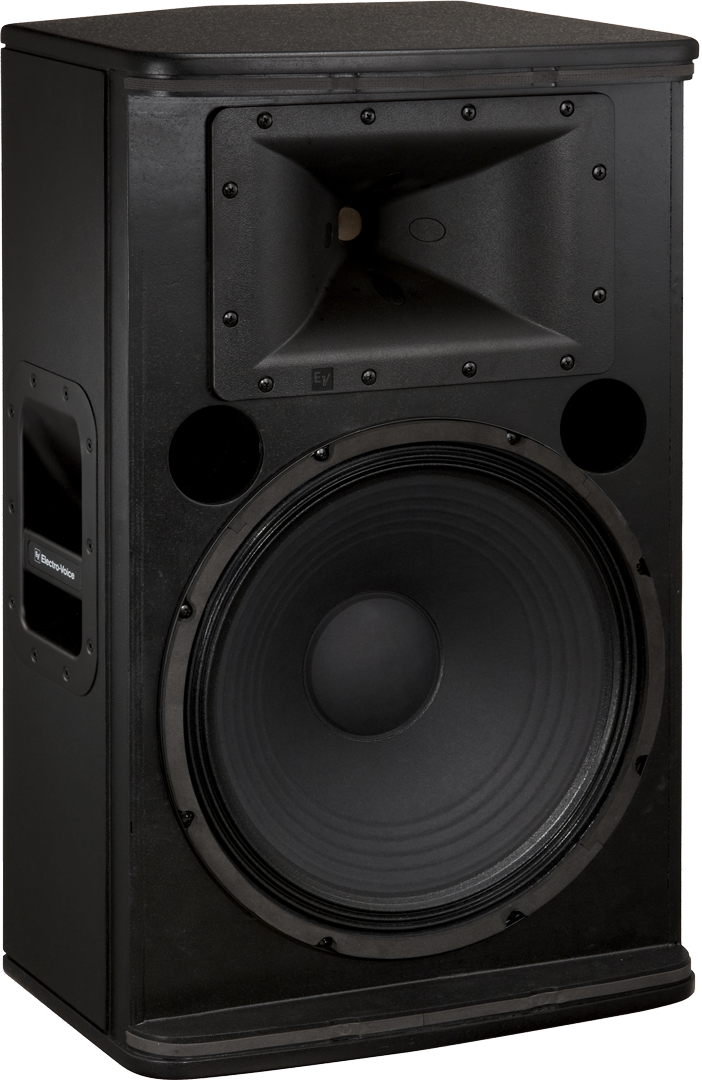

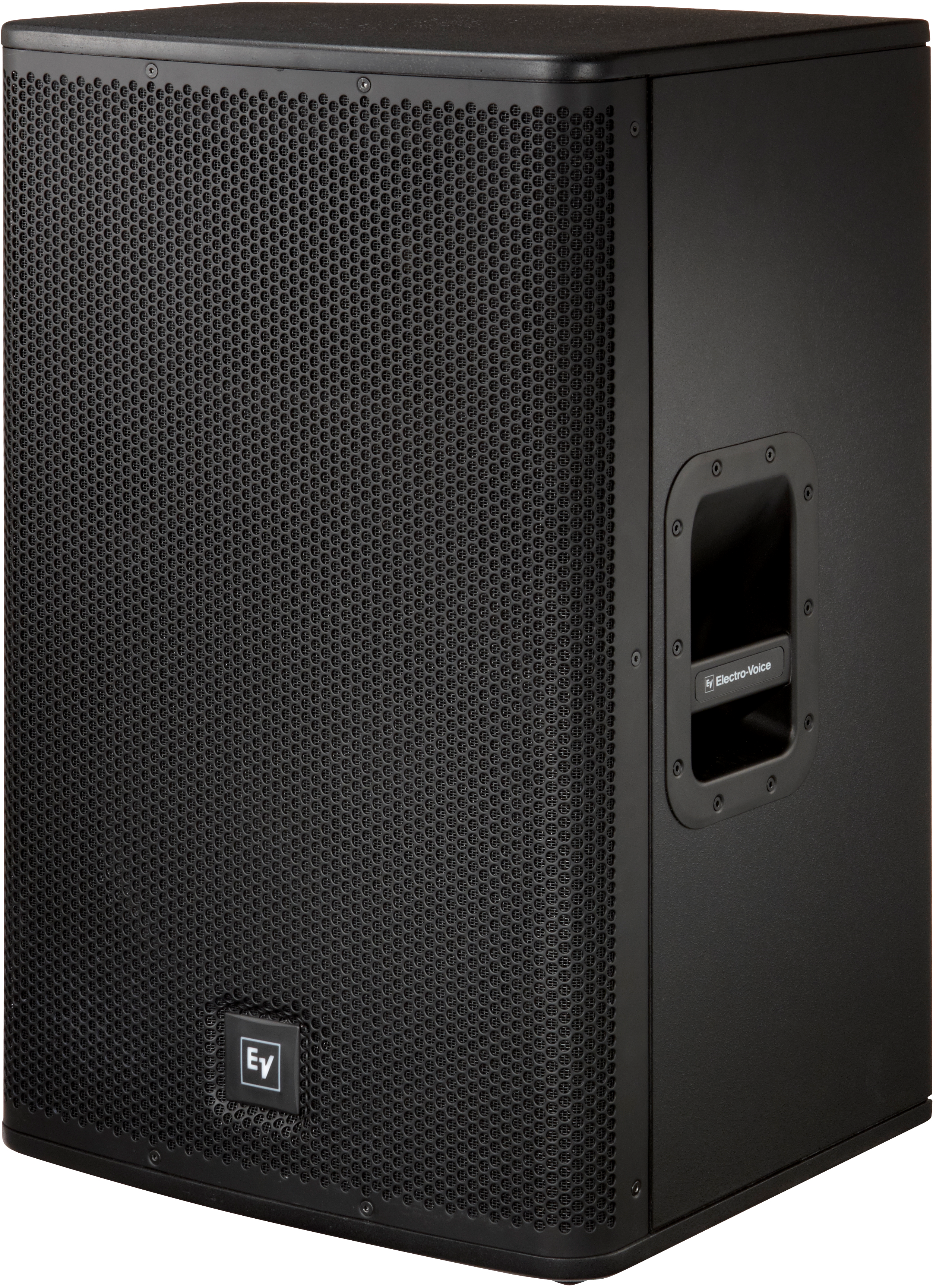

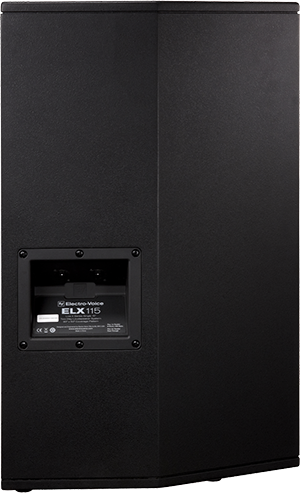

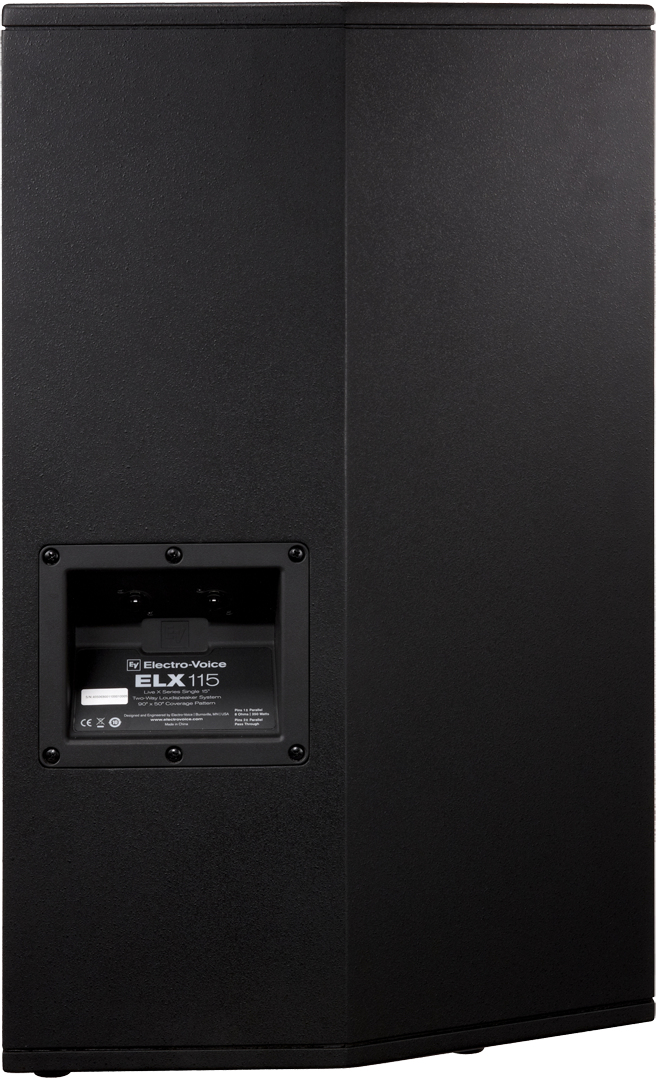

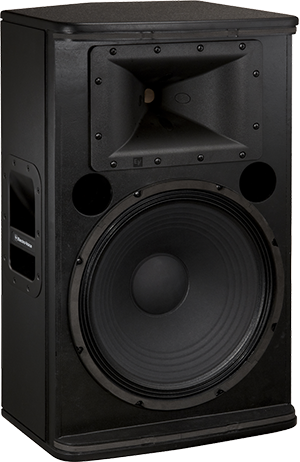

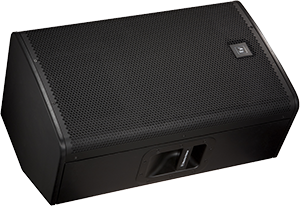

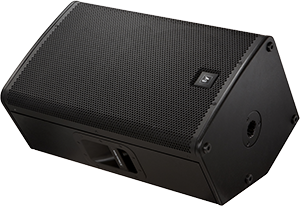

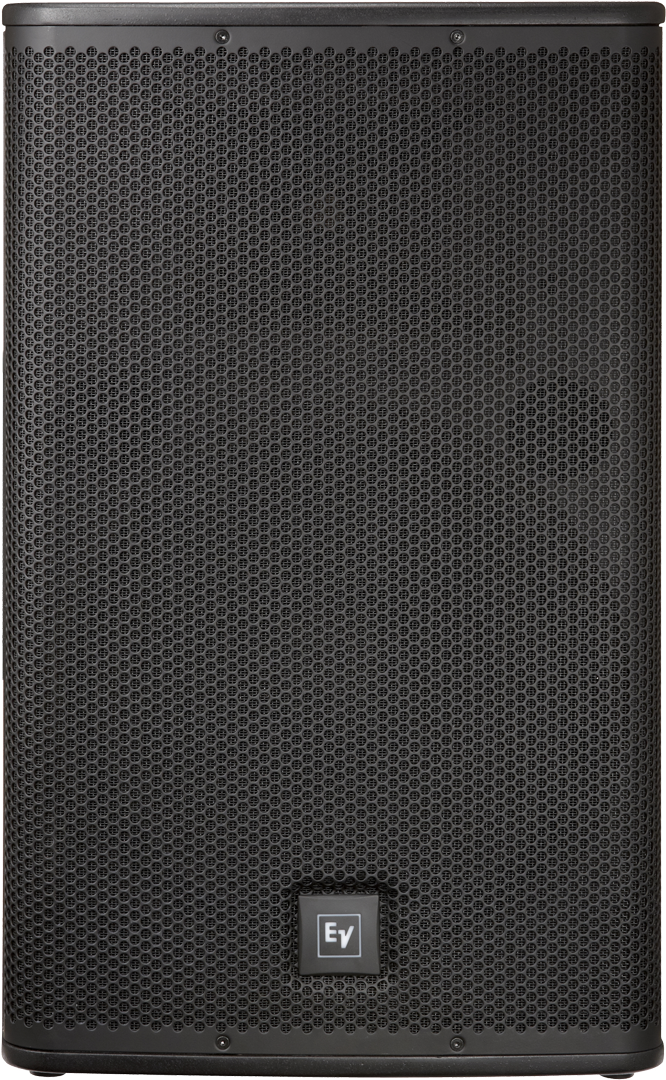

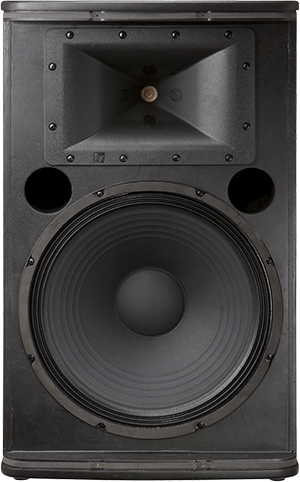

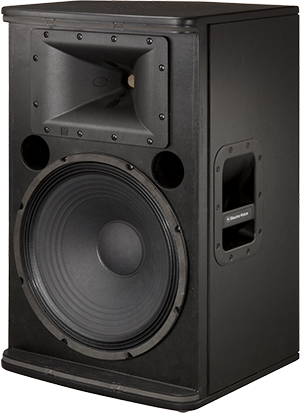

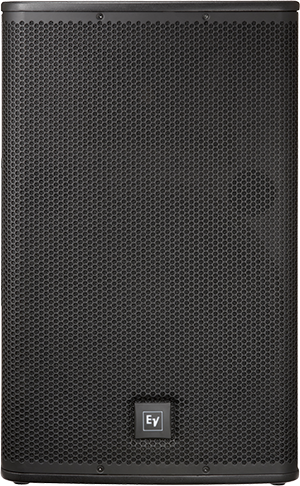

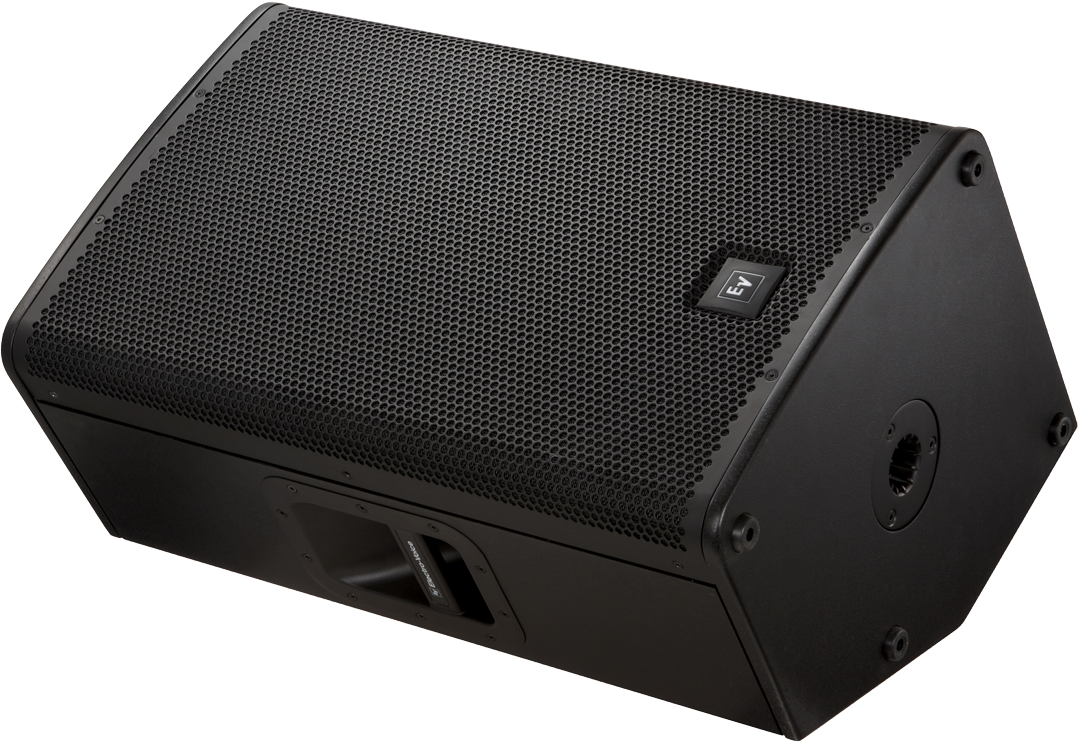

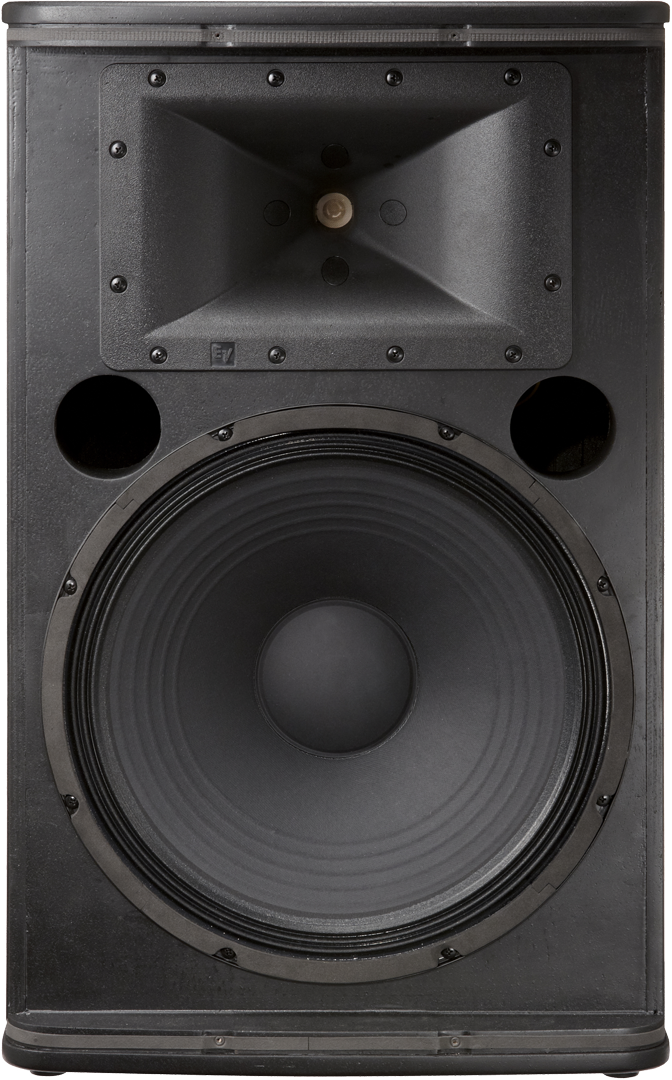

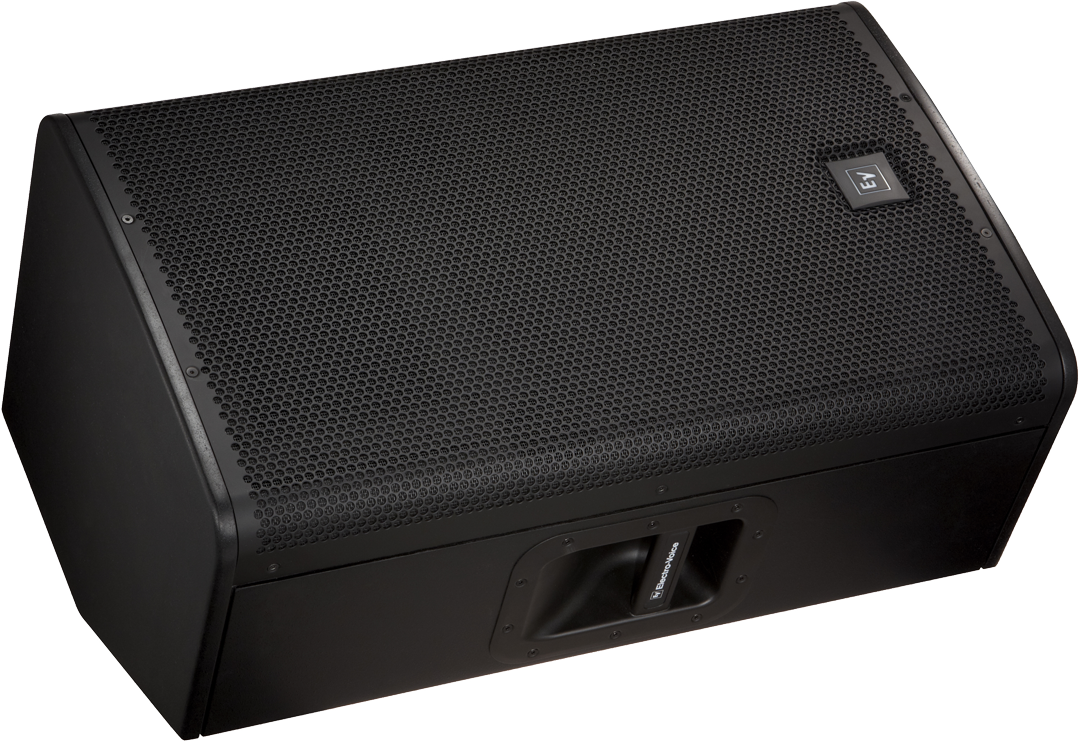

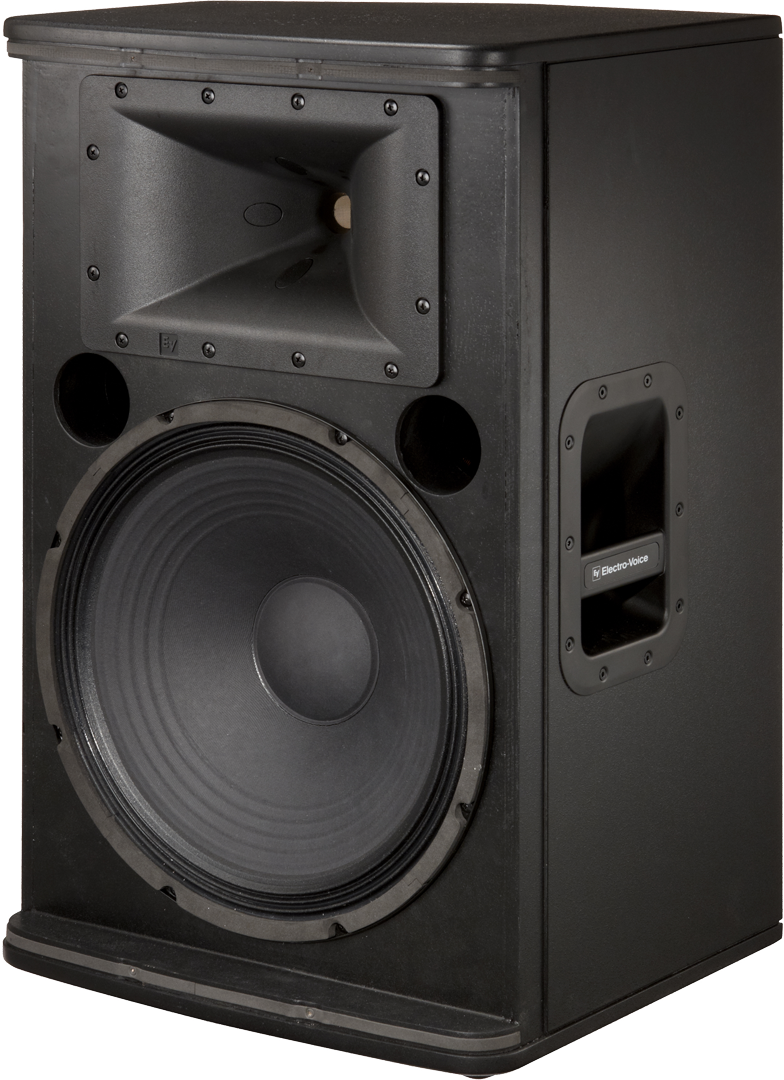

ELX115
15" live x两分频扬声器
- 15"低频扬声器和1.5"高频纯钛压缩驱动器；频率范围50 Hz – 20 kHz；灵敏度95 dB；最高声压级134 dB；持续功率400W，峰值功率1600W；坚固的木制箱体，可通过安装杆安装或与 Live X超低频扬声器堆放安装
ELX115具备ELX112中的强大设置，特点是15"低频扬声器，可扩展低频响应范围，使声音更宏亮，用于更大的房间。
Specifications
| Frequency Range (-10 dB) | 50 - 20000 |
| Minimum Impedance | 7.4 |
| Nominal Impedance (Passive) | 8 |
产品规格 |
|
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Speaker Type | Full-Range, mid-high, two-way |
| Woofer Size | 15 |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 75 - 18000 |
| Max. SPL/1m (calc)² | 134 (Half Space) |
| Coverage (Nominal -6 dB) H | 90 |
| LF Transducer | (1) EVS-15K, 381mm (15") Woofer |
| Coverage (Nominal -6 dB) V | 50 |
| System Power Handling (Continuous/Program/Peak) | 400//1600 |
| Crossover Frequency | 17000 |
| Connector Type | Parallel Neutrik® NL4 |
| Enclosure Material | 9-ply plywood |
| Grille | 18GA Steel with Black Powdercoat |
| Available Color | 黑色 |
| Height | 708 |
| Width | 432 |
| Recommended High-Pass Frequency | 40 |
| Depth | 382 |
| Internal Crossover | Yes |
| Weight Net | 21.9 |
| Family | ELX |
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95 |
Videos
ELX Loudspeaker Overview
Electro-Voice at NAMM 2012
EV @ NAMM 2011
In Search of Excellent Audio & Video
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for ELX115.
Dynacord C‑Series更多 |
Dynacord L‑Series更多 |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
