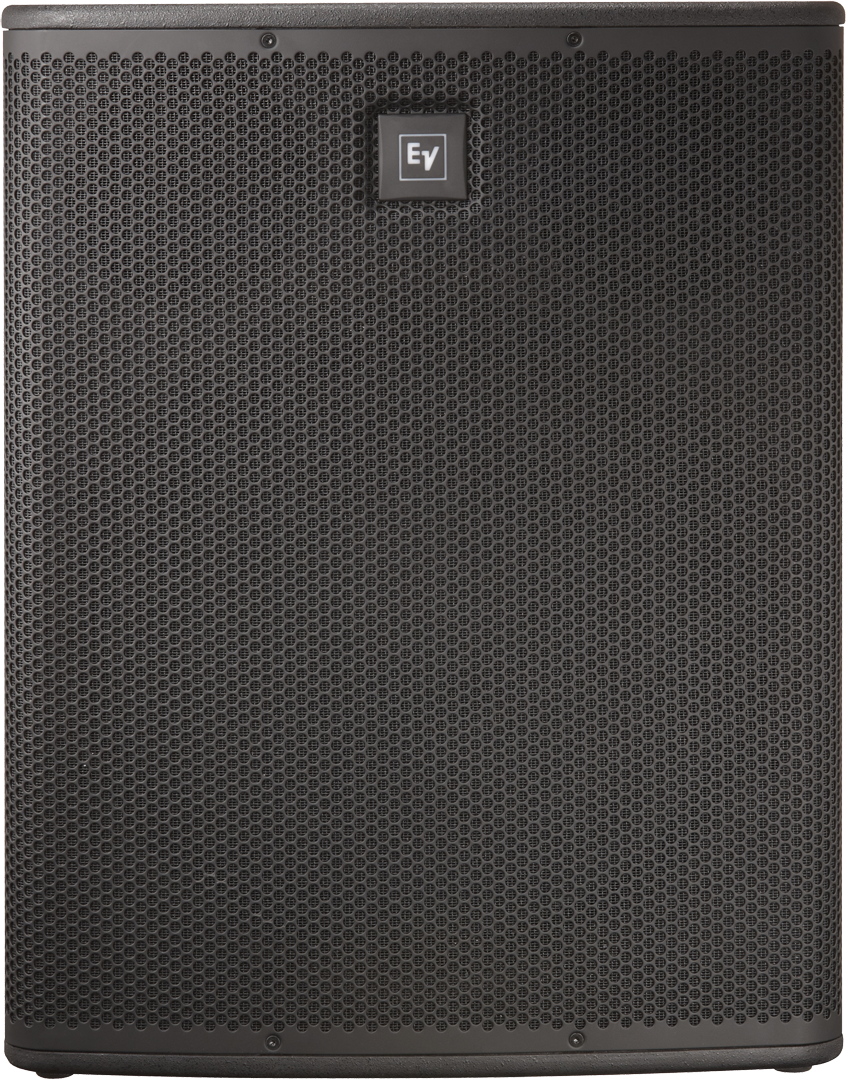

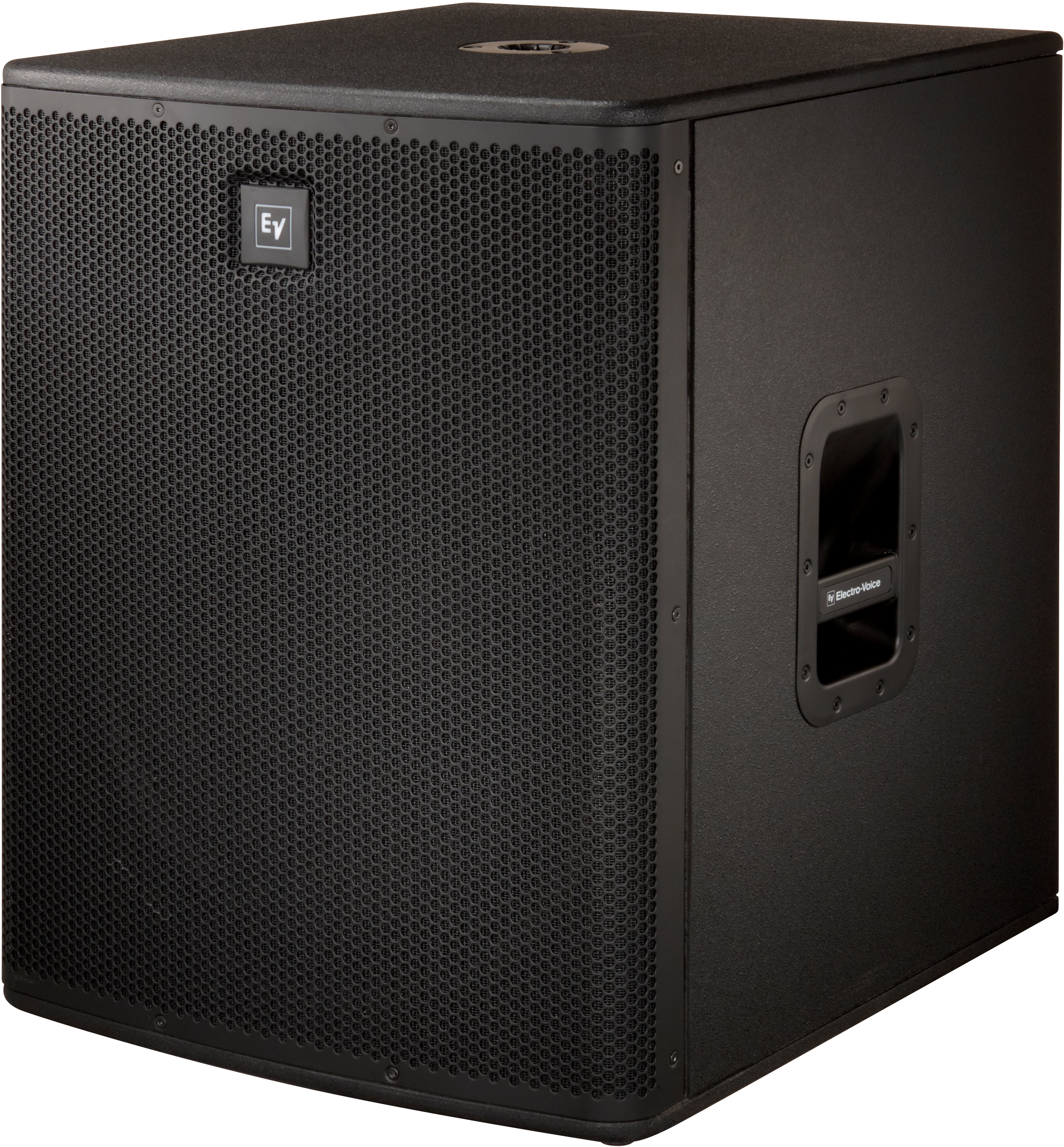

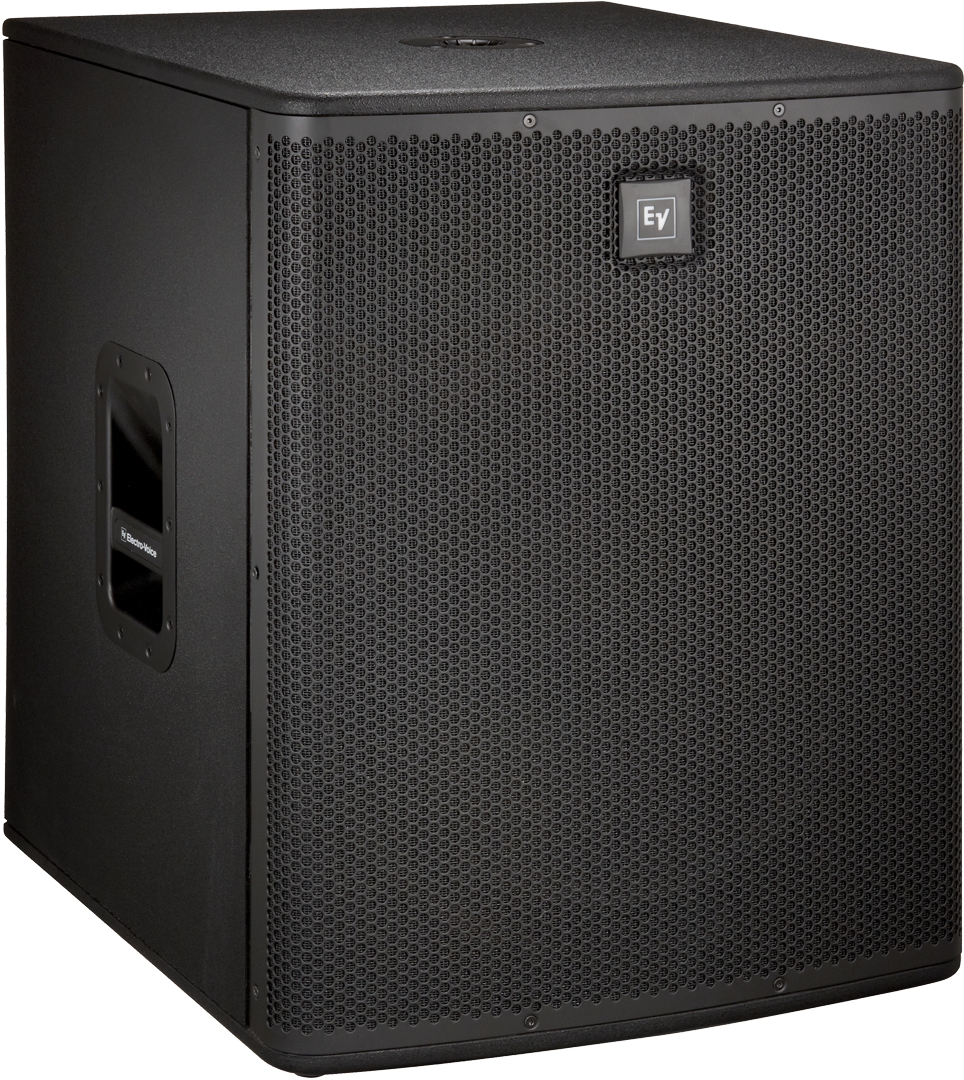

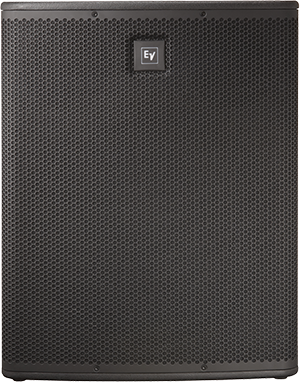

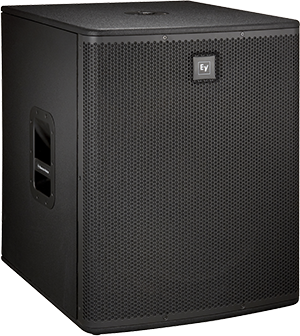

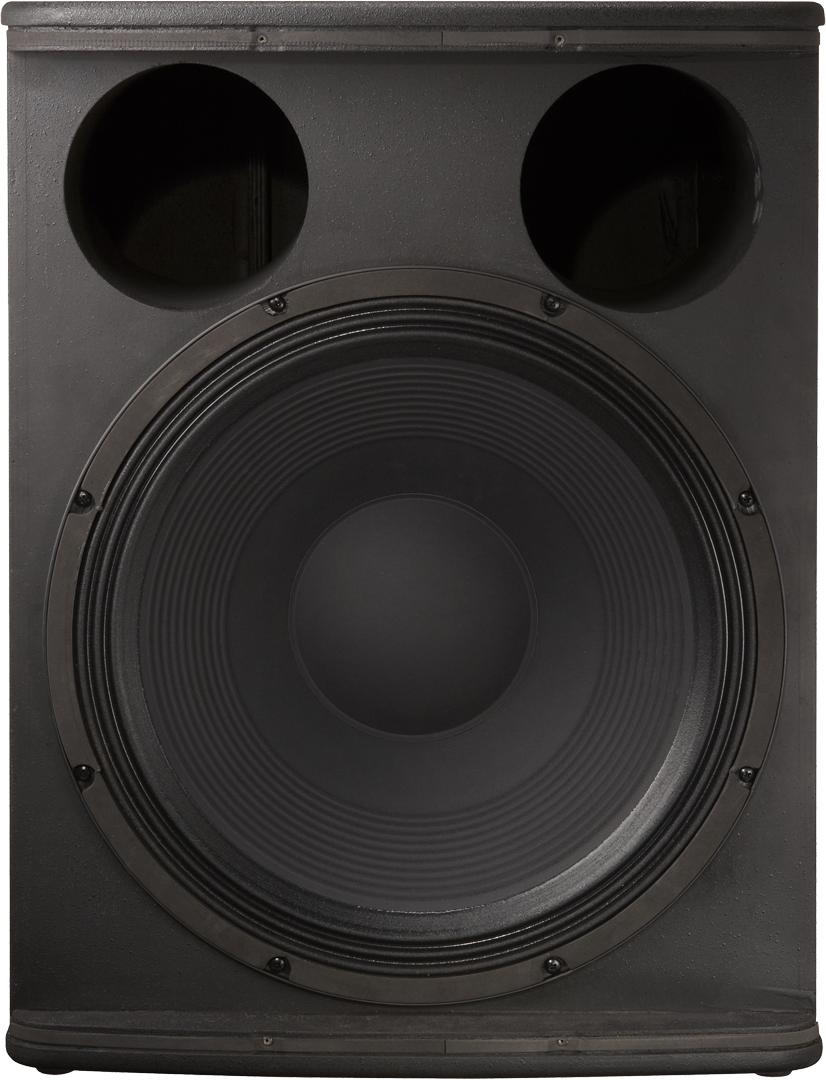

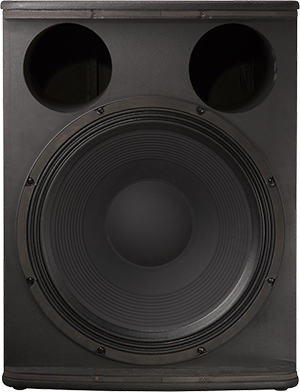

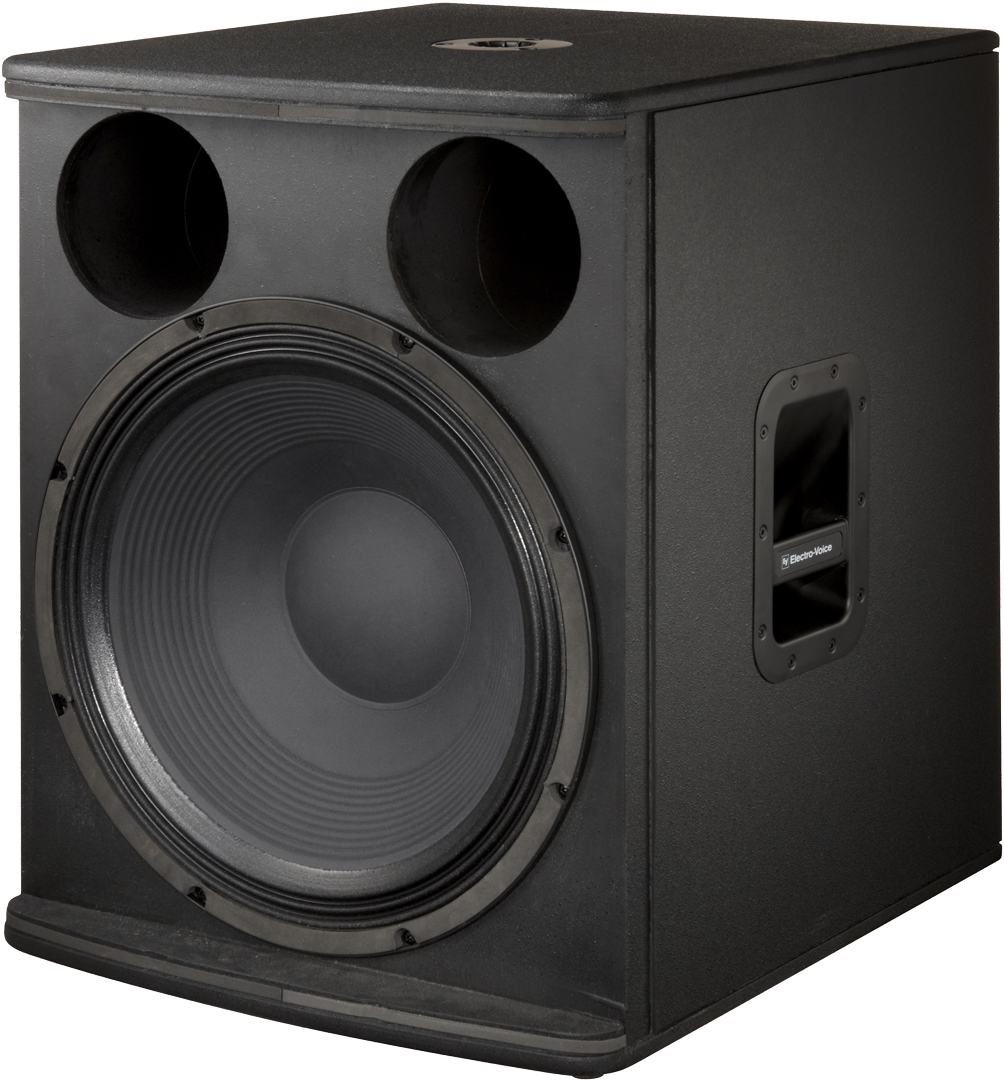

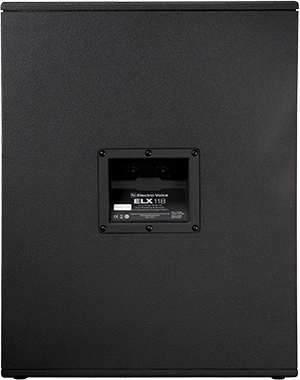

ELX118

18" live x超低频扬声器

  • 18"低频扬声器扩大了低频输出;频率范围32 Hz – 200 kHz;灵敏度96 dB;最高声压级134 dB;持续功率400W,峰值功率1600W;坚固的木制箱体,支持通过安装杆安装或与 Live扬声器堆放安装

ELX118性能经过优化,高于ELX112和ELX115,增加了低频放大节奏,可以亲身感受到节奏更加深厚。

Specifications

Frequency Range (-10 dB)35 - 200
Minimum Impedance6.7
Nominal Impedance (Passive)8
HF TransducerN/A
Speaker TypeSubwoofer
Woofer Size18

Powered or PassivePassive
Frequency Response (-3 dB)¹50 - 100
Max. SPL/1m (calc)²134

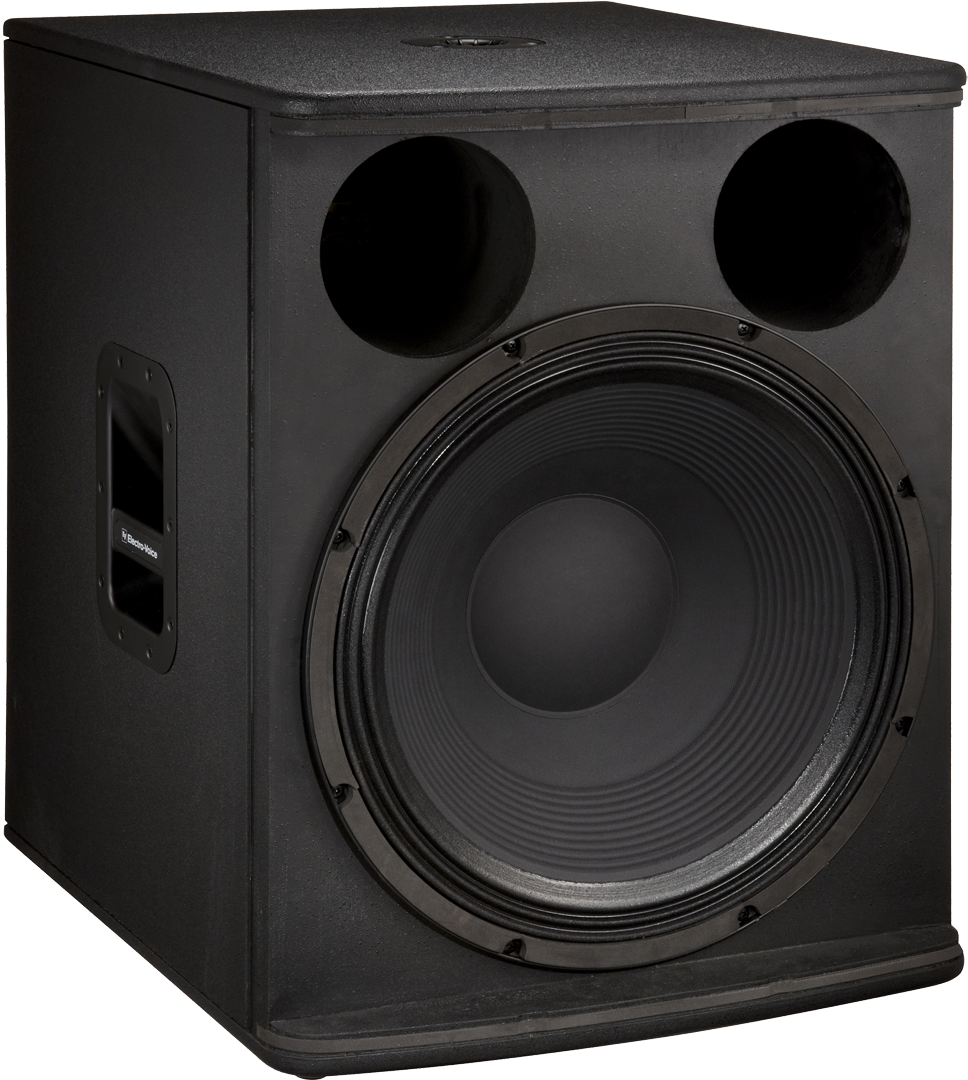

LF Transducer(1) EVS-18K, 457mm (18") Woofer
System Power Handling (Continuous/Program/Peak)400//1600
Power Rating1600
Crossover FrequencyN/A

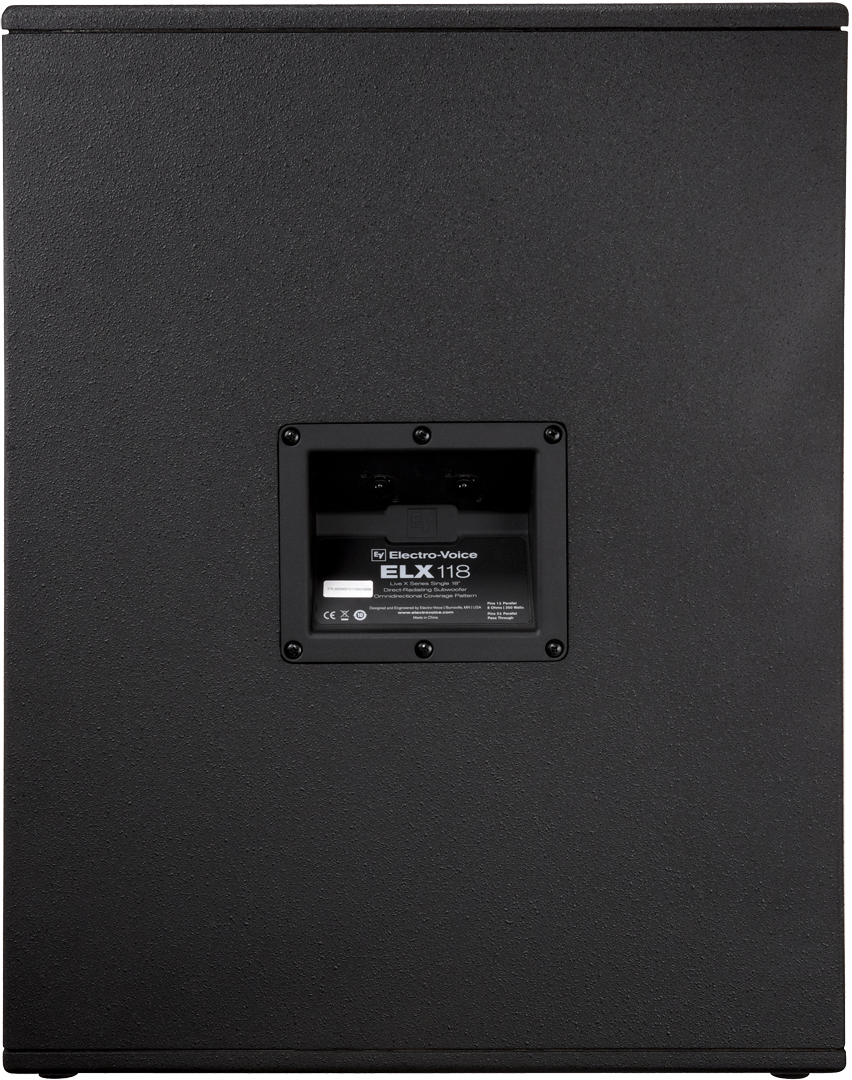

Connector TypeParallel Neutrik® NL4
Enclosure Material9-ply, 15 mm, plywood
Grille18GA Steel with Black Powdercoat
Available ColorBlack
Height661
Width507
Recommended High-Pass Frequency30
Depth574
Internal CrossoverYes
Weight Net30.6
Shipping Weight35.4
FamilyELX
Case Material9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Coverage (Nominal -6 dB)Omnidirectional
Axial Sensitivity (SPL, 1 W @ 1 m)96
