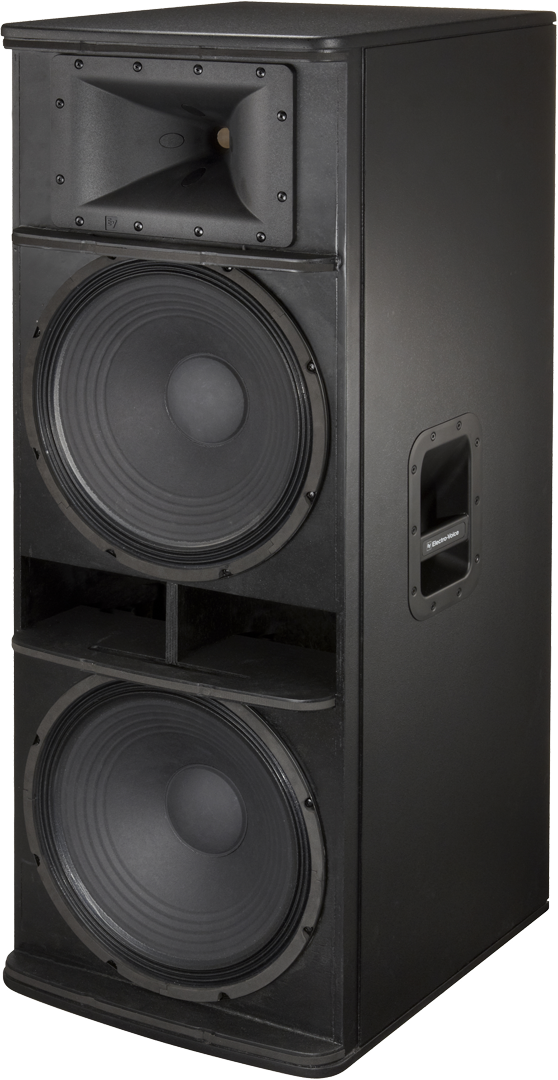

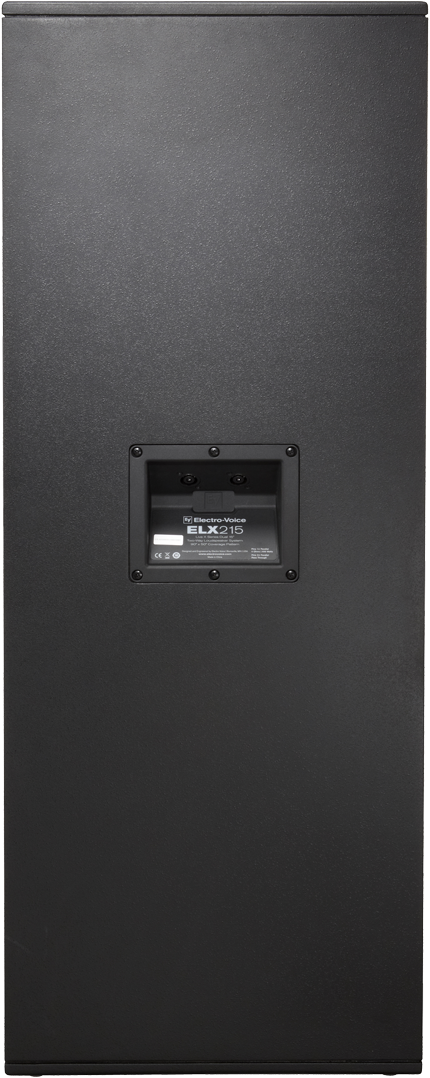

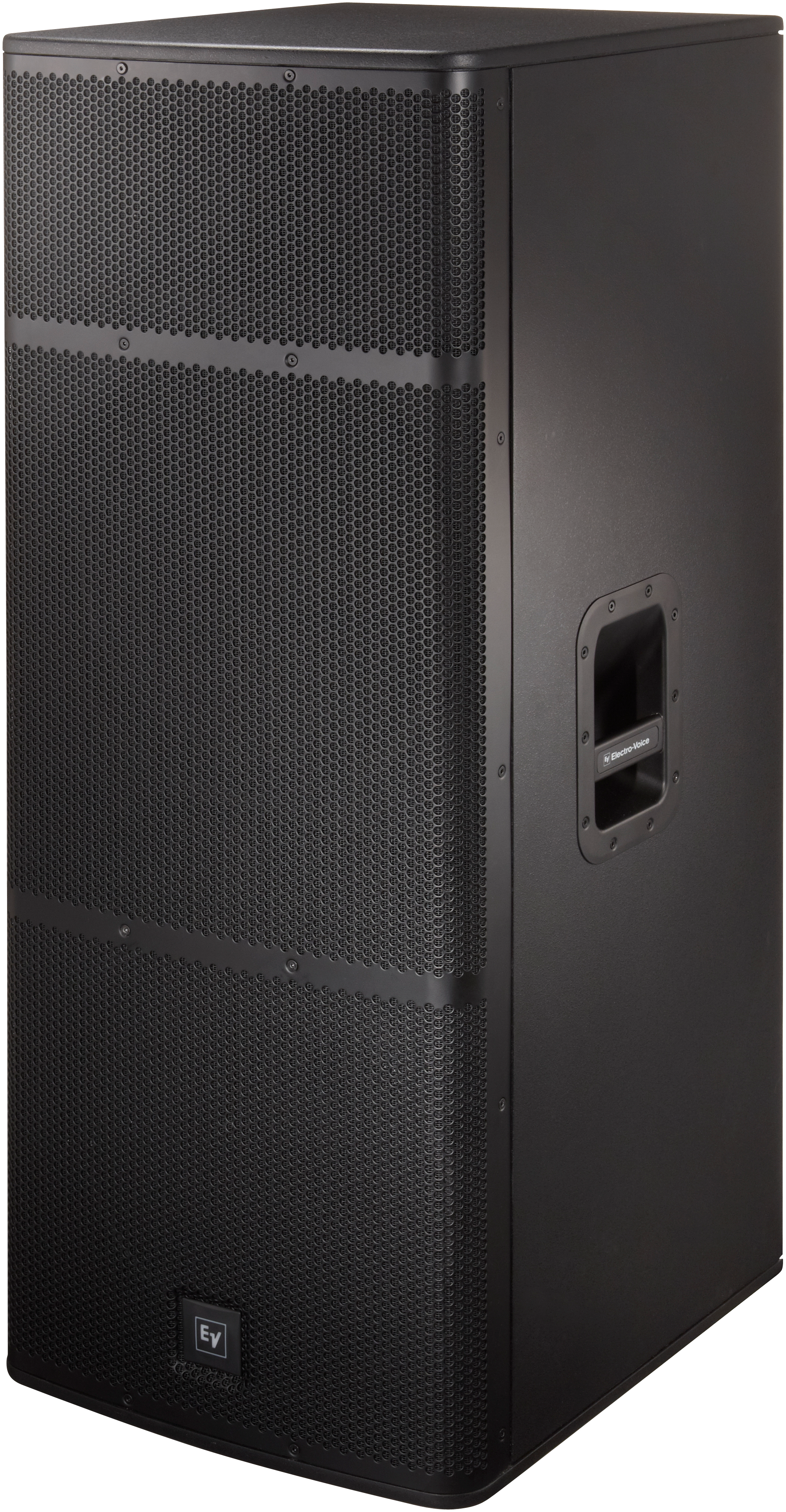

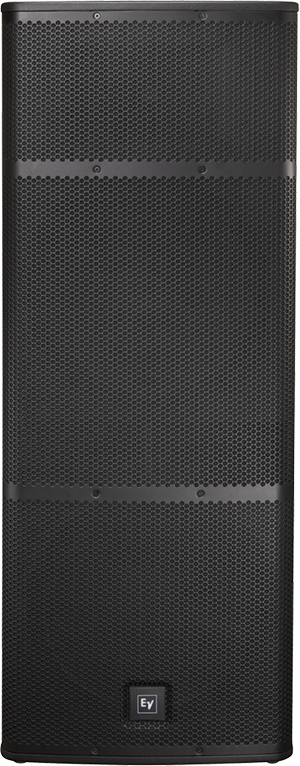

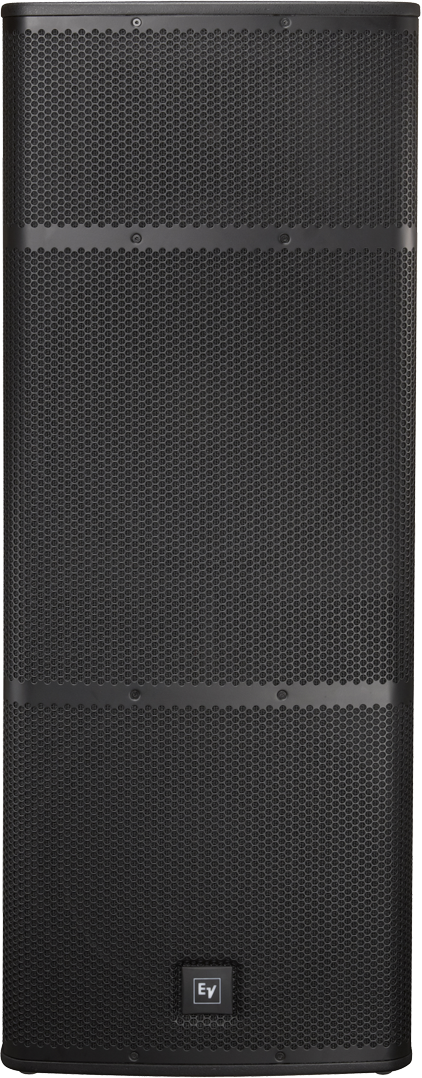

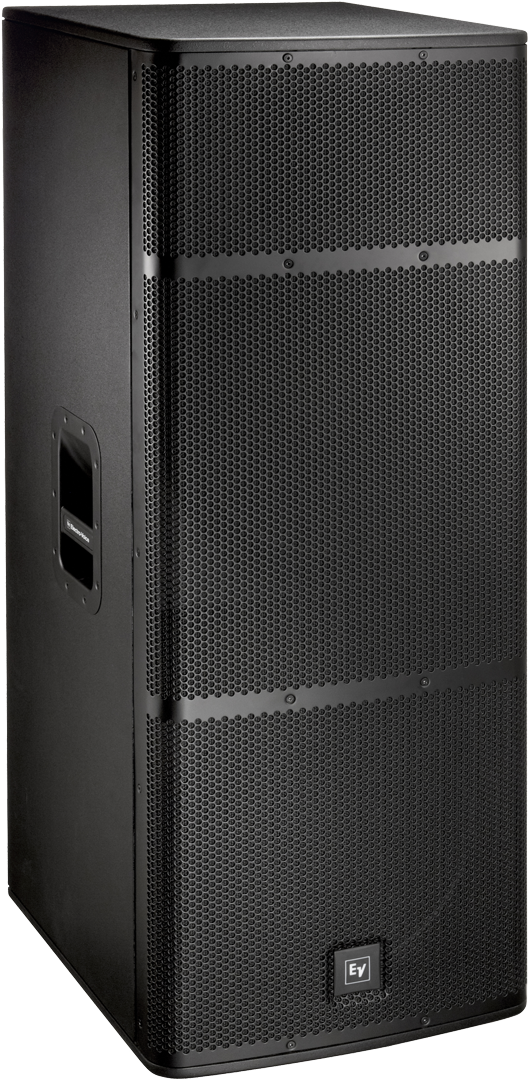

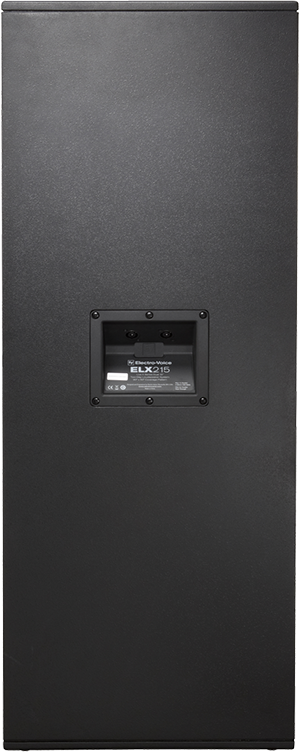

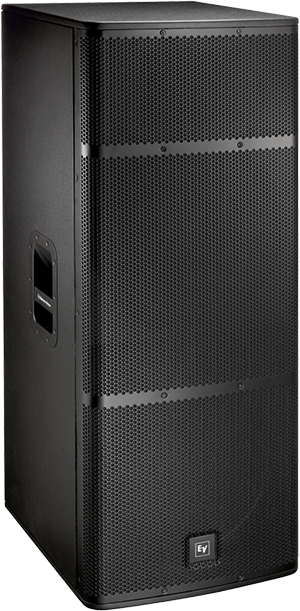

ELX215
双15" live x两分频扬声器
- 15"双低频扬声器和1.5"高频纯钛压缩驱动器；频率范围38 Hz – 20 kHz；灵敏度96 dB；最高声压级137 dB；持续功率600W，峰值功率2400W；坚固的木制箱体，可生成极佳的舞台效果
此双低频扬声器配置可实现真正的低端节奏，对于要求从一个音箱输出高音量和超宽频率响应的应用来说是理想之选。
Specifications
| Frequency Range (-10 dB) | 38 - 20000 |
| Minimum Impedance | 3.7 |
| Nominal Impedance (Passive) | 4 |
产品规格 |
|
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Speaker Type | Full-Range, mid-high, two-way |
| Woofer Size | 15 |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 62 - 18000 |
| Max. SPL/1m (calc)² | 137 |
| Coverage (Nominal -6 dB) H | 90 |
| Coverage (Nominal -6 dB) V | 50 |
| LF Transducer | (2) EVS-15K, 381mm (15") Woofers |
| System Power Handling (Continuous/Program/Peak) | 600//2400 |
| Crossover Frequency | 1.7 k |
| Connector Type | Parallel Neutrik® NL4 |
| Enclosure Material | 9-ply plywood |
| Grille | 18GA Steel with Black Powdercoat |
| Available Color | 黑色 |
| Height | 1154 |
| Recommended High-Pass Frequency | 35 |
| Width | 432 |
| Depth | 501 |
| Internal Crossover | Yes |
| Weight Net | 40.7 |
| Shipping Weight | 52.0 |
| Family | ELX |
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Coverage (Nominal -6 dB) | Omnidirectional |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96 |
