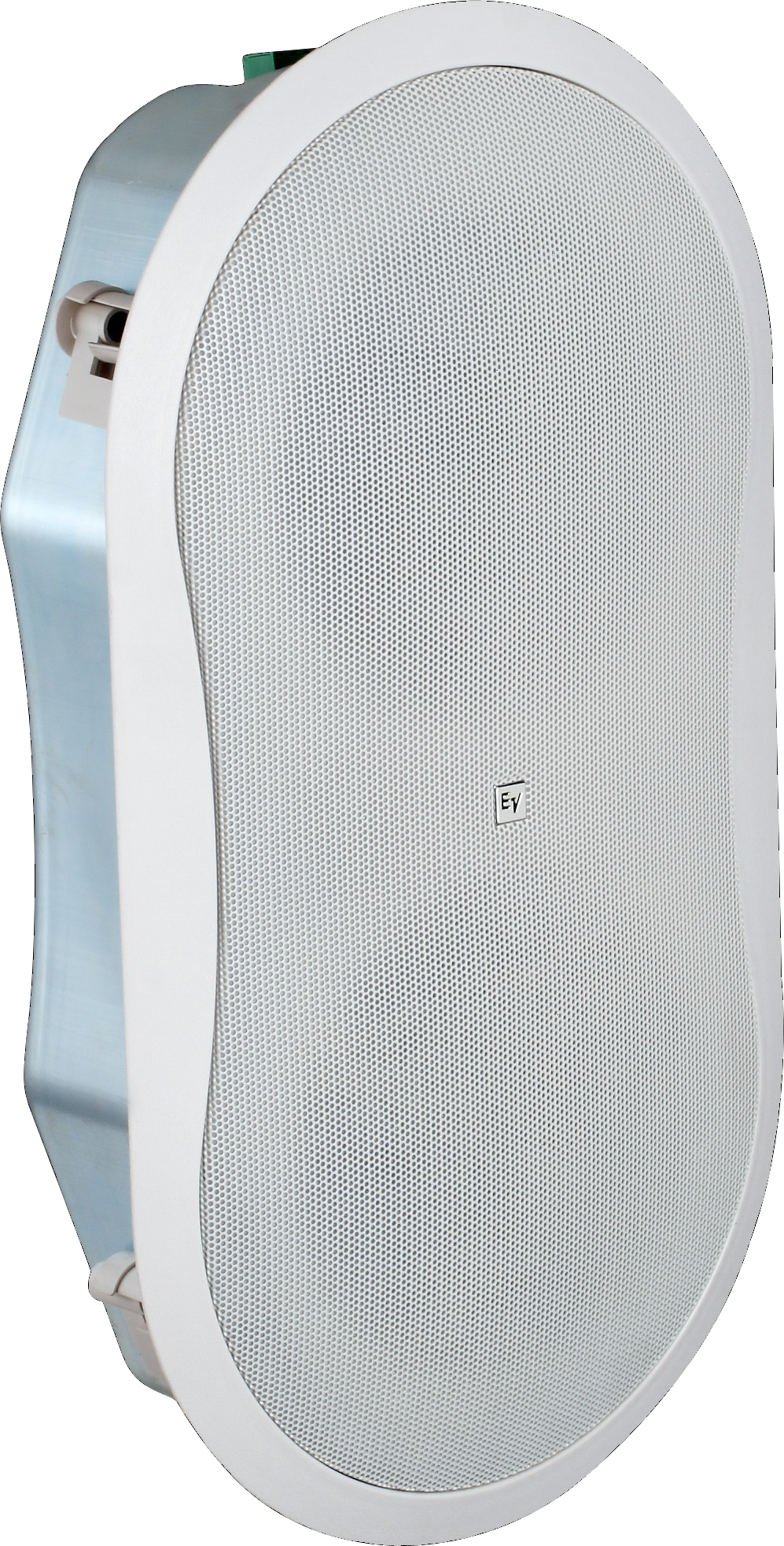

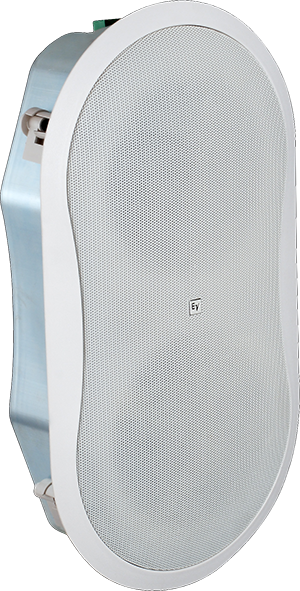

EVID FM6.2

Evid系列墙壁预埋式扬声器系统

EVID FM 6.2具有高功率容量和出色的音质，音箱完全密封，是墙壁预埋式扬声器系统。它能完美地安装在大型房间，6"低音音箱与6"无源辐射器相组合，扩展了低音频响。

Specifications

Frequency Range (-10 dB)52 - 20000
Nominal Impedance (Passive)8
HF Transducer1 inch Titanium dome tweeter
Max. SPL/1m (calc)²115
Coverage (Nominal -6 dB) H120
Coverage (Nominal -6 dB) V120

LF Transducer6 inch with 6 inch passive radiator
System Power Handling (Continuous/Program/Peak)75//300
Power Rating300
LF Power Handling6 inch, plus 6-inch passive
HF Power Handling1-inch (Titanium dome)
Enclosure MaterialZinc Plated Metal
Sensitivity 1 W/1 m90
Available ColorWhite
Height465
Width256
Depth100.3
Weight Net5.8
Input Connections4-pin Phoenix
Transformer Taps (Transformer Version Only)7.5, 15, 30, 60 w at 70 v
