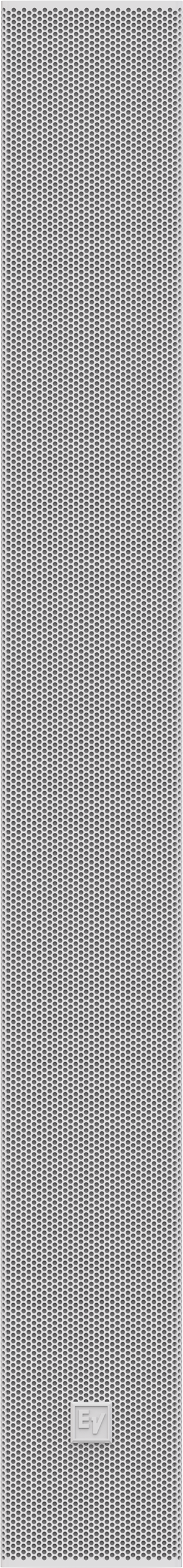

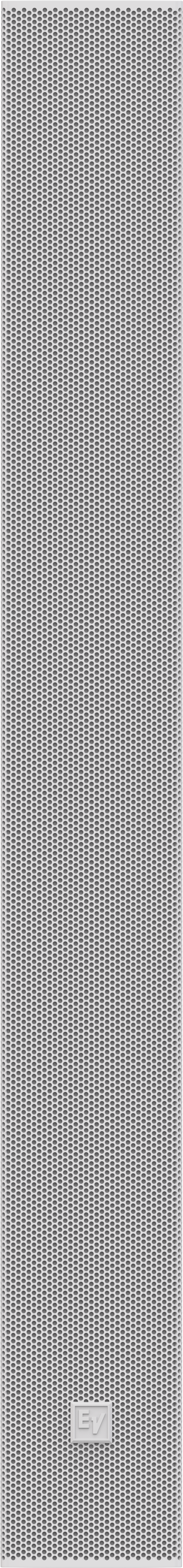

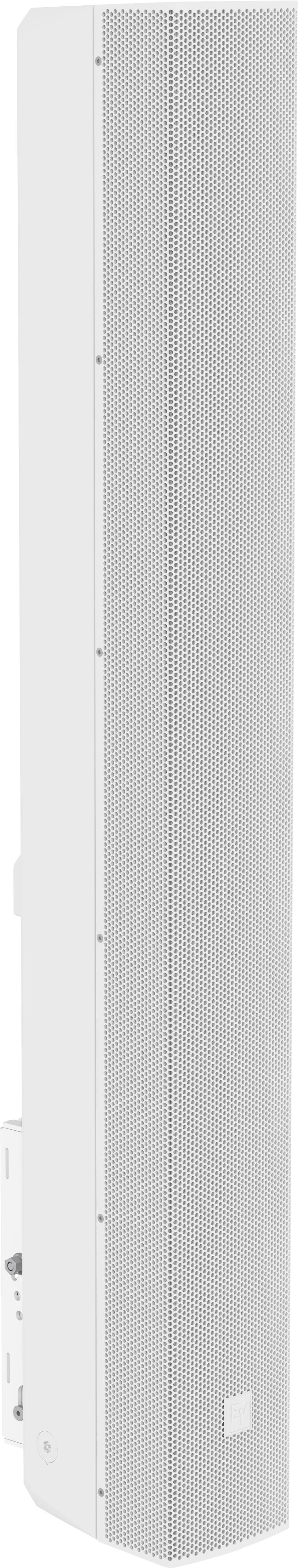

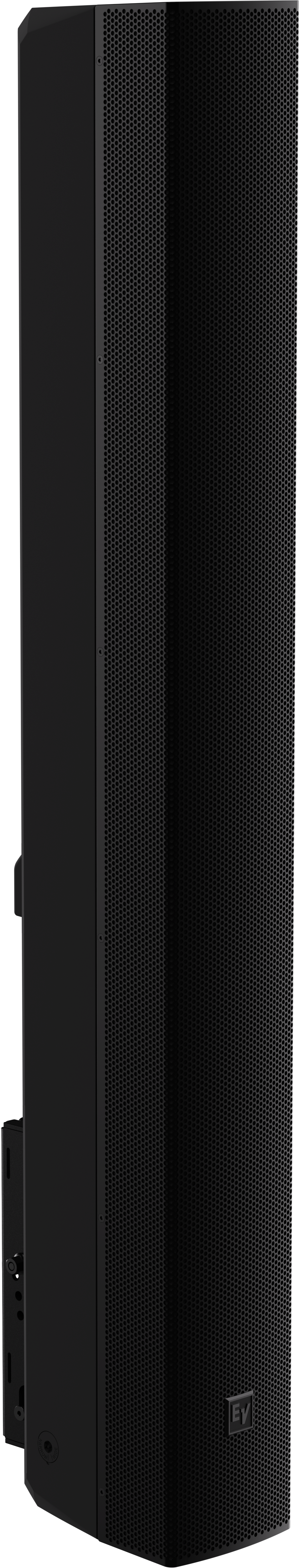

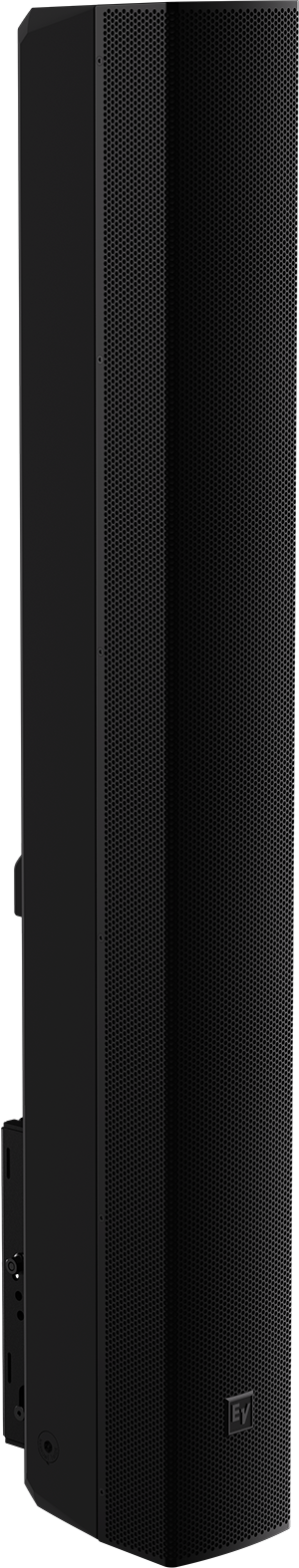

LRC-1100
Column speaker, 1m, EN54
- 37.4” (950 mm) high

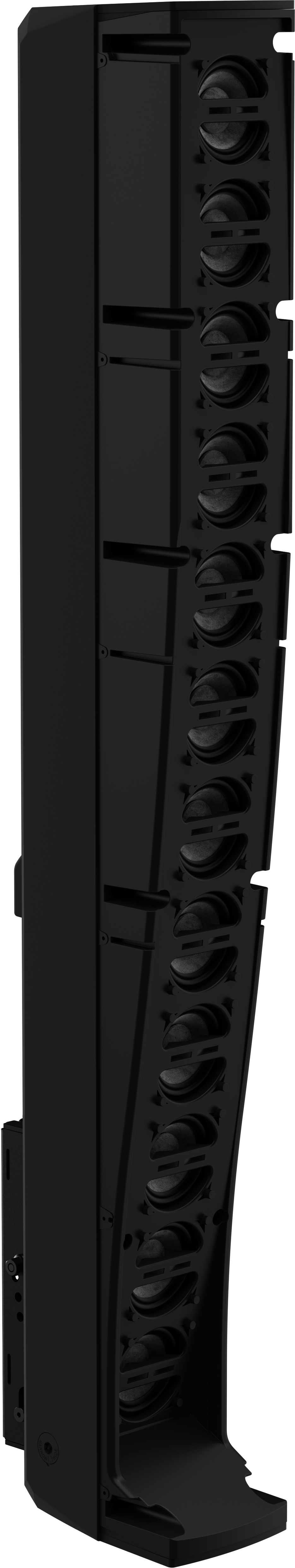

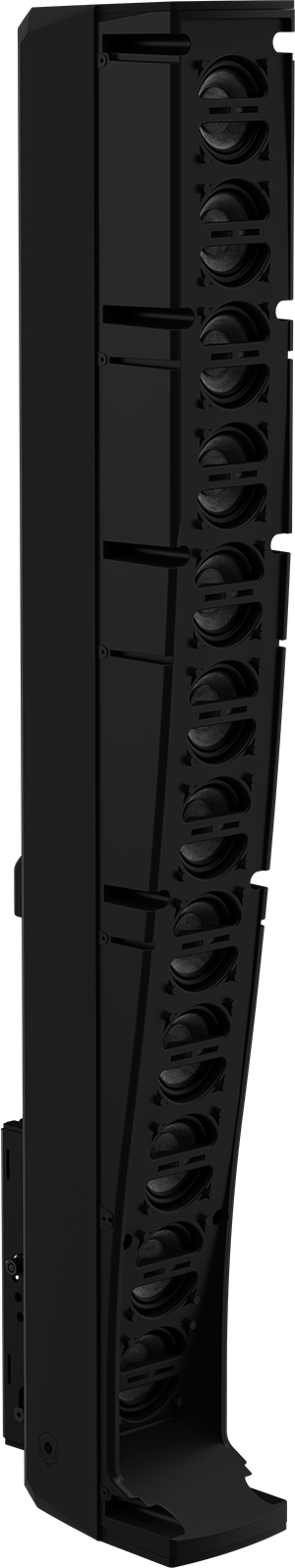

- 12x 2.5” (63.5 mm) full-range drivers
- 3x 2.5” (63.4 mm) passive radiators
- 20°/40° vertical coverage (switchable)
- 130° horizontal coverage
- 65 Hz-14 kHz
- 126 dB SPL (peak)
- Lo-Z, 8 ohms, 400W program
- 70/100V
产品规格
| Preliminary specifications | |||
| Frequency range (-10 dB) 1 | 65 Hz – 14,000 Hz | ||
| Maximum sound pressure level at a distance of 1 m 2 | 126 dB narrow123 dB wide | ||
| Axial sensitivity 3 | 93 dB SPL 1W/1m narrow 91 dB SPL 1W/1m wide | ||
| Acoustic down-tilt (relative to horizontal) | -5° | ||
| Coverage angle HxV 4 | 130° x 20° (narrow) / 40° (wide) | ||
| Power handling (continuous) 5 | 200 W | ||
| Power handling (program) 6 | 400 W | ||
Specifications | |||
| Peak input voltage (Lo-Z) | 115 V |
| Nominal impedance (Lo-Z) | 8 Ω |
| Recommended high-pass | ≥70 Hz Butterworth, 24 dB/oct |
| Transformer taps 70 V line | 120 W; 60 W; 30 W; 15 W; 8 W |
| Transformer taps 100 V line | 120 W; 60 W; 30 W; 15 W |
| Transducer (quantity) size | (12) 2.5 in active drivers (3) 2.5 in and 6.5 in passive radiators |

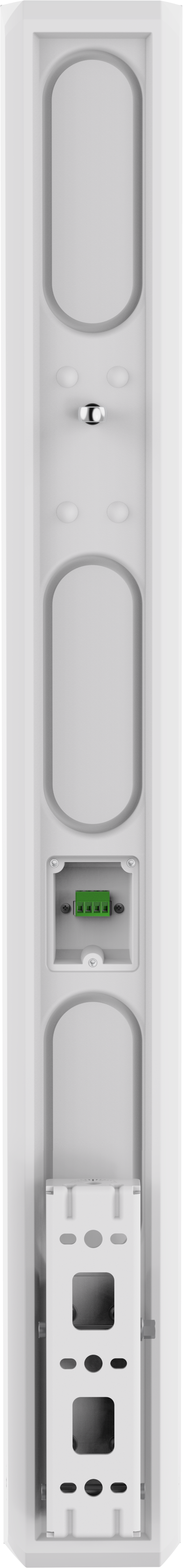

| Connector type | 4-pin Euroblock Input + Pass through |
| Wire size | 12AWG (maximum) |
| Suspension points | (2) M8 |

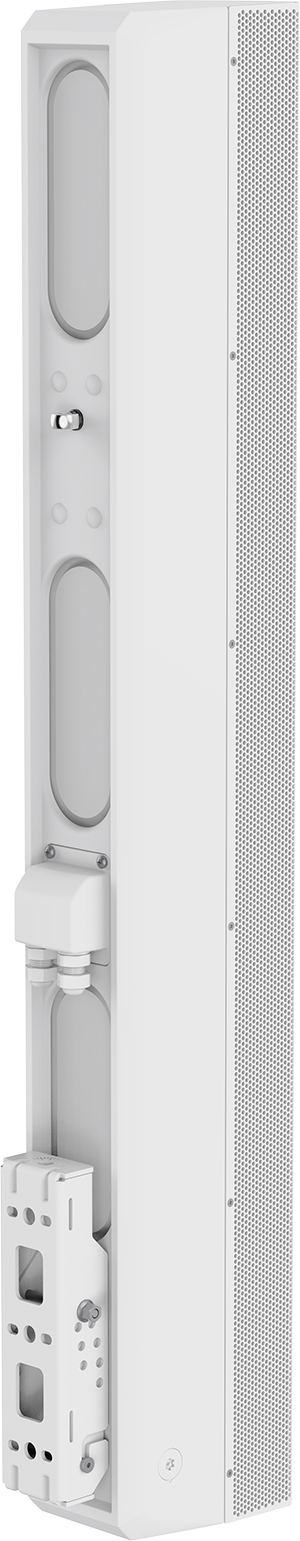

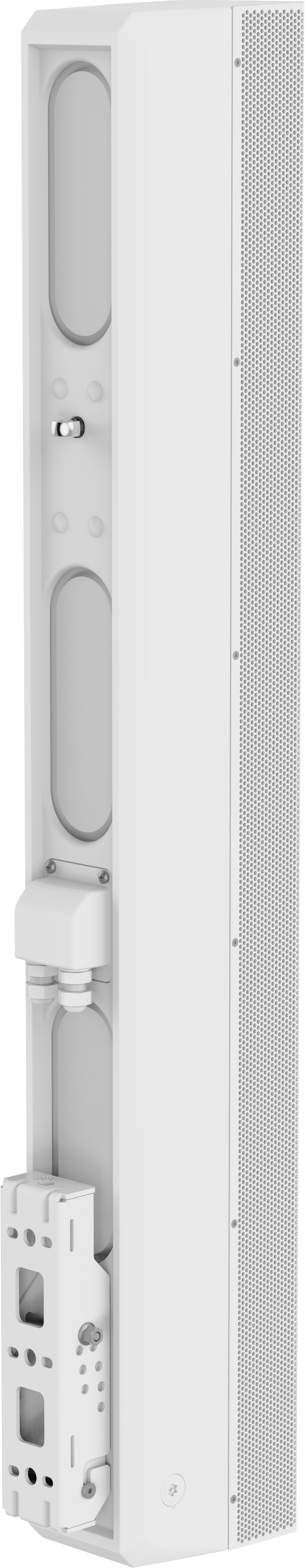

| Mounting | SwifTilt Multi-angle Tilt + Pan Bracket |
| Maximum horizontal pan angle | +/- 80° (at all down-tilt angles) |
| Vertical down-tilt angles 7 | 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25° |
| IP rating | FW (outdoor full exposure), IP55c |
| Color | RAL 9004 Signal black / RAL 9003 Signal white |
| Dimensions (H x W x D) | 37.40 in x 4.33 in x 5.91 in |
| Dimensions (H x W x D) | 950 mm x 110 mm x 150 mm |
| Weight | 16.8 lb |
| Weight | 7.6 kg |
| Shipping weight | 24.25 lb |
| Shipping weight | 11 kg |
| Included hardware | Tilt bracket Pan bracket Gland nut weather cover Dual-ended Allen/TR20 key M8x20 mm eyebolt (pre-installed) |
2 1 m on acoustic axis, half-space, 12 dB crest factor pink noise with Music preset (calculated)
3 Unprocessed 500 Hz - 12 kHz
4 Vertical coverage unprocessed. Narrow: 1 kHz - 13 kHz. Wide: 650 Hz - 12 kHz
5 100 hrs continuous EN54-24 noise, Lo-Z
6 20 ms average, Lo-Z
7 Using included surface-mount bracket
