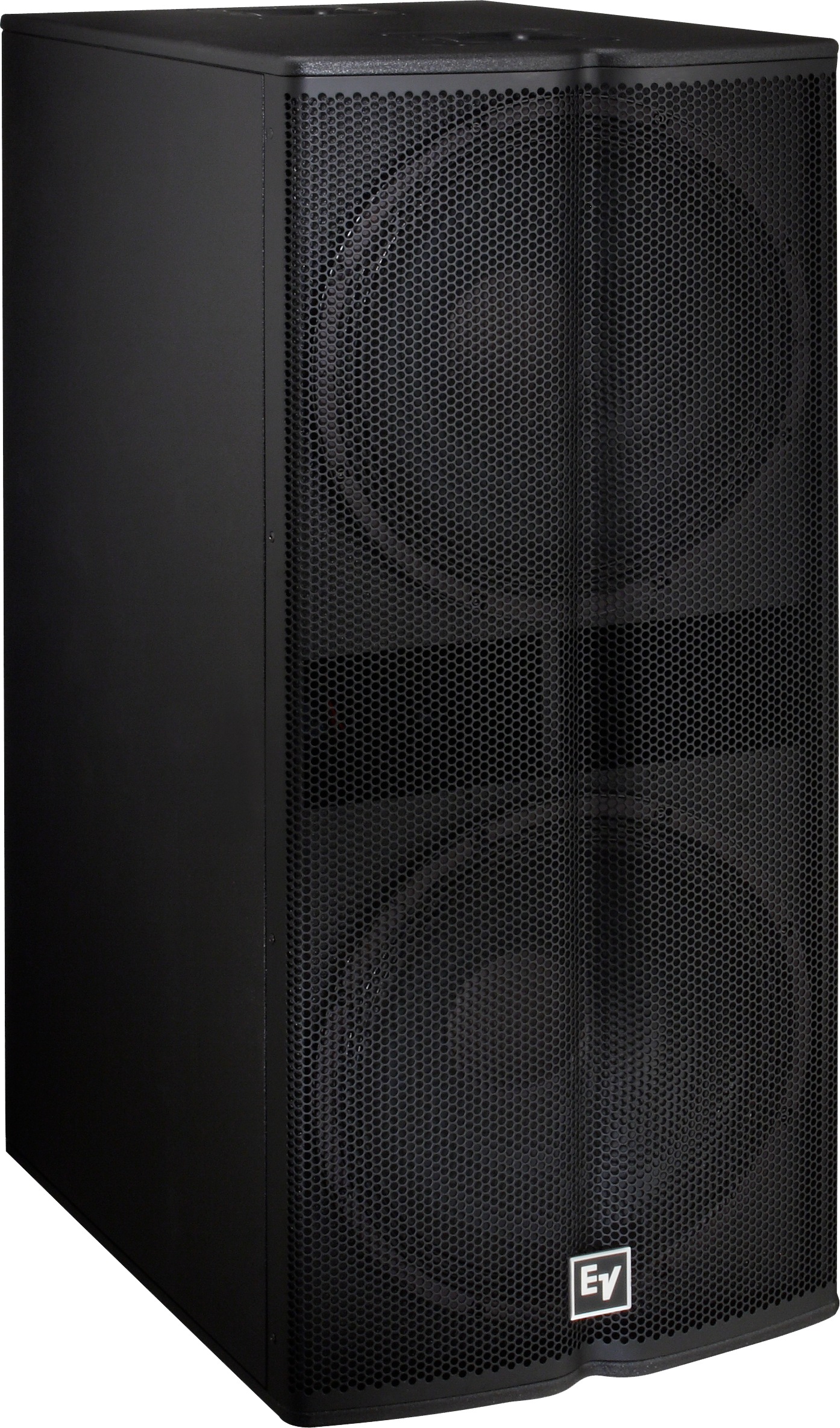

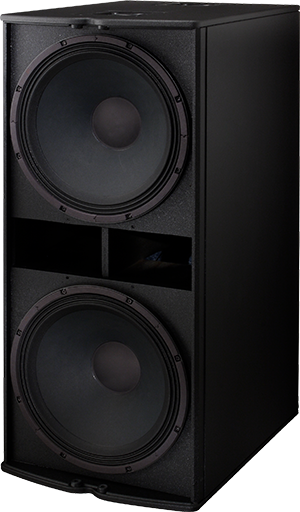

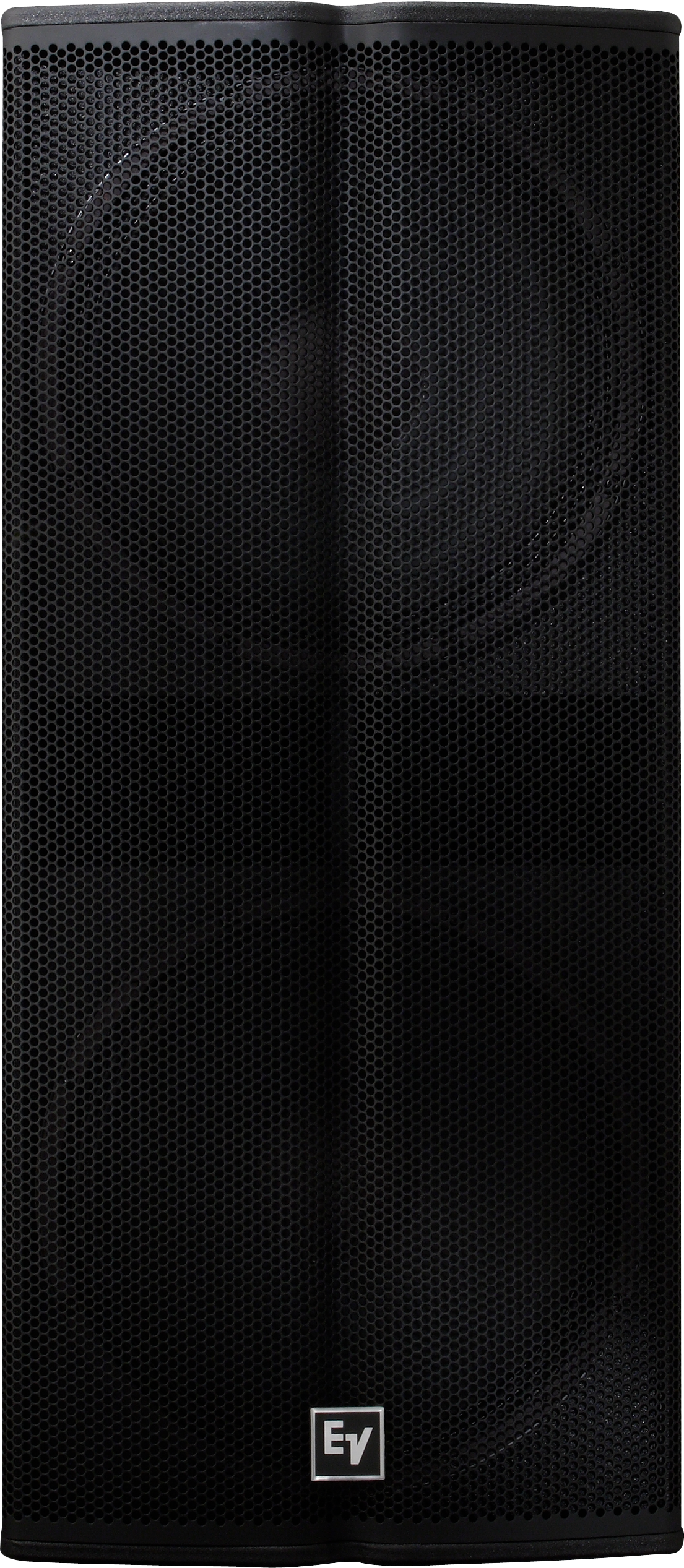

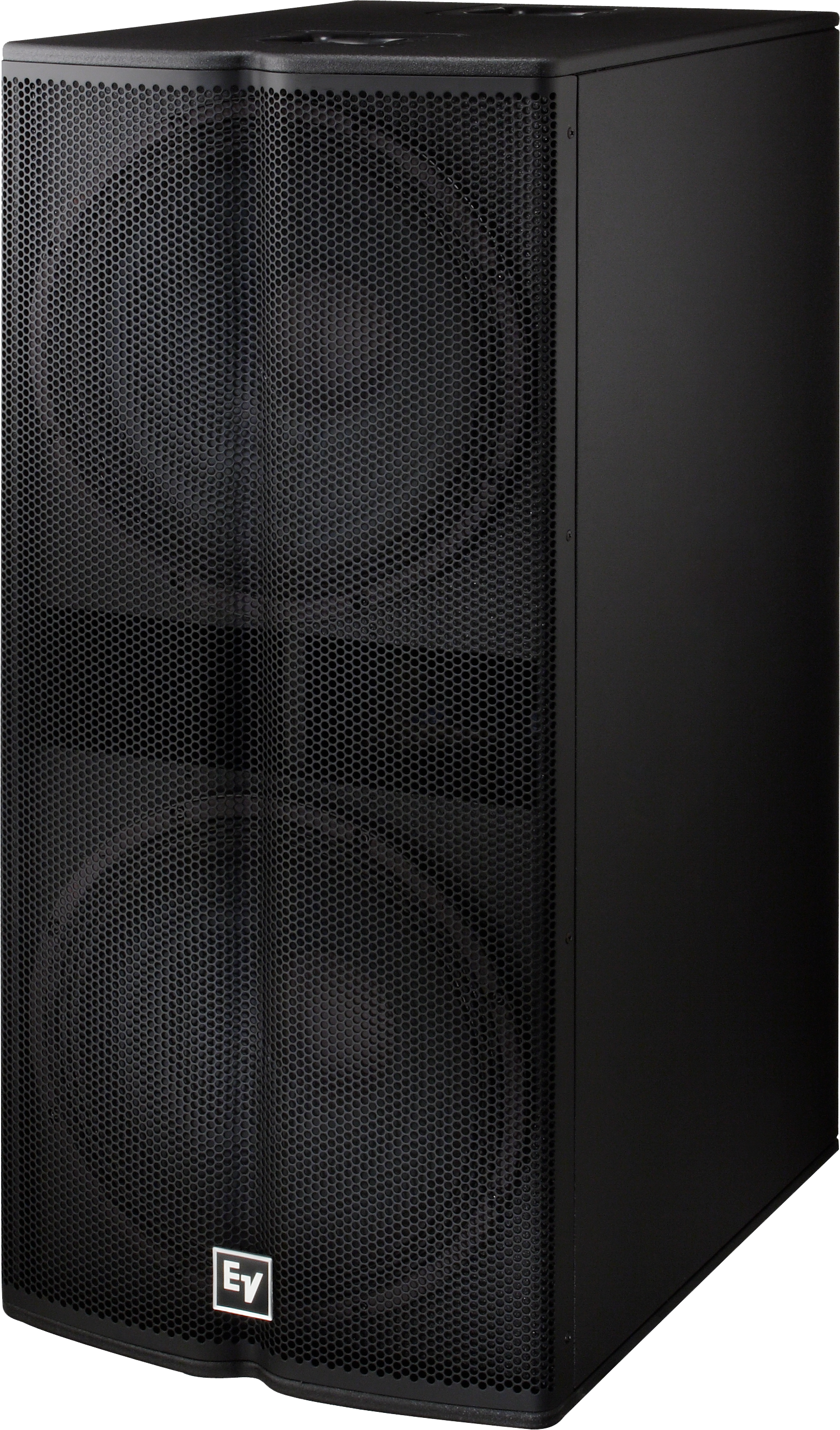

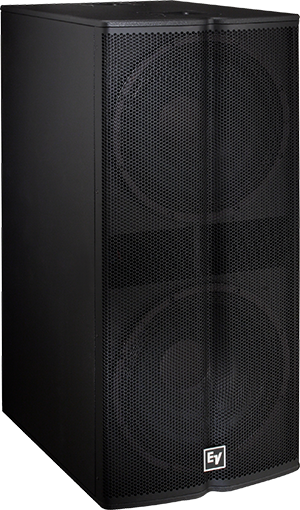

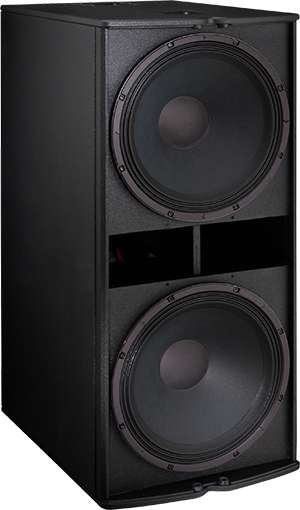

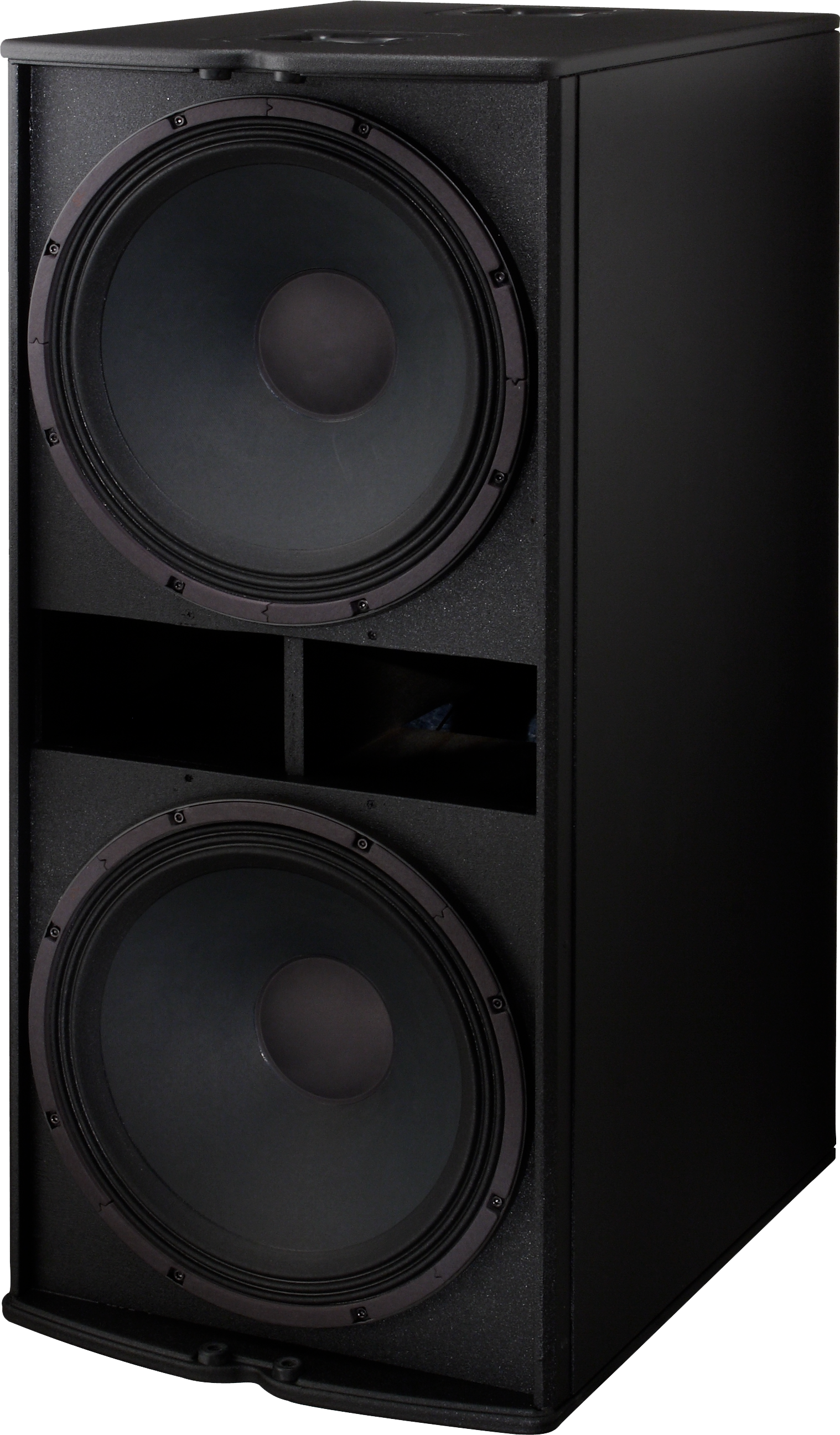

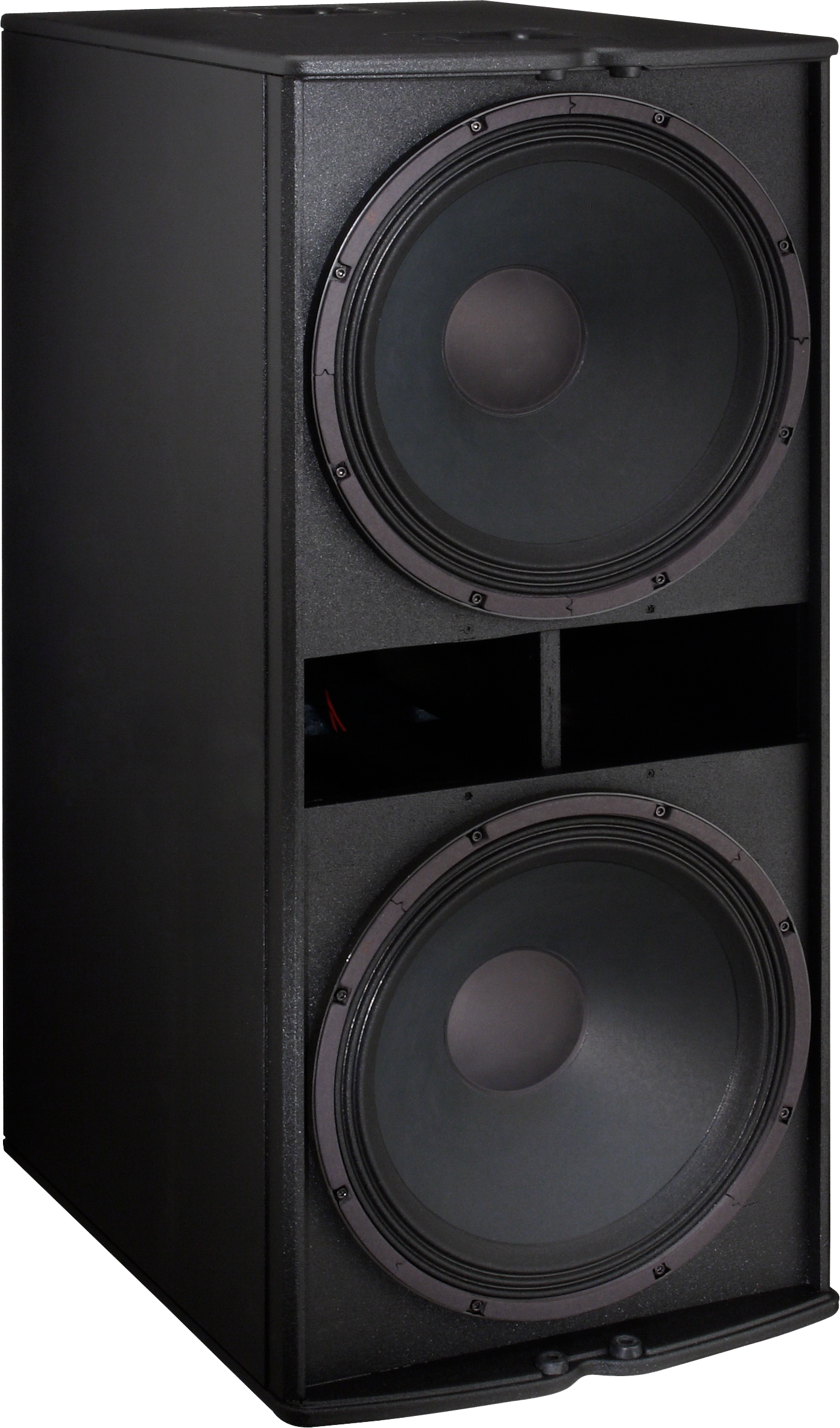

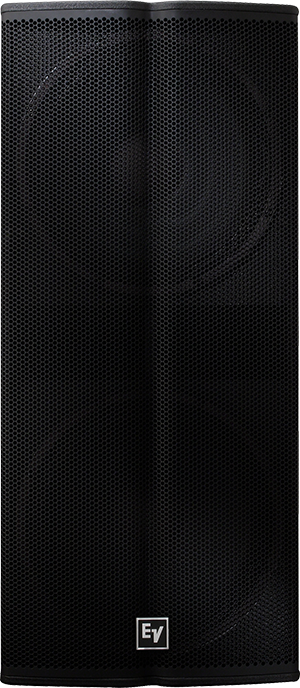

TX2181
双18“超低频扬声器

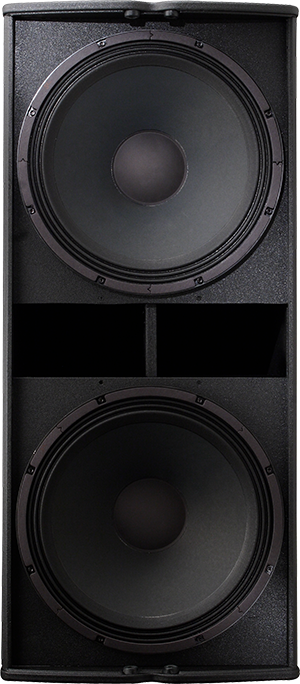

- 两个EVS-18S 18”（457 mm）低频驱动器；灵敏度103 dB；最高声压级138 dB；持续功率1000 W，峰值功率4000 W；四个集成手柄，以方便搬动；多个安装点，可连接可选的TX-W1轮套件
TX2181是TX2152的理想组合超低频扬声器（全拼低频数量比率2:1），充分利用双EVS18S低频驱动单元的优势，是真正的高端专业扬声器之选。
Specifications
| Frequency Range (-10 dB) | 40 - 1500 |
| Flying | No |
| Minimum Impedance | 2.9 |
产品规格 |
|
| Nominal Impedance (Passive) | 4 |
| Speaker Type | Subwoofer |
| Woofer Size | 18 |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 50 - 160 |
| Max. SPL/1m (calc)² | 138 |
| LF Transducer | Two 18-inch EVS18S |
| Power Rating | 4000 |
| System Power Handling (Continuous/Program/Peak) | 1000//4000 |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Available Color | 黑色 |
| Sensitivity 1 W/1 m | 103 |
| Height | 1154 |
| Recommended Low-Pass Frequency | 80 - 120 |
| Width | 508 |
| Internal Crossover | No |
| Depth | 691 |
| Weight Net | 56.1 |
| Family | Tour X |
| Input Connections | Parallel Neutrik® NL4 |
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for TX2181.
Dynacord C‑Series更多 |
Dynacord L‑Series更多 |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
