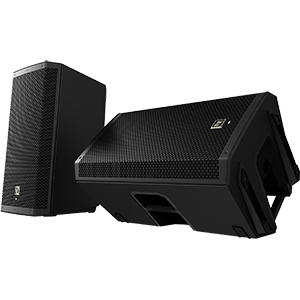

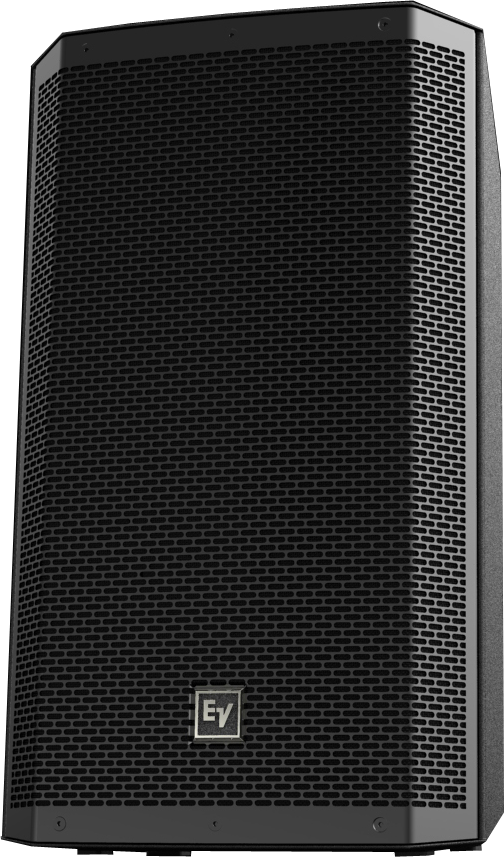

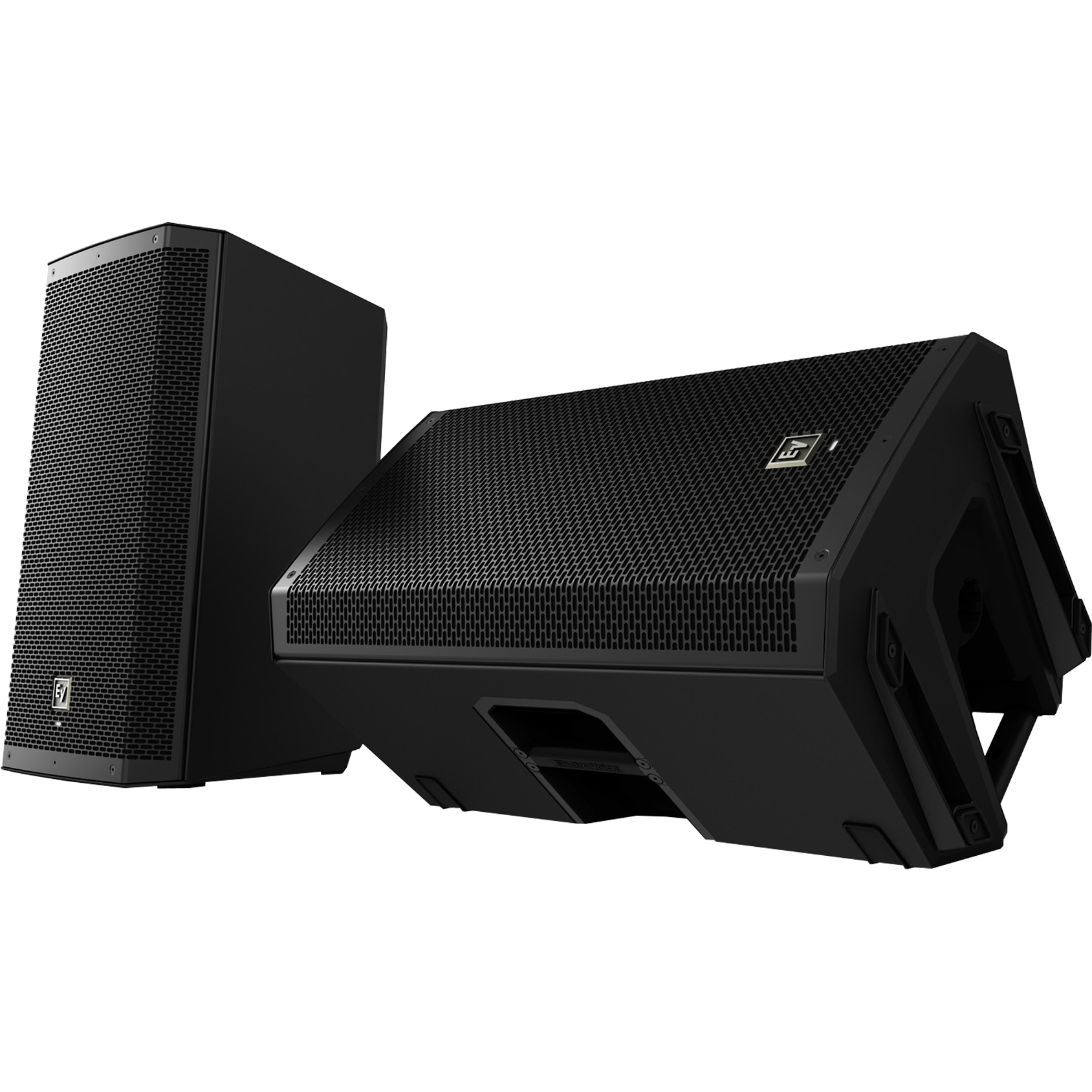

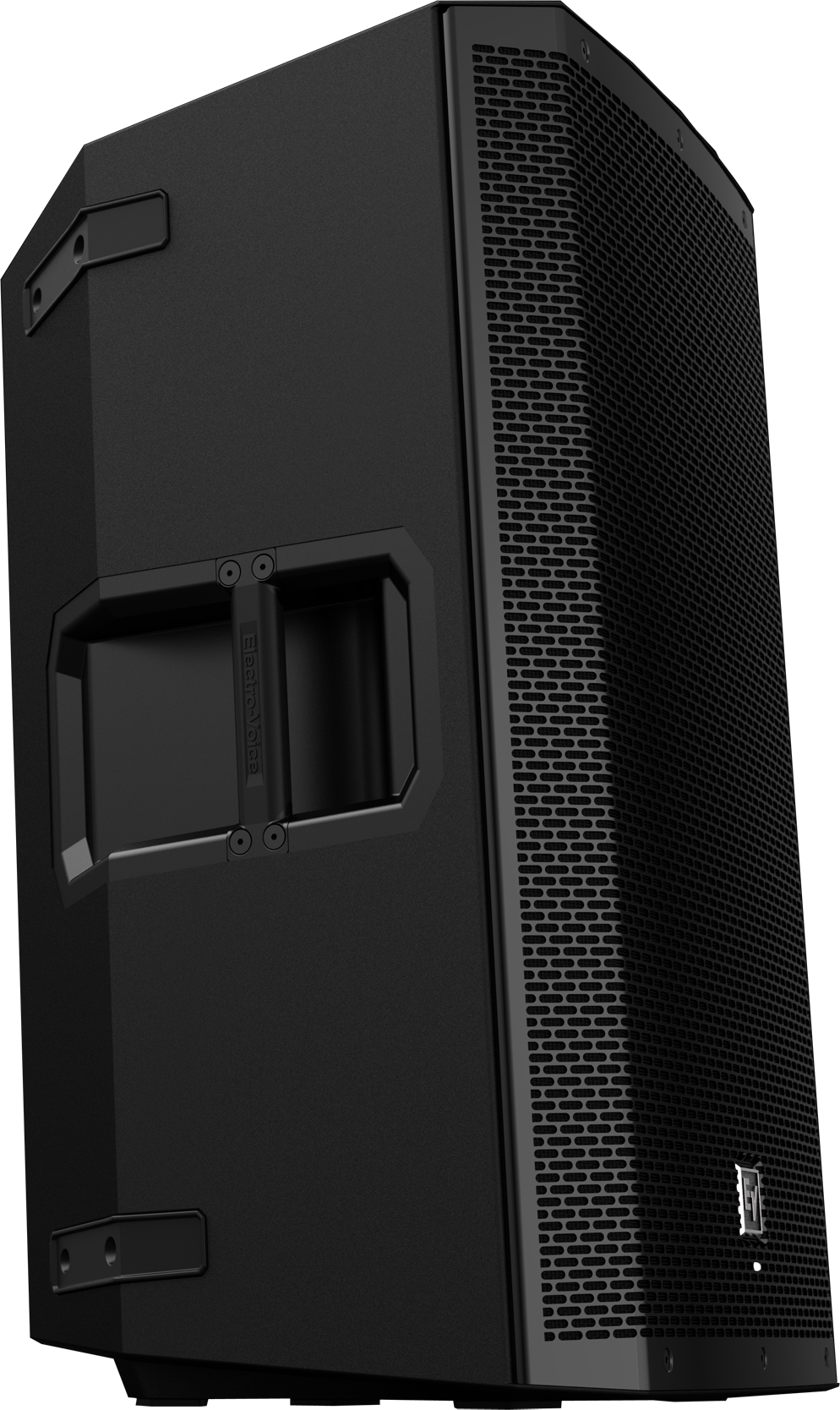

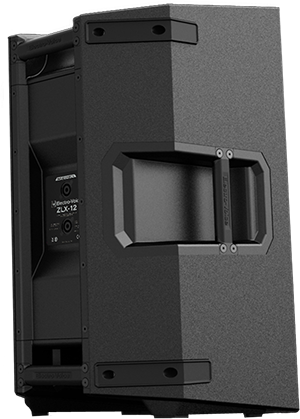

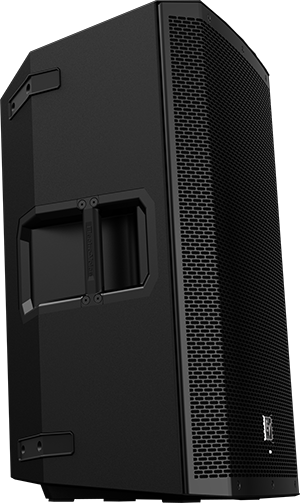

ZLX-12

12”两分频无源音箱

  • 紧凑箱体内震撼的12”低音单元和1.5”高频钛压缩驱动器
  • 频率范围：55 Hz – 20 kHz
  • 连续功率：250W，峰值功率：1000W
  • 灵敏度：95dB，最大声压级：125dB
  • 32.8 磅（14.9千克）

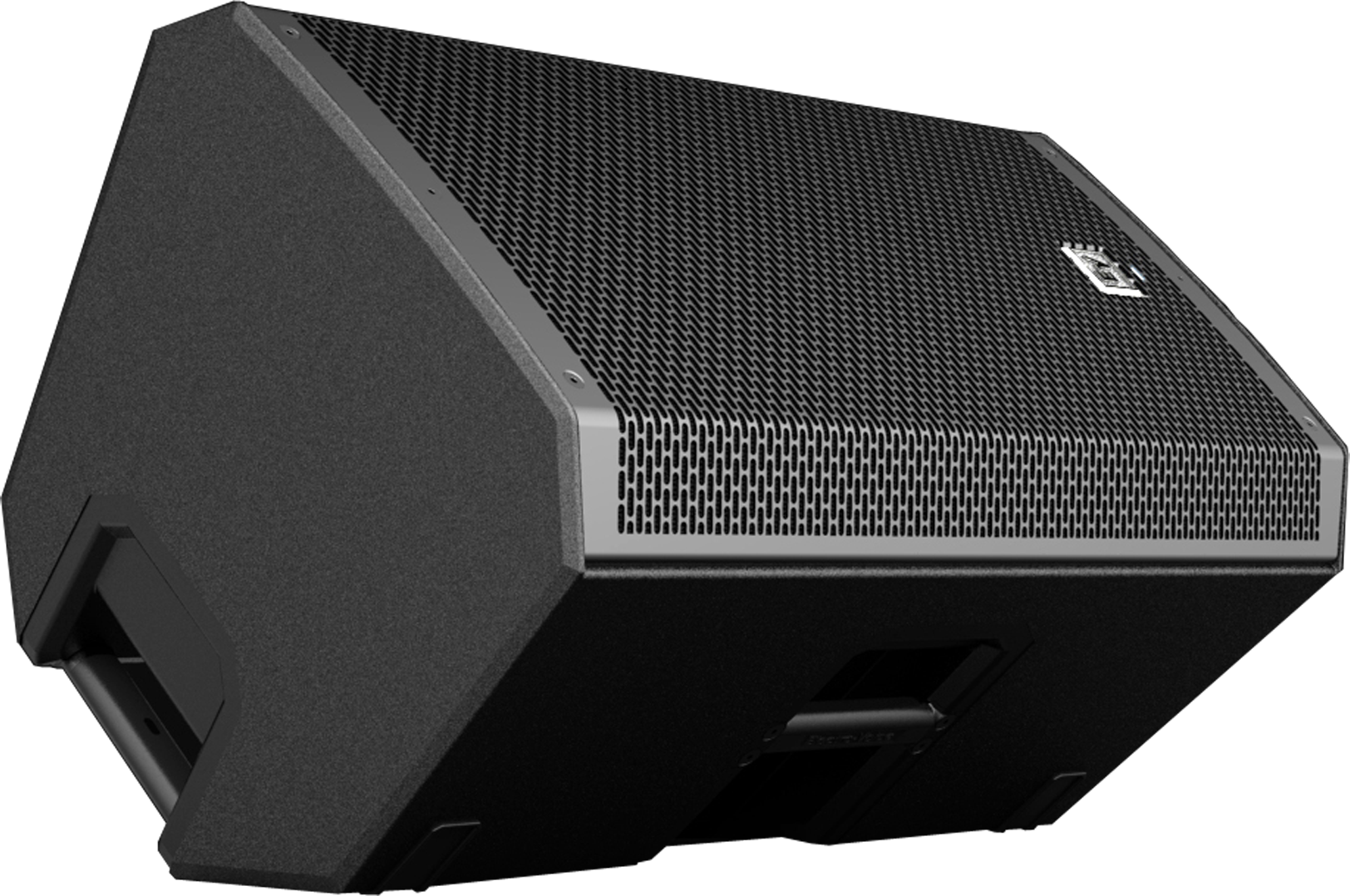

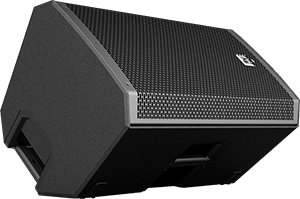

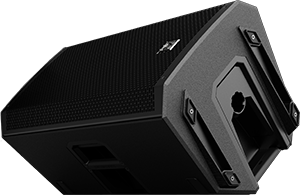

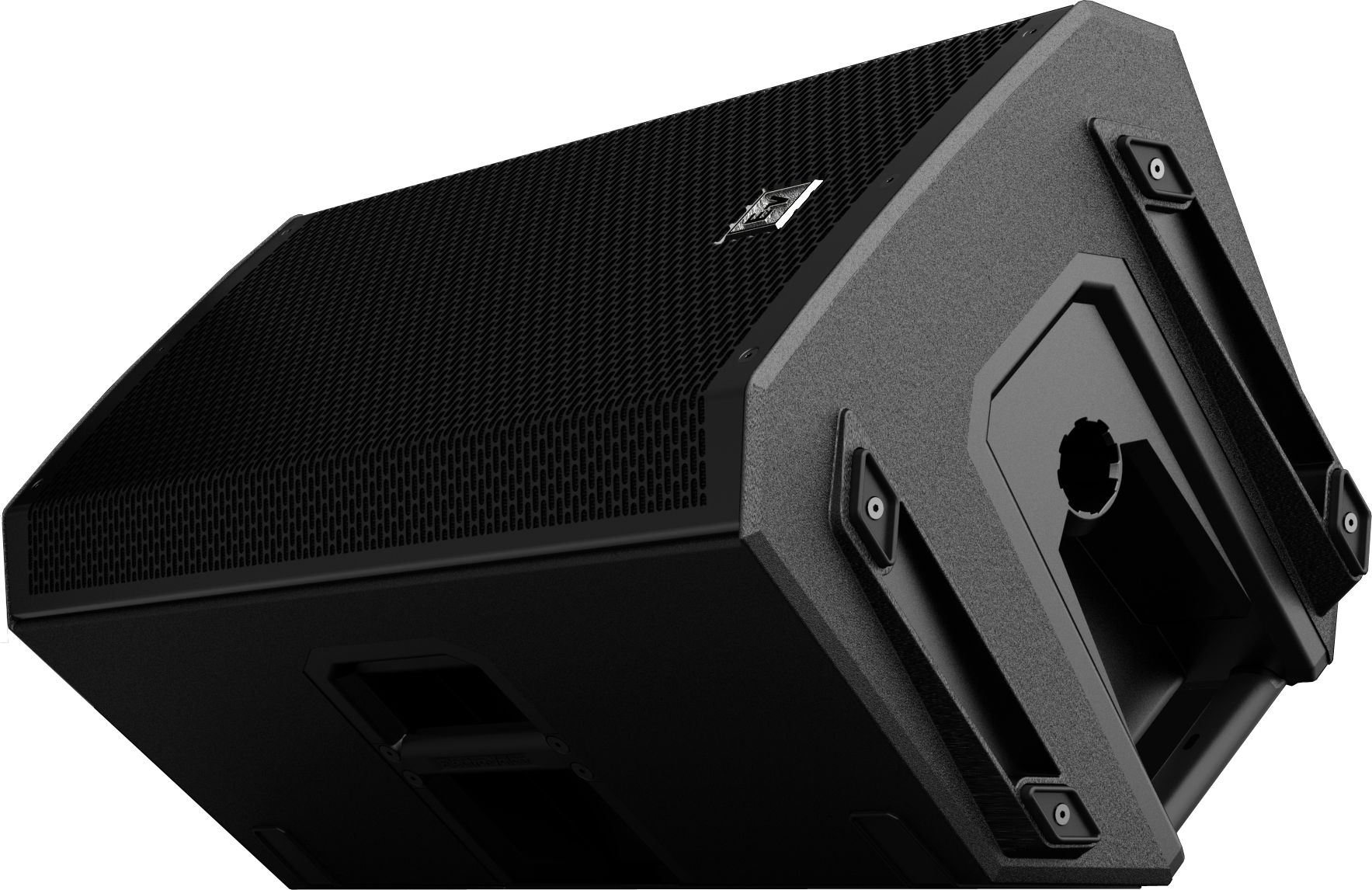

ZLX-12小身材大音量，是性能与便捷的完美结合，是主扩音箱和返送监听的理想之选，提升舞台品味。

Specifications

Minimum Impedance7
HF TransducerDH-1K
Speaker TypeFull-Range
Woofer Size12
Powered or PassivePassive
Frequency Range (-10 dB)¹55 Hz - 20 kHz

Max. SPL/1m (calc)²125
Coverage (Nominal -6 dB) H90
Coverage (Nominal -6 dB) V60
LF TransducerEVS-12K, 300 mm (12 in) Woofer
Power Rating1000
Crossover Frequency2100

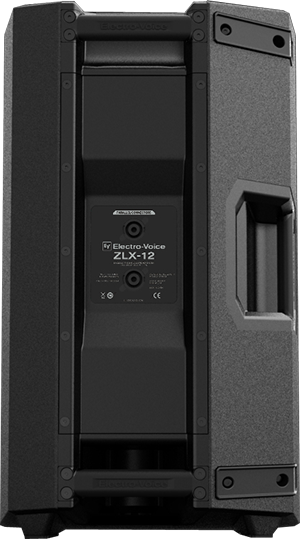

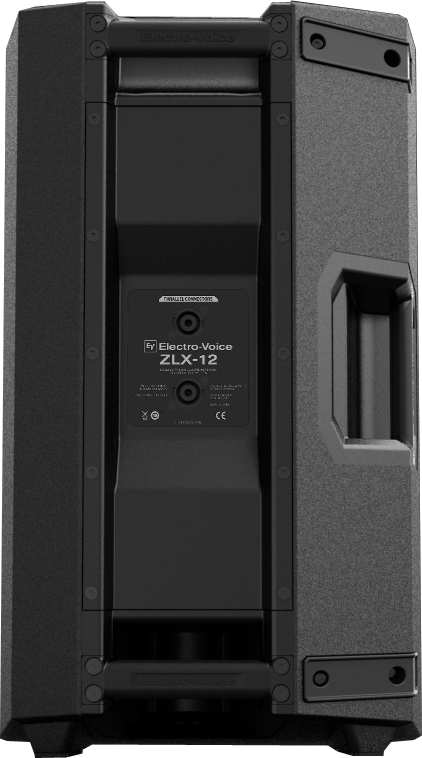

Connector TypeDual NL4
Enclosure MaterialPolypropylene Composite
Grille18 Gauge Steel with Black Powder Coat
Height610
Width356
Recommended High-Pass Frequency40
Depth356
Weight Net14.9
Frequency Response (-3 dB)82 Hz - 18 kHz
Shipping Weight18
FamilyZLX
Nominal Impedance8
Axial Sensitivity (SPL, 1 W @ 1 m)95
Power Handling (Continuous / Peak)250 / 1000
Maximum SPL125
Passive Power Handling1000
