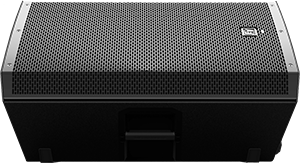

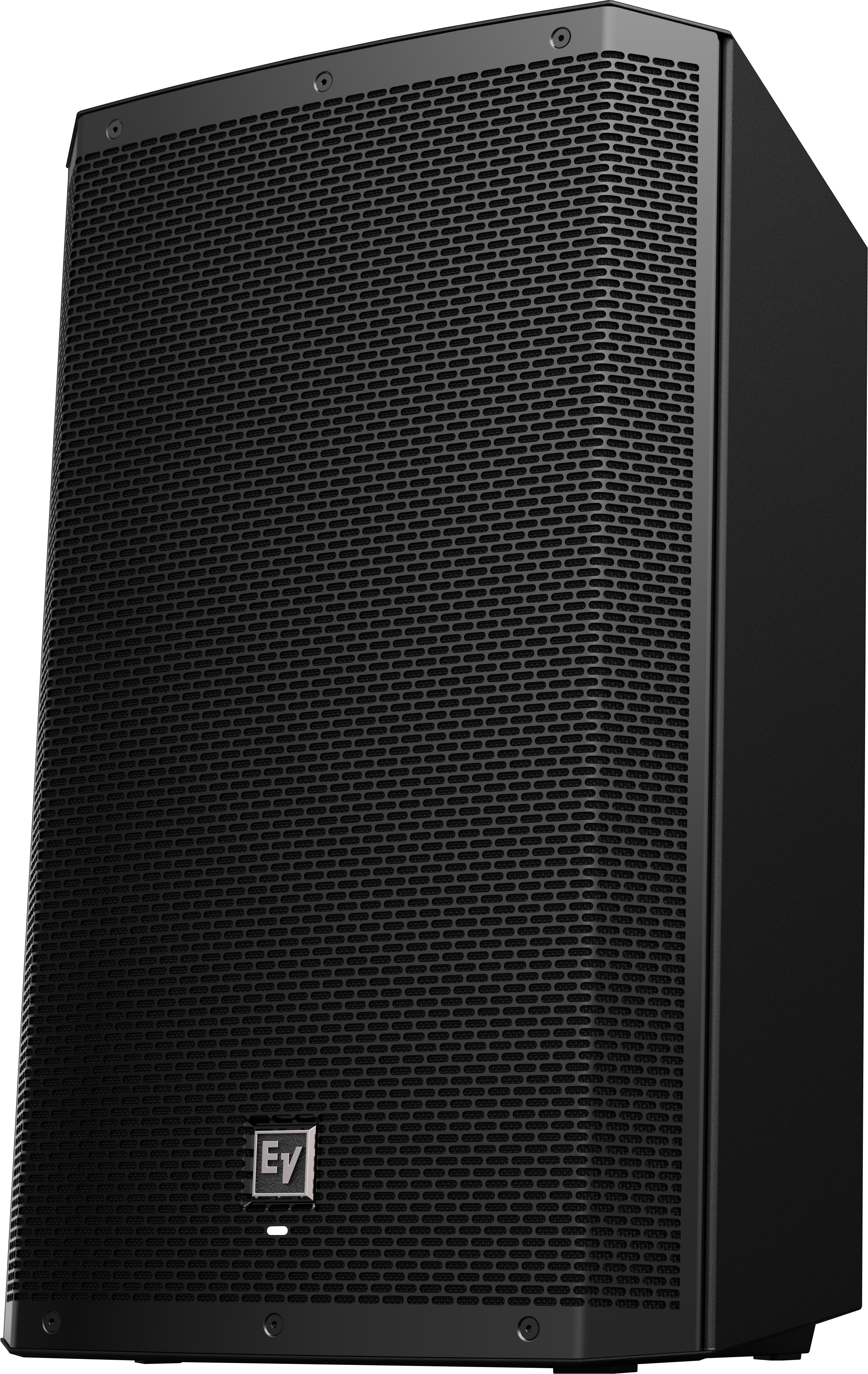

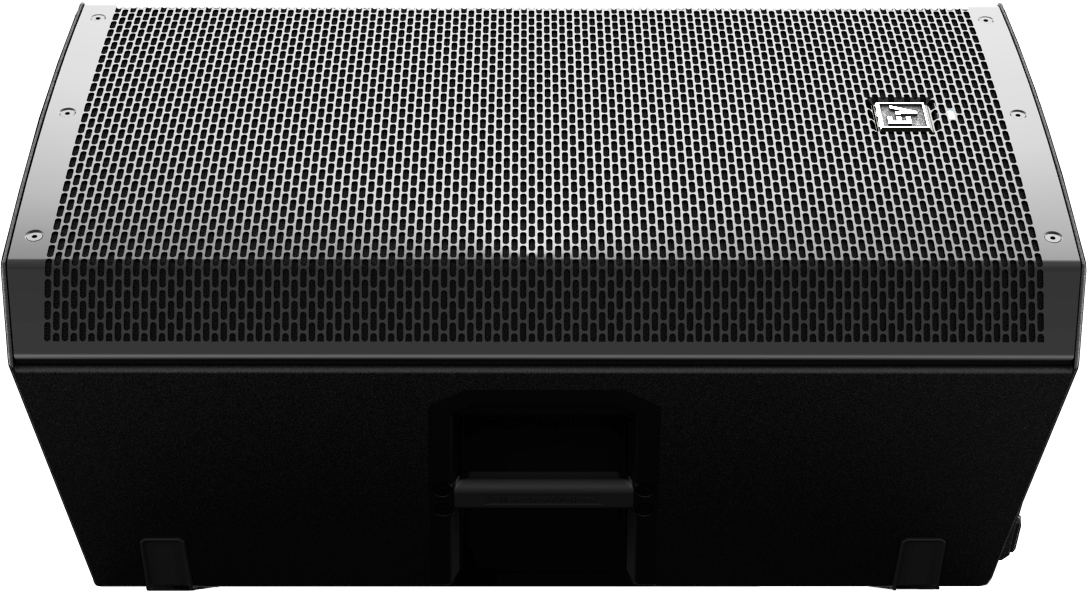

ZLX-15BT

15" powered loudspeaker with bluetooth audio*

Summary & Images Specs Where to buy Downloads & Support

High‑quality Bluetooth audio streaming for background music or musical accompaniment.
QuickSmartDSP features best‑in‑class processing. Easy setup via four presets, sub/top system‑match, two‑band EQ, five user‑programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
High‑efficiency 1000 W Class‑D power amplifier delivers up to 127 dB peak SPL utilizing transducers designed and engineered by EV.
EV‑patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Three optimally located handles combined with a rugged composite structure provides the most portable professional sound speaker on the market.

NOW STREAMING: Electro-Voice ZLX best-selling speaker family adds Bluetooth audio streaming models

ZLX portable loudspeakers offer the best performance and reliability in their class — with components and engineering that work together to make it quicker and easier than ever to take control of your sound, whatever the gig. Now with Bluetooth enabled wireless audio streaming, legendary ZLX performance becomes even more convenient with the ability to connect to any mobile device for streaming your music library.

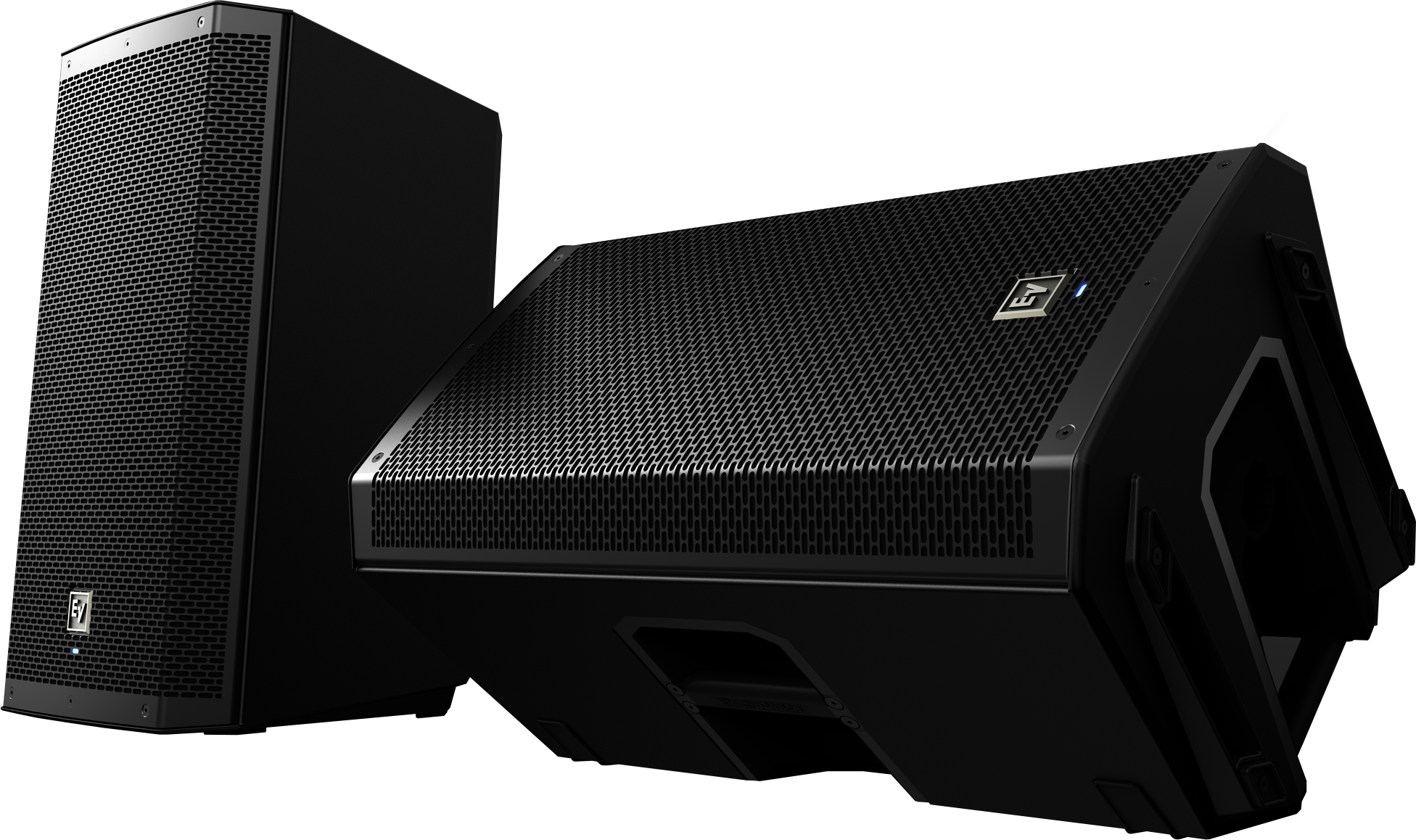

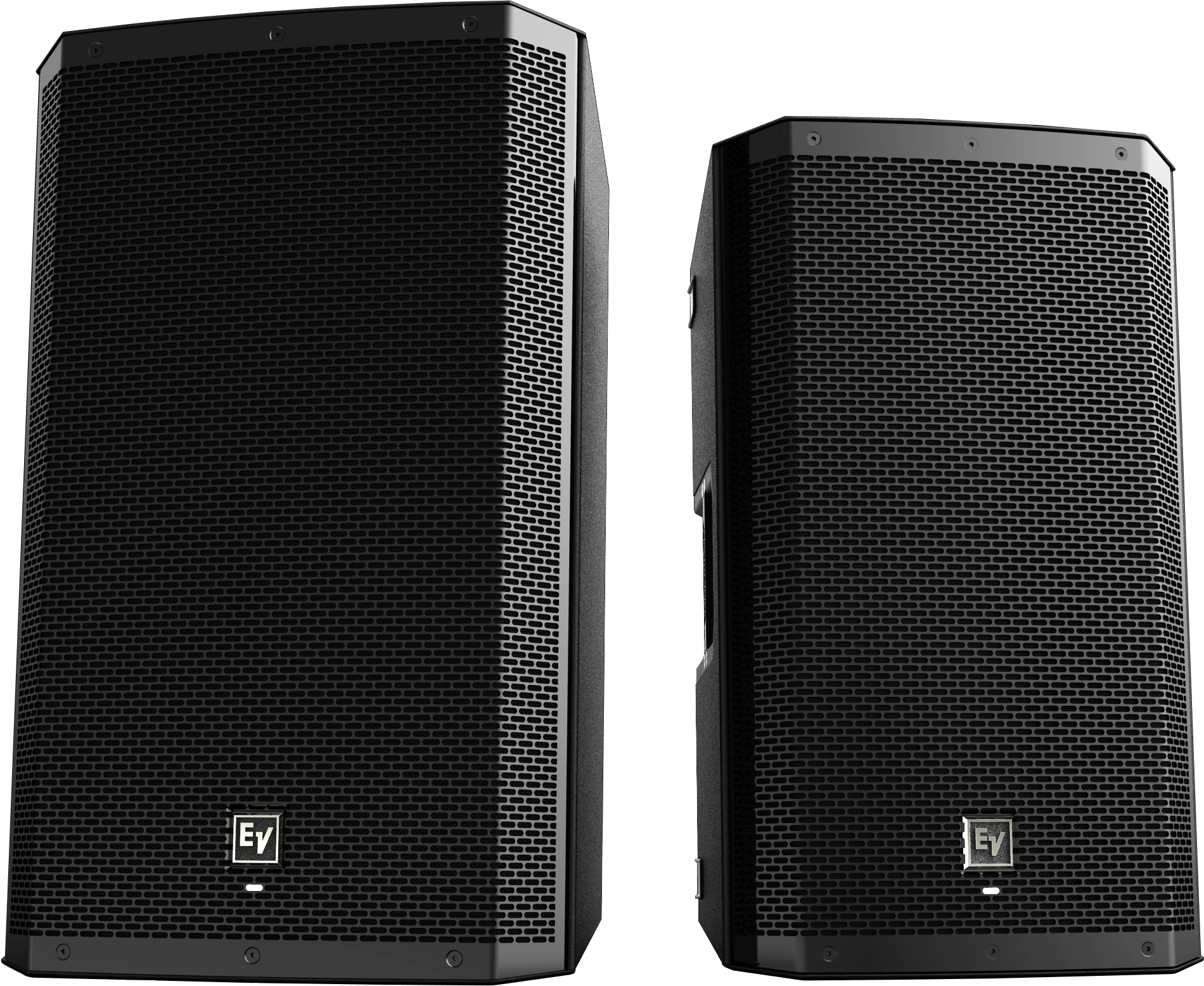

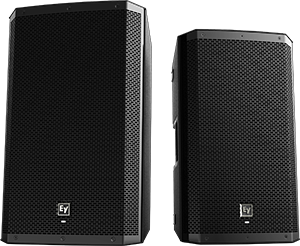

Featuring custom drivers housed in an innovative cabinet design, the two new wireless, compact, and versatile ZLX models make EV's renowned sound quality and rugged reliability more accessible than ever before.

* Bluetooth is available in select countries. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bosch Security Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners. ©2018 Bosch Security Systems, Inc.

产品规格

Frequency Response (-3 dB)¹	55 Hz - 18 kHz
Frequency Range (-10 dB)	42 Hz - 20 kHz
Maximum SPL²	127 dB
Specifications

Coverage (H x V)	90° x 60°
Power Rating	1000 W
LF Transducer	EVS-15K, 380 mm (15 in) woofer
HF Transducer	DH-1K

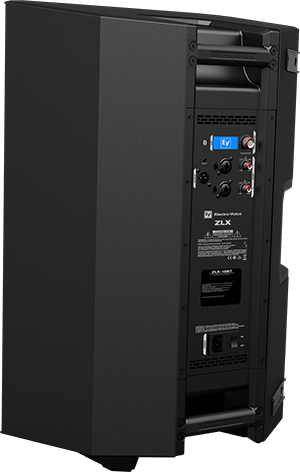

Connectors	(2) XLR/TRS Combo Jack (1) 3.5 mm Input and (1) XLR link Output
Enclosure	Polypropylene
Grille	18 Gauge steel with black powder coat
Color	Black
Dimensions (H x W x D)	685 mm x 426 mm x 383 mm (27 in x 17 in x 15 in)
Net Weight	17.3 kg (38.0 lb)
Shipping Weight	23.0 kg (50.78 lb)
Power Consumption³	100 - 240 V~, 50 - 60 Hz, 0.8 - 0.5 A

¹ Full-Space measurement using the MUSIC DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is specified at ⅛ full output power.
