ZX1

8"两分频组合系统

  • EV8L高性能8”低频驱动单元;独特导相口设计,适于的低频扩展;持续功率200W,节目功率400W;内置过载保护电路;DH2005真正的压缩驱动器(1,25”音圈);可旋转90 x 50 高频号筒;适合监听角度设计;集成扬声器支架插孔和4个公制插孔用于吊装;2个Neutik NL4连接头;有黑色和白色两种颜色可选

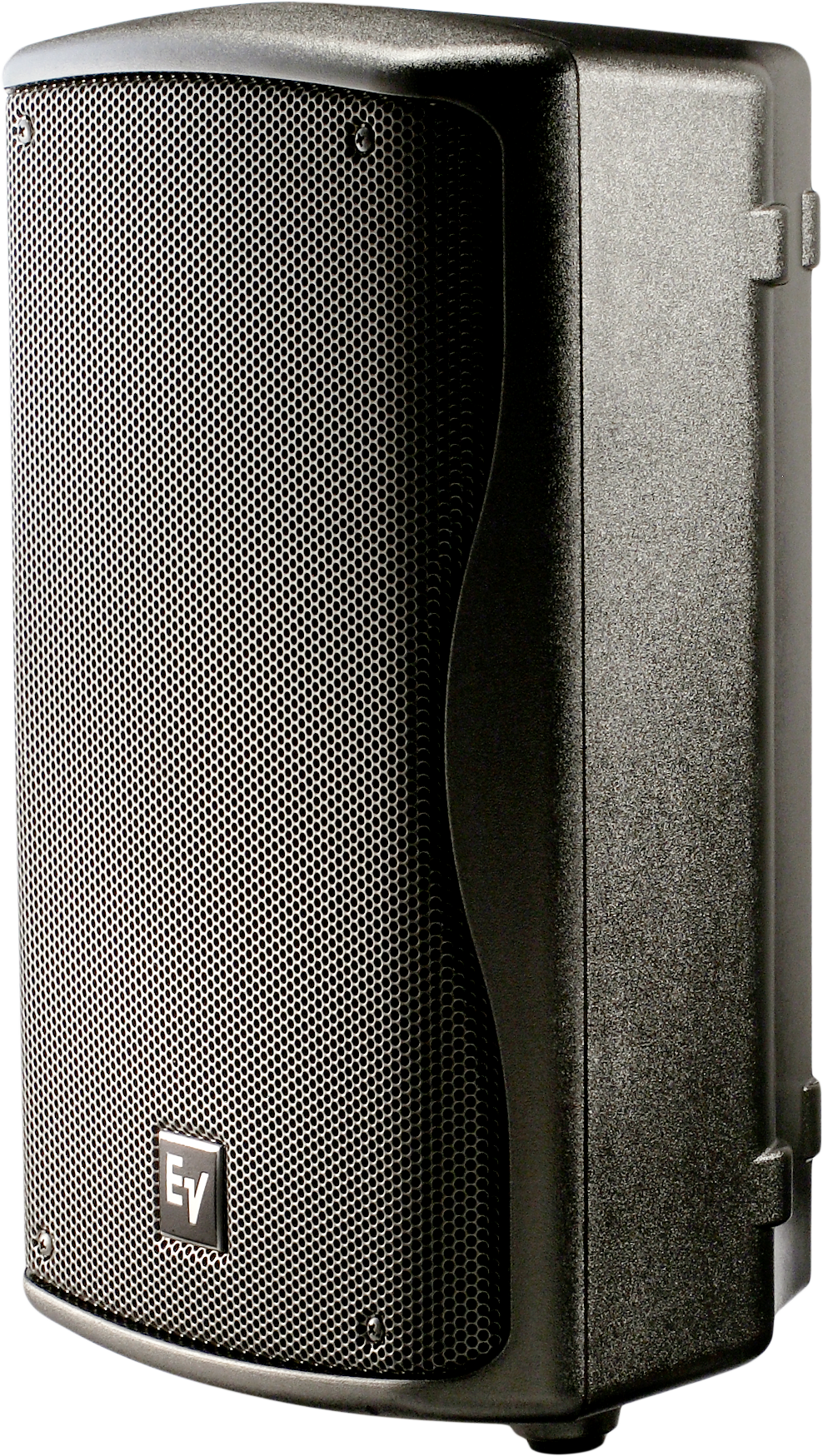

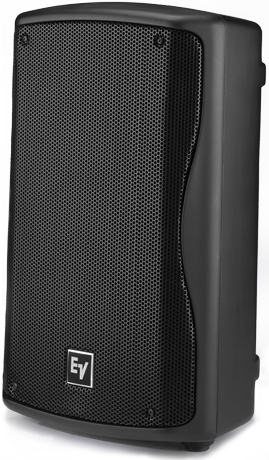

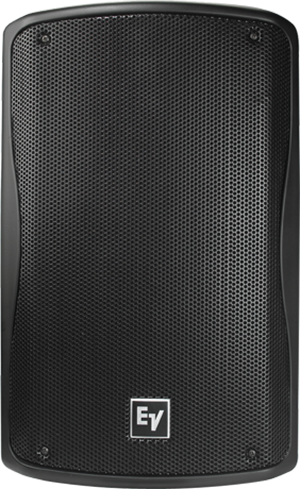

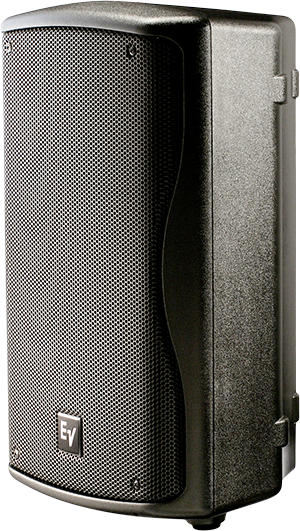

ZX1是高性能紧凑型扬声器,其轻量、耐用和精致的装配工艺确保尽可能的坚固和最佳的声学性能。

Specifications

Frequency Range (-10 dB)48 - 20000
WeatherizedNo
FlyingNo
Minimum Impedance6
Nominal Impedance (Passive)8
HF Transducer1.25-inch DH2005

Speaker TypeFull-Range, Mid-High, Two-Way, Wedges
Woofer Size8
Powered or PassivePassive
Frequency Response (-3 dB)¹60 - 20000
Max. SPL/1m (calc)²123
Coverage (Nominal -6 dB) H90
Coverage (Nominal -6 dB) V50
LF Transducer8-inch EV8L
System Power Handling (Continuous/Program/Peak)200//800
Power Rating800
Rotatable HornYes
Crossover Frequency1700
Enclosure MaterialHigh Impact Polystyrene Composite
GrillePolyester Powder Coated, 18GA Galvanized Steel
Sensitivity 1 W/1 m94
Available ColorBlack
Height457
Recommended High-Pass Frequency40
Width282
Depth264
Internal CrossoverYes
Weight Net8.4
FamilyZxZxA
Input ConnectionsParallel Neutrik® NL4
Chassis Size203.2
