RE3-ACC-CXUF Rear to front mount antenna cable kit by Electro-Voice

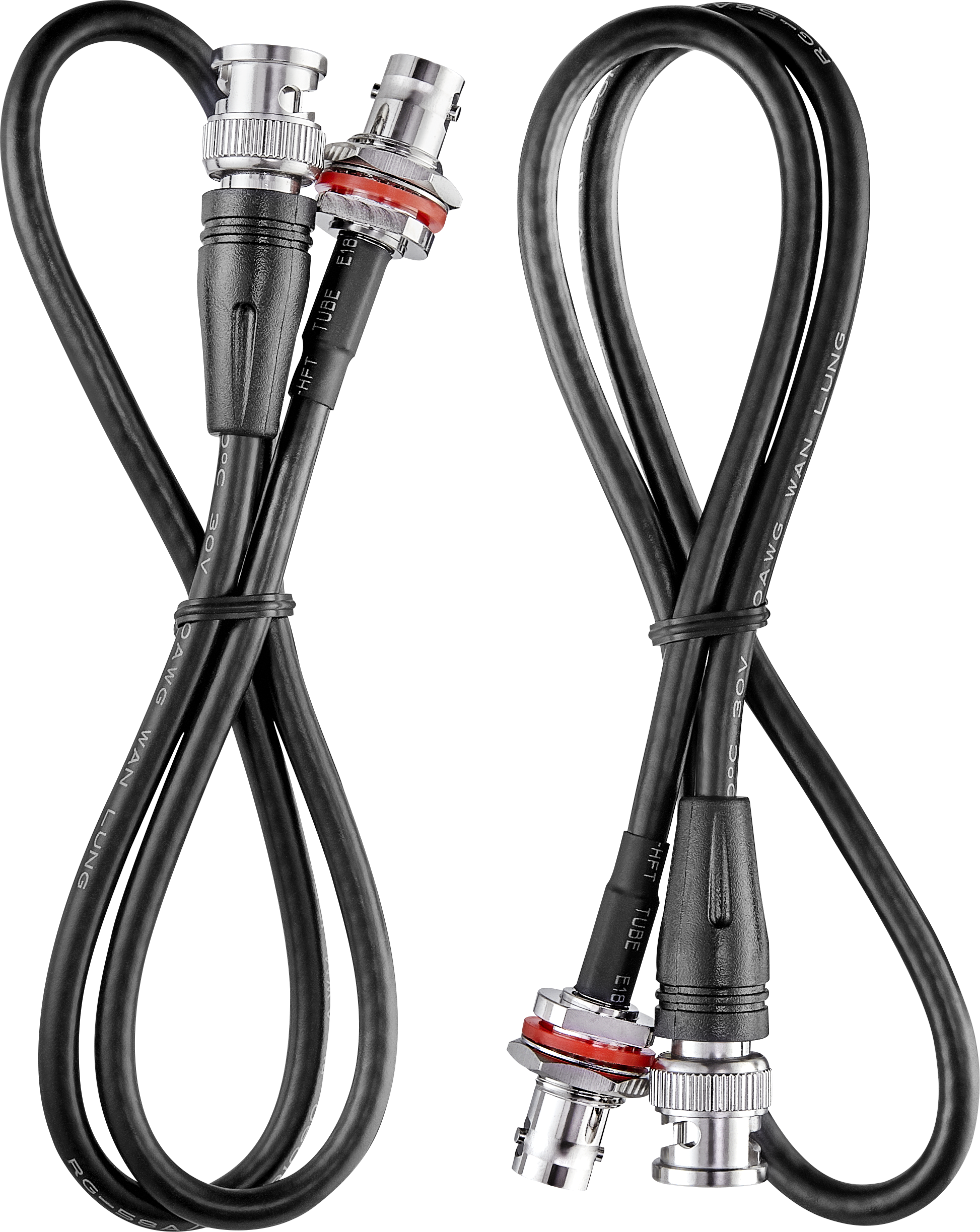

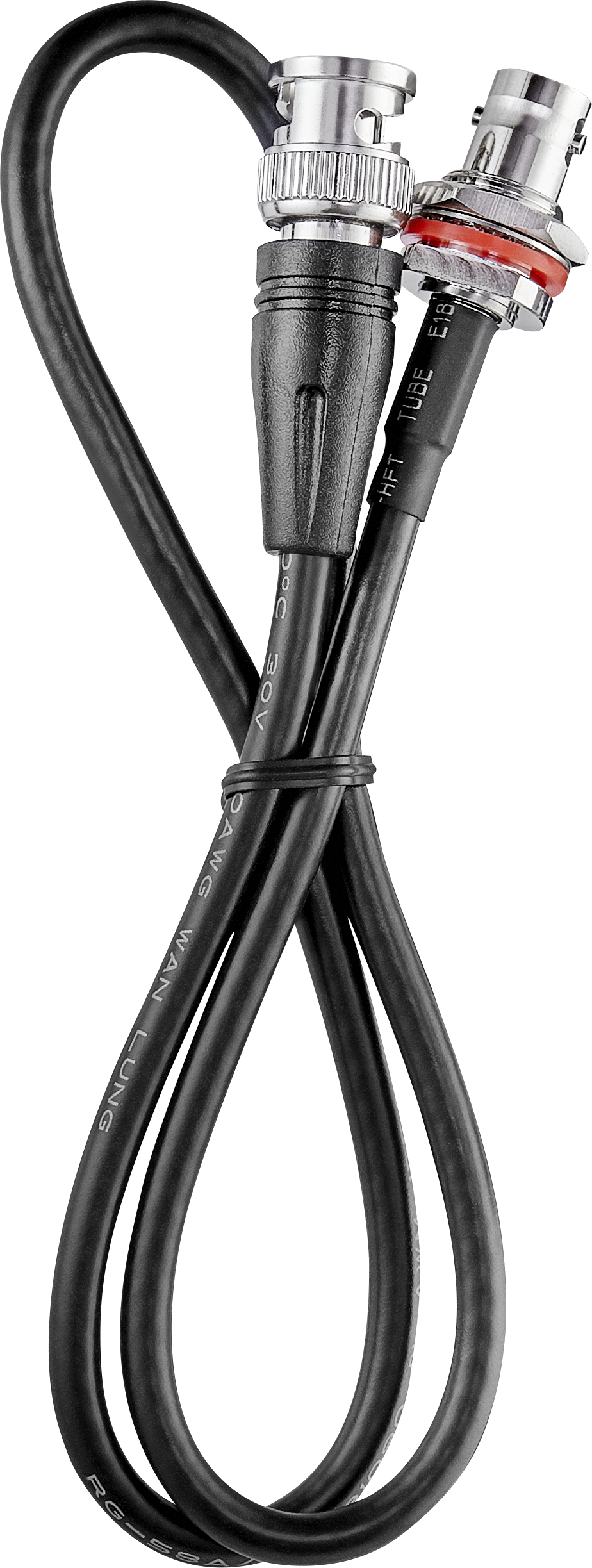

Rear to front mount antenna cable kit

  • Two high-quality RG-58 50 Ω coax cables
  • Female flange mount BNC on one end for panel mounting
  • Male BNC on other end couples to receiver antenna input jack

The CXUF is a pair of high quality, low-loss coax cables intended to relocate a wireless receiver’s antenna input jacks to the front panel of a 19” rack. The threaded flange mount connectors fit securely into the openings of either the RMK1 or RMK2 rack mounting kits for front-mounting the stock ½ wave antennas or extension coax cables. The male BNC twist-on connectors on the other ends securely connect to the receiver’s antenna A and antenna B RF input jacks.


Cable type Coaxial
Impedance 50 Ω
Length 1 meter

Connector types Male BNC twist-on on one end
Female BNC threaded flange mount on the other end
Color Black
Net weight 2 oz. (57 g)
Gross weight 2.1 oz. (61 g)
