8” two-way coaxial ceiling loudspeaker
- Low Profile 8" coaxial two-way
- Waveguide coupled Ti Tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
- Includes tile bridge and mounting ring for easy installation
- Integrated ported enclosure for extended bass response
- Ideal for ceiling spaces with tight clearance UL and CE listed

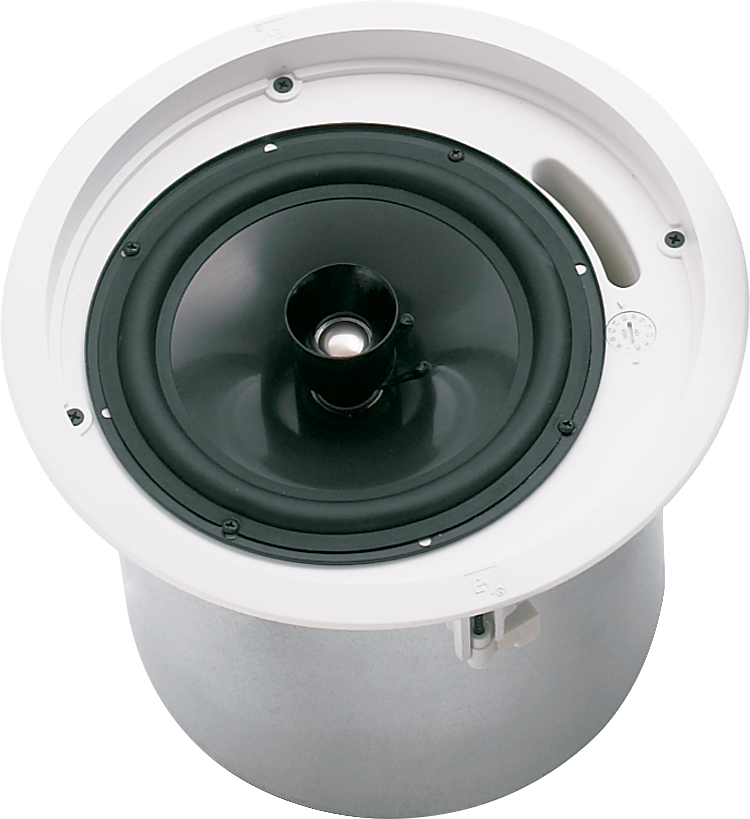

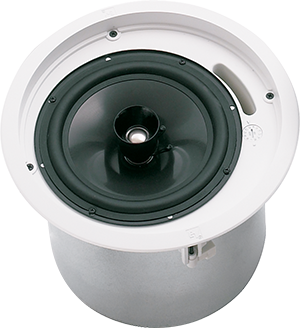

The Electro-Voice EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package.
The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C8.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel.
The low profile enclosure makes it easy to mount in tight spaces.
A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the C8.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
|Max Calculated SPL||60 watt Transformer coupled @ 4 meters: 92 dB 100 watt Direct coupled @ 4 meters: 95 dBdB|
|HF Transducer||1 in (25 mm) Ti Mylar laminate|
|LF Transducer||8 in. (200 mm) Polypropylene cone|
|Grille||Perforated powder coated steel wit safety tether|
|Dimensions (H x Dia)||7.0" x 10.6 (178mm x 270mm)|
|Cutout Size||10.75" (272mm)|
|Net Weight||11.0 lbs (5.0 kg)|
|Shipping Weight:(pair)||24.0 lbs (11.0 kg)|
|Support Hardware||Tile bridge, backing plate support cutout template, paint shield|
|Freq. Response (-10 dB)||50 Hz - 20 kHzdb|
|Power Handling||75 W Cont. / 300 W Peak|
|Sensitivity (SPL 1W/1m)||91 dB|
|Network||Network and transducers protected 12 dB/oct 2.6 kHz|
|Safety Agency Ratings||UL 1480 Safe for use in air handling spaces per UL 2043|
|Impedance||8 Ohms nominal (transformer bypass)|
|Transformer Taps||70V: 1.88, 3.75, 7.5, 15 or 30 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms|
|Connectors||Phoenix type removable, with scre terminals and "loop-thru", accepts 12 ga wire|
|Enclosure||Baffle- UL 94V-O rated AB Backcan-Zinc plated steel|
