Sx600

High output 2‑way loudspeaker

Summary & Images Specs Where to buy Downloads & Support
  • Very High Sensitivity, 105 dB 1 W/1 m (139 dB Peak SPL)
  • Easy, Versatile, SuperSAM Mounting System included
  • All Weather IEC 529 IP 44 & Mil Spec 810 Environmental Specs
  • Available 600 Watt Internal Transformer (Sx600PIX)
  • EN54-24 Type B certification 1438-CPD-0300
  • Waterproof connection by SJO cable with gland nut

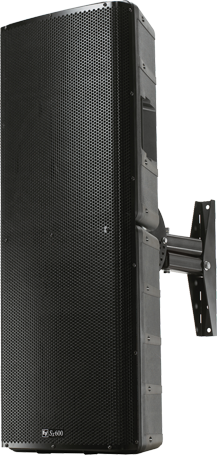

The Sx600 is a high-output, indoor/outdoor speaker system that features a dual-element vertical line array for clarity and intelligibility. The Sx600 handles 600-watts (2400 watts peak), and can be vertically mounted.

Specifications

Frequency Range (-10 dB) 70 - 16000kHz
Weatherized Yes
Flying Yes

Minimum Impedance 3.5Ω
Nominal Impedance (Passive)
HF Transducer 2-inch DH2T
Speaker Type Full-Range, Two-Way
MF Transducer ND12A
Woofer Size 12inch
Max. SPL/1m (calc)² 139dB
Coverage (Nominal -6 dB) H 65°
LF Transducer One 12-inch DL12BFH (LF), one 12-inch ND12 (MB)
Coverage (Nominal -6 dB) V 65°
Power Rating 2400W
System Power Handling (Continuous/Program/Peak) 600//2400Watts (Const.-dir. horn)
Crossover Frequency 1800Hz
Enclosure Material High Density Polymer (Composite)
Available Color Black
Sensitivity 1 W/1 m 105dB
Height 1163mm (45.79")
Width 429mm (16.89")
Recommended High-Pass Frequency 90 @Q=1.6Hz
Depth 312mm (12.28")
Internal Crossover Yes
Weight Net 36.3kg (80.03 lbs)
Family Sx
Input Connections SJO cable/gland nut
Directivity Index 11.3dB
Chassis Size 304.8 mm
Axial Sensitivity (SPL, 1 W @ 1 m) 105dB
Passive Power Handling 2400W peak

Recommended Amplifiersffs

For optimal sound system performance, Electro-Voice recommends the following amplifiers for Sx600.
